BMW E36 M3 Cooling Systems

BMW E36 M3 High-Performance All Aluminum Radiator (CSF #3054)

• 2-Row 42mm Core (Dual-Core) Featuring CSF’s Exclusive B-Tube Technology
• Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined “Quick-Connect” Inlet/Outlet Connections
• CNC Machined Brackets and Fittings for Superb Fit and Durability
• All-Aluminum Race Style Drain Plug
• Smooth Satin Finish
• “Drop-in Fit” Requiring No Modifications to Install – Accepts All Attaching OEM Components Including “Quick Connect” Hoses, AC Condenser, Mounting Brackets, and Fan Shroud

• Applications:
  • 92-95 BMW 320i (Manual Transmission)
  • 92-98 BMW 323 (Manual Transmission)
  • 92-98 BMW 325 (Manual Transmission)
  • 94-98 BMW 328 (Manual Transmission)
  • 93-99 BMW M3 (E36) (Manual Transmission)

• MSRP: $329.00 / MAP: $319.00 USD

BMW E36 M3 Euro Spec Oil Cooler

Bimmerworld Exclusive

• Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
• Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability
• Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
• 6 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
• Designed to Work with OE & CSF All-Aluminum Radiator (CSF #3054)
• OE Style Black Finish
• Accepts Factory Oil-Line Connections
• Mounts using OE Brackets or BimmerWorld Bracket Kit (#TEN3631201)
• Uses OE E36 Euro Spec Oil Cooler Lines (Pipe) – BMW PN: 17212227235

• Applications:
  • 1992-1999 BMW E36 3-Series (including M3)

• OEM Part Numbers:
  • BMW: 17212244084
    • Superseded:
      • BMW: 17212244083

• MSRP / MAP: $499.00 USD

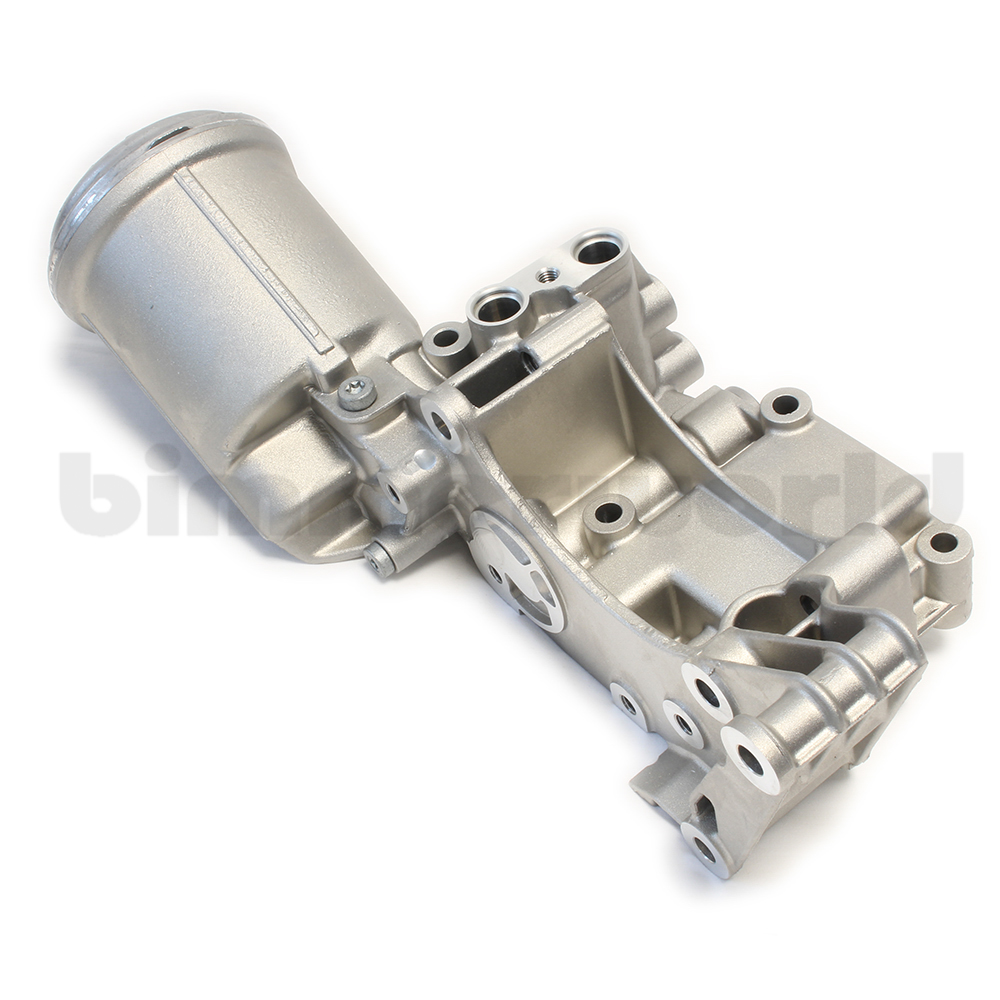

Euro Oil Filter Housing & Oil Cooler Upgrade Kit – E36 323i/325i/328i/M3, Z3/MZ3

The factory Euro oil cooler was discontinued by BMW so Bimmerworld partnered with CSF to produce a direct replacement and keep this essential E36 oil cooler upgrade alive.

Kit contents

• 1 x Euro oil filter housing
• 1 x CSF Euro oil cooler
• 1 x Genuine BMW rubber inlet/outlet oil cooler lines
• 1 x Euro oil cooler hanger kit and other mounting hardware
• 1 x Oil line adapter bolt

BMW S54 Swap High-Performance All Aluminum Radiator & Race Spec Oil Cooler Features (CSF #7211 & #8240)

#7211 – High-Performance All Aluminum Radiator

• 2-Row – 42mm Ultra-High-Performance Core
• CSF’s Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Smooth Satin Finish
• All-Aluminum Race Style Drain Plug
• Includes 2 top cover plates (black and satin) to cover the top of the radiator for a clean OEM+ look
• Includes fan brackets for use of 16 inch SPAL Fan (SPAL #30100400 – not included)
• Includes Oil Cooler Mounting Bracket for fitment of both the CSF #8240 (w/ A/C) & CSF #8032 (w/o A/C)
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Also works for BMW S50 & S52 Swaps for E30 & E36 Chassis
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

• Applications:
  • 1992-1999 BMW E36 3-Series (including M3)
    • S54 / S52 / S50 Swaps
  • 1999-2006 BMW E46 3-Series (excluding M3)
    • S54 Swaps

• MSRP: $529.00 / MAP: $499.00 USD

#8240 – Race Spec Oil Cooler

• Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
• Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability
• Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
• 8 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
• Designed to Work with CSF’s S54 Swap All-Aluminum Radiator (CSF #7211)
• Motorsport Silver Finish
• Accepts Factory Oil-Line Connections
• For S54 Swap Vehicles with Air Conditioning (A/C)
• For S54 Swap Vehicles without Air Conditioning (A/C) see CSF #8032

• MSRP: $529.00 / MAP: $499.00 USD

#8241 – Oil Line -10 AN Adapter Fitting

• Fits both CSF #8240 and CSF #8032 Oil Coolers
• Fits S54 Engine Side Flange
• Requires Qty. 2 for complete AN line conversion
• Accepts -10 AN Female Line Fittings
• Bracket made of CNC Billet Aluminum

• MSRP / MAP: $79.00 USD

---
