Bar & Plate Intercooler Cores

Specs

  • Heavy-Duty Bar & Plate Intercooler Cores
  • Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
  • Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
  • Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
  • Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
  • Batch Brazed in CSF’s State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
  • Strict Quality Control and Quality Testing, Including Individual Pressure Testing
  • Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services

Papadakis Racing Uses Air-to-Air Bar & Plate CSF Cores for New Supra GT3 Build (CSF #8063)

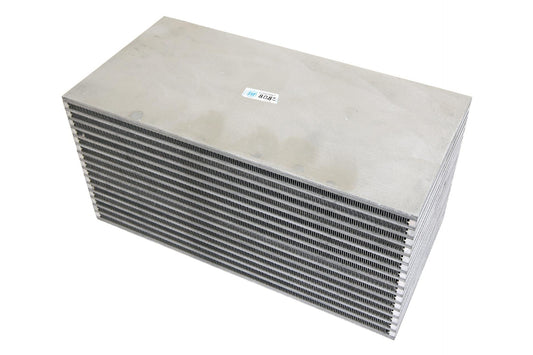

1800+HP Twin Turbo Lamborghini Engine featuring two CSF #8085 Cores

Intercooler Core Size Table

Intercooler Core Sizes

CSF# Length (in) Height (in) Width (in) Note HP Rating

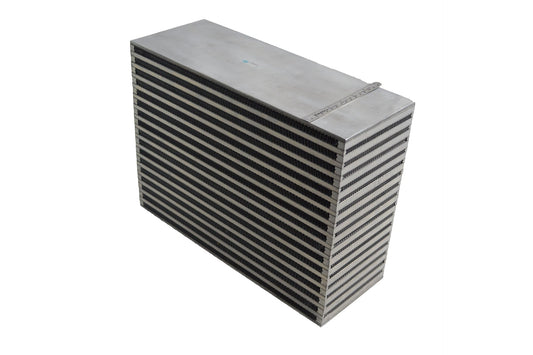

8040 18" 12" 6" 1300

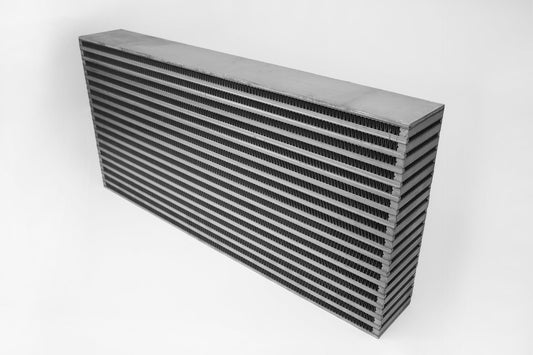

8045 25" 12" 3.5" 1000
8046 25" 12" 4.5" 1200
8047 22" 12" 3.5" 850
8048 18" 12" 4.5" 1000

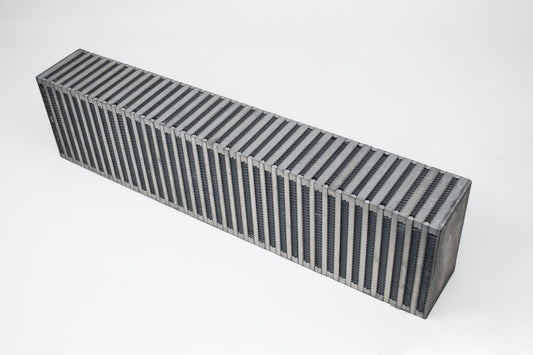

8053 24" 6" 3.5" Vertical Flow 800

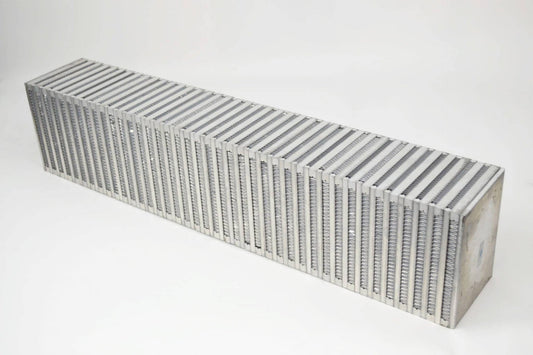

8054 27" 6" 4.5" Vertical Flow 1100

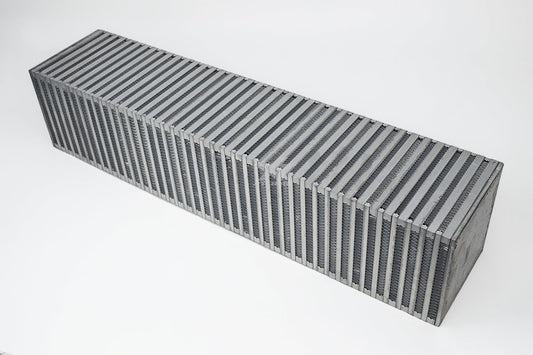

8055 27" 6" 6" Vertical Flow 1400

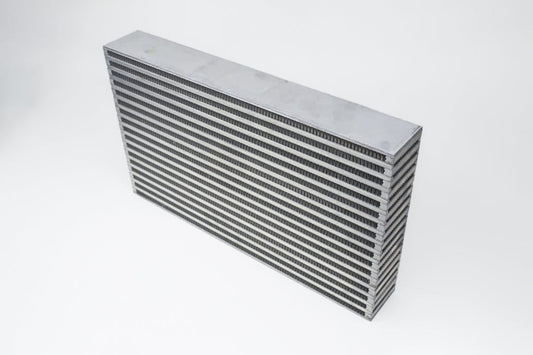

8056 20" 12" 3" 700

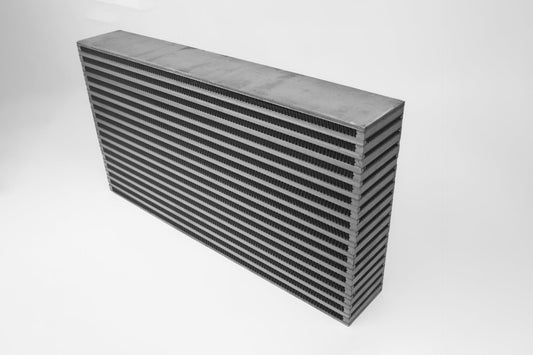

8063 20" 12" 4" 850
8067 24" 12" 3" 850
8068 27" 6" 3" Vertical Flow 800

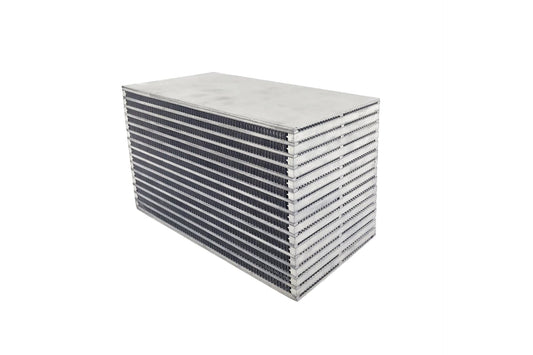

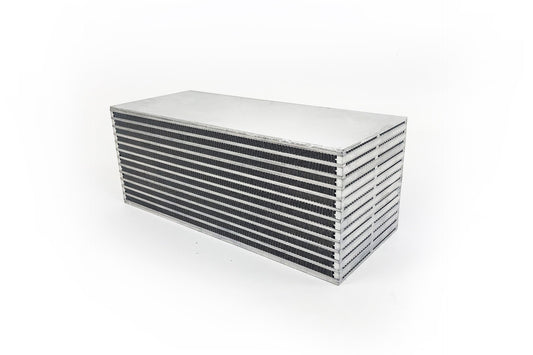

8084 12" 5" 5" Air-to-Water 1000
8085 12" 6" 6" Air-to-Water 1500

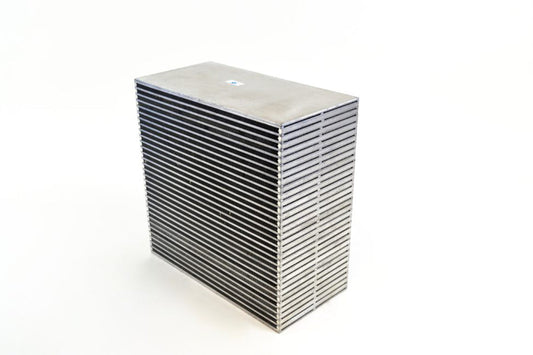

8086 12" 12" 6" Air-to-Water 2000

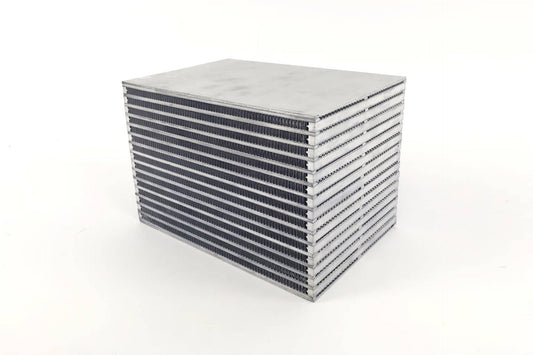

8113 8.5" 6" 6" Air-to-Water 1000

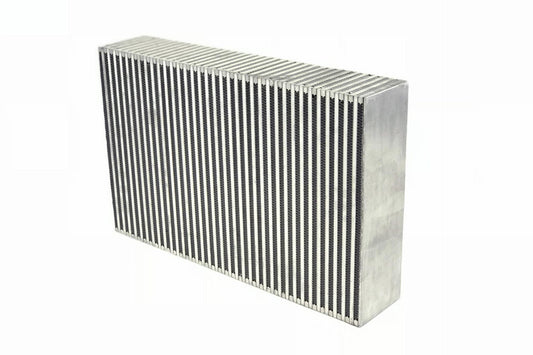

8117 22" 14" 4.5" Vertical Flow (R35 GT-R Fitment) 1500

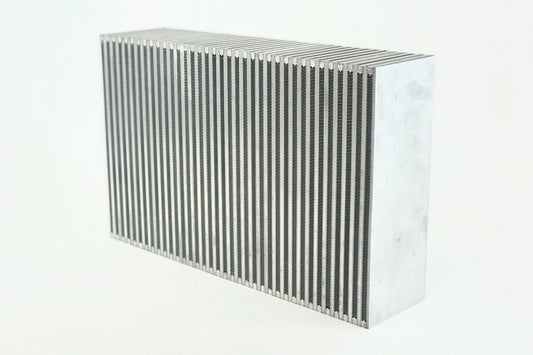

8117W 22" 14" 5.5" Vertical Flow (R35 GT-R Fitment) 2000+

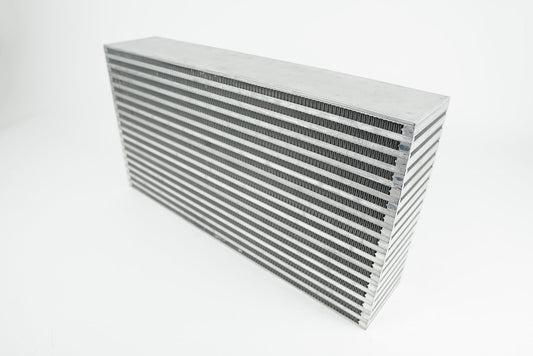

8173 22" 12" 4.5" 1000

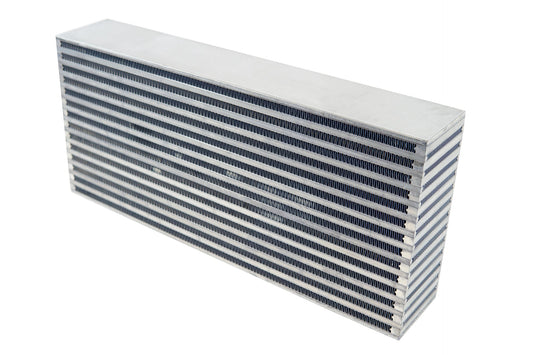

8174 22" 10" 4" 900
8134 8.5" 4.5" 6" Air-to-Water 800
CSF# Length (mm) Height (mm) Width (mm) Note HP Rating
8040 455mm 300mm 150mm 1300
8045 635mm 300mm 90mm 1000
8046 635mm 300mm 115mm 1200
8047 560mm 300mm 90mm 850
8048 455mm 300mm 115mm 1000
8053 610mm 150mm 90mm Vertical Flow 800
8054 685mm 150mm 115mm Vertical Flow 1100
8055 685mm 150mm 150mm Vertical Flow 1400
8056 505mm 300mm 75mm 700
8063 510mm 300mm 100mm 850
8067 610mm 300mm 75mm 850
8068 685mm 150mm 75mm Vertical Flow 800
8084 305mm 123mm 125mm Air-to-Water 1000
8085 305mm 150mm 150mm Air-to-Water 1500
8086 305mm 303mm 150mm Air-to-Water 2000
8113 215mm 150mm 150mm Air-to-Water 1000
8117 560mm 355mm 115mm Vertical Flow (R35 GT-R Fitment) 1500
8117W 560mm 355mm 140mm Vertical Flow (R35 GT-R Fitment) 2000+
8173 560mm 300mm 115mm 1000
8174 560mm 250mm 100mm 900
8134 215mm 115mm 150mm Air-to-Water 800
CSF# Length (in) Height (in) Width (in) Note HP Rating
8040 17.913" 11.811" 5.906" 1300
8045 25.000" 11.811" 3.543" 1000
8046 25.000" 11.811" 4.528" 1200
8047 22.047" 11.811" 3.543" 850
8048 17.913" 11.811" 4.528" 1000
8053 24.020" 5.910" 3.543" Vertical Flow 800
8054 26.970" 5.910" 4.530" Vertical Flow 1100
8055 26.970" 5.910" 5.906" Vertical Flow 1400
8056 19.890" 11.811" 2.950" 700
8063 20.080" 11.811" 3.937" 850
8067 24.020" 11.811" 2.950" 850
8068 26.970" 5.910" 2.950" Vertical Flow 800
8084 12.007" 4.843" 4.921" Air-to-Water 1000
8085 12.007" 5.906" 5.906" Air-to-Water 1500
8086 12.007" 11.929" 5.906" Air-to-Water 2000
8113 8.464" 5.906" 5.906" Air-to-Water 1000
8117 22.047" 13.976" 4.528" Vertical Flow (R35 GT-R Fitment) 1500
8117W 22.047" 13.976" 5.512" Vertical Flow (R35 GT-R Fitment) 2000+
8173 22.047" 11.811" 4.528" 1000
8174 22.047" 9.843" 3.937" 900
8134 8.46" 4.53" 5.91" Air-to-Water 800

Don’t see the size you’re looking for?

Don’t see the size you’re looking for?

For orders of at least 30 pieces at a time, contact CSF to discuss custom intercooler cores.

Need less? Still feel free to contact us with your inquiry – maybe we’ll add the core to our range in the future.

  • Different Core Configurations Available
  • Bar/Plate & Tube/Fin Options Available
  • Ability to Produce Complete Intercooler Assemblies with Cast Endtanks (MOQ 50)
  • Quality Control – Leak Pressure Tested Before Packaging to Ensure a Defect-Free Product
  • Design, Engineering, and Testing Services Also Available to Help Bring Your Project to Market

Contact Us For More Information >
