The Ultimate Cooling Solution

For The BMW S58 Motor

The S58 motor is a tuners dream capable of incredible power on stock internals and bolt on modifications. However, power always comes at the cost of producing more heat. CSF offers a variety of cooling systems to keep your temperatures in check. The Cooling Experts at CSF design and manufacture the ultimate cooling solutions for BMW.


BMW G8X M3/M4 Cooling Products

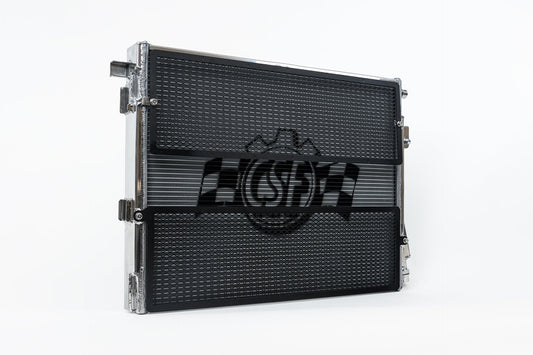

BMW G8X M3/M4 High-Performance Heat Exchanger
CSF #8215

  • Significantly Reduces Intake Air Temperatures (IATs) for Maximum Performance (with Faster Heat Soak Recovery)
  • Improves Air Flow to the Rest of the Cooling System for Lower Engine Coolant and Engine Oil Temperatures
  • 2-Row, 42mm Ultra-High-Performance Core
  • 6.5mm Tall Multi-Louvered Fin with CSF’s Exclusive B-Tube Technology
  • CNC Machined Mounting Brackets and OEM Style “Quick Connect” Inlet/Outlet
  • 100% All Aluminum TIG-Welded Construction
  • Includes Black Rock Guards (upper and lower) & Transmission Cooler Mounting KitUpper and Lower Rock Guards for Manual Transmission
  • Upper Rock Guard and Transmission Cooler Mounting Kit for ZF8 Auto
  • True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
  • 2-Year Limited Warranty
  • 1-Hour “Mirror Finish” Hand Polish
  • Tested and Proven by CSF’s Global Network of R&D Partners, Including Leading Time Attack Teams, Tuners, and Turbo Kit Manufacturers
  • Applications:
    • 2021+ BMW G80 M3 (incl. Competition) – 6MT & ZF8 Auto
    • 2021+ BMW G82/G83 M4 (incl. Competition) – 6MT & ZF8 Auto
  • OEM Part Number:
    • BMW: 17-11-8-095-283
  • MSRP/MAP: $699 USD

Where to Buy

Please contact an authorized CSF dealer or distributor to order.

CSF’s Preferred Dealer
PSI Logo White Wide

BMW S58 “Level-Up” Charge-Air-Cooler Manifold
CSF #8233/8233B/8233C

  • Faster recovery of Intake Air Temperatures (IATs)
  • ~30°F reduction of Intake Air Temperatures (IATs) compared to OEM
  • Less pressure drop compared to OEM core
    • Puts less stress on the turbo system and allows more boost to be made at higher target power levels
  • Ultra strong CNC Billet construction replaces weak plastic tanks with crimped-on gasket sealing core.
  • High performance bar/plate intercooler core by PWR pressure tested to 120psi
    • OEM cooler is a tube/fin core which is prone to failing at pressures over ~27psi
  • Top feed port injection w/ included fuel rail (w/ CNC machined block-off caps included for non-use)
  • Integrated Nitrous/Methanol Injection Ports
    • Individual ports for each runner for maximum control
  • Integrated vacuum and parameter pad to measure additional parameters
  • Easy access to spin-off oil filter
  • Integrated breather port for easy bleeding of air from the water side of the manifold
  • Included KIYLEX Thermal Rejection Manifold Spacer
    • Made from KIYLEX® – A patented revolutionary high-performance final stage polymer
    • Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
    • Proven to lower intake manifold temperatures by up to 15%
    • Lowers Intake Air Temps (IATs)
  • All necessary brackets, hardware, and instructions to install

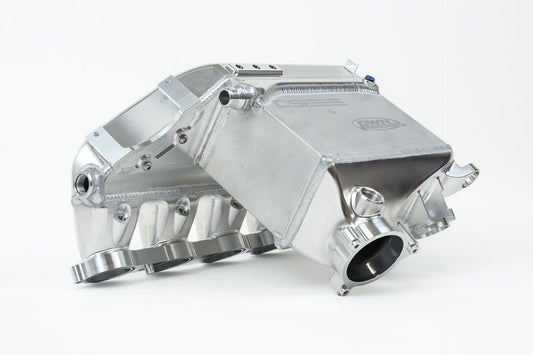

  • Raw Billet Aluminum Finish (#8233)

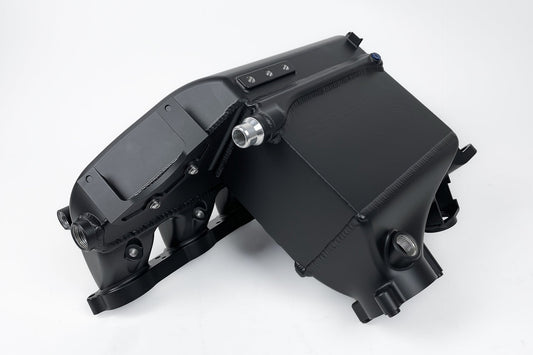

  • Thermal Black Heat Dispersion Powder-Coating Finish (#8233B)
  • Available in custom colors from the leader in BMW cooling customization (#8233C)
  • True Plug-and-Play “Drop-in Fit” Installation – Requires Absolutely No Modifications.
  • OEM level of fit and finish
  • Limited Lifetime Warranty
  • Applications:
    • 2021+ BMW G80 M3 (incl. Competition) – 6MT & ZF8 Auto
    • 2021+ BMW G82/G83 M4 (incl. Competition) – 6MT & ZF8 Auto
    • 2020+ BMW F97 X3 M (incl. Competition)
    • 2020+ BMW F98 X4 M (incl. Competition)
  • OEM Part Number:
    • BMW: 17-51-8-092-584
    • BMW: 17-51-8-053-321
  • MSRP/MAP
    • #8233 – $6,599.00 USD
    • #8233B/8233C – $6,995.00 USD

Where to Buy

Please contact an authorized CSF dealer or distributor to order.

CSF’s Preferred Dealers


Thermal Black Heat Dispersion Powder-Coating – CSF #8233B

CSF’s most popular custom finish, Thermal Black Heat Dispersion Powder-Coating is now available as a standard finish option. This offers faster turn around time for orders and some dealers/distributors stocking this finish option.

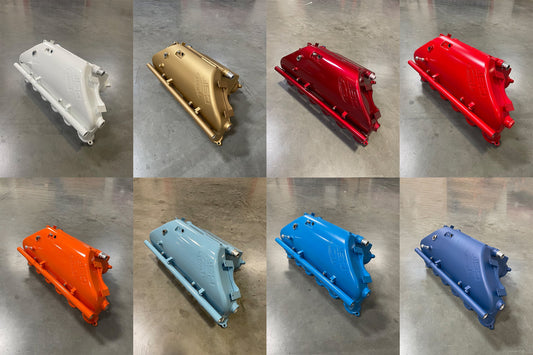

Custom Powder-Coating & Thermal Rejection Finishes – CSF #8233C

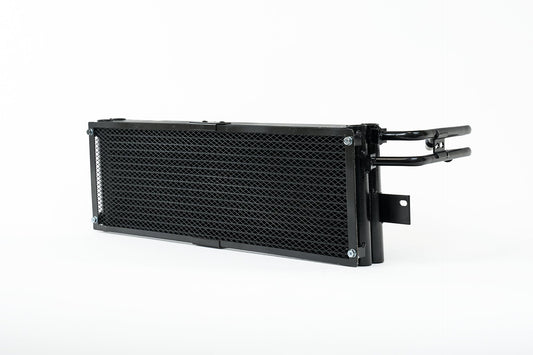

CSF G8X M3/M4 ZF8 Automatic Transmission Oil Cooler
CSF #8221 (Coming Soon)
