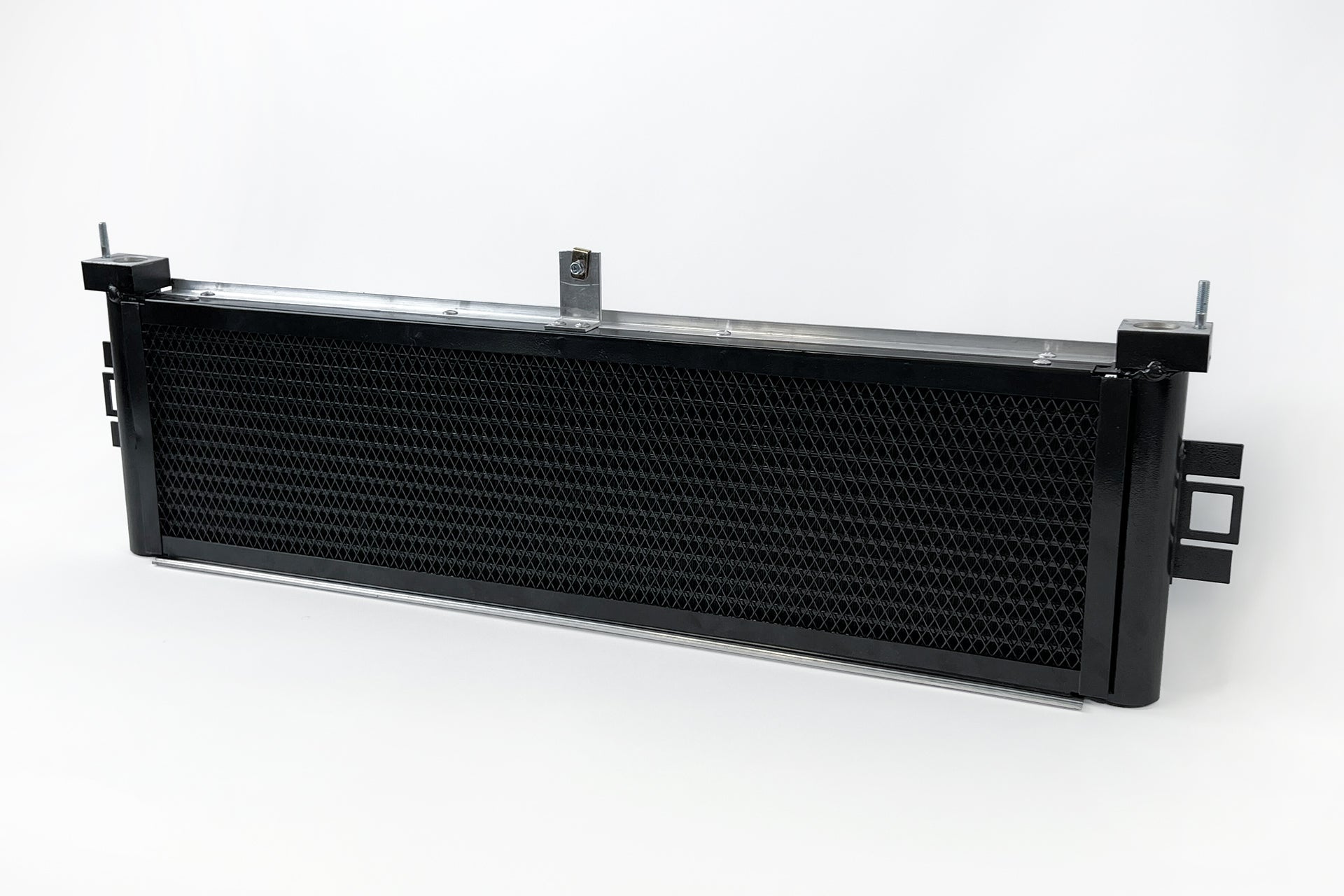

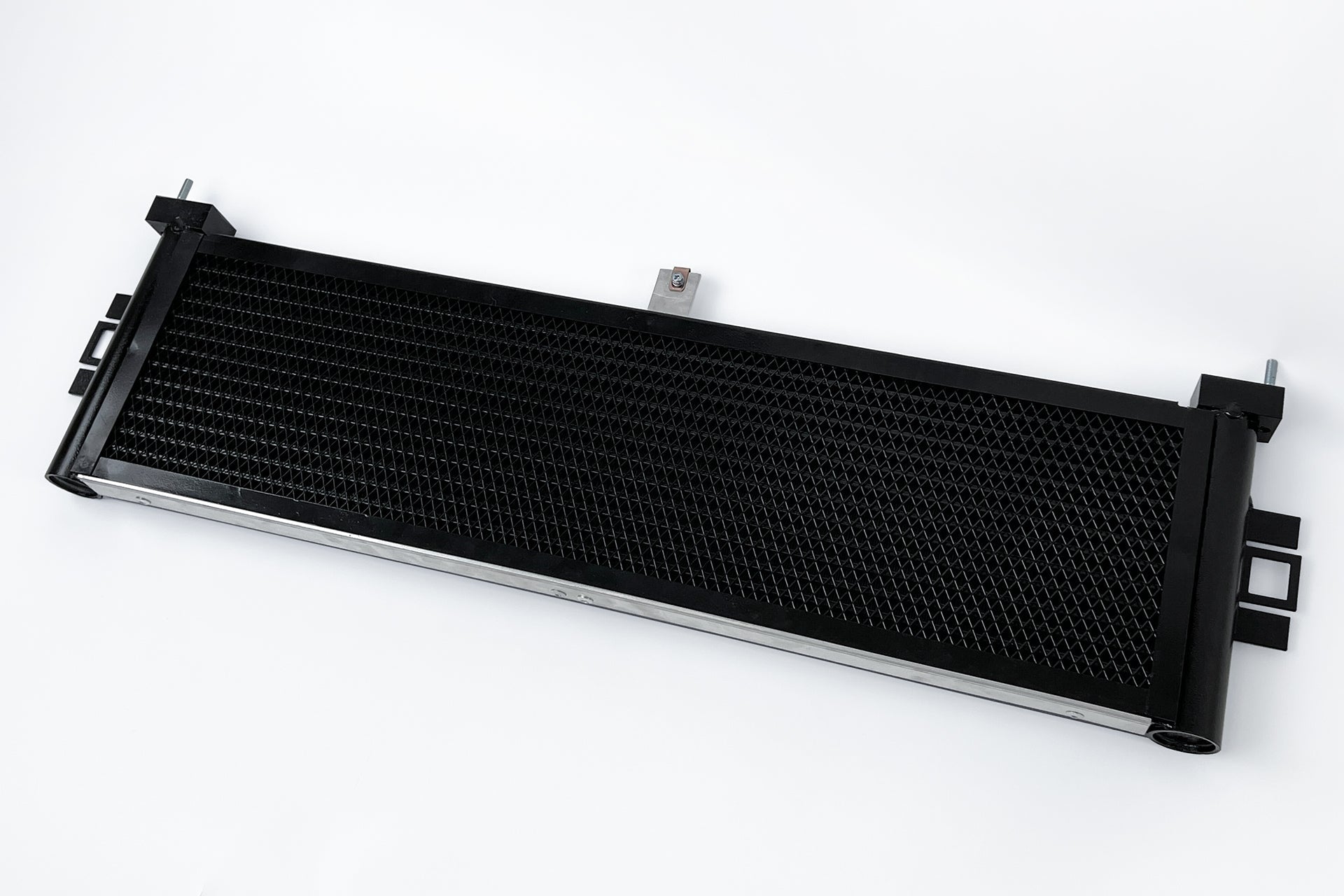

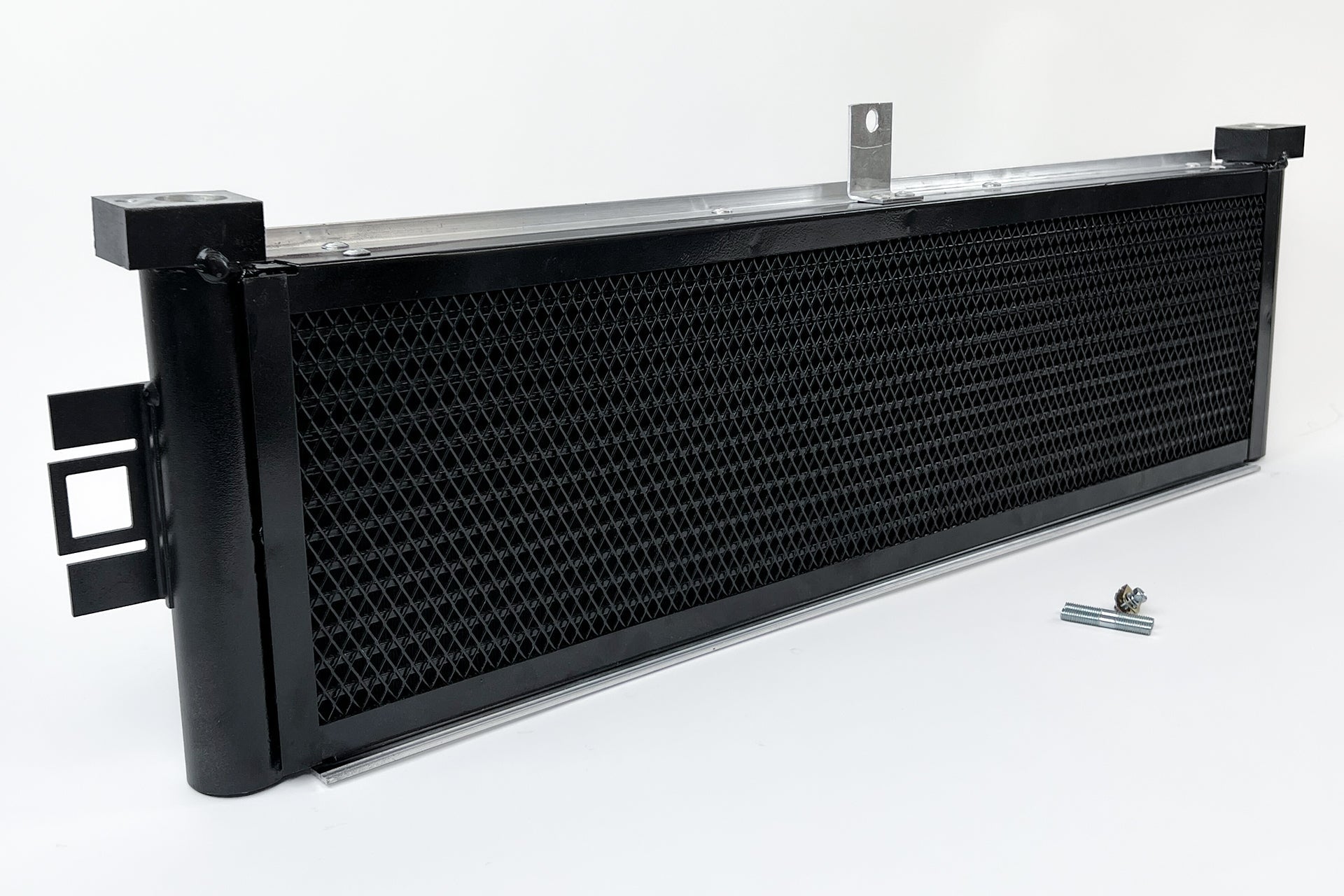

BMW G8X M3/M4/M2 High-Performance Engine Oil Cooler

Click Here for the Full Press Release & Additional Product Details

The CSF Engine Oil Cooler is a great addition to the massively successful G8X Cooling Suite. Like the other cooling systems on the G8X, the factory oil cooler does a pretty good job in stock form. However, once you start adding a lot of power and pushing the car in aggressive driving conditions, the factory systems start to show its limitations. As more and more owners have pushed the limits of their S58, CSF is here to keep them cool.

With many motorsports teams and race enthusiasts now pushing over 800 horsepower, the S58 is seeing oil temperatures well above normal. Once oil temperatures pass a safe limit the G8X will go into limp mode. Needless to say this can ruin a race, track session, or your overall driving fun in general. CSF is here to keep your S58 running at peak performance.

Product Details

Design & Engineering

When designing this new cooler, CSF wanted to ensure the best possible performance with factory like fitment. This oil cooler is a truly unique design using CSF's AC Condenser Technology. The 1-Row Super-High Pressure 32mm 10-Channel Microtube provides optimal oil flow and maximum surface area contact.

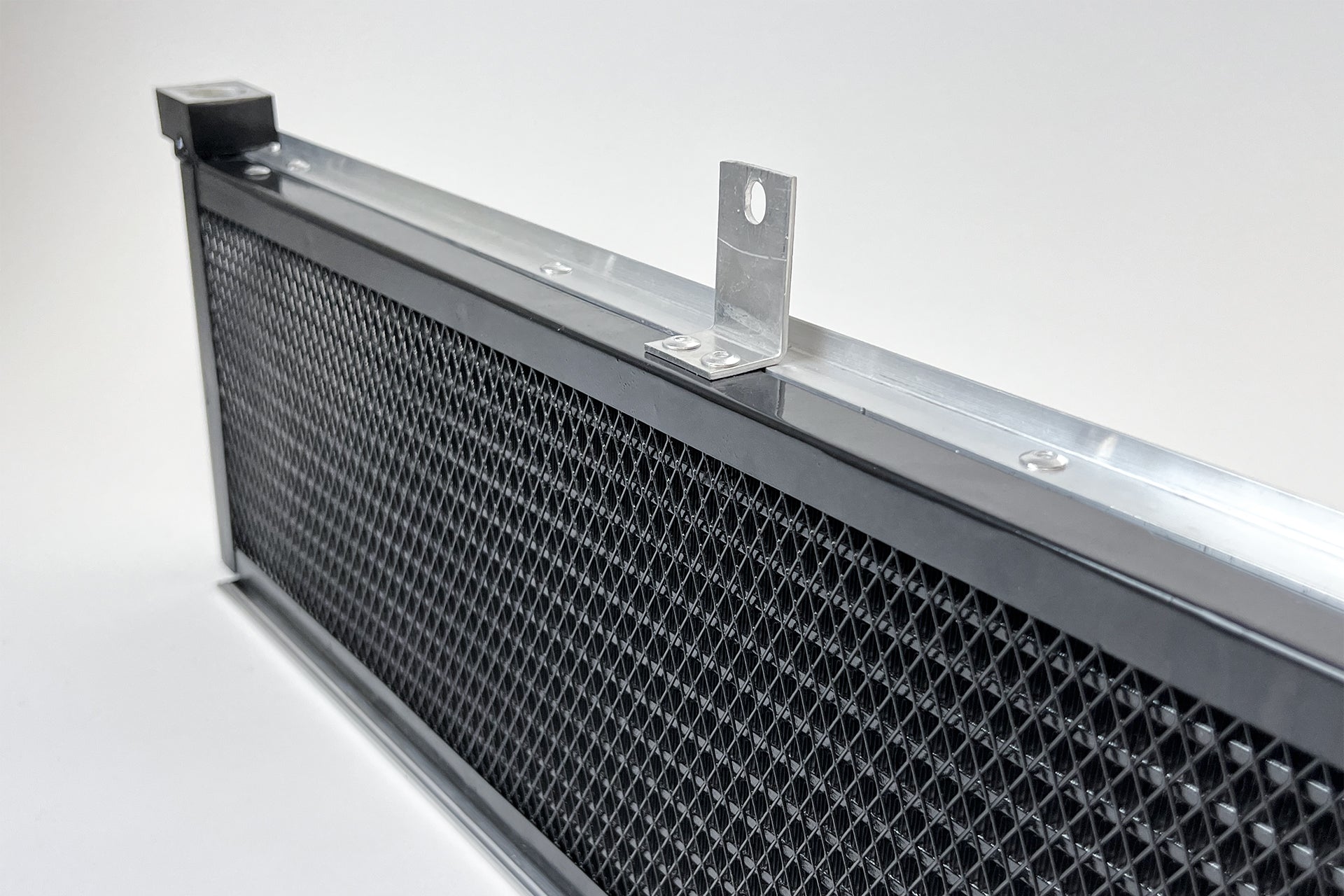

By keeping the factory mounting location and relative dimensions, the factory ducting and shrouds are all reused with no modifications necessary. In addition, CSF added a rock guard to keep the cooler safe. You've no doubt heard horror stories about an OEM cooling getting punctured and spilling oil all over the road or track. Now you can feel safer and more confident that your oil system is safe from road debris.

With many motorsports teams and race enthusiasts now pushing over 800 horsepower, the S58 is seeing oil temperatures well above normal. Once oil temperatures pass a safe limit the G8X will go into limp mode. Needless to say this can ruin a race, track session, or your overall driving fun in general. CSF is here to keep your S58 running at peak performance.

Track Tested

Like all CSF products, the new G8X Engine Oil Cooler was designed to meet the needs of track enthusiasts and motorsports teams. Velocity Performance in Canada runs the full CSF 4-Piece Cooling Package on their Time Attack G82 M4. This car has taken home several 1st place finishes and even set a class record in the Ontario Time Attack series.

Cooling is a huge factor is any type of racing and CSF is leading the way in the largest available cooling packages for the BMW G8X platform.

Nürburgring Testing

Evolve Automotive tested their BMW G87 M2 CSL build equipped with the CSF G8X Engine Oil Cooler on the Nürburgring.

FULL SEND in Evolve BMW G87 M2 CSL! // Nürburgring

Features

• 8mm Tall Multi-Louvered Fin vs. OEM 6mm
• Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 32mm 10-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
• Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow

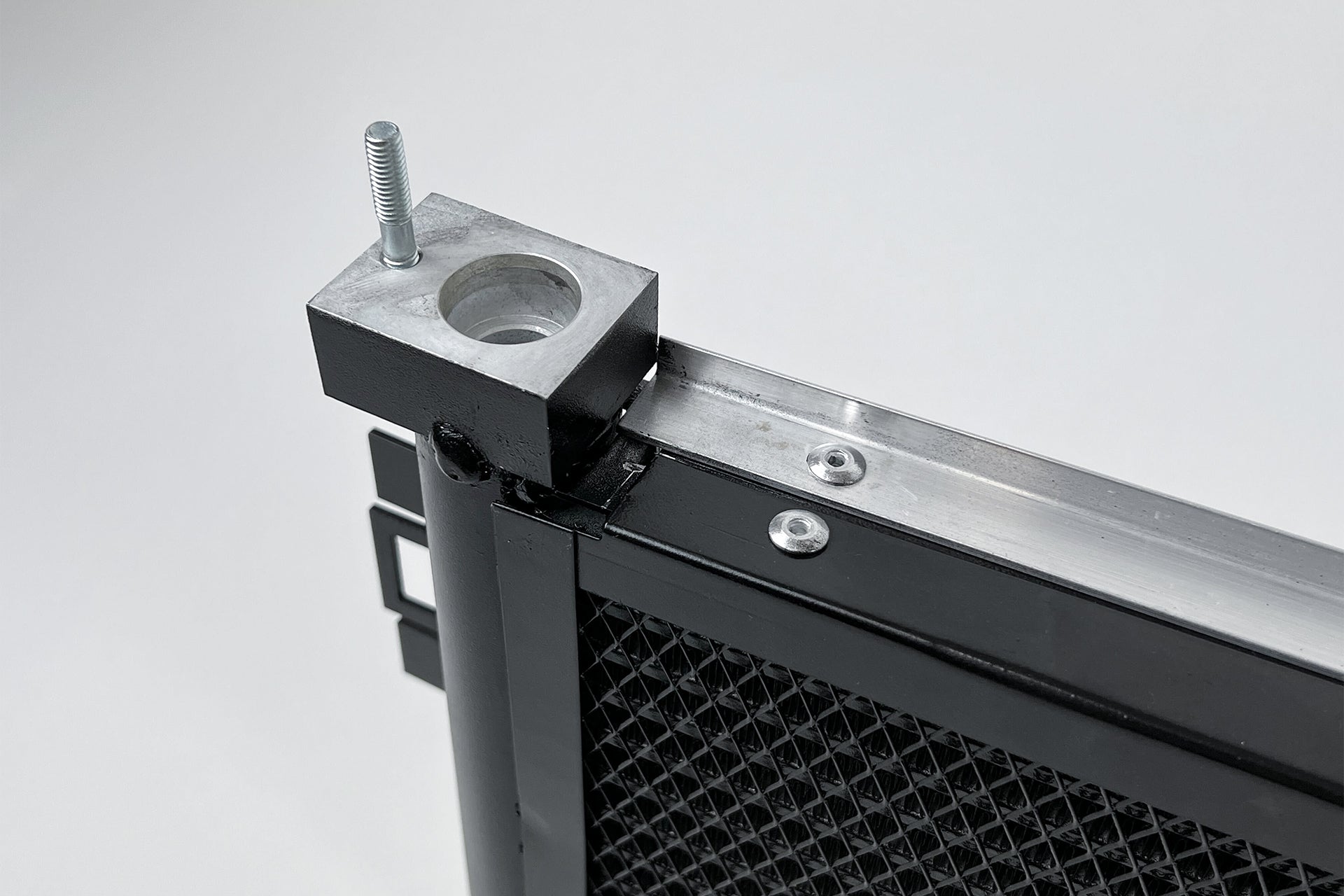

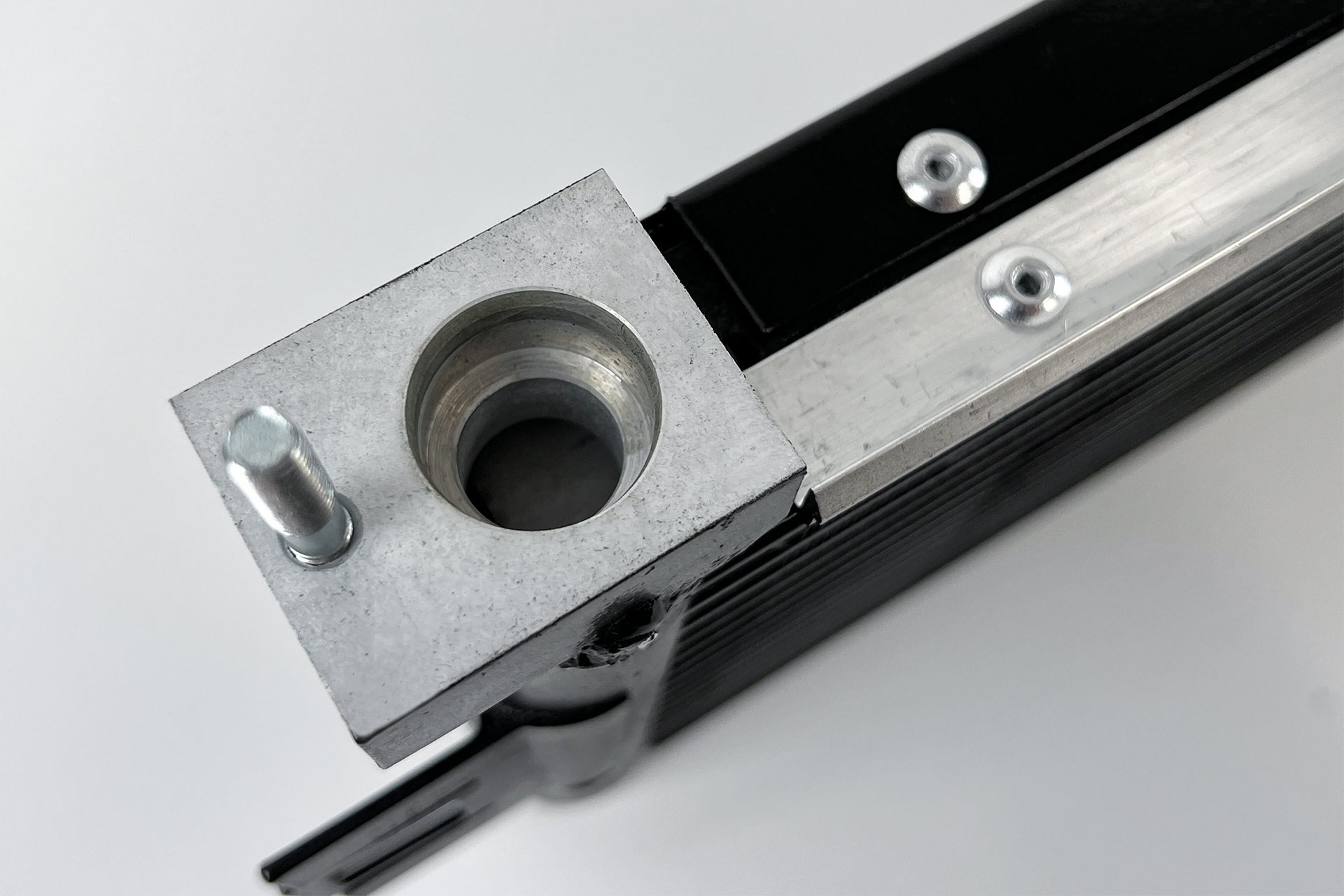

• OEM Style Inlet/Outlet Connections
• Drop-in Fit Requires No Modifications to Install
• 2-Year Limited Warranty
• Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance

Applications

Year Range	Make	Chassis Code	Model	Trim	Engine / Trans / Etc	Notes
2023-2025	BMW	G87	M2	-	Turbocharged 3.0L L6	-
2021-2025	BMW	G8X	M3	-	Turbocharged 3.0L L6	-
2021-2025	BMW	G8X	M3	Competition	Turbocharged 3.0L L6	-
2022-2025	BMW	G8X	M3	Competition xDrive	Turbocharged 3.0L L6	-
2024-2025	BMW	G8X	M3	CS	Turbocharged 3.0L L6	-
2021-2025	BMW	G8X	M4	-	Turbocharged 3.0L L6	-
2021-2025	BMW	G8X	M4	Competition	Turbocharged 3.0L L6	-
2021-2025	BMW	G8X	M4	Competition xDrive	Turbocharged 3.0L L6	-
2023-2025	BMW	G8X	M4	CSL	Turbocharged 3.0L L6	-

OEM Part Numbers

• BMW: 17 11 8 095 293
• BMW: 17 21 8 095 297
• BMW: 17-11-8-095-293
• BMW: 17-21-8-095-297
• BMW: 17118095293
• BMW: 17218095297
• BMW: 17 21 5 A4D F50
• BMW: 17-21-5-A4D-F50
• BMW: 17215A4DF50

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 8266 Warranty Term: 2 years
