Jackson Racing FK8 Honda Civic Type R High-Performance All-Aluminum Radiator

While out of the box, the FK8 CTR is an incredibly well engineered vehicle, it still has its shortcomings. The factory cooling system is more than capable of keeping up with spirited driving and a daily commute. However, it starts to show its limitations when pushed hard on the track or when tuning is involved. From a quick flash tune to full big turbo builds, better cooling will always be beneficial.

The first radiator CSF developed for the FK8 was a motorsport/competition version designed in collaboration with HPD, now Honda Racing Corporation (HRC). However, this design required the removal of the A/C system and was used primarily on the FK8 Type R TC and TCR Factory Racecars.

CSF's industry / R&D partners at Jackson Racing wanted to offer a radiator with the best possible cooling performance but retained the factory A/C system. The result is the largest and highest performance drop-in fit radiator on the market for the FK8.

Product Details

Design & Engineering

Jackson Racing (JR) has 45+ years of experience with Honda Performance and have been long time partners of CSF. The FK8 CTR Radiator is just one of many premium cooling products CSF and JR have developed over the years. Once again, this partnership has raised the bar in cooling performance.

Key Features:

• 55% larger core vs OEM
• Unique forward mounting provides maximum rear clearance for large fans and airflow
• Fits with the Jackson Racing Fan Shroud Kit or OEM Fan Shroud
• Fits with the OEM factory A/C Condenser

Jackson Racing (by CSF) vs OEM

The original OE radiator from Honda uses plastic tanks with a single row aluminum core. While this is generally accepted as good quality and durable, it is not the best option for high horsepower builds and hard driving. Turbo cars get hot, and the K20C1 is no exception. Anything you can do to help keep temperatures in check will improve longevity of your motor and components.

The Jackson Racing Radiator features a larger 2-Row 42mm aluminum core which greatly increases the core volume compared to the OE 27mm core. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. Overall, testing has revealed that the CSF radiator decreases engine coolant temperatures by 6-8% compared to the factory radiator.

Optional Fan Shroud Kit

If you are in need of even more cooling performance, Jackson Racing offers an optional Fan + Shroud upgrade. This kit increases the CFM of air moved over the radiator by 30% compared to OEM with the use of a 12” SPAL High Output Fan.

Jackson Racing Fan Shroud Kit - 5200-10-J01

Features

• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
• 55% larger core vs OEM (42mm vs 27mm) for Increased cooling capacity
• Unique forward mounting provides maximum rear clearance for large fans and airflow
• Fits with OEM A/C Condenser
• Fits with JR Fan Shroud Kit
• Direct OEM replacement
• Developed in partnership with CSF for maximum cooling and premium fitment
• Satin Finish

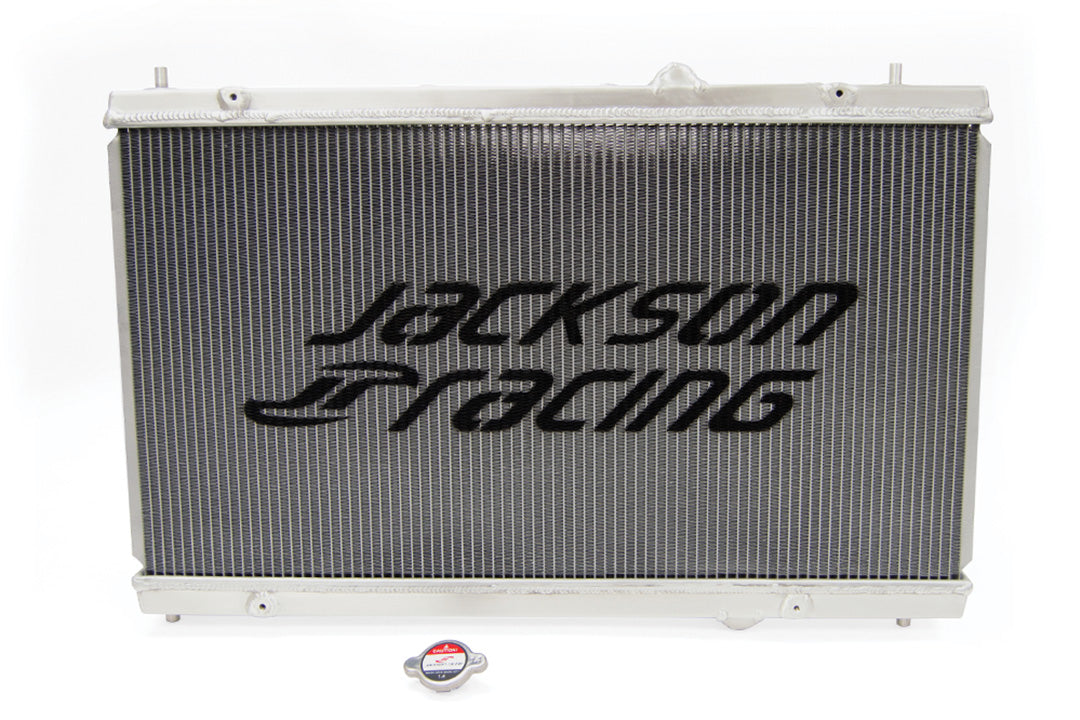

• High pressure 1.4bar radiator cap included
• Individually Leak and Pressure Tested

Applications

OEM Part Numbers

• Honda: 19010-5BF-A01
• Honda: 19010 5BF A01
• Honda: 190105BFA01
• Honda: 19010-5BF-A11
• Honda: 19010 5BF A11
• Honda: 190105BFA11

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 5100-10-J01 Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
