529 Innovations E888 Oil Cooler - Variant 3

Name: 529 Innovations E888 Oil Cooler - Variant 3
Brand: 529 Innovations
SKU: 529I-E888-V3-8340
Price: 984.00 USD
Availability: InStock

SKU# 529I-E888-V3-8340

MSRP/MAP: $984.00 USD

$984.00 USD

Sale Sold out

Where to buy

Shop 529 Innovations

View full details

529 Innovations teamed up with iABED Industries and CSF to make their Oil Cooler Kits for use on A3/S3, TT/TT-S, Golf/GTI, and Jetta with the EA888.3 & EA888.4 engines These kits have been track tested and proven to lower both Engine and Oil temperatures.

This kit provides a fully divorced, thermostatically controlled oil cooling system so that both engine and oil temps can be regulated independently.

Product Details

Design & Engineering

529 Innovations has spent many hours on track learning the shortcomings of these Audi and VW platforms and where improvements can be made. Engine oil temperatures become a continual issue in many track sessions and they decided to engineer a solution.

By-Pass/Feed Plate

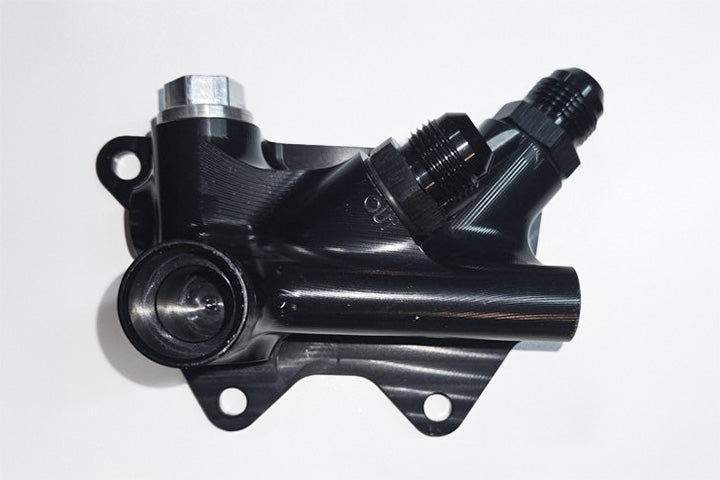

The first step was to partner with iABED Industries to develop an oil cooler feed plate that would separate/divorce the engine coolant system from the oil system. The result is their billet aluminum oil cooler bypass plate with a built-in thermostat that uses -10AN lines to create a separate oil cooler loop.

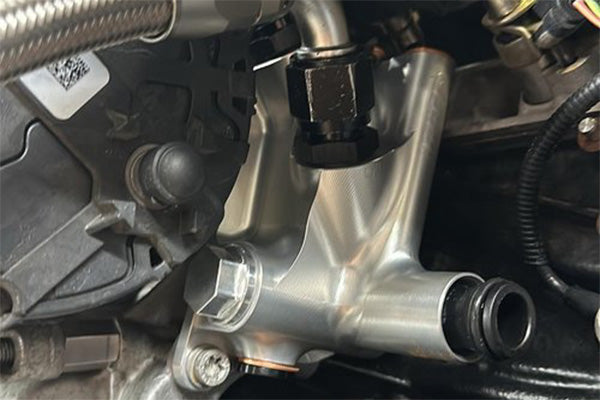

The By-Pass Plate bolts into the factory location for the OE Oil Cooler separating the engine coolant system from the oil cooler system. This means lower engine coolant temps as well as allowing for a larger and more efficient oil cooler.

Oil Cooler Options

529 Innovations has two different options available for the oil cooler upgrade.

CSF #8119 Oil Cooler

Their Variant 2 system utilizes the CSF #8119 Universal Dual-Pass Oil Cooler which they recommend for the Golf/GTI/Jetta with stock turbo power levels equipped with a 6-Speed Manual Transmission. The oil cooler is mounted in the lower grill area on the left hand side with right hand side brackets available upon request.

This option provides ample cooling capacity for the engine oil and easy installation for cars that did not come equipped with an Auxiliary Radiator or DSG cooler from the factory.

529 Innovations by CSF Oil Cooler

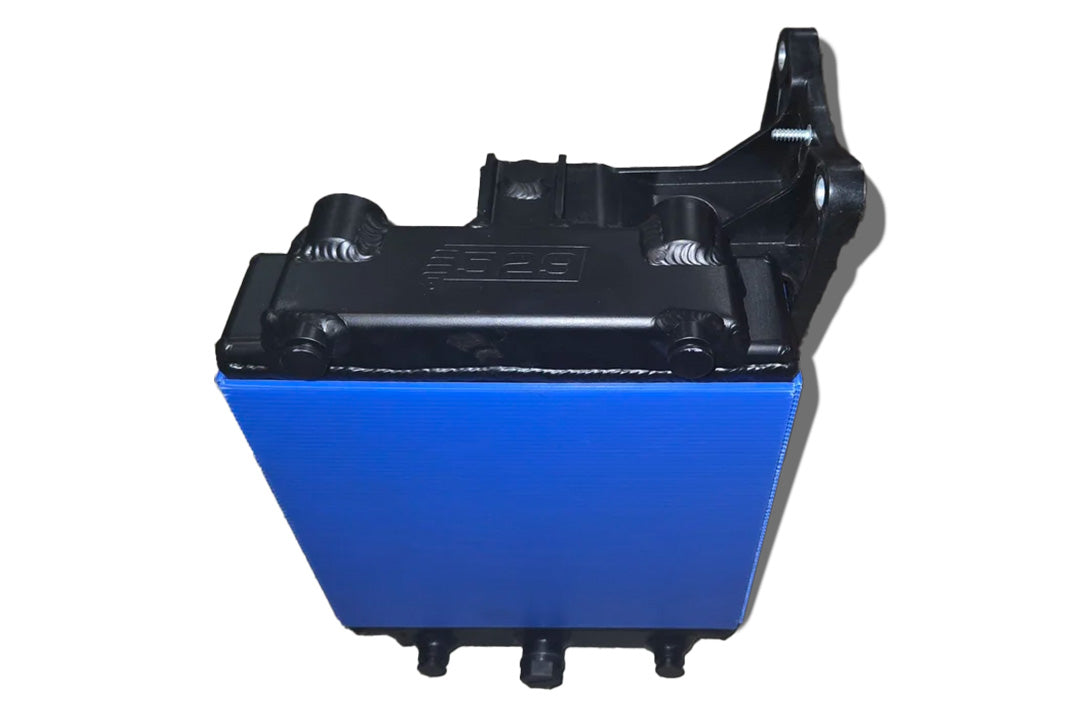

Their Variant 3 system uses a larger oil cooler based on the CSF #8132 DSG Cooler / High-Performance Auxiliary Radiator. The oil cooler made specifically for 529 Innovations is a dual pass design that bolts into the factory location. This version is recommended for DSG equipped vehicles, vehicles running aftermarket/higher HP tunes or Manual transmission cars using OEM lower auxiliary radiator brackets.

For cars not equipped with lower radiators, brackets and ducting will be needed. Please see the fitment notes for more information.

Track Testing

529 Innovations customer Kyle (@Blackcat.Racing) gave track testing data and feedback on the oil cooler kit. Below are the test parameters, parts list, and relevant test data:

Vehicle:

2017 Golf R with EQT Ethanol Tune

Relevant Modifications:

iABED gen 2 oil cooler plate
529Innovations prototype oil cooler system
CSF main and aux radiators (manual transmission car)
CJM INDUSTRIES hood vent and radiator ducting

Test Conditions - Road ATL:

Test 1 mid 90°F (32°c) (no oil cooler) - 8 laps
Test 2 mid 82°F (27°c) (oil cooler) - 12 laps

⚠ Fitment Notes

For cars not equipped with lower radiators, brackets and ducting will be needed. Please see the information at the bottom of this page for part numbers.

Trimming of the ducting/fog light area behind the bumper may be required for proper ducting and air flow.

Additional OEM Parts Required

These are the brackets and ducting parts you may need to install the V3 Oil Cooler Kit on your vehicle.

VW MK7/7.5 Golf R (please verify part numbers with Dealer using your VIN):

Right Hand Side Hardware:

Right side mounting bracket: 5Q0-121-093-FD
Right side front duct: 5G0-117-334 or 5G0-121-333
Right side rear duct: 5G0-117-340
Rubber Bushing: 4D0-317-867-A (qty: 2)
Washer: N-902-259-01 (qty. 1)
Oval hexagon socket head bolt N-104-718-02 (qty. 1)

Left Hand Side Hardware:

Left side mounting bracket: 5Q0-121-093-BF
Left side front duct: 5G0-117-333
Left side rear duct: 5G0-117-339
Rubber Bushing: 4D0-317-867-A (qty: 2)
Washer: N-902-259-01 (qty. 1)
Oval hexagon socket head bolt N-104-718-02 (qty. 1)

VW MK8 Golf R (please verify part numbers with Dealer using your VIN):

Right Hand Side Hardware:

Right side mounting bracket: 5Q0-121-093-BF
Right side duct: 5H0-121-333
Rubber Bushings: 4D0 317 867 A (qty. 2)
Washer: N-902-259-01 (qty. 1)
Oval hexagon socket head bolt N-104-718-03 (qty. 1)

Left Hand Side Hardware:

Left side mounting bracket: 5Q0-121-093-FD
Left side duct: 5H0-121-334
Rubber Bushings: 4D0 317 867 A (qty. 2)
Washer: N-902-259-01 (qty. 1)
Oval hexagon socket head bolt N-104-718-03 (qty. 1)

Audi 8V A3/S3 (please verify part numbers with Dealer using your VIN):

Right Hand Side Hardware:

Right side mounting bracket: 5Q0-121-093-FD
Right side front duct (Air Guide): 8V0-121-674-B
Right side rear duct (Air Guide): 8S0-117-340-B
Rubber Bushing: 4D0-317-867-A (qty: 2)
Washer: N-902-259-01 (qty. 1)
Oval hexagon socket head bolt N-104-718-02 (qty. 1)

Left Hand Side Hardware:

Left side mounting bracket: 5Q0-121-093-BF
Left side front duct (Air Guide): 8V0-121-673-B
Left side rear duct (Air Guide): 8V0-117-339
Rubber Bushing: 4D0-317-867-A (qty: 2)
Washer: N-902-259-01 (qty. 1)
Oval hexagon socket head bolt N-104-718-02 (qty. 1)

Audi 8Y A3/S3 (please verify part numbers with Dealer using your VIN):

Right Hand Side Hardware:

Right side mounting bracket: 5Q0-121-093-FD
Right side duct (Air Guide): 8Y0-121-674-D or 8Y0-121-674-E
Rubber Bushing: 4D0-317-867-A (qty: 2)
Washer: N-902-259-01 (qty. 1)
Oval hexagon socket head bolt N-104-718-03 (qty. 1)

Left Hand Side Hardware:

Left side mounting bracket: 3WA 121 093 E
Left side duct (Air Guide): 8Y0 121 673 D
Rubber Bushing: 4D0-317-867-A (qty: 2)
Washer: N-902-259-01 (qty. 1)
Oval hexagon socket head bolt N-104-718-03 (qty. 1)

Audi MK3 TT/TTS (please verify part numbers with Dealer using your VIN):

Right Hand Side Hardware:

Right side mounting bracket: 5Q0-121-093-DG
Right side front duct (Air Guide): 8S0-121-674-A
Right side rear duct (Air Guide): 8S0-117-340 or 8S0-117-340-B
Rubber Bushing: 4D0-317-867-A (qty: 2)
Washer: N-902-259-01 (qty. 1)
Oval hexagon socket head bolt N-104-718-02 (qty. 1)

Left Hand Side Hardware:

Left side mounting bracket: 5Q0-121-093-BF
Left side front duct (Air Guide): 8S0-121-673-E
Left side rear duct (Air Guide): 8S0-117-339
Rubber Bushing: 4D0-317-867-A (qty: 2)
Washer: N-902-259-01 (qty. 1)
Oval hexagon socket head bolt N-104-718-02 (qty. 1)

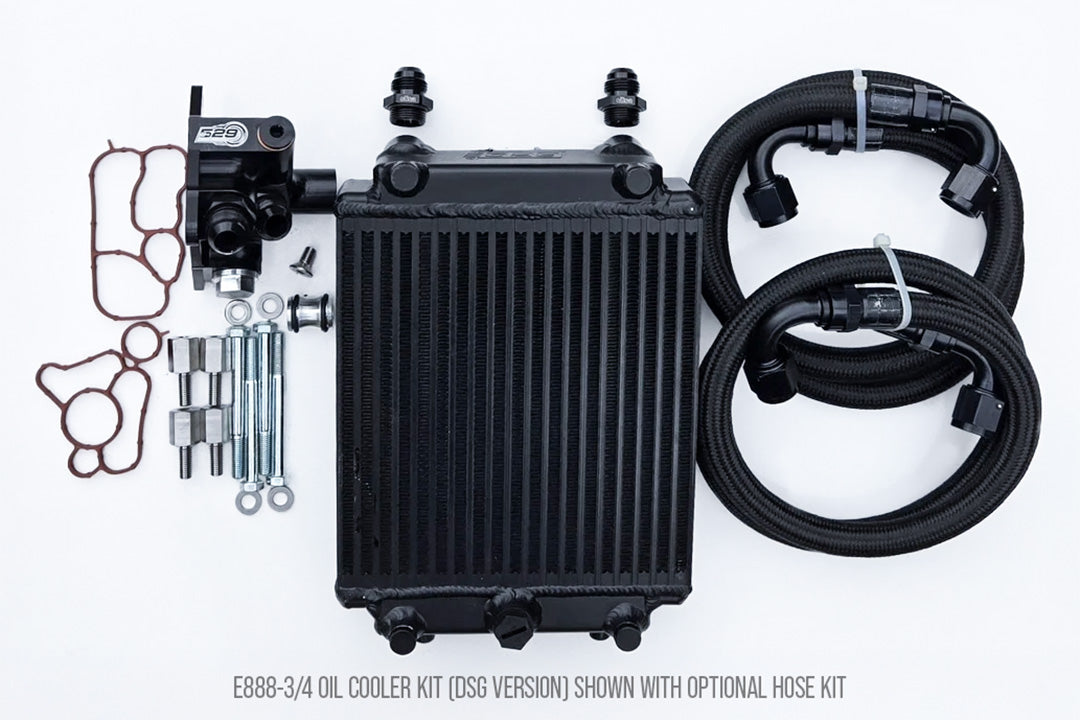

Features

529Innovations Custom CSF 2 Pass Oil Cooler (62 SqIn Core)
iABED Industries Oil cooler bypass plate with built in thermostat
All necessary mounting hardware & gaskets - For cars not equipped with lower radiators, brackets and ducting will be needed (See Fitment Notes)
Billet waterpump union w/orings
Oil cooler mounting bracket (sits in lower grill area on the left side with right side brackets available upon request)
Optional hose kits (Fully assembled hose kit)

Applications

Year Range	Make	Chassis Code	Model	Trim	Engine / Trans / Etc	Notes
2015-2020	Audi	8V	A3 Quattro	-	Turbocharged 2.0L L4	See Fitment Notes
2015-2020	Audi	8V	S3	-	Turbocharged 2.0L L4	See Fitment Notes
2022-2025	Audi	8Y	S3	-	Turbocharged 2.0L L4	See Fitment Notes
2016-2022	Audi	Mk3	TT Quattro	-	Turbocharged 2.0L L4	See Fitment Notes
2016-2022	Audi	Mk3	TTS Quattro	-	Turbocharged 2.0L L4	See Fitment Notes
2015-2021	Volkswagen	Mk7	GTI	-	Turbocharged 2.0L L4	See Fitment Notes
2022-2025	Volkswagen	Mk8	GTI	-	Turbocharged 2.0L L4	See Fitment Notes
2015-2019	Volkswagen	Mk7	Golf R	-	Turbocharged 2.0L L4	See Fitment Notes
2022-2025	Volkswagen	MK8	Golf R	-	Turbocharged 2.0L L4	See Fitment Notes
2013-2018	Volkswagen	-	Jetta	GLI	Turbocharged 2.0L L4	See Fitment Notes
