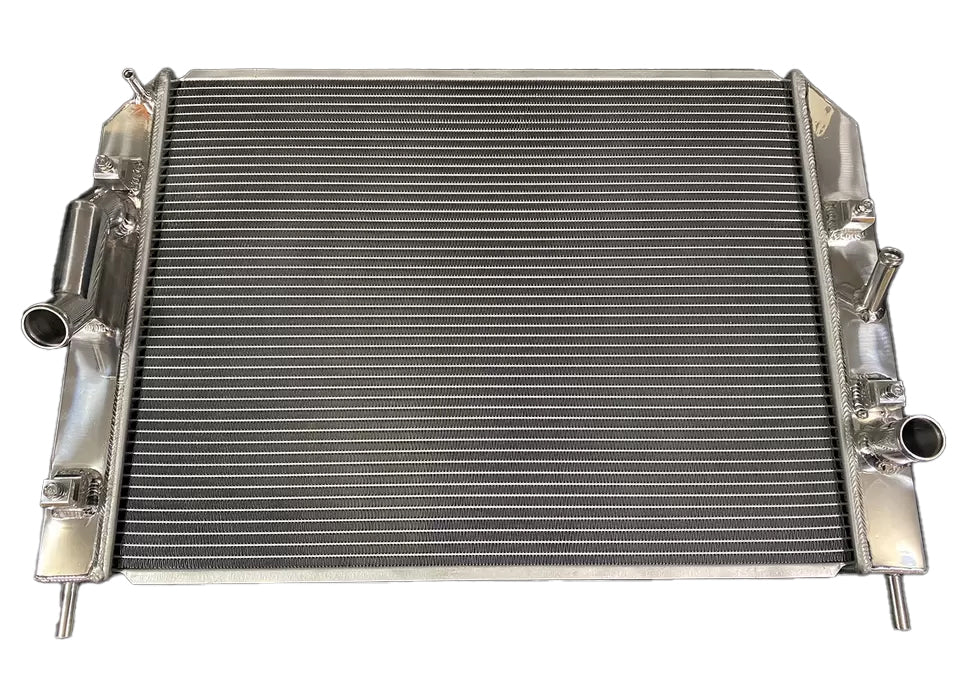

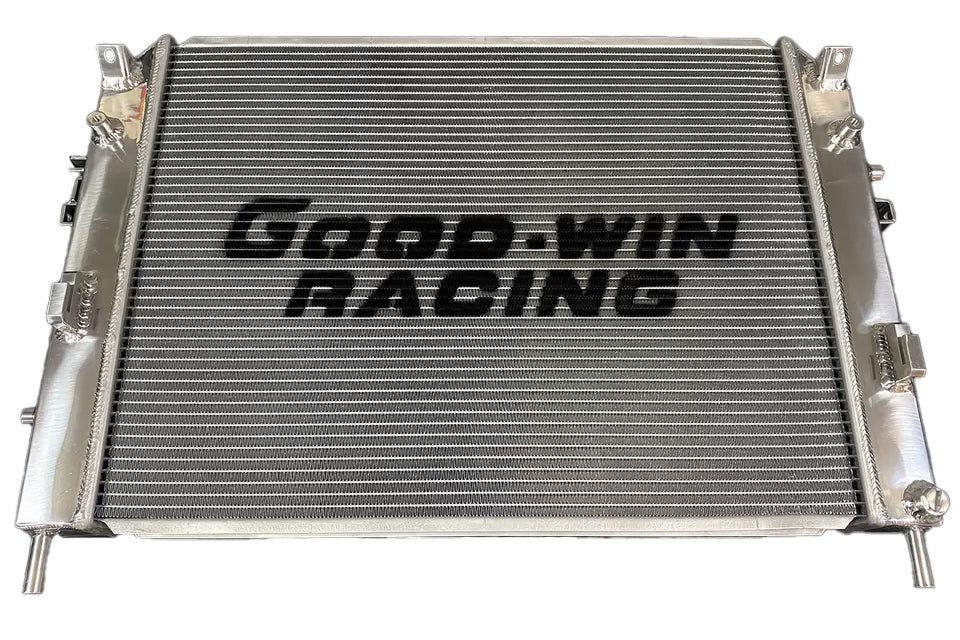

Goodwin Racing NC Miata Triple-Pass MAXIMUM PERFORMANCE 42mm Radiator

The MAXIMUM performance radiator for the MX5. Period. Compared to the Goodwin 32mm triple pass radiator which is a direct fit, this thicker 42mm version requires trimming of some plastics to make it fit. But for those big power or race builds that need every bit of cooling, this is the answer!

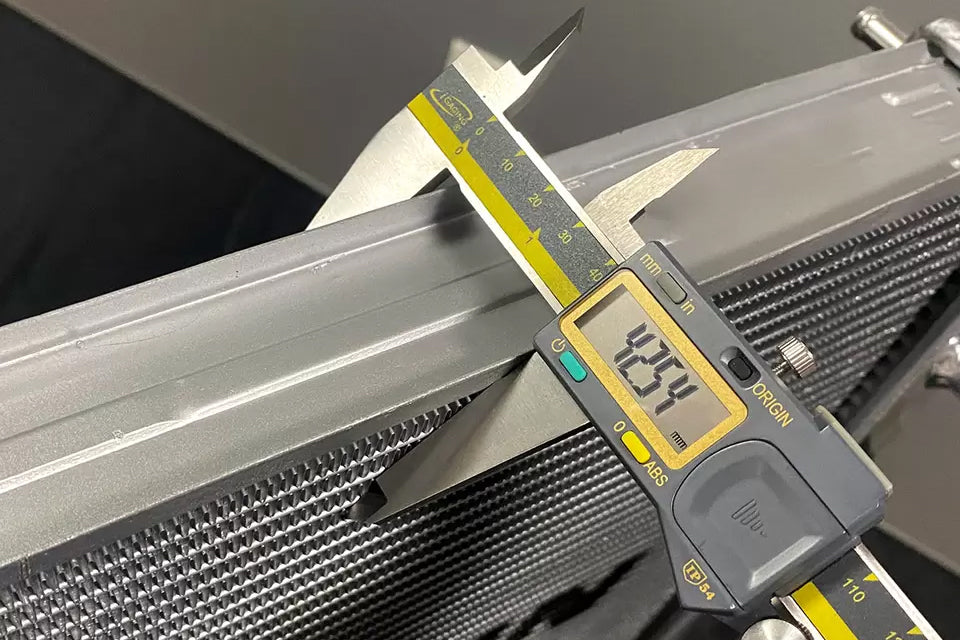

High-demand cars - especially those running turbochargers, as well as racing applications, need every bit of cooling ability you can squeeze into the car. This new 42mm thick version of the triple pass radiator builds on the massive success of the existing 32mm version, increasing the core thickness to the absolute most that can fit in the NC. This radiator still works with the factory fan, mounts to the factory locations, and just requires some trimming of the surrounding plastic. Solves all of the problems that come with a custom multi-pass racing radiator, which come with massive price tags and are not direct-fit; requiring custom brackets, don't fit with factory fans, and so on.

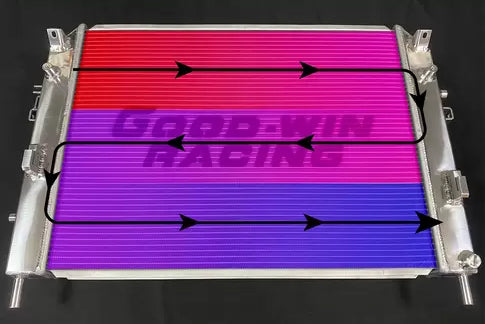

The Goodwin Triple-Pass radiator is the first of its kind; a cross-flow, triple-pass configuration using racing radiator technology throughout, designed specifically for the NC, and doesn't have the price tag that comes with "custom". Fits with the factory brackets, fans, and hoses.

Utilizes CSF's specially-engineered "B-tubes" which are made from thinner and lighter aluminum but are still stronger than conventional 0-shape tubes. The core features louvered fins with a denser packing. More fins per inch than standard cores means more surface area for cooling and thus dramatically higher efficiency.

Features

• Military Grade (special clad) aluminum used for tubes, fins, fitments, and side brackets (JIS 3003 spec minumum)
• "B-Tube" Technology - Most efficient tube in the world
• High Efficiency Louvered Fin
• OE radial and deep drawn aluminum endtanks
• Wind tunnel tested for optimal radiator core cooling performance
• Stronger joint design for mountings, fan shrouds and condensers
• OE Specific Mounting
• Fitment may require trimming of surrounding plastics, including radiator fan shroud
• CNC Machined brackets and fittings
• Racing Style all-aluminum drain plug
• 42mm version has NOT been confirmed to fit with Automatic Transmission

Applications

OEM Part Numbers

• Mazda: LFG2-15-200E

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 61-3390 Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
