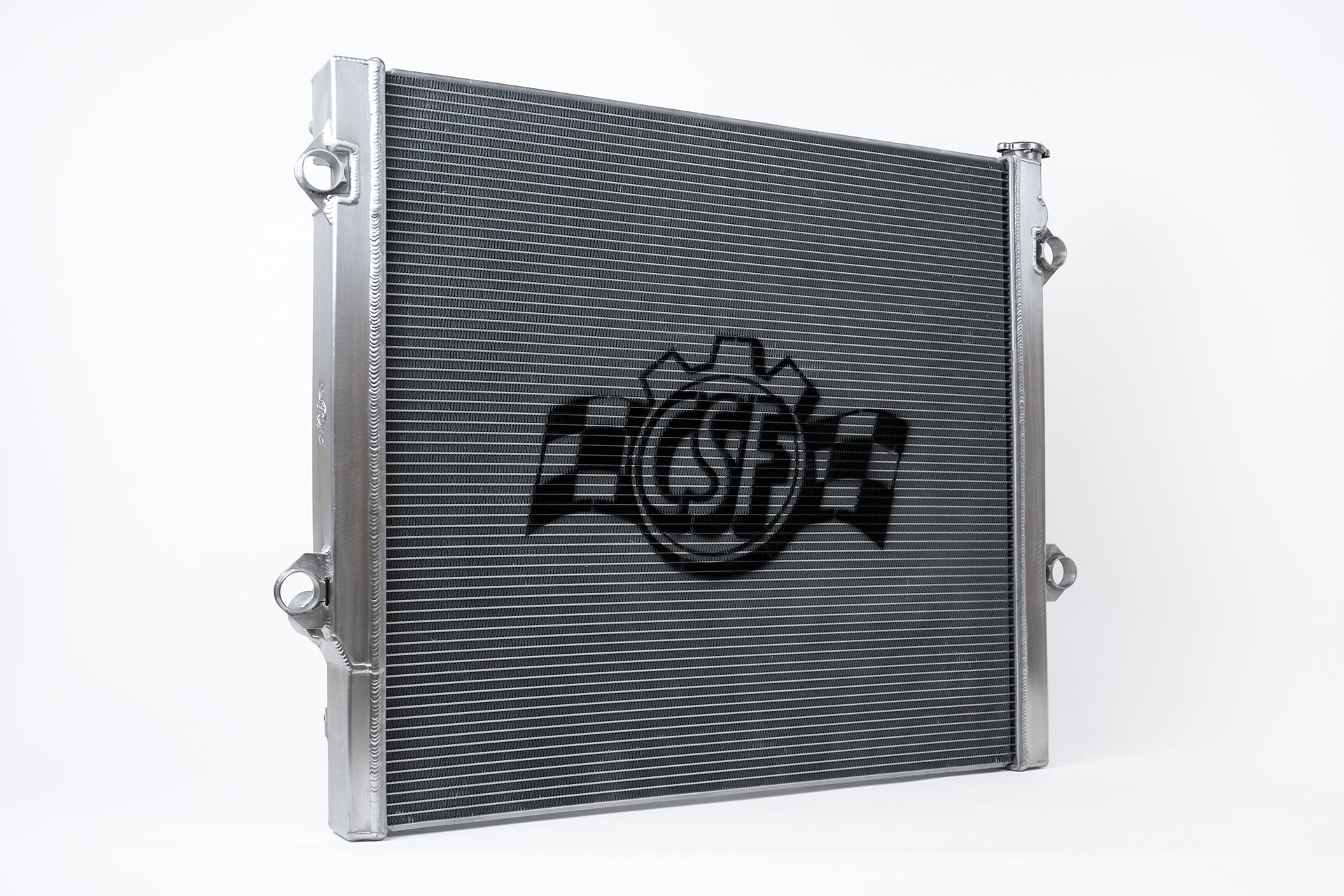

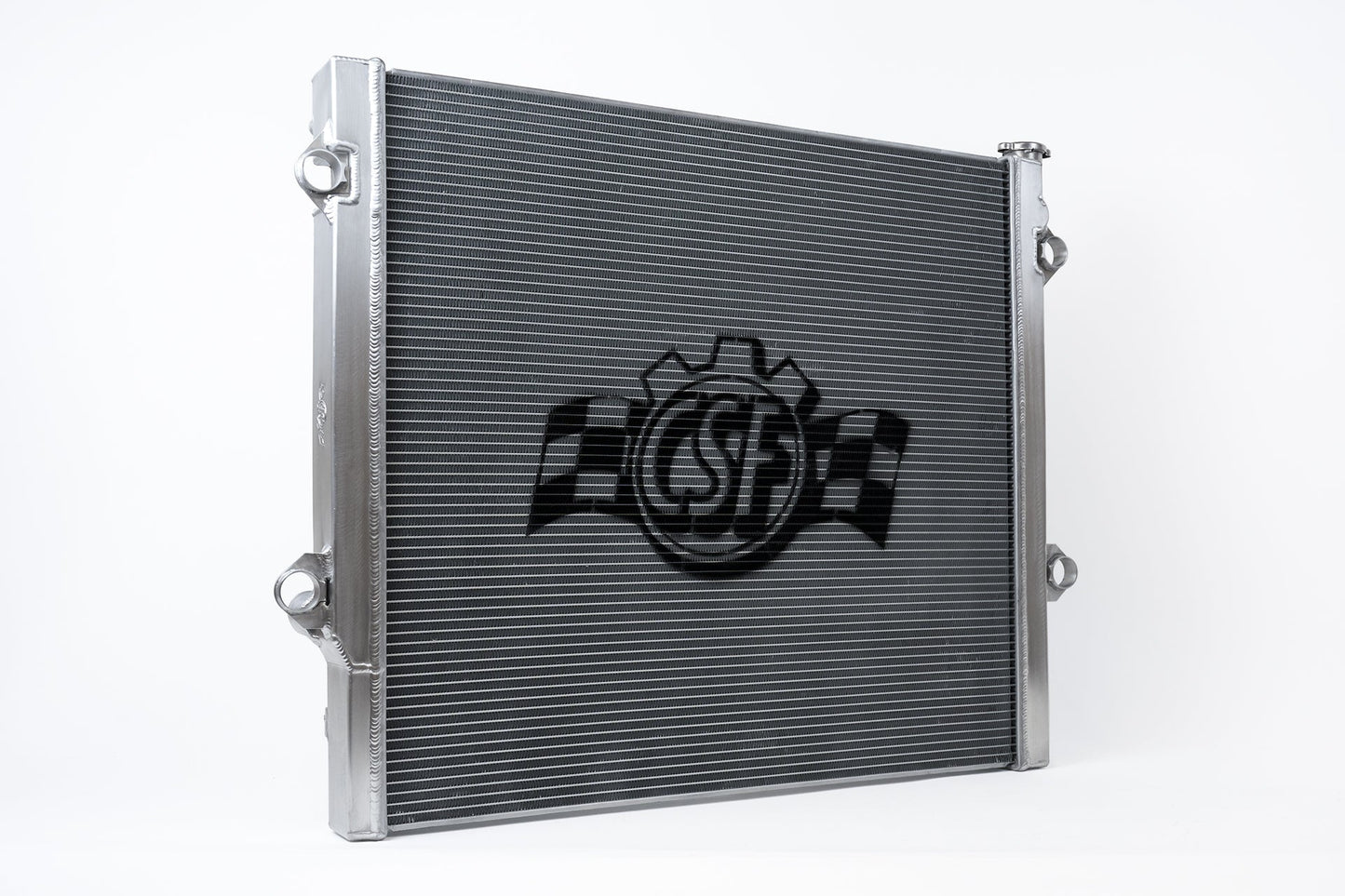

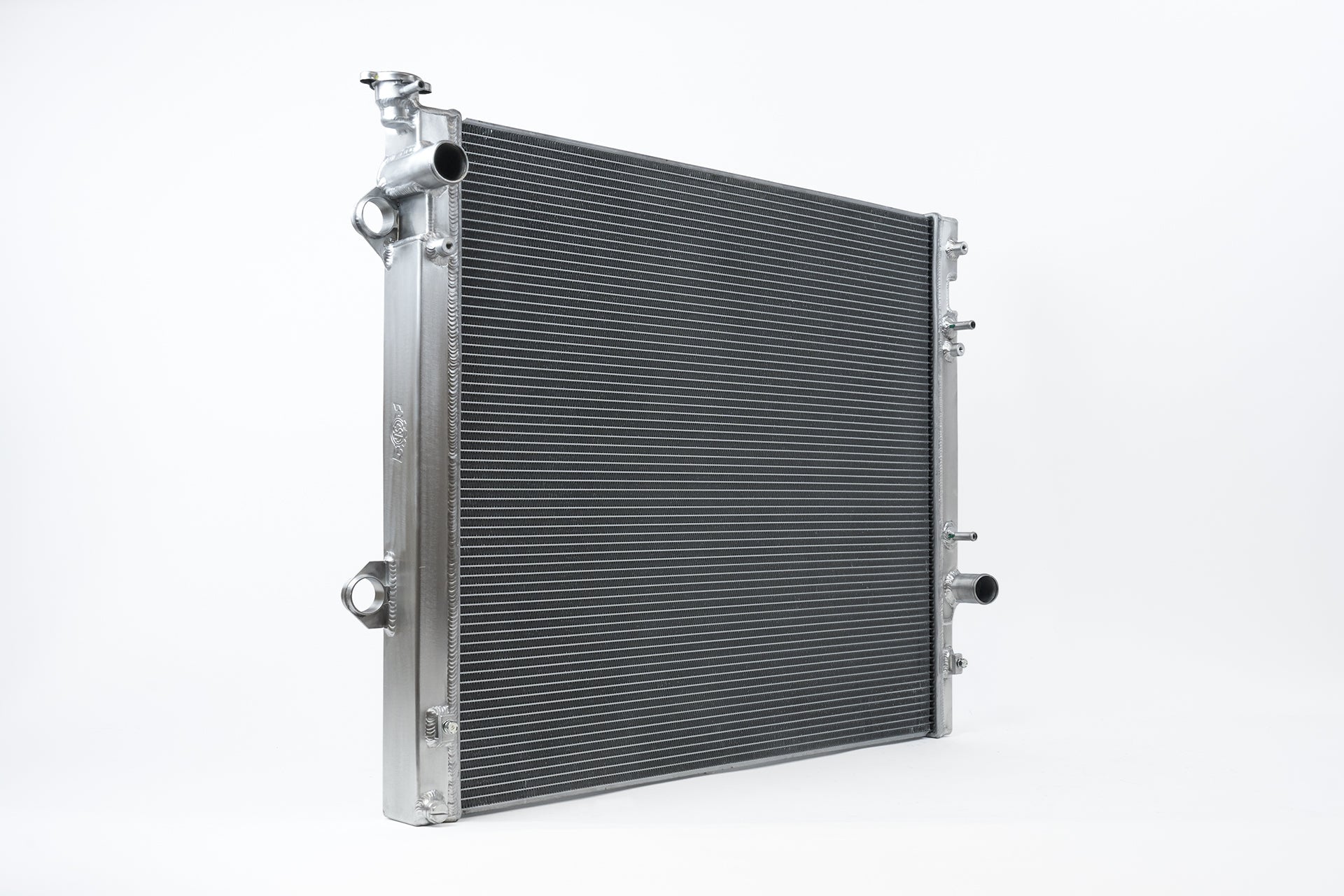

Lexus GX470 / 4th Gen Toyota 4Runner V8 Heavy-Duty All-Aluminum Radiator

Click Here for the Full Press Release

While the 4Runner/GX470's 2UZ-FE V8 is one of the most tried and true V8's from Toyota. It can also be found in the Land Cruiser, Tundra, and Sequoia from this time. However, just because an engine is bullet proof, doesn't mean the auxiliary components will last forever. Although the OEM radiator is well suited for the task of keeping the engine cool in day to day driving, the OEM radiator still has its weaknesses. Also, given that these SUVs are over 12 years old with a fair bit of mileage on them, it might be a good idea to replace that original radiator before it leaves you stranded in the wilderness. While some may opt for a simple OEM replacement, CSF knows many enthusiasts are always looking to improve their vehicles. With that being said, CSF is pleased to introduce its latest Heavy Duty Radiator for the 03-09 Lexus GX470 & 4th Gen V8 Toyota 4Runner.

The 2-Row 42mm aluminum core not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. End tanks are made from high grade aluminum and TIG welded to the core for extra strength. In contrast, the OEM crimped onto plastic end tank design is much weaker and creates a weak point where failure is more likely. Because the CSF radiator is designed as a true plug-and-play drop-in fit application, installation requires absolutely no modifications, trimming, or cutting. CSF even includes pre-cut double sided adhesive foam strips to help seal the fan shroud against the radiator. This improves airflow efficiency off the fan. Additionally, the radiator features a built-in transmission oil cooler. The transmission cooler is a heavy-duty high-performance 5 plate design that connects to the OEM hoses. The upgraded built in cooler is great dealing with the added heat and stress from towing, low gear crawling, and vehicles equipped with oversized tires. While many understand the impacts of oversized tires, it is always good to provide extra incite. By increasing the diameter of your tires, you are reducing the effective gear ratio. This means the engine and transmission have to work harder to move the tires. Obviously this will end up generating excess heat, but the CSF radiator is designed to handle it.

Features

• 2-Row - 42mm Ultra-High-Performance Core

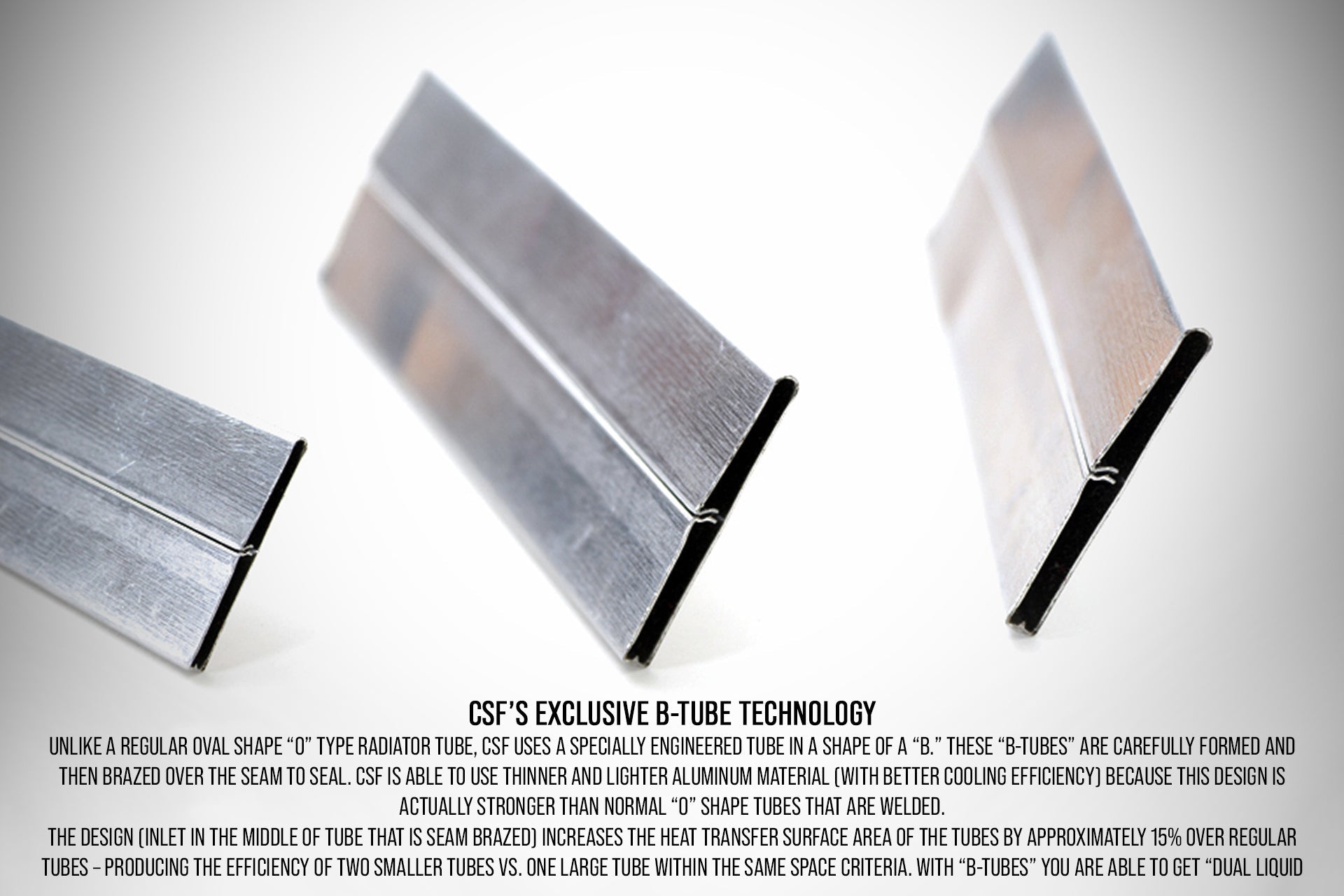

• Cooling Tubes with CSF's Exclusive B-Tube Technology

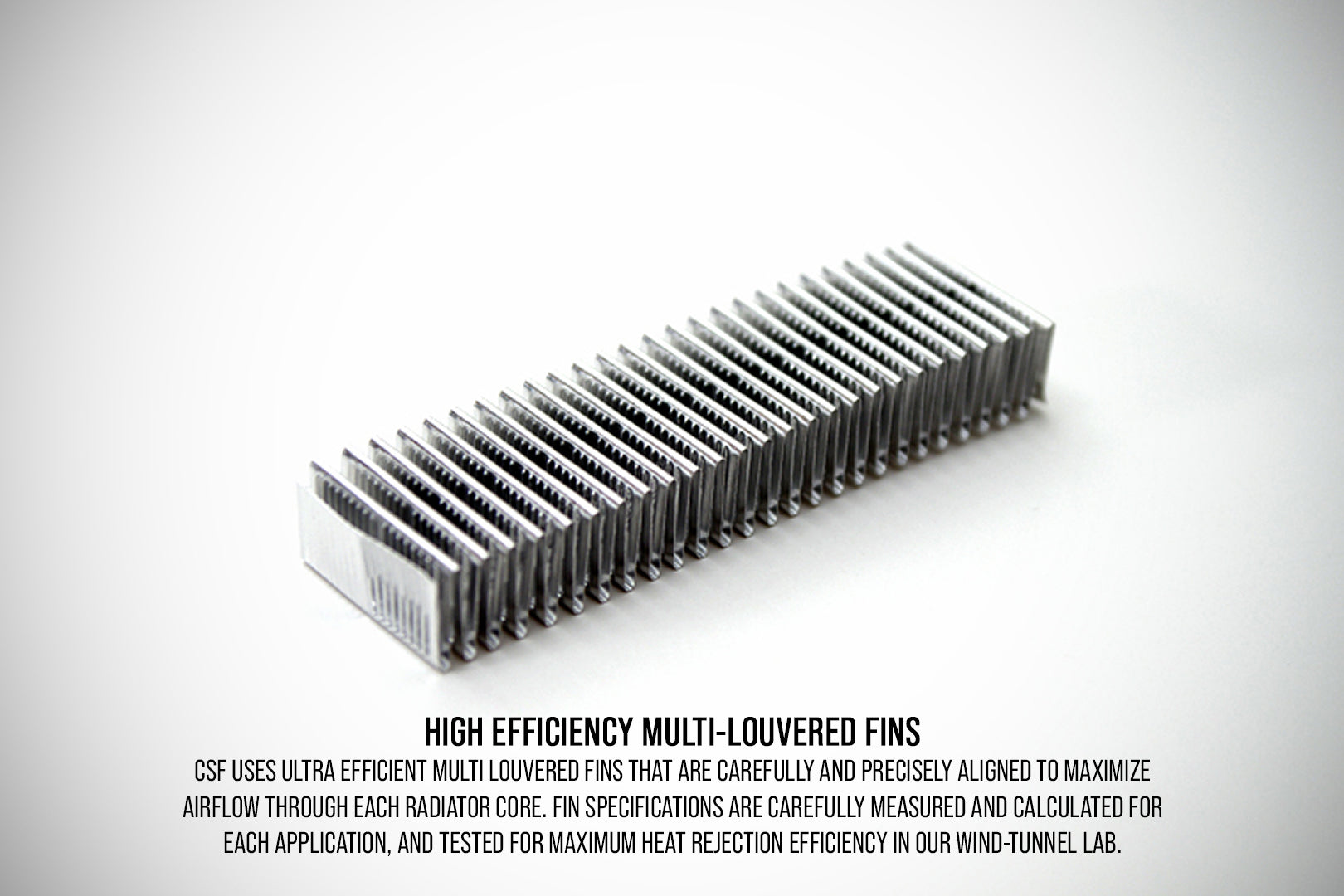

• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

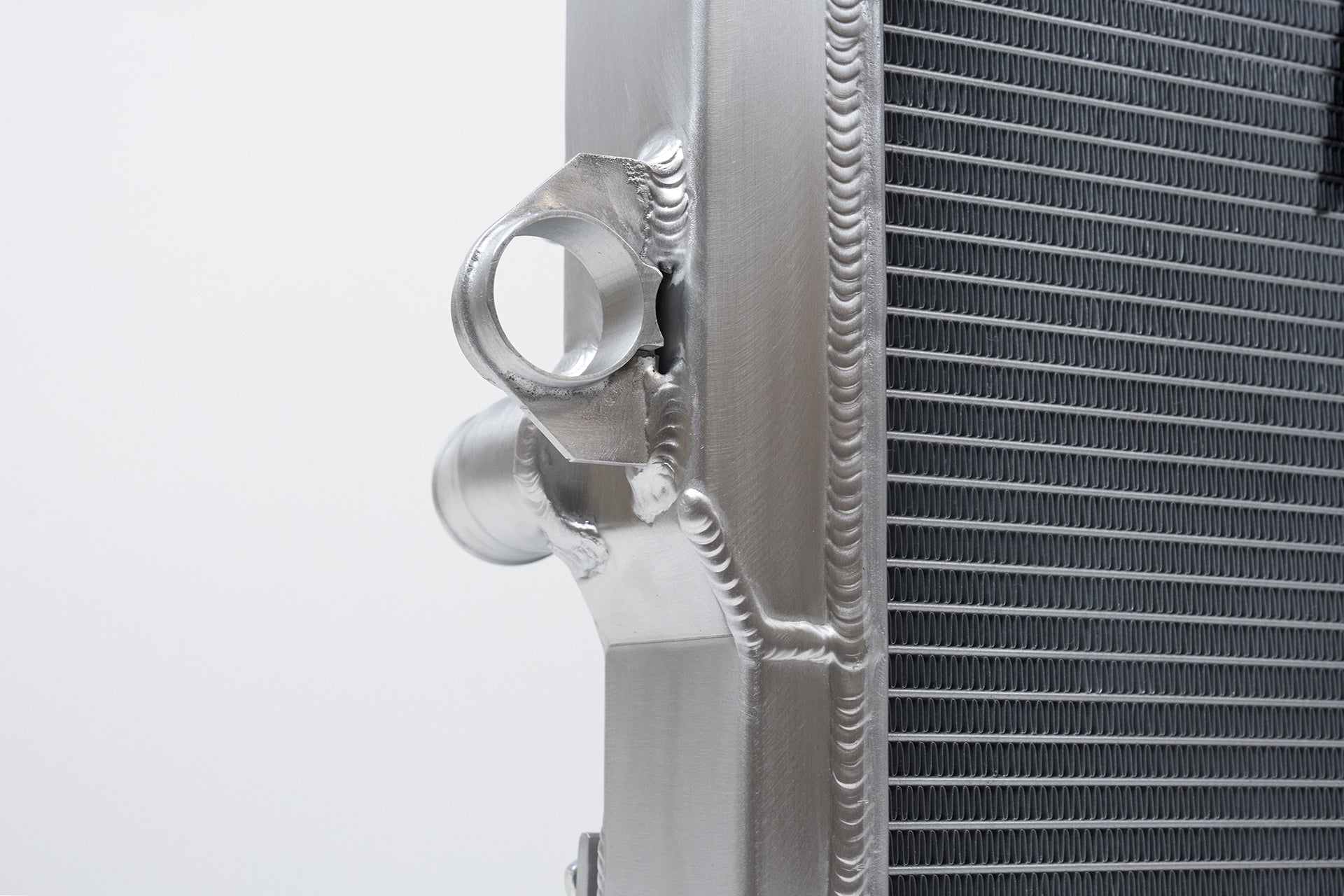

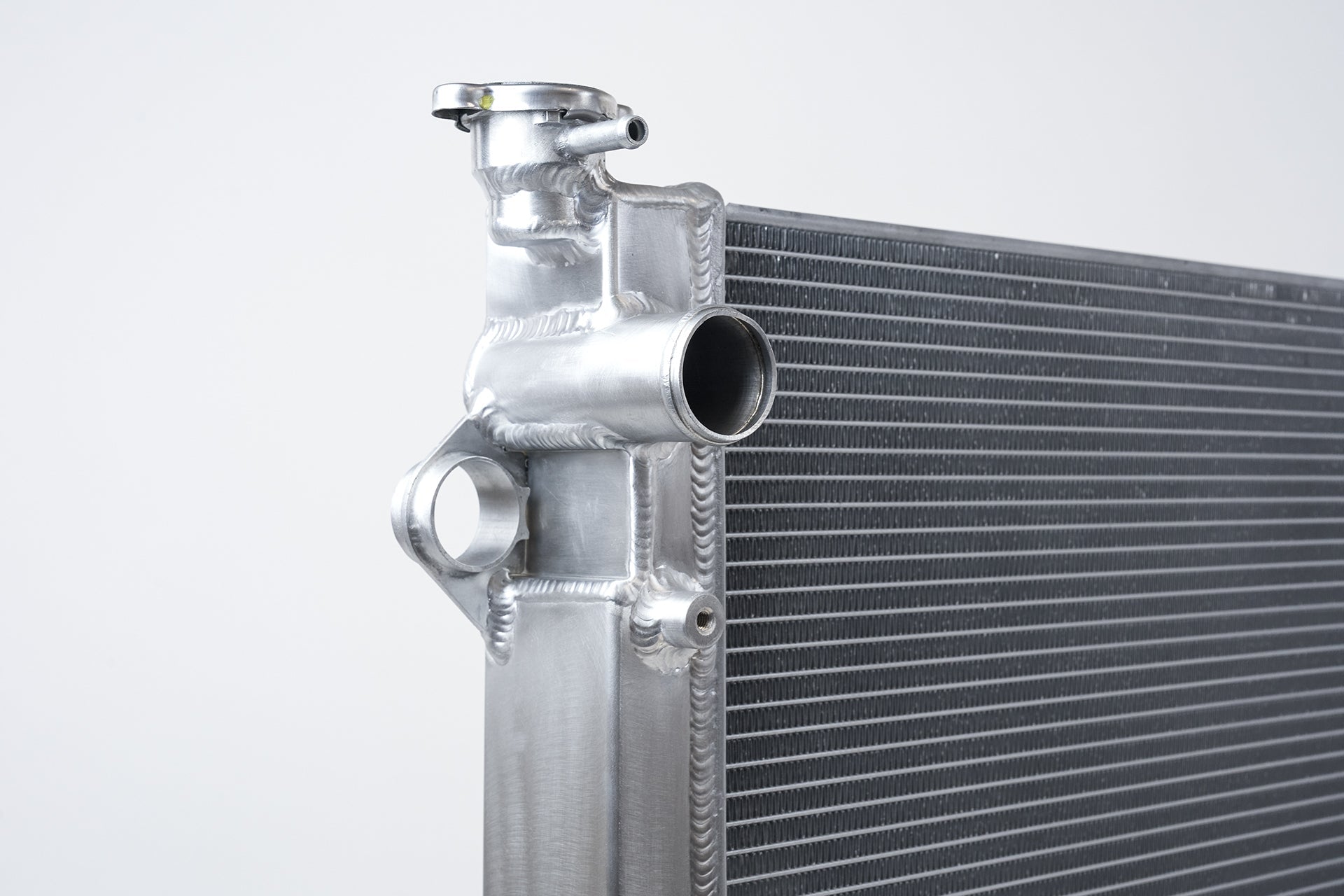

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Built in Heavy-Duty High-Performance 5 Plate Transmission Oil Cooler in right side tank
• 100% All Aluminum TIG-Welded Construction
• Smooth Satin Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications

OEM Part Numbers

• Lexus: 16400 50313
• Lexus: 16400-50313
• Lexus: 1640050313
• Toyota: 16400 50300
• Toyota: 16400-50300
• Toyota: 1640050300

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 7215 Warranty Term: 2 years
