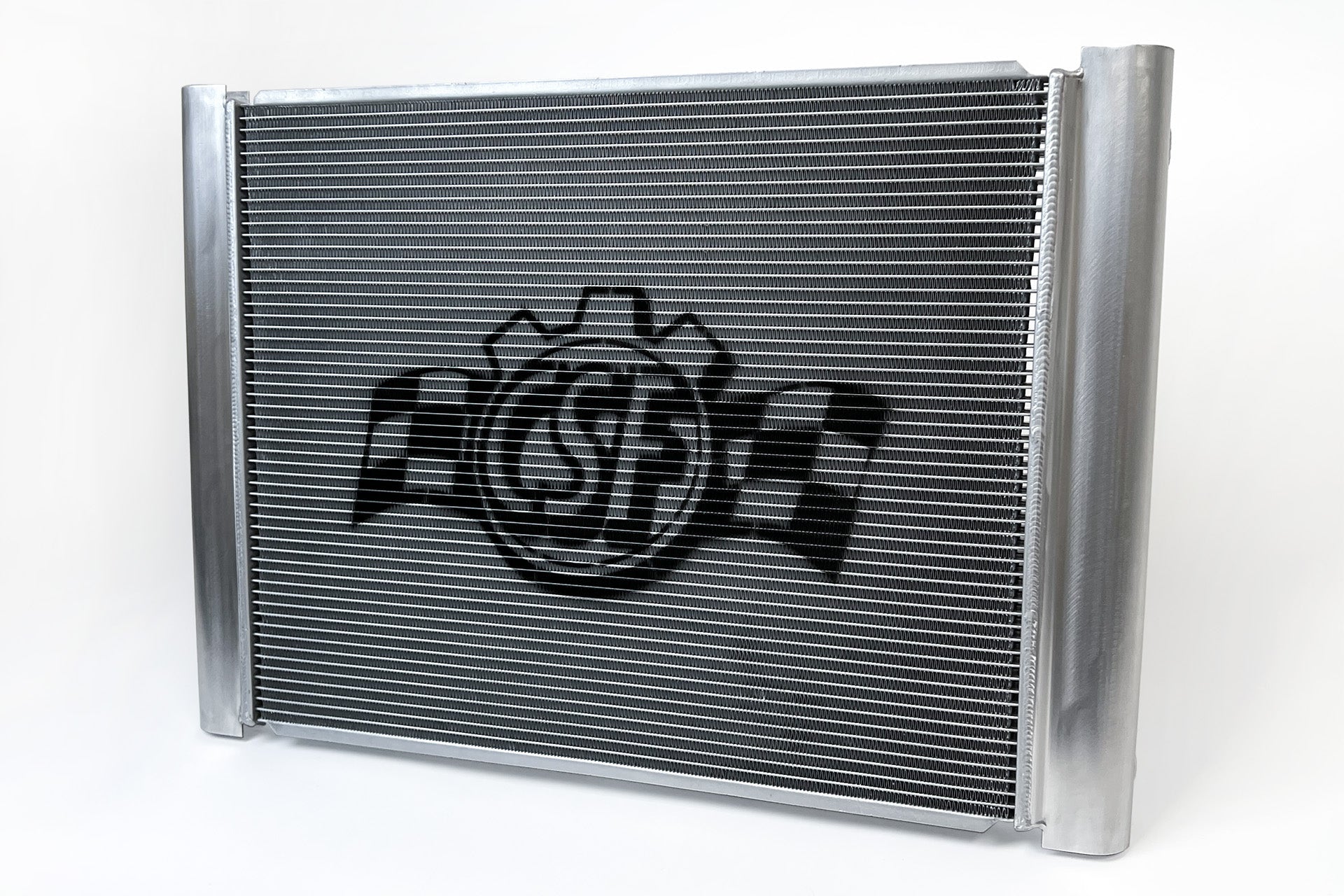

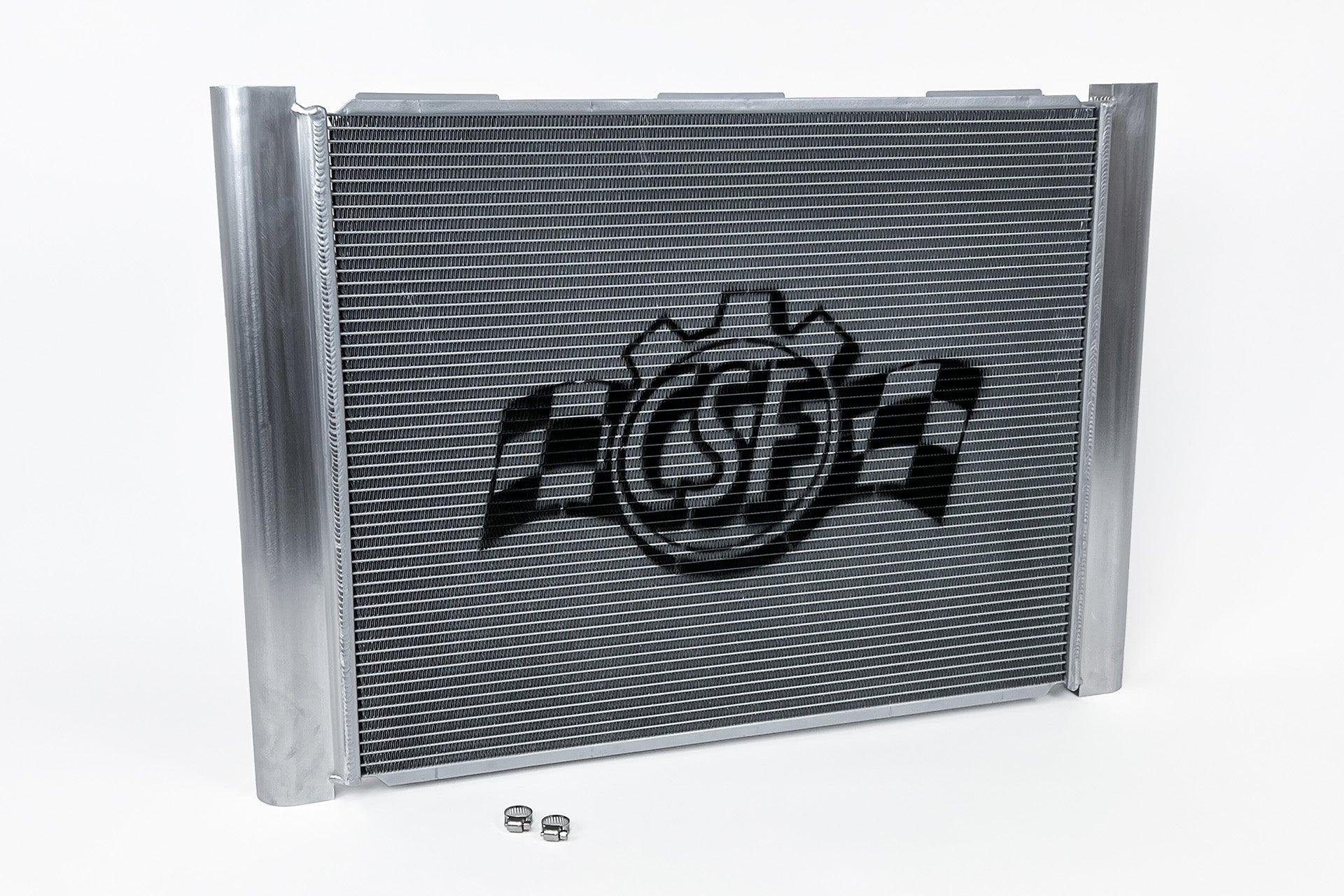

BMW E60 M5 / E6X M6 High-Performance All-Aluminum Radiator

Click Here for the Full Press Release & Additional Product Details

There is no questioning that the V10 S85 is an amazing motor and the factory radiator does a decent job at keeping the car cool. However, factory replacements can be hard to get at times. The heat produced by the V10 also puts a lot of strain on the cooling system as a whole. A larger and more efficient radiator will help your entire system last longer and perform in the most demanding situations. It is also a much needed upgrade for those running a supercharger system.

The CSF radiator features a 2-Row 42mm aluminum core that not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. Between the 6 additional rows of cooling tubes/fins and the thicker 42mm 2 row core, the CSF Radiator will outperform the OEM unit by a significant margin. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The radiator mounts in the factory location and requires no modifications or cutting.

Product Details

Design & Engineering

CSF has been making the highest quality High-Performance All-Aluminum Radiators for decades. With an industry-leading reputation and deep knowledge of high-performance BMW cooling systems, it was no surprise when requests came in for an E60 M5 / E6X M6 option.

CSF vs OEM

The factory radiator for the E60 M5 and E6X M6 are pretty nice all aluminum units. While they have proven to be fairly robust, age and additional power tend to push them over the edge. Owners who have superchargers tend to have the most issues with their radiators. Between the extra heat produced with forced induction and the heat exchanger mounting in front of the radiator, the factory radiator is working overtime. The E6X models are also getting close to 20 years old and entering the "future classic" stage of life with many owners doing restorations and updates. Anyone who has restored/updated an older car knows the value of having upgraded parts that are as efficient as possible.

CSF #7218

BMW OE 17112282732

The CSF radiator features a 2-Row 42mm aluminum core that not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. Between the 6 additional rows of cooling tubes/fins and the thicker 42mm 2 row core, the CSF Radiator will outperform the OEM unit by a significant margin. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The radiator mounts in the factory location and requires no modifications or cutting.

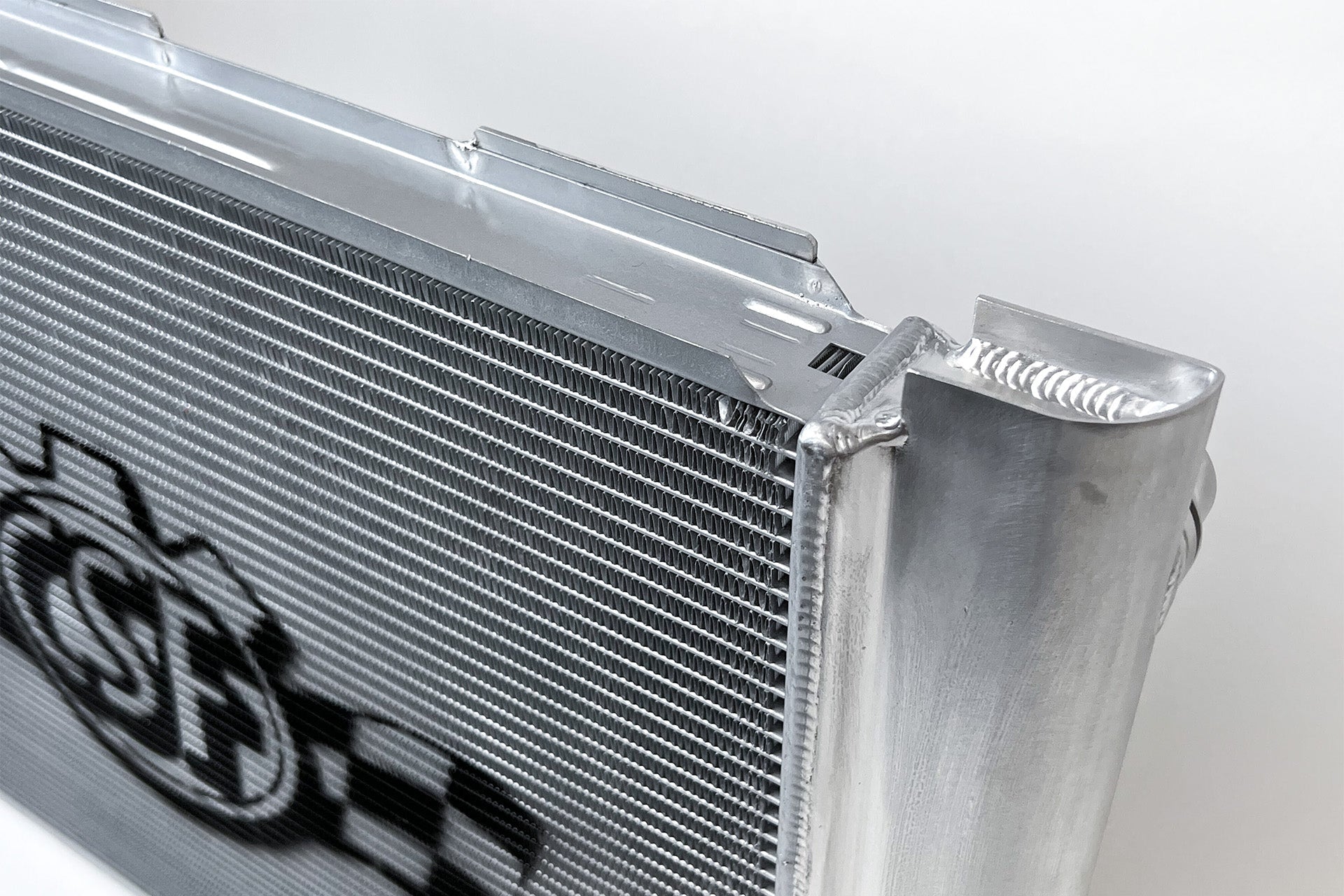

CSF's TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions.

Feature	CSF	OEM
# Core Rows	2	1
# Cooling Tubes	54	48
# Cooling Fin Rows	55	49
Fin Height	6.5mm	8mm
Core Material	Aluminum	Aluminum
Tank Material	Aluminum	Aluminum
Construction	100% TIG Welded	Brazed

Regardless of your driving style and how you use your M5/M6, an upgraded and more robust cooling system is always beneficial.

---

[?] Frequently Asked Questions

The BMW S85 uses a unique radiator setup that comes up quite often in product inquiries. The radiator effectively functions as two radiators in one unit. Each bank of cylinders has its own radiator and thermostat (located in the return flow line). The radiator is divided into an upper and lower system. Cylinders 1-5 (Left Hand Side) flows through the upper system while cylinders 6-10 flow through the lower system (see diagram below).

---

Make it a package

CSF offers a Race-Spec Engine Oil Cooler for the E6X M5 & M6 (CSF #8275) that perfectly compliments the upgraded Radiator. Whether your M5/M6 is a casual cruiser or a track monster, everyone can benefit from an upgraded oil cooler. Supercharged S85's will benefit the most though as the added power comes at a cost of more heat. High oil temperatures can quickly send a car into limp mode and as well as lead to catastrophic engine damage. The CSF engine oil cooler is also a great preventative maintenance upgrade to avoid costly repairs and extend the longevity of your vehicle.

Features

• 2-Row, 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

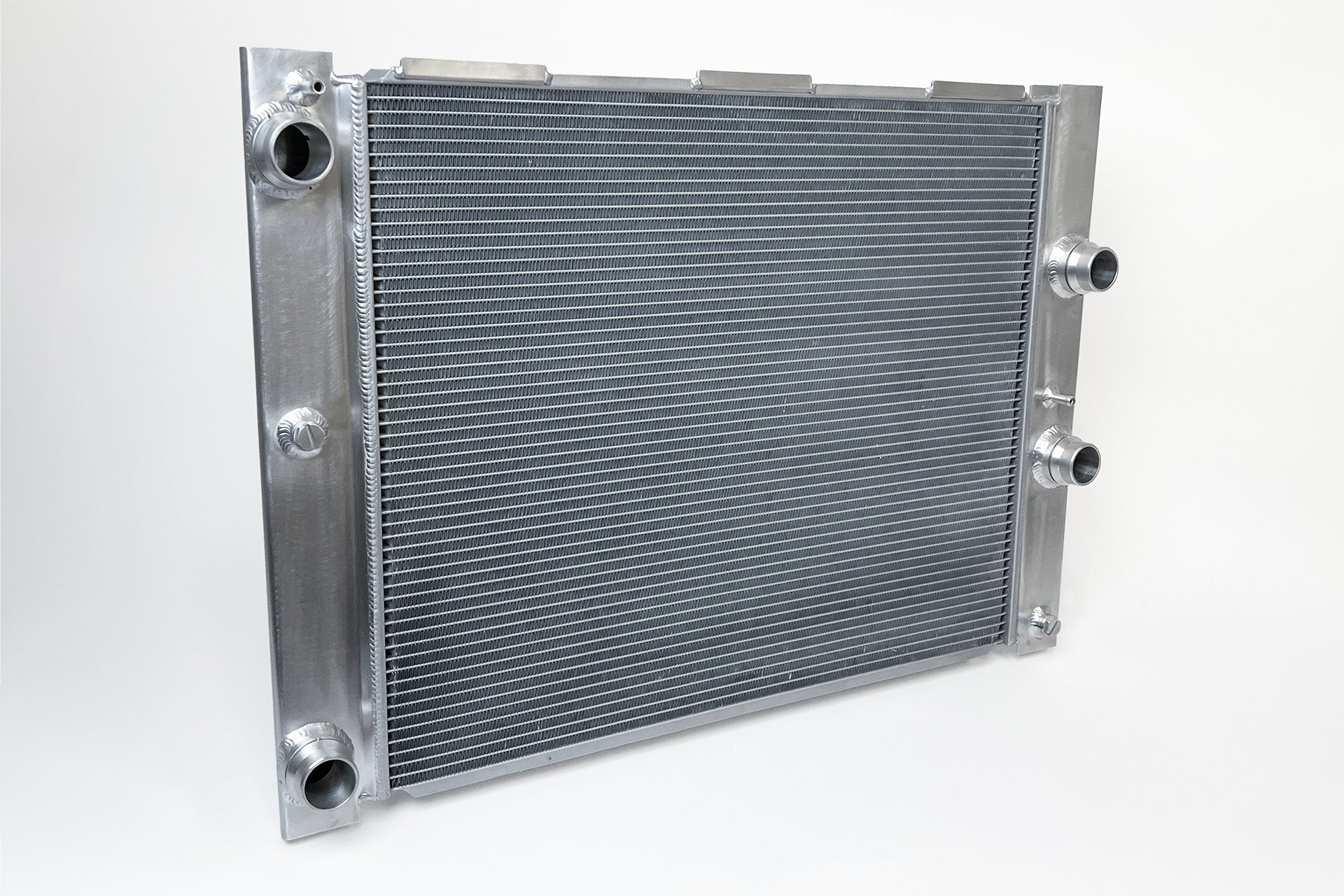

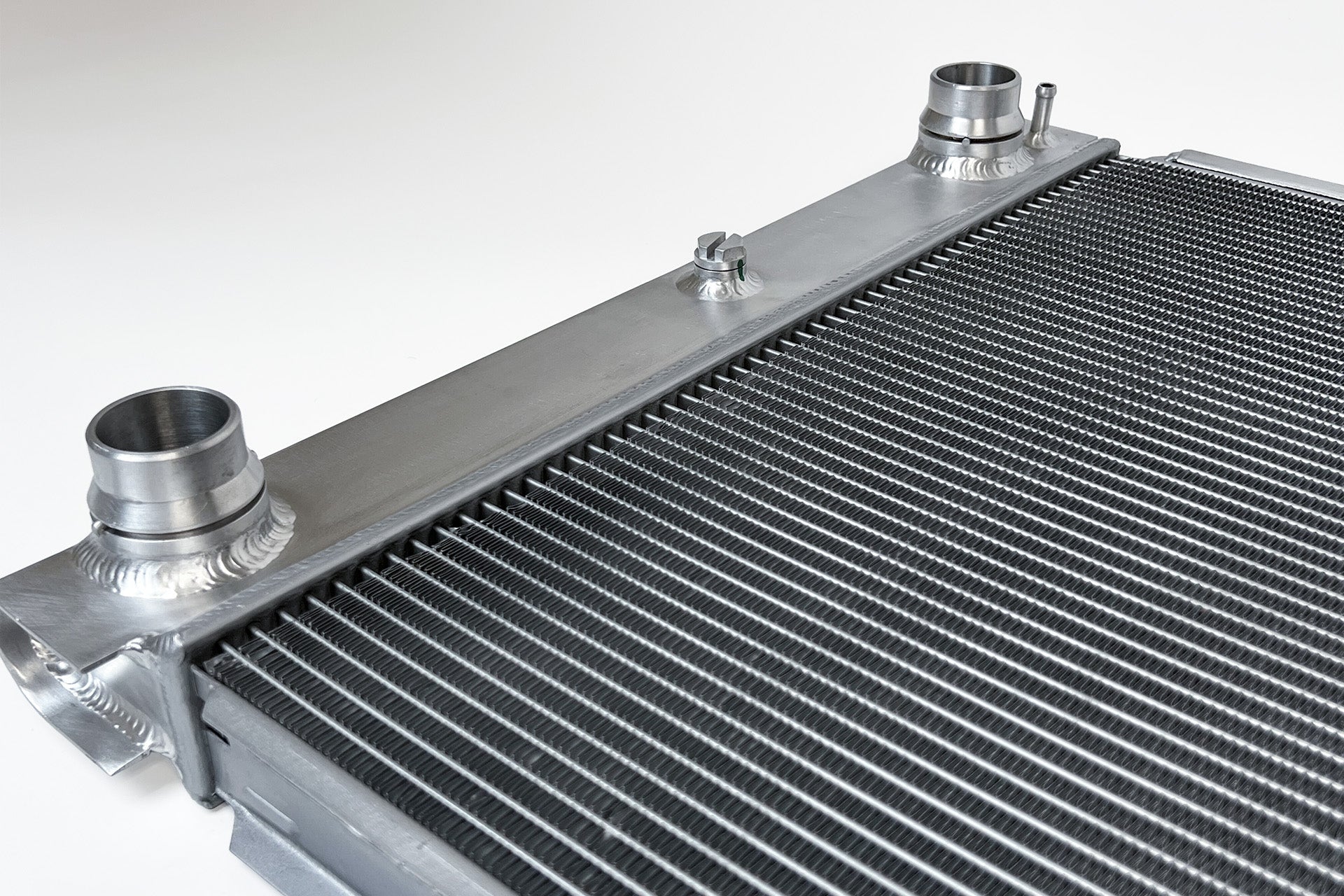

• CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet

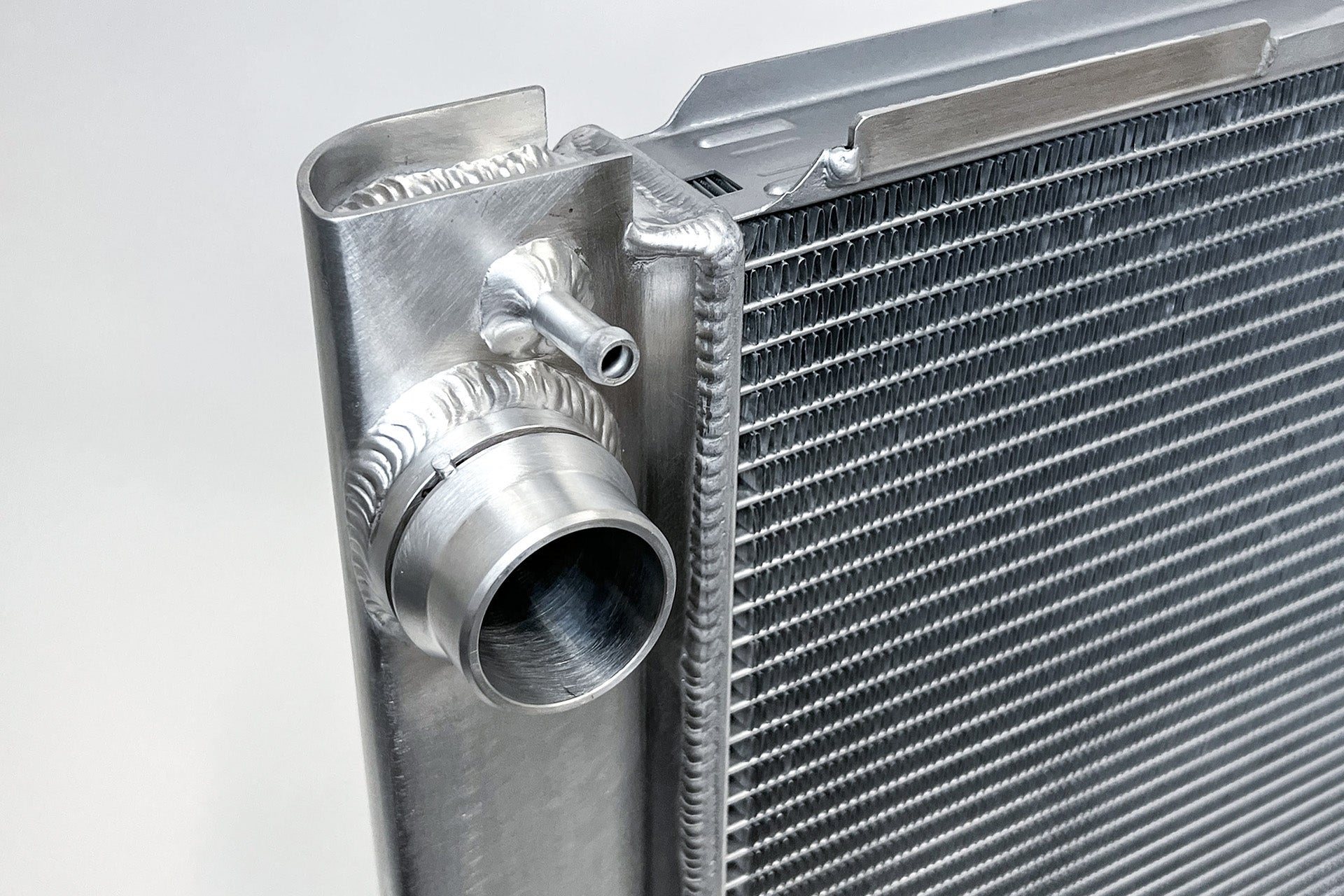

• 100% All Aluminum TIG-Welded Construction
• Satin Finish

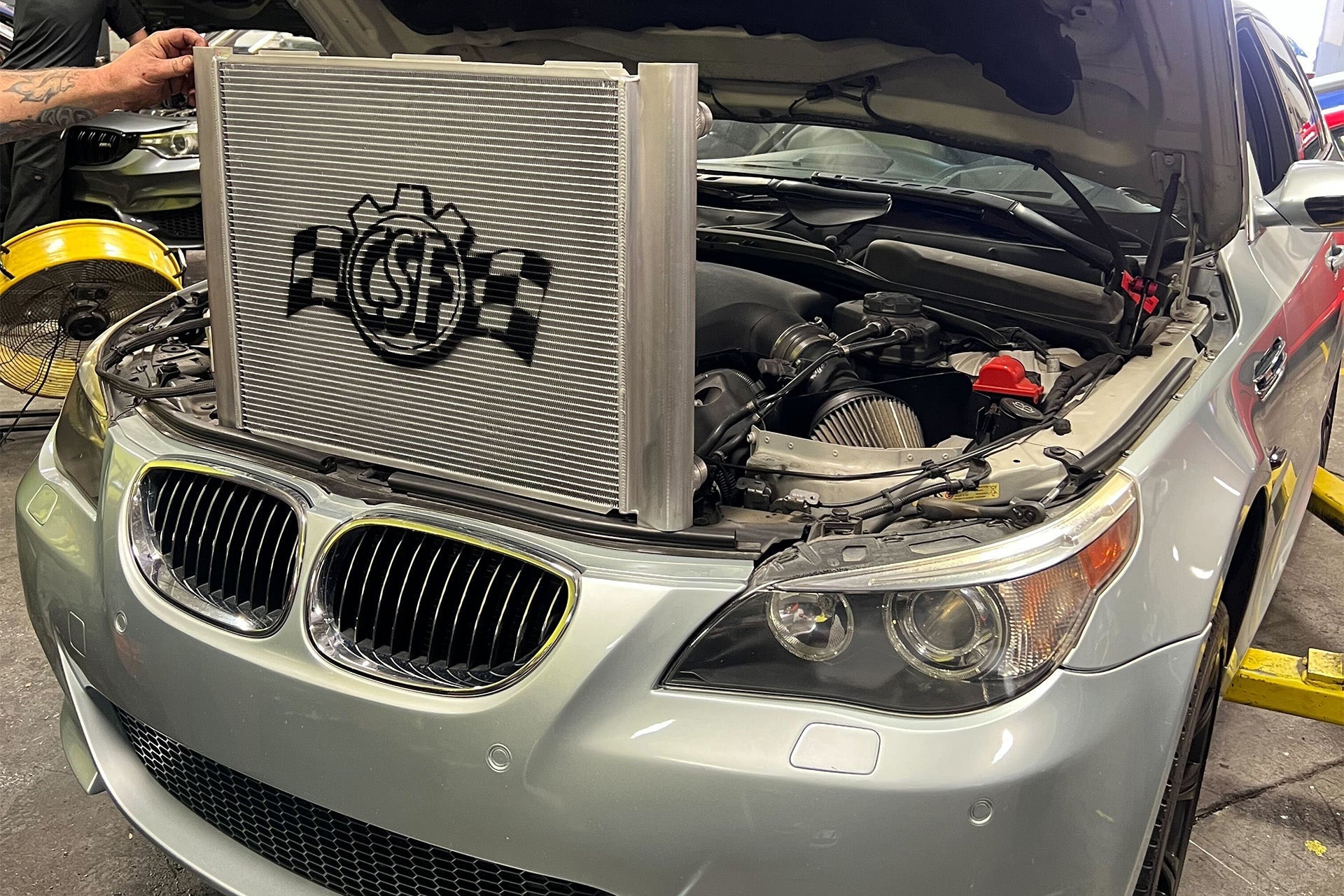

• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications

Year Range	Make	Chassis Code	Model	Trim	Engine / Trans / Etc	Notes
2006-2010	BMW	E60	M5	-	5.0L V10	-
2006-2010	BMW	E63/E64	M6	-	5.0L V10	-

OEM Part Numbers

• BMW: 17-11-2-282-732
• BMW: 17 11 2 282 732
• BMW: 17112282732

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 7218 Warranty Term: 2 years
