BMW 2002 / 1602 High-Performance All-Aluminum Radiator - Black

Click Here for the Full Press Release

CSF teamed up with BMW 2002 expert Paul Lefevre (Son of Cobra), while developing this new radiator. Son of Cobra is widely regarded as the #1 restomod shop for BMW 2002s, building some of the most stunning examples in the world. With his help, CSF was able to incorporate some unique design features that offer more options to customers looking for an upgrade. His latest customer builds now feature this new CSF radiator.

The original OE radiator from BMW is a brass tank with a copper core design. While this was good quality and durable at the time, heat exchanger technology has progressed significantly over the decades since these cars were released. There have been several OEM alternatives available, but their plastic tank and aluminum core design were marginal in quality and performance at best. Older performance vehicles require the best possible cooling systems and can greatly benefit from improved cooling efficiency. Anyone who has restored/updated a classic car knows the value of having updated parts that are as efficient as possible.

The CSF radiator features a 1-Row 31mm aluminum core that not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF went through several different prototypes using cores of varying thicknesses. The 31mm core was found to be the best balance of performance and fitment. This sizing allows for use of an OE style clutch pull fan or an aftermarket electric push fan. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. With nearly double the number of cooling fins and tubes, the CSF Radiator will outperform the OEM unit by a significant margin. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The radiator mounts in the factory location and requires no modifications or cutting.

The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident the CSF radiator will keep your BMW cool for a long time.

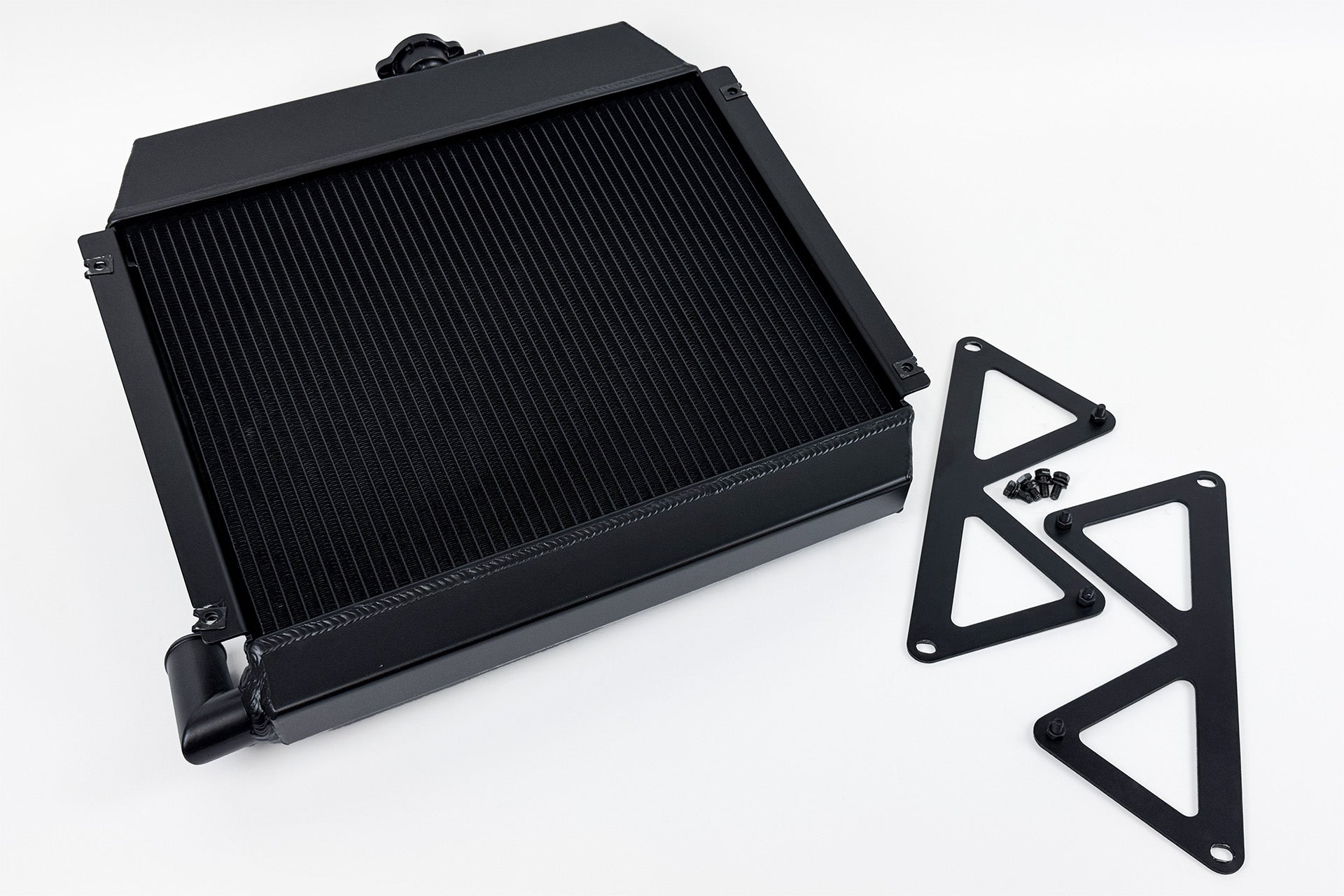

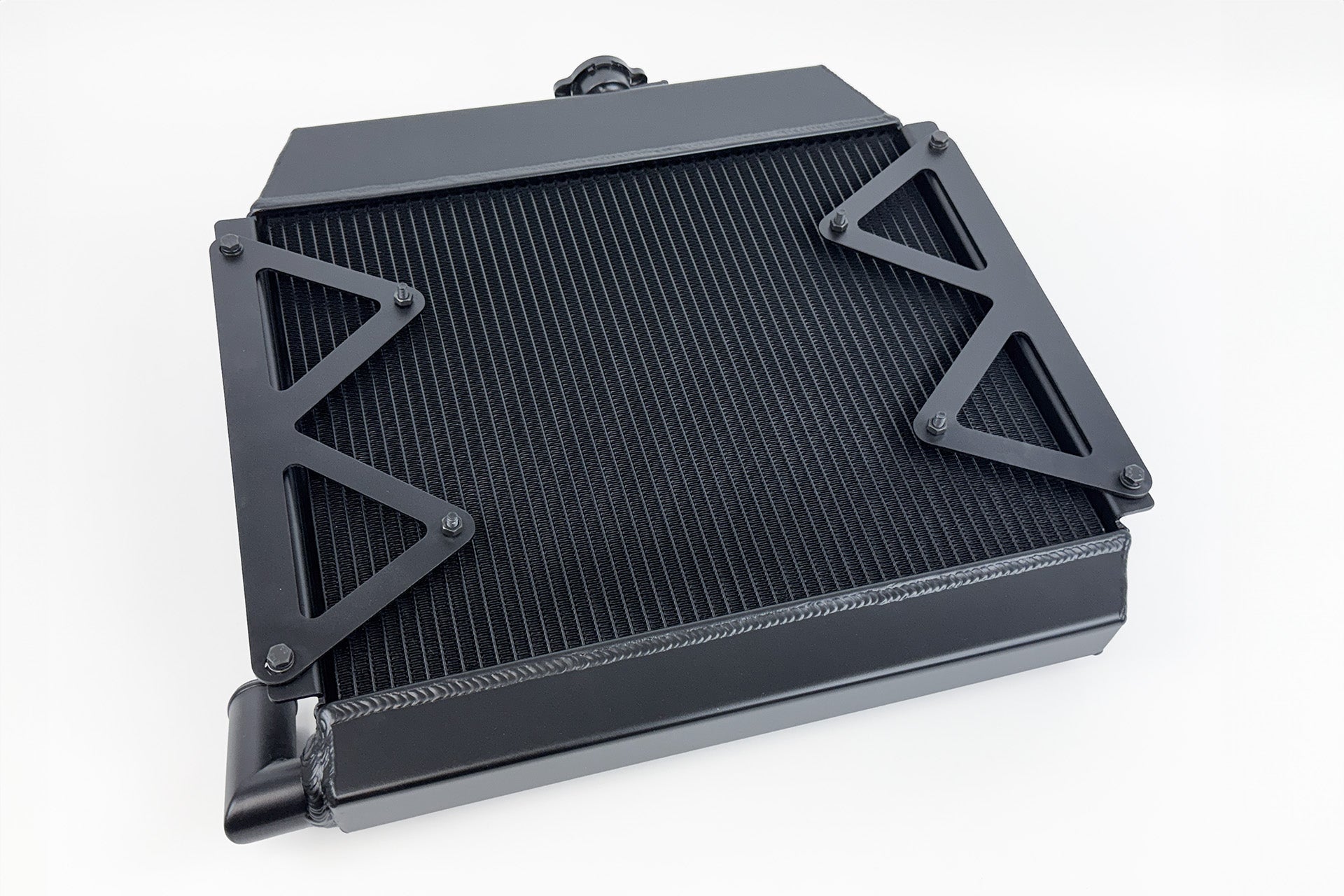

The BMW 2002 originally came equipped with a clutch style mechanical fan. While these old school fans function just fine, many owners like to upgrade to modern electrical fans. To make this conversion easier, CSF includes adjustable mounting brackets that allow the end user to install a Push style electric fan on the front side of the radiator if desired. The radiator still can be used with the OE clutch puller fan, but CSF recommends upgrading to an electric fan when possible. The push style electric fan is compatible with A/C Systems. The brackets are designed to work with an 11" SPAL Fan #30100365.

CSF did a lot of research and development when designing this radiator. While working with Paul Lefevre (Son of Cobra), he told us he wasn't happy with the look, size, design, or performance of anything available on the market. To ensure none of these shortcomings were present in the new radiator, CSF studied several of the other aftermarket offerings. This included other all-aluminum models, plastic aluminum OEM replacements, and the original OE copper-brass radiator. This attention to detail is what helps make the new CSF Radiator unquestionably the best OEM+ & Performance option for the BMW 2002.

The attention to detail doesn't end there though. CSF is offering a limited production version of the radiator in a satin black finish for a high end OEM+ look and feel. This version (CSF #7225B) is exclusively available through Son of Cobra.

Features

• 1-Row - 31mm Ultra-High-Performance Core
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Satin Black Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• Includes optional / removable mounting brackets to run aftermarket 11" SPAL fan #30100365
• Requires use of lower radiator coolant hose BMW: 11 53 1 250 702
• Compatible with vehicles equipped with and without Air Conditioning
• M14X1.5P Temperature Switch Sensor Port & Plug
• 2-Year Limited Warranty

Applications

OEM Part Numbers

• BMW: 17-11-1-115-755
• BMW: 17 11 1 115 755
• BMW: 17111115755

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 7225B Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
