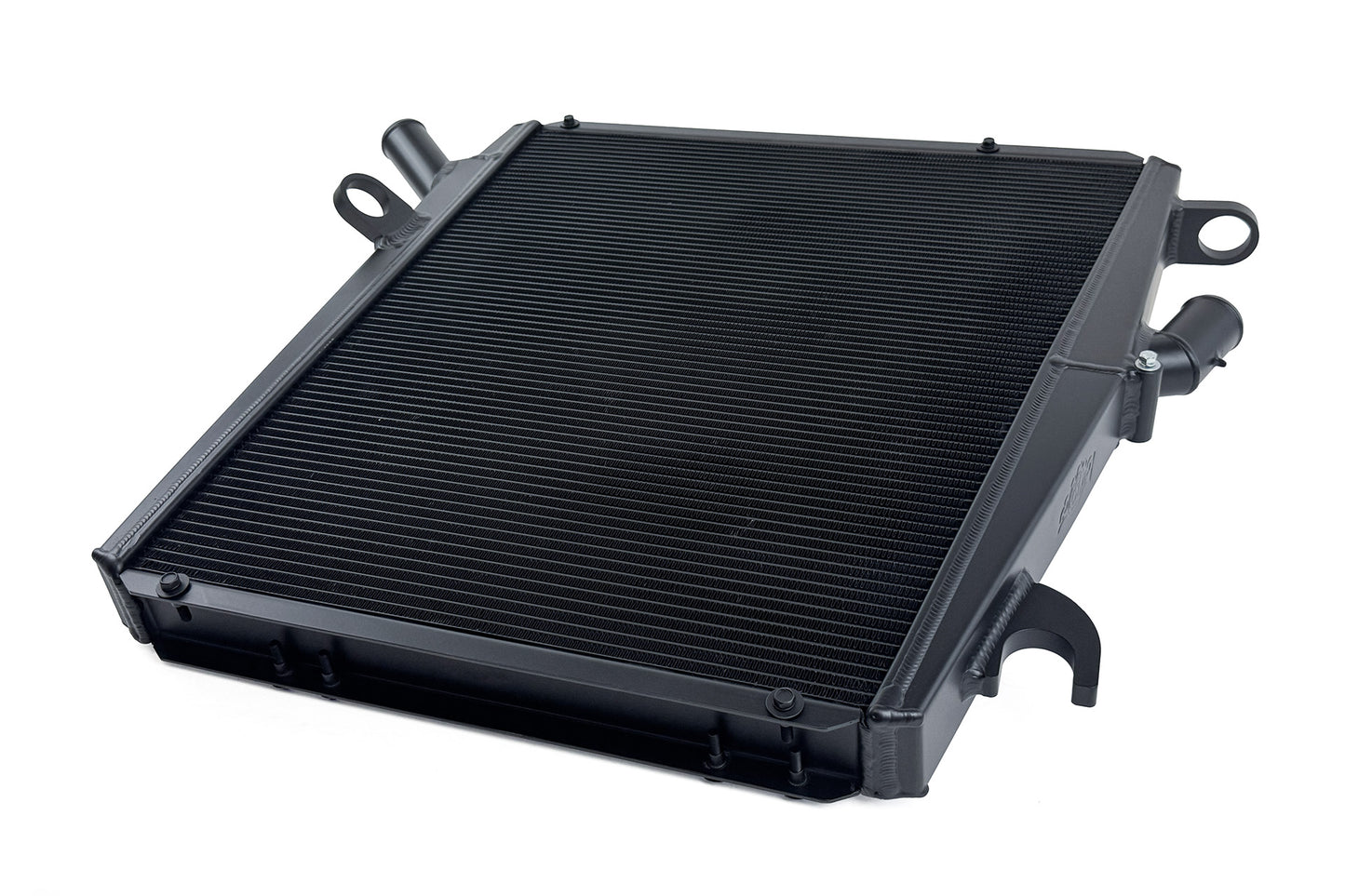

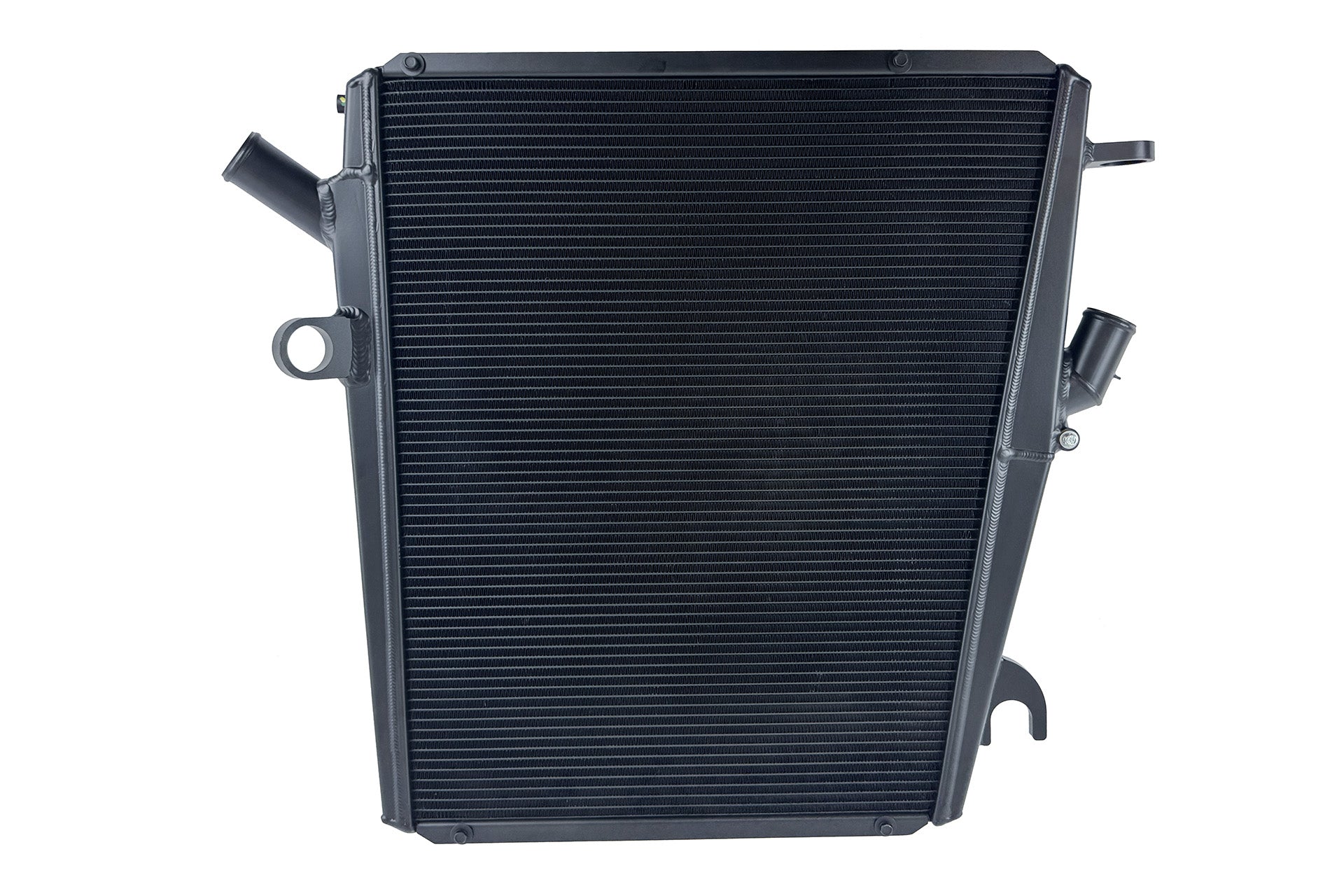

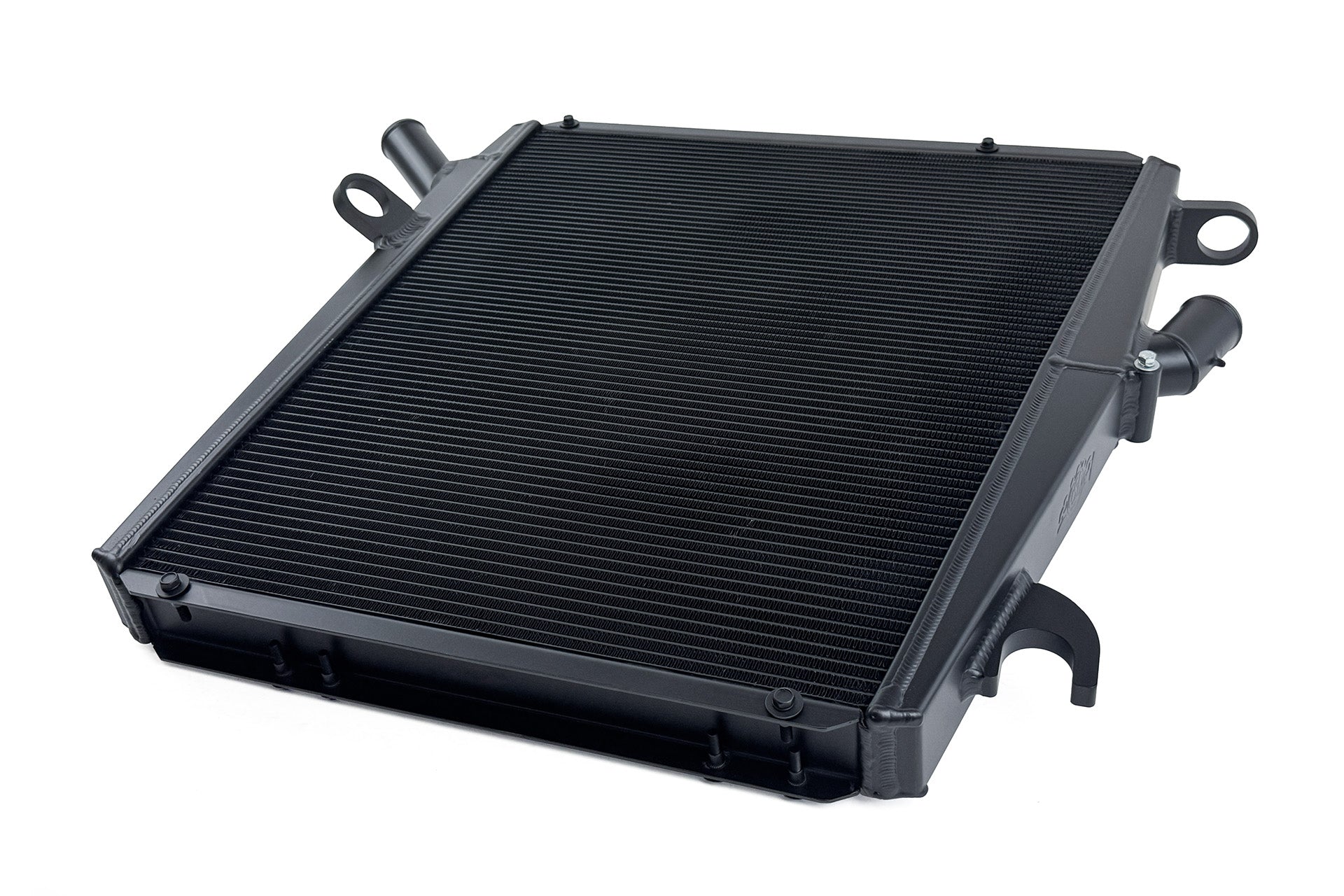

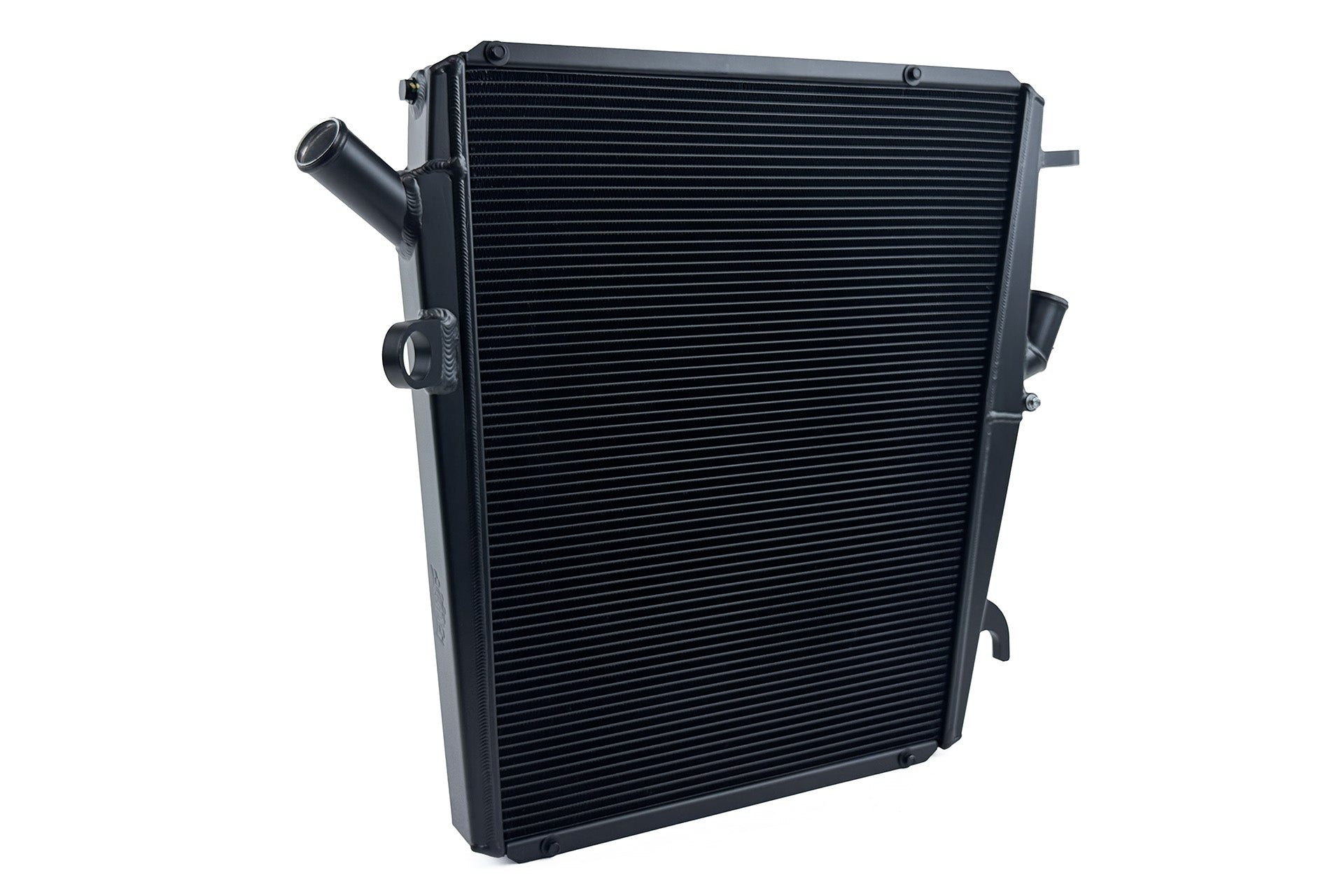

Ferrari 458 High-Performance All-Aluminum Radiator (RH)

Click Here for the Full Press Release & Additional Product Details

When initially designing the radiators, there were several key features that CSF knew were important to the Ferrari community: OEM Fit & Finish, Increased performance, improved reliability, and better serviceability. The original 458 radiators from Ferrari feature aluminum cores crimped onto plastic end tanks. While generally accepted as good quality and durable, this design is significantly weaker than the all-aluminum TIG welded design of the CSF Radiators.

The original 458 radiators from Ferrari feature aluminum cores crimped onto plastic end tanks. While generally accepted as good quality and durable, this design is significantly weaker than the all-aluminum TIG welded design of the CSF Radiators.

Every time the coolant is changed, the rubber hoses are pulled off the radiator, often along with some of the plastic from the radiator inlet/outlet. This puts stress on the plastic tanks and crimped gaskets connecting them to the core. It also wears down the hoses faster due to the bending and manipulation. CSF added drain plugs to the lower tanks making service simpler and reducing the risk of the hoses wearing out prematurely.

The CSF radiators feature the latest 5mm multi-louvered fins. These fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow. Each core is 26% larger than the original featuring 2-Row 42mm aluminum core. This both increases the fluid capacity of the radiator, and improves the core's ability to dissipate heat. The use of CSF's 5mm fins also allowed for an additional cooling tube and fin row.

CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. Combined with the new 5mm fins, heat transfer is increased by up to 25% overall. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.

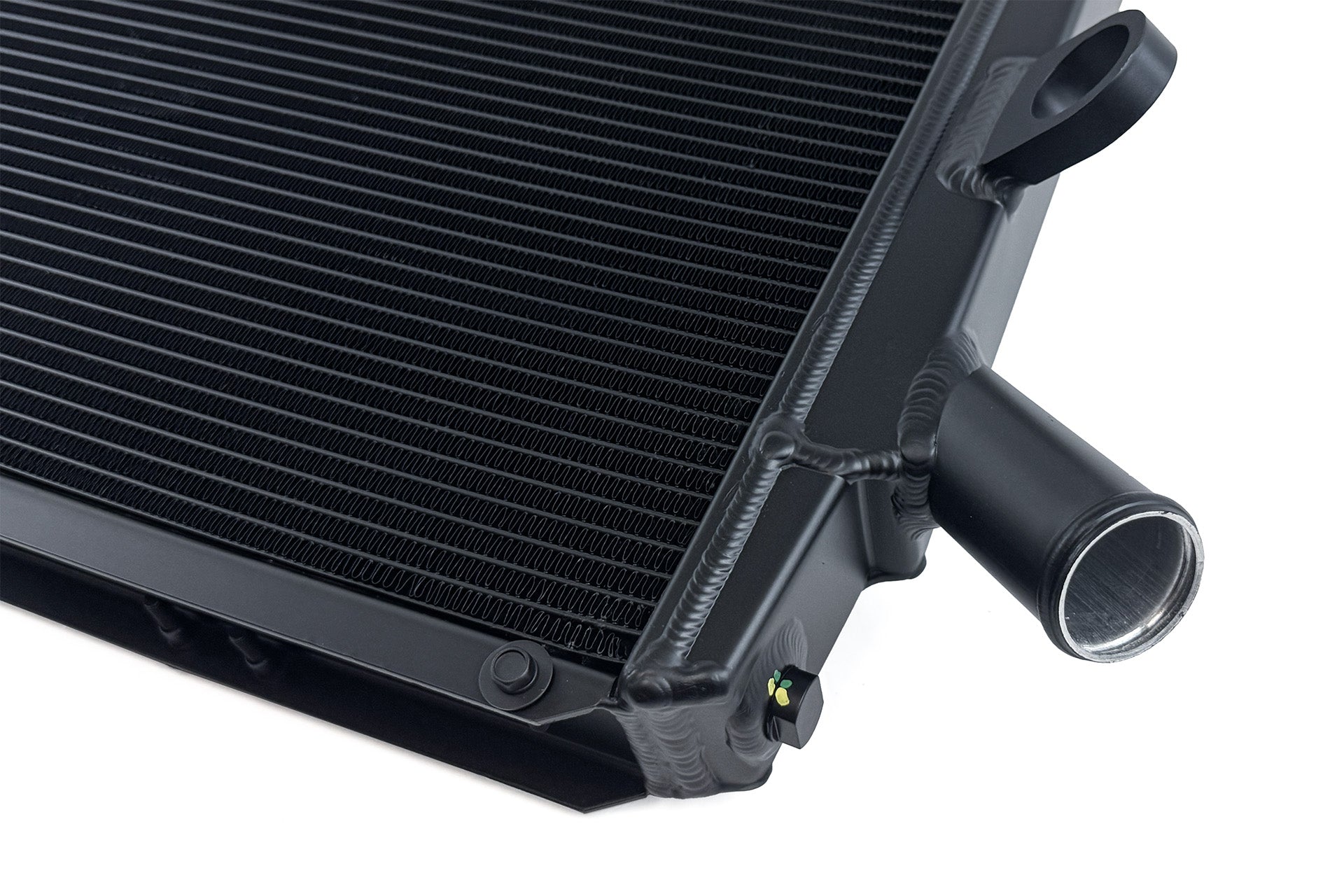

The combination of TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. Additionally, the satin black finish gives the radiator a clean OEM look and both radiators are a true Plug-and-Play "Drop-in Fit" application.

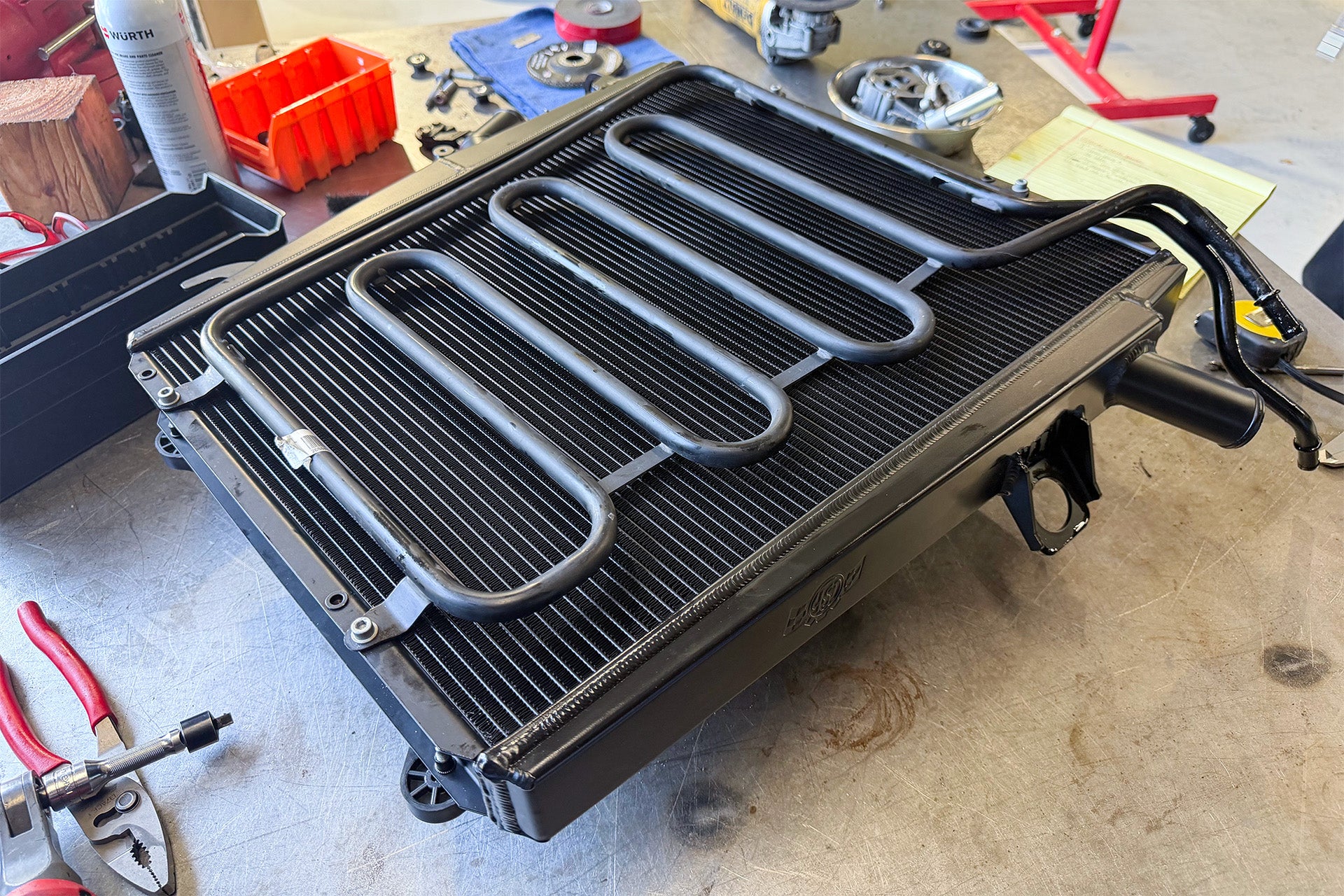

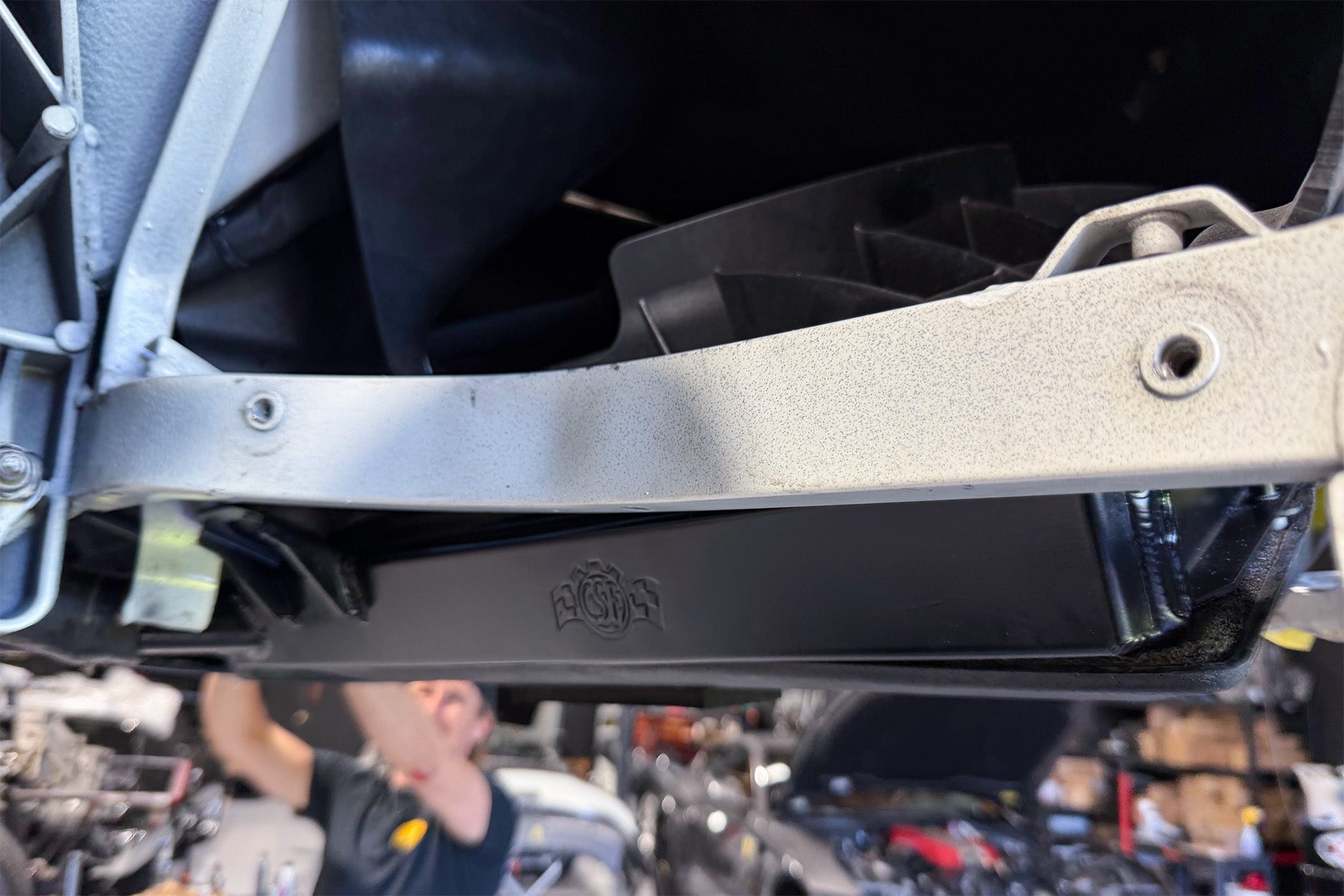

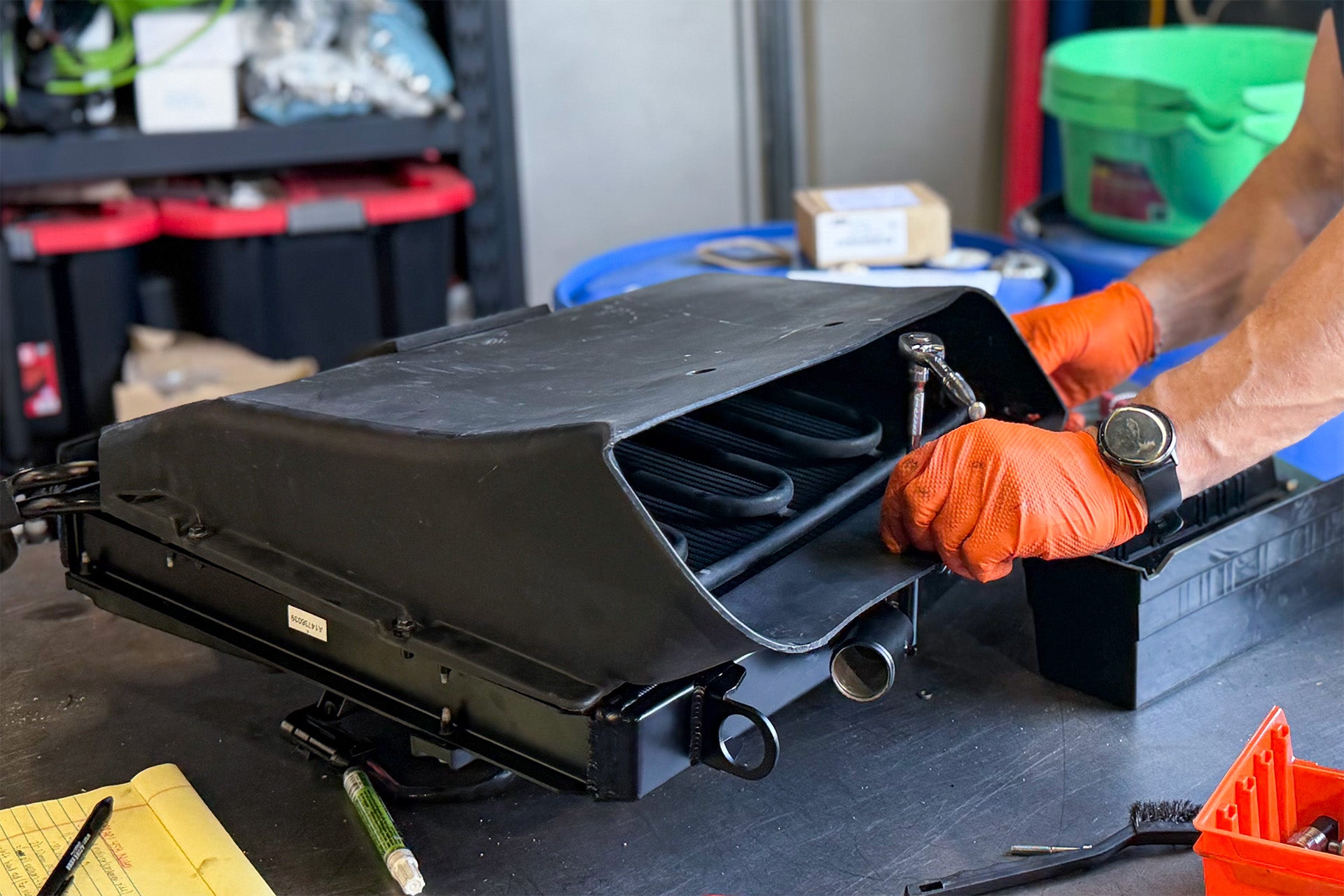

CSF designed these Radiators to easily replace the OEM units. The Plug-and-Play "Drop-in Fit" installation means all the factory shrouds and brackets will line up and bolt on perfectly. This includes the Power Steering Cooler on the right-hand side as well as the A/C Condenser on the left-hand side. It's also a great time to replace your old condenser with the new CSF #8377 OEM+/Performance A/C Condenser.

Features

• Sold Individually - Fits both left and right sides
• 2-Row - 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

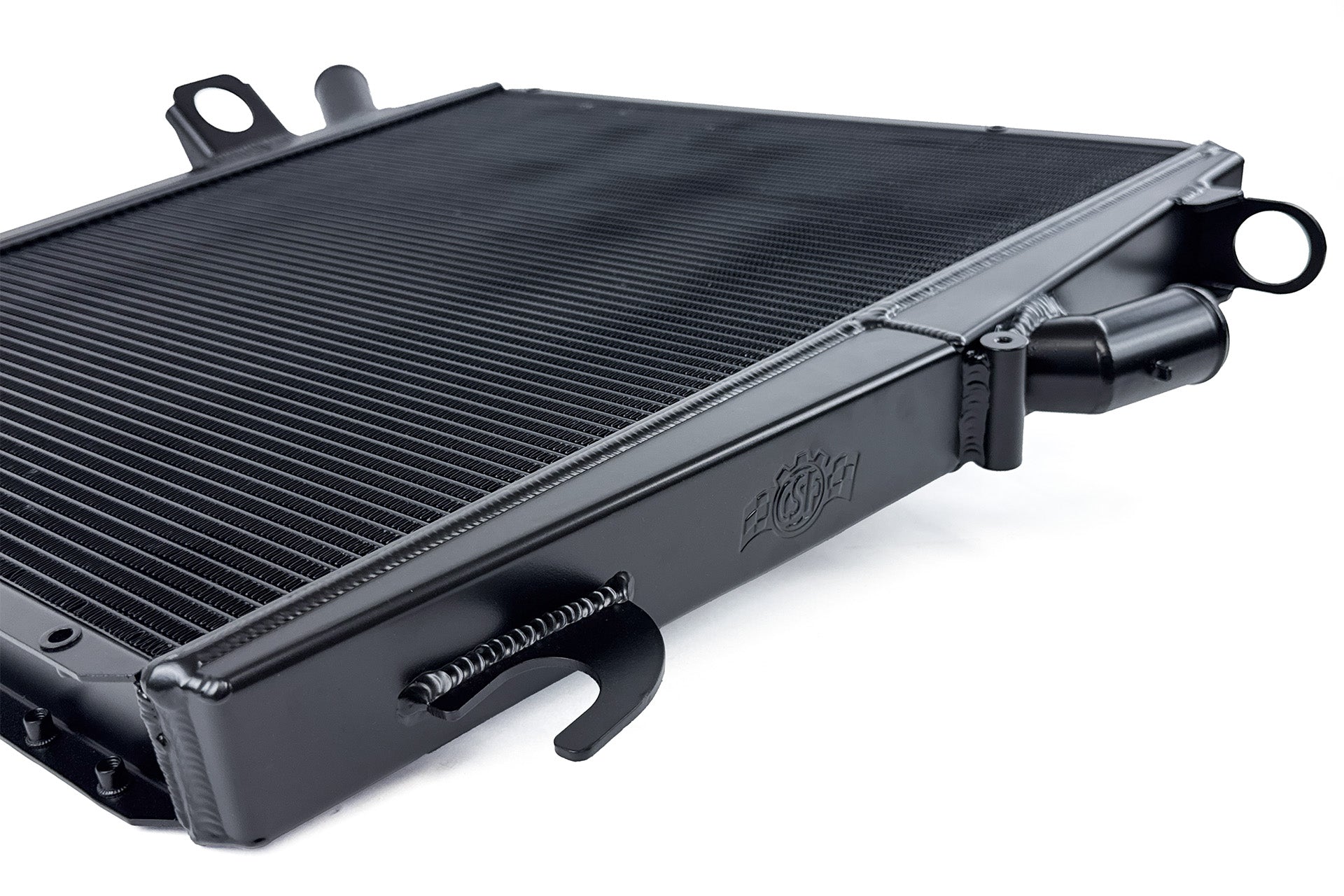

• CNC Machined Mounting Brackets and OEM Style Double Barbed Inlet/Outlet Connections
• 1/4 NPT Threaded Drain Plug on Left and Right Lower Radiator Tanks
• 100% All Aluminum TIG-Welded Construction
• Satin Black Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications

OEM Part Numbers

• Ferrari: 270265

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 7252 Warranty Term: 2 years
