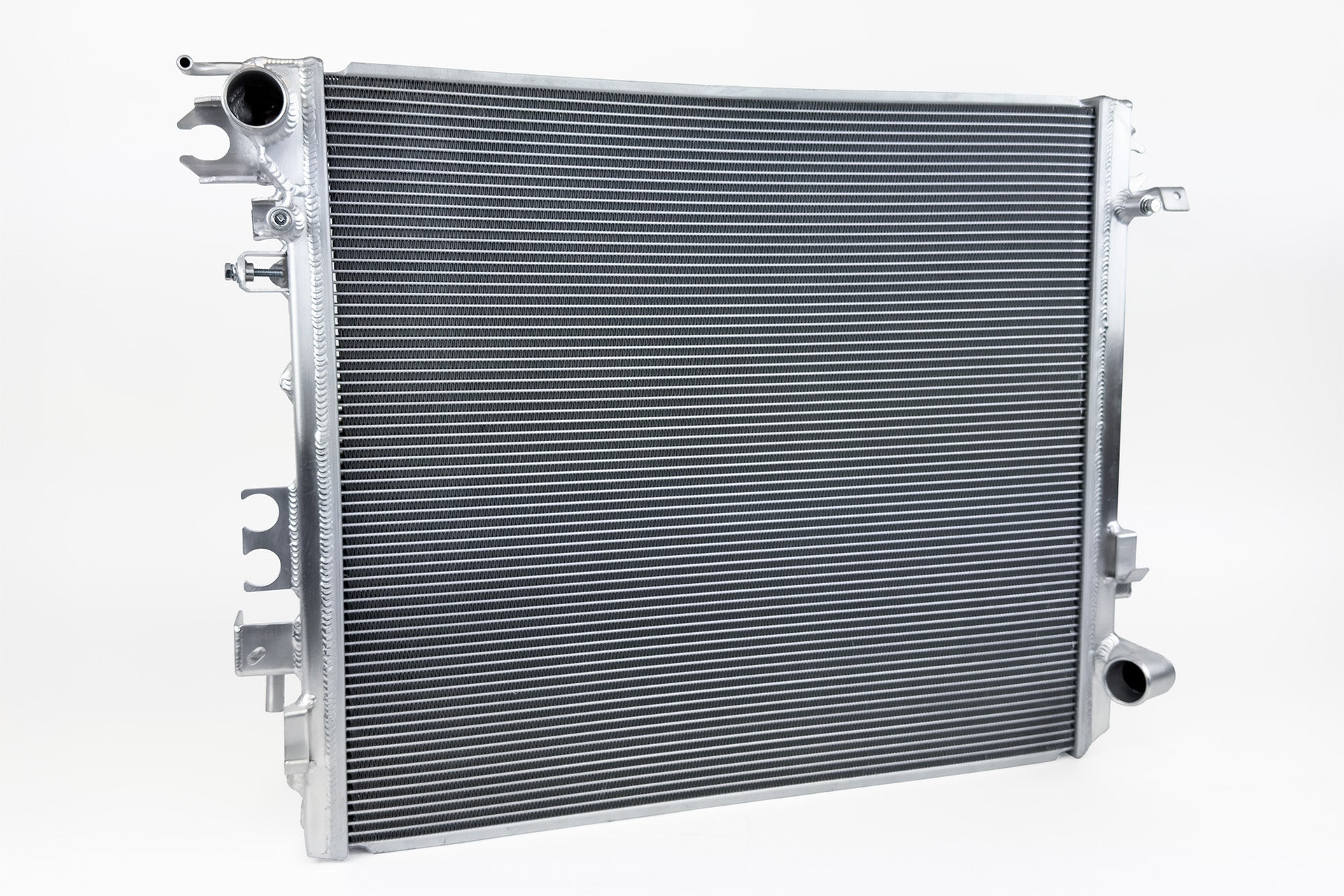

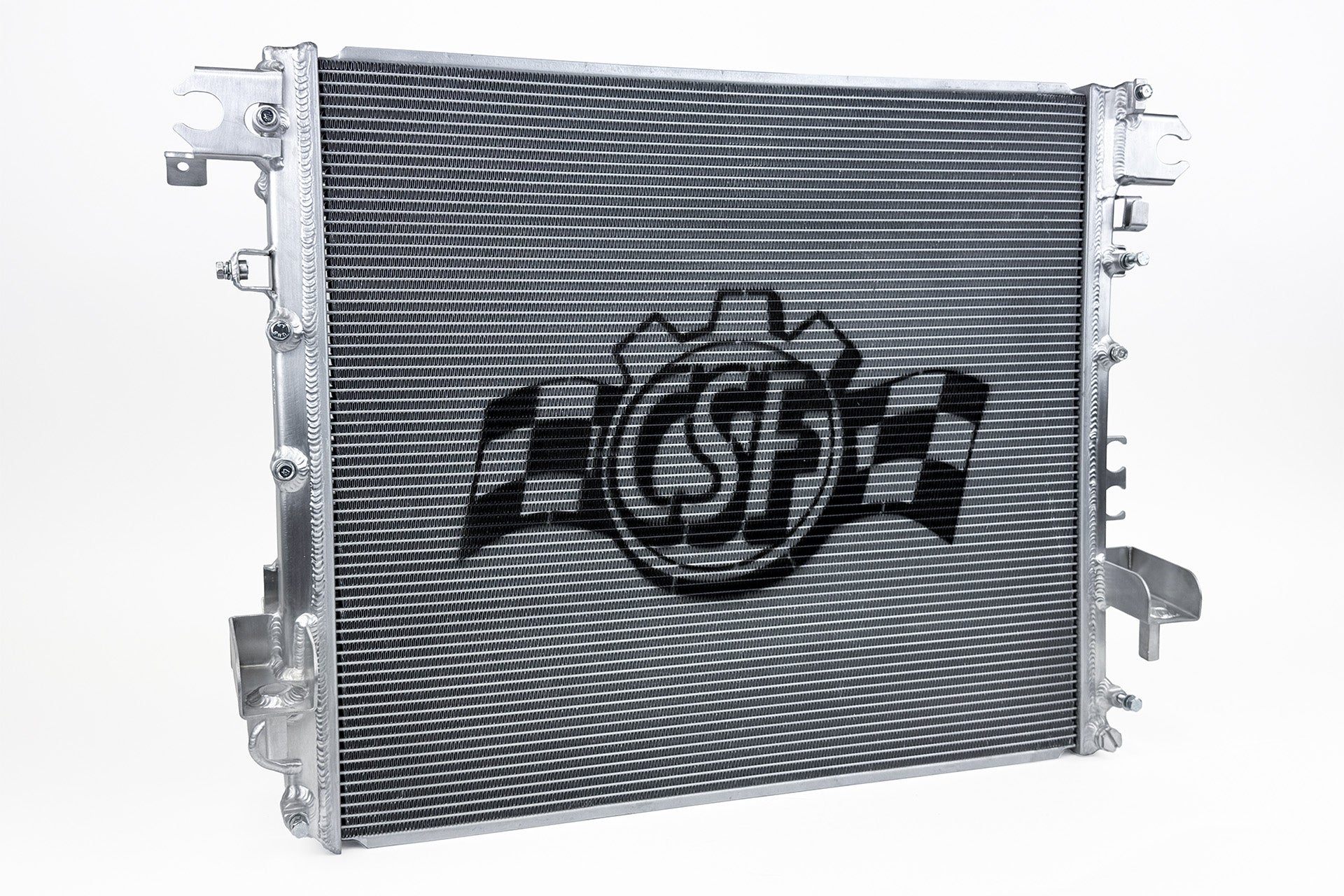

Jeep Wrangler (JL) & Gladiator (JT) Heavy-Duty All-Aluminum Radiator

Click Here for the Full Press Release & Additional Product Details

The Jeep Wrangler (JL) and pickup truck sibling the Gladiator (JT), are well known for their rugged reliability and out of the box off-road performance. However, even the best vehicles have their limits. Whether you are rock crawling, off-roading, or overlanding in extreme conditions, coolant temperatures can spike causing you to overheat. The new CSF Heavy-Duty All-Aluminum Radiator is the ultimate cooling solution for your Jeep.

Why Wrangler & Gladiator Owners Should Upgrade

Upgraded cooling systems are not just for off-road rigs and big haulers. Even basic mods/upgrades like oversized tires can increase strain on your engine in adverse conditions. The CSF Radiator provides extra protection that:

• Extends engine life by maintaining optimal coolant temperatures
• Improves towing capacity by enhancing cooling efficiency
• Eliminates performance limitations during demanding driving conditions
• Provides peace of mind with superior construction and durability

Product Details

Design & Engineering

When engine coolant overheats, performance suffers and you are forced to stop driving or risk a cooling system failure. Having to stop and wait for your engine to cool down is more than just an inconvenience, it is a limitation that shouldn't exist in modern SUVs and trucks. Especially not the legendary Wrangler.

An upgraded radiator helps eliminate the concern of overheating. These advanced designs feature larger 2-Row, 42mm aluminum cores which increase the fluid capacity of the radiators, and greatly improves heat dissipation. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the ultra-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The result is a dramatic temperature reduction under all driving conditions.

Key Features:

• 20-25% increase in heat transfer efficiency using CSF's new 5mm Fin & Exclusive B-Tube Technology
• Improved cooling performance to support higher-boost and bigger-turbos, as well as additional load from gear, mods, and hard driving
• Engineered to withstand extreme conditions, providing reliability where it matters most
• Designed to work seamlessly with factory or aftermarket transmission coolers, intercoolers, etc.

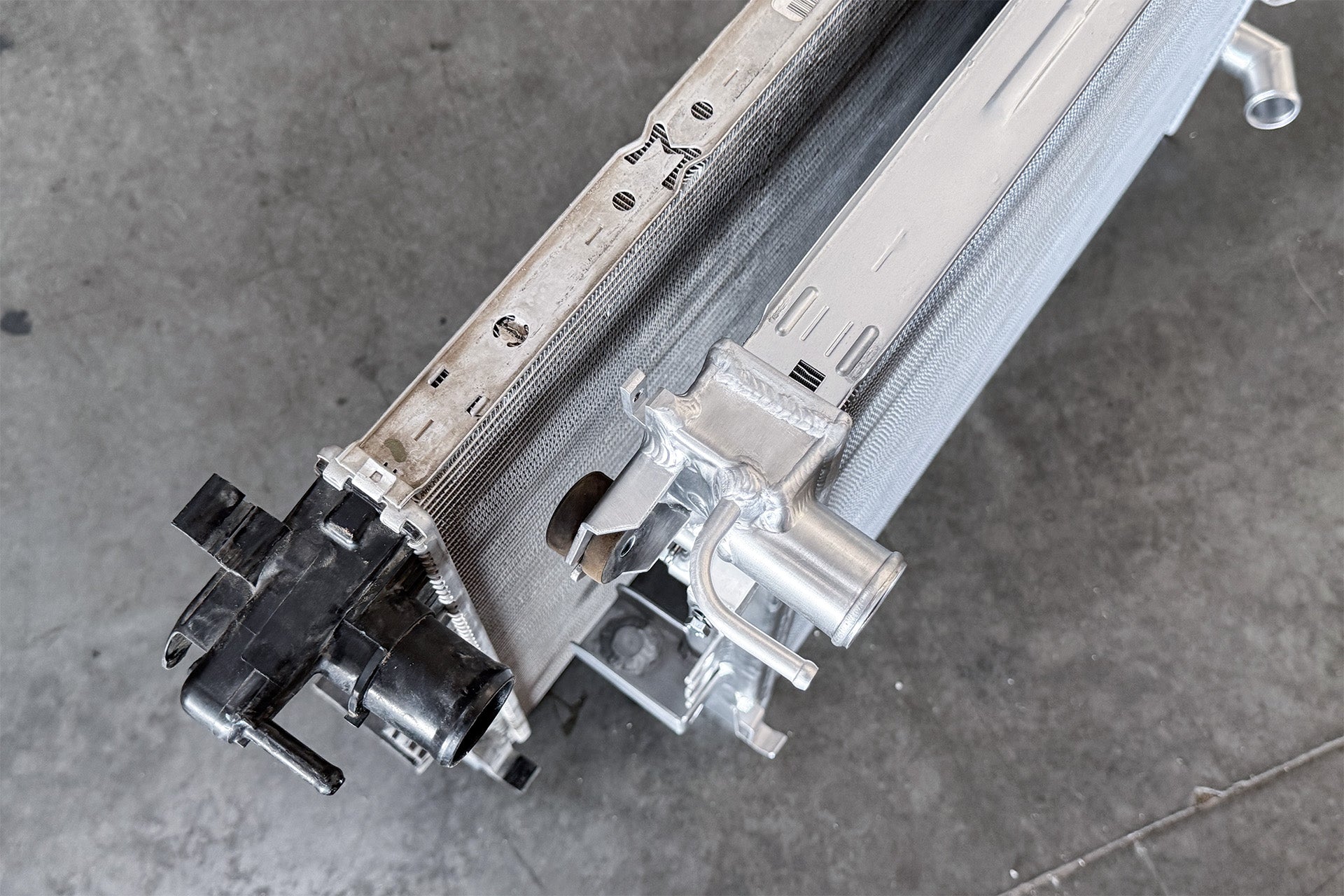

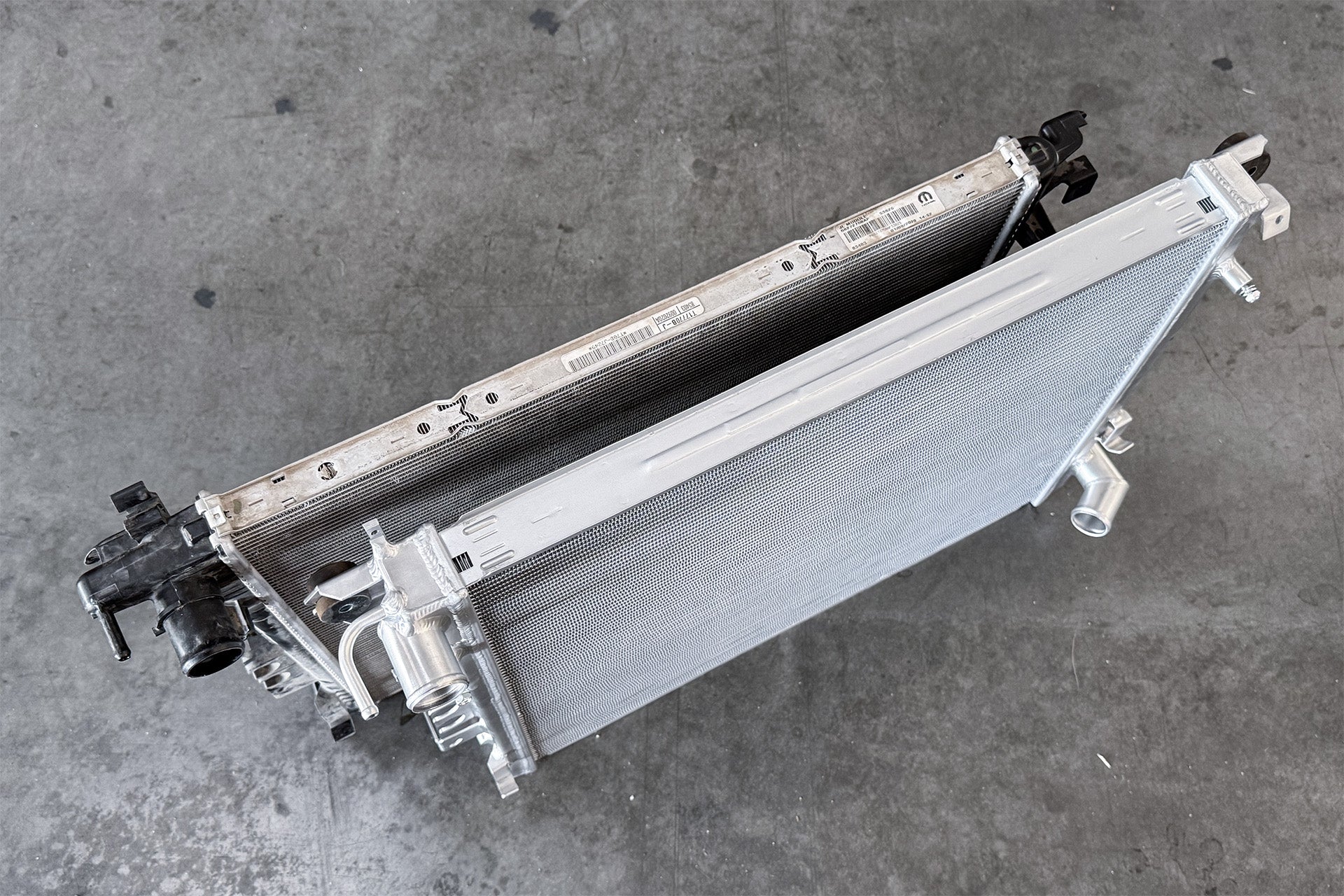

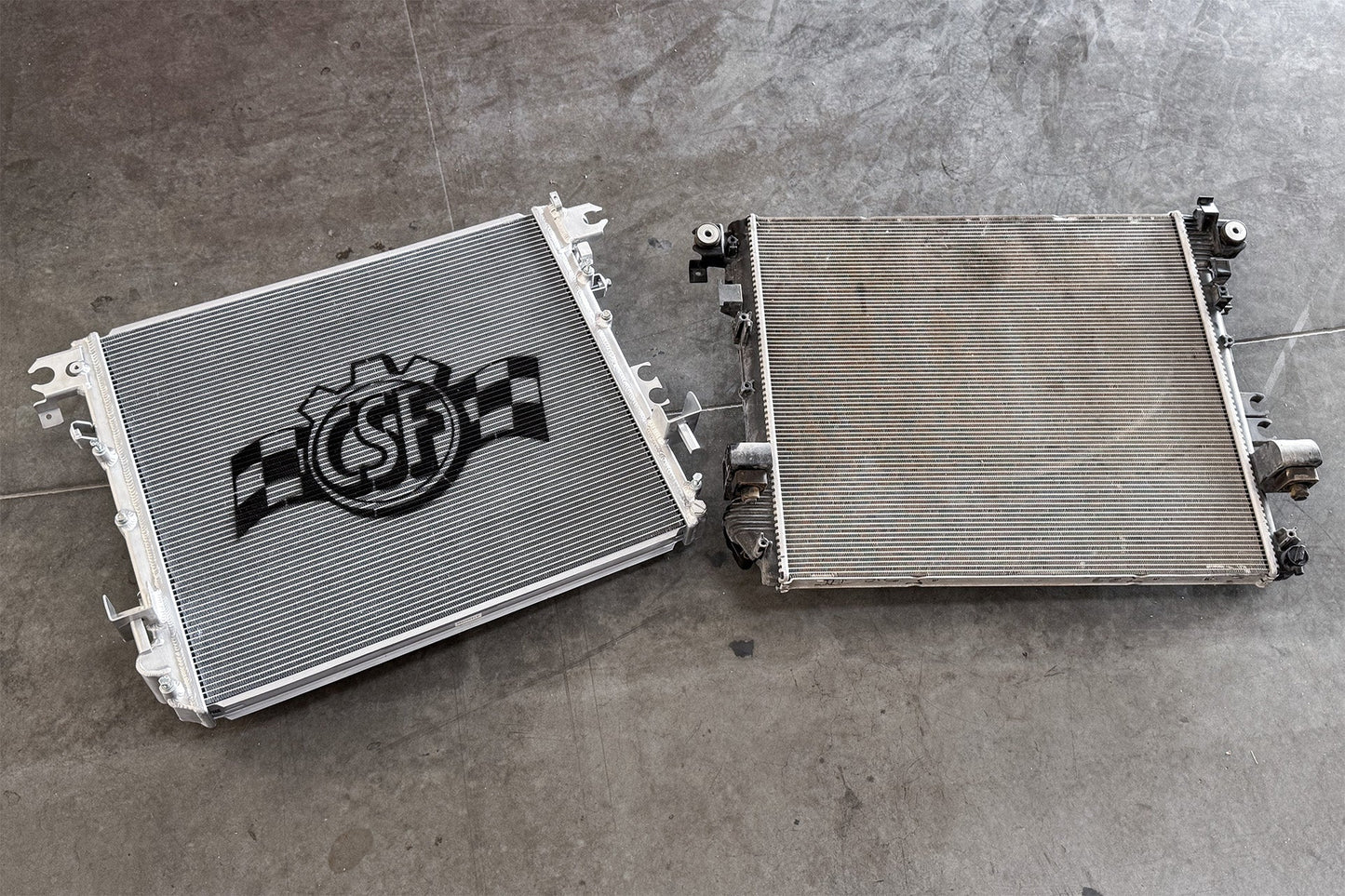

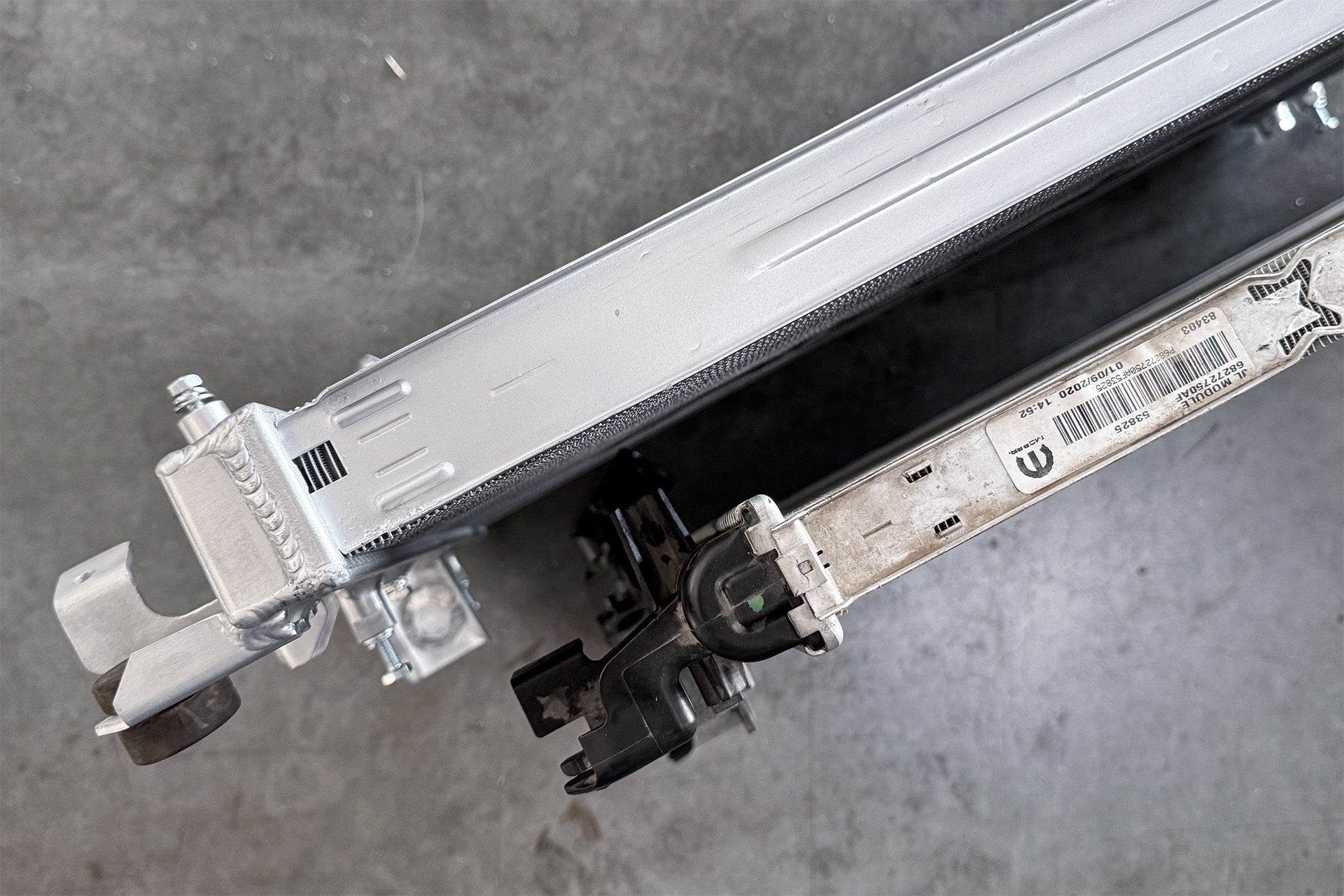

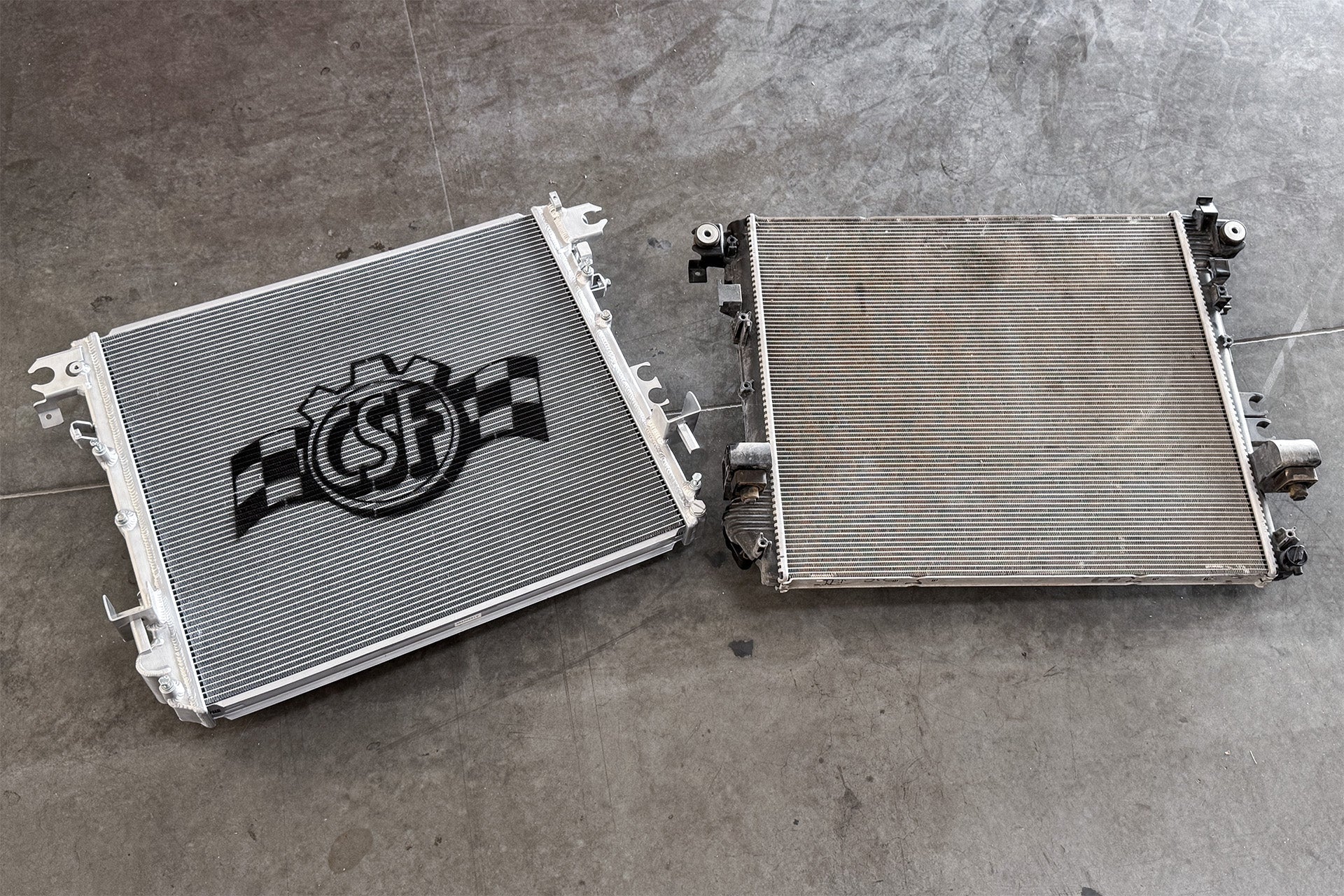

CSF vs OEM

Jeep definitely learned some lessons from previous generations and gave the Wrangler and Gladiator a decent radiator. While the factory system seems to cope with modifications better than previous generations, more people are pushing these rigs harder than ever. Bigger turbos, more boost, heavier accessories, etc, all increase heat output of the motor.

Feature	CSF	OEM
# Core Rows	2	1
Fin Height	5mm	5mm
Core Thickness	42mm	27mm
Core Material	Aluminum	Aluminum
Tank Material	Aluminum	Plastic
Construction	100% TIG Welded	Crimp on Gasket

Instead of waiting for your factory radiator to fail or putting up with power loss due to high engine temps, you can get ahead of the problem with the CSF Radiator. Upgrading to the CSF Radiator offers a lot of advantages including:

• 50% larger core volume than the factory radiator
• 20-25% increase in heat transfer efficiency using CSF's exclusive 5mm Fin Technology
• 100% TIG welded Aluminum construction (compared to plastic end tanks crimped)
• Perfect for daily driving, towing, and off-road adventures

5mm Core Upgrade

CSF always seeks to offer the ultimate cooling solution. The latest 5mm fin technology was introduced at the end of 2023 offers even more heat transfer area and thermal efficiency than CSF's tried and true 6.5mm fins. Jeep owners are known to push their rigs hard and CSF is confident this radiator is ready to take on the most demanding conditions in the world.

Plug and Play Installation

CSF designed these Radiators to easily replace the OEM units. The Plug-and-Play "Drop-in Fit" installation should only take 2-3 hours and greatly improves the reliability and longevity of your engine.

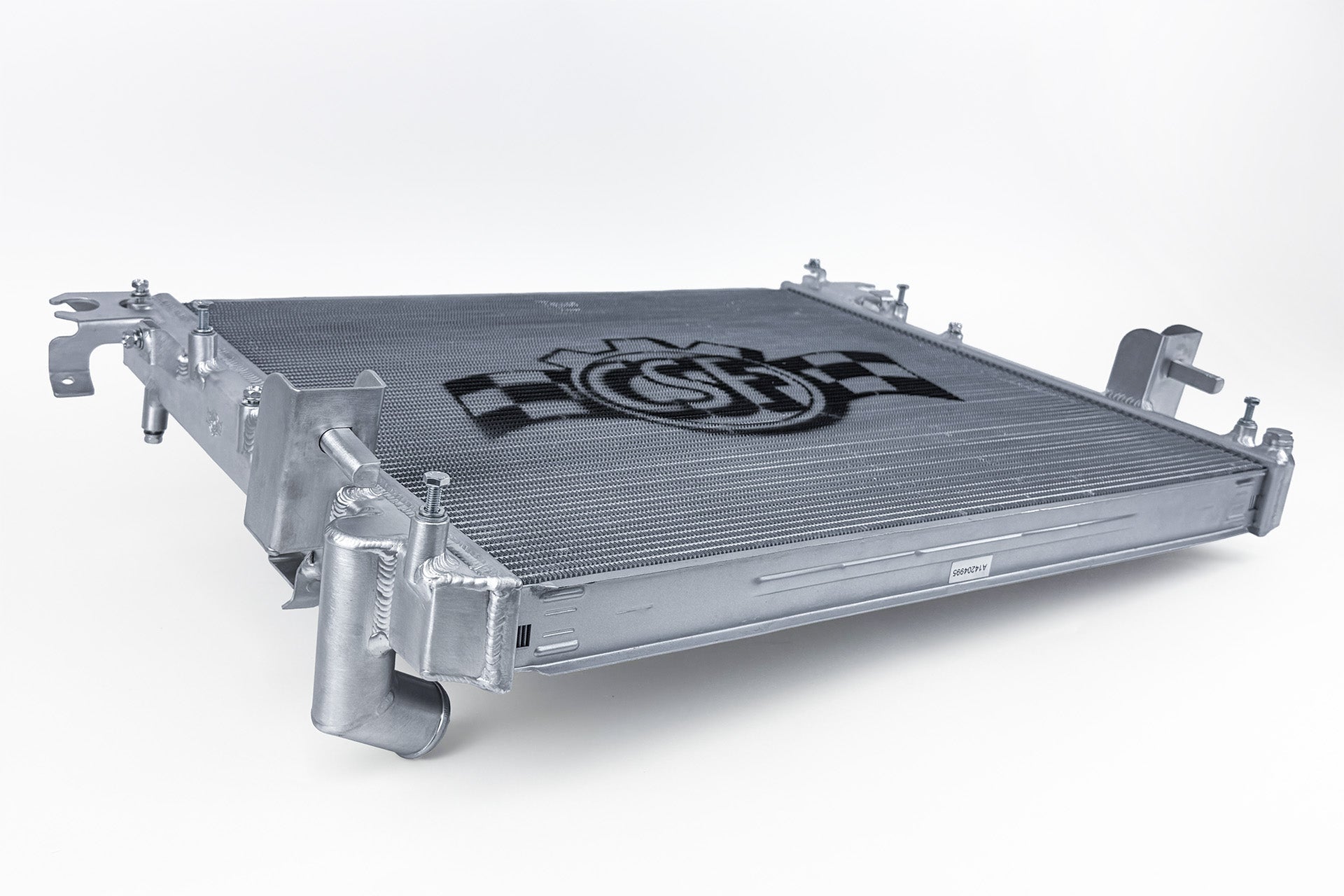

Features

• 2-Row - 42mm High-Performance Core
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

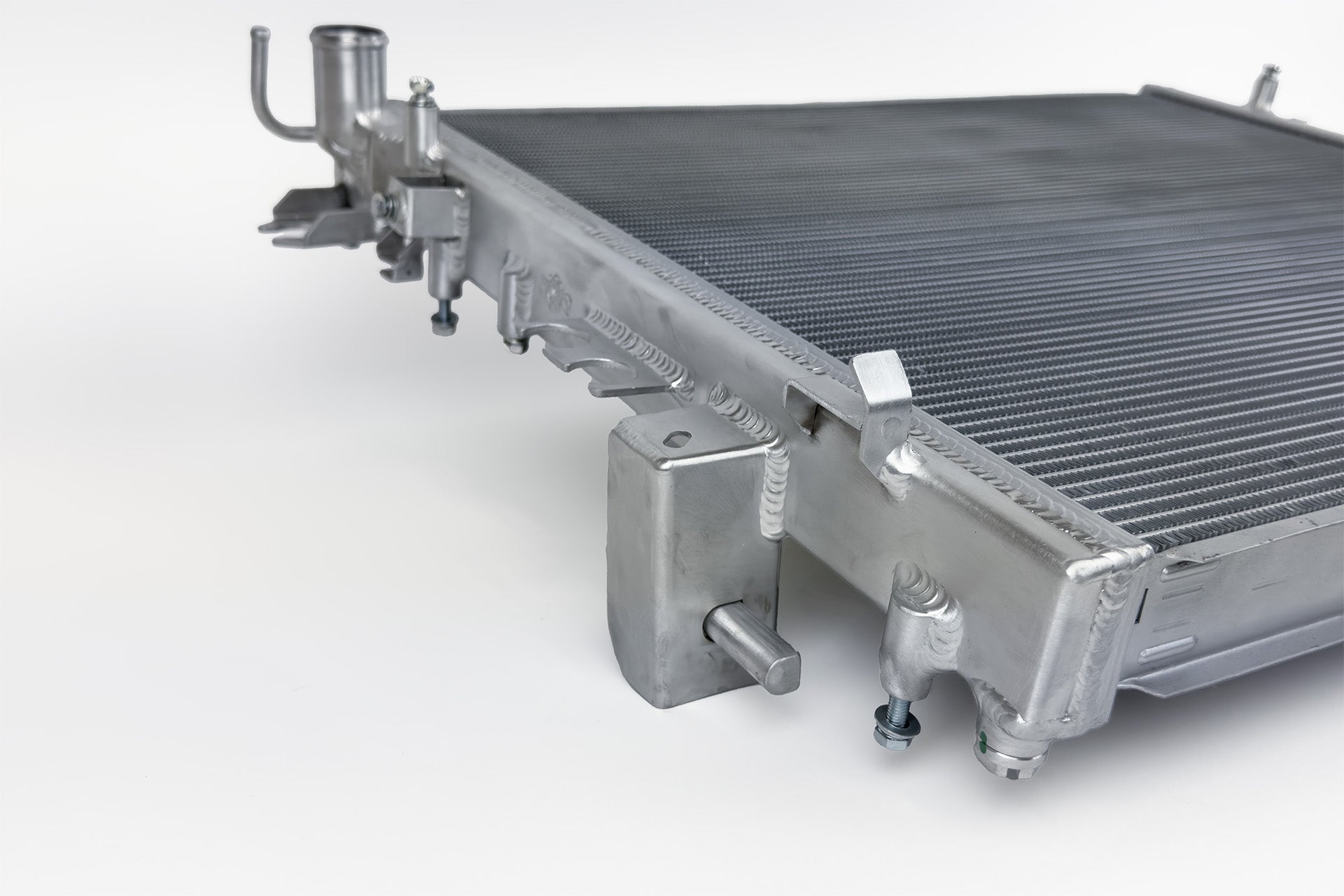

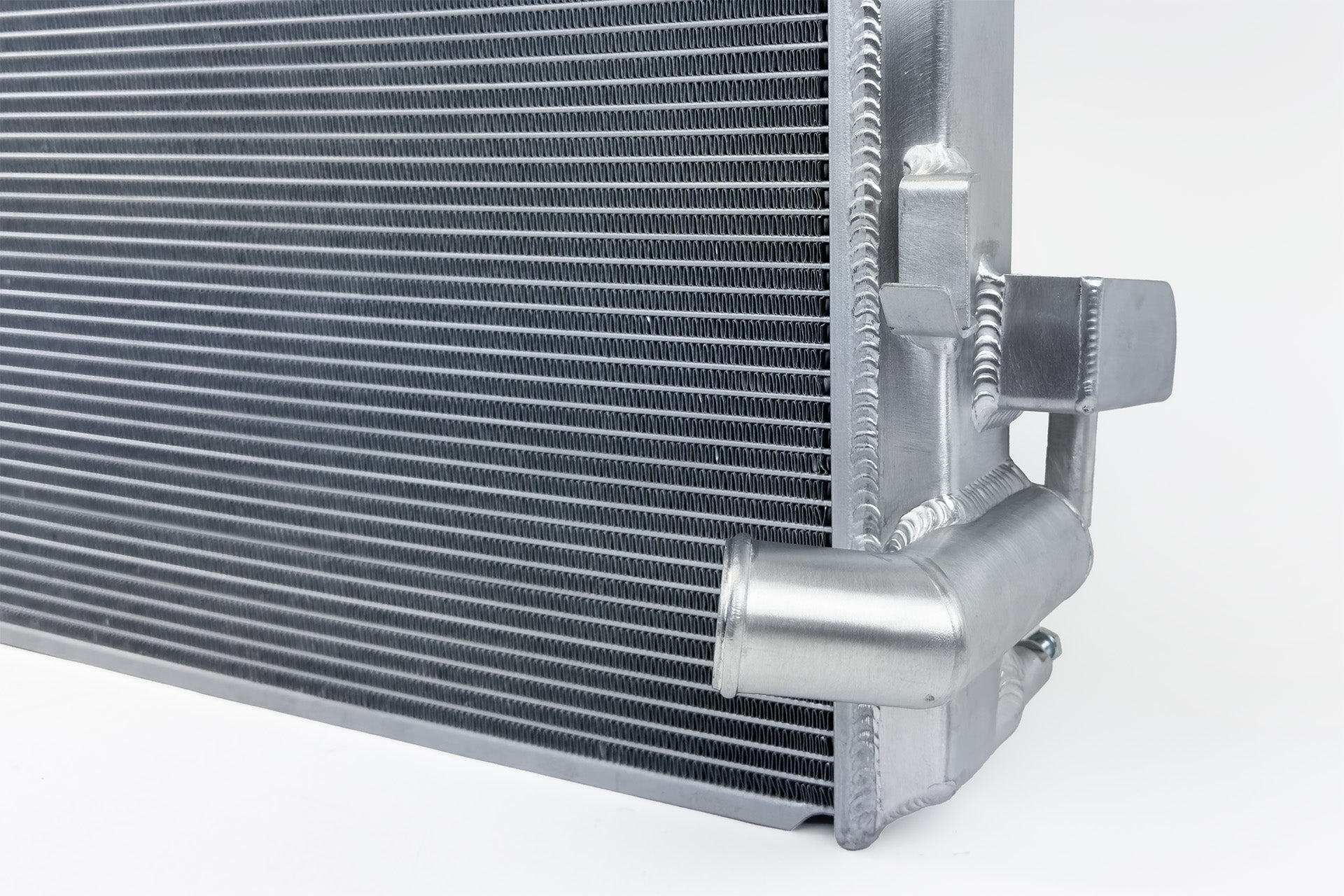

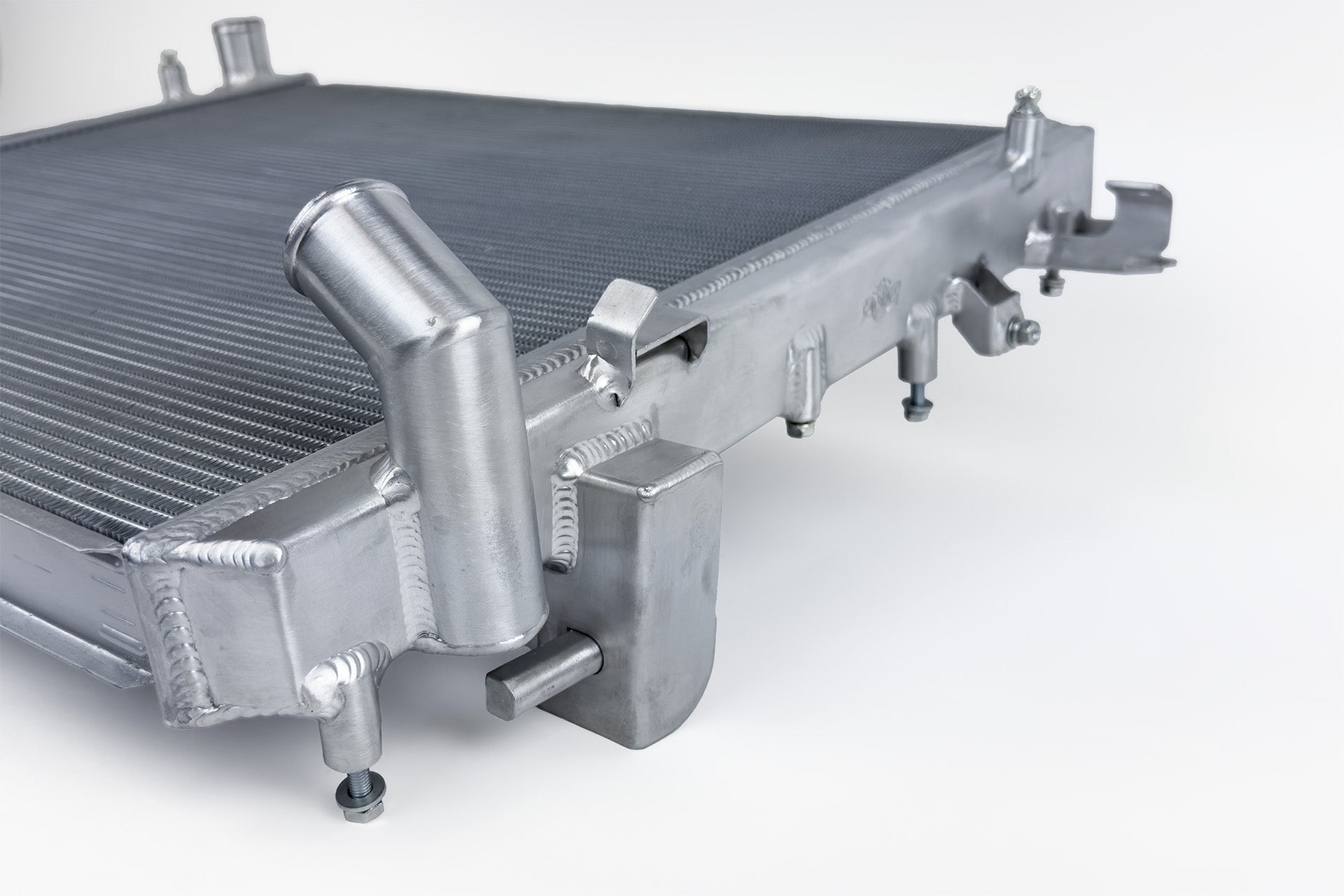

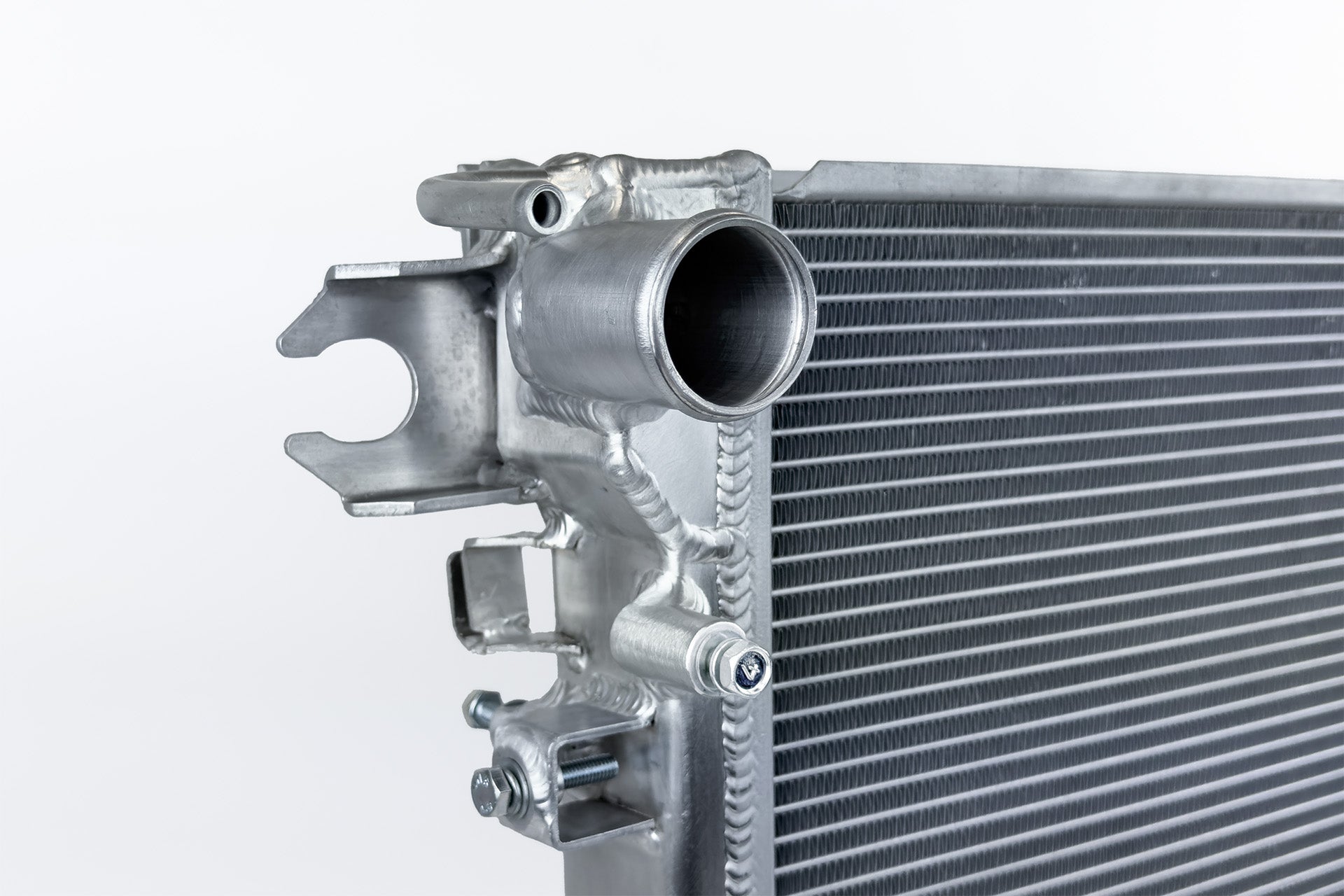

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications

Year Range	Make	Chassis Code	Model	Trim	Engine / Trans / Etc	Notes
2018-2025	Jeep	JL/JT	Wrangler	-	Turbocharged MILD HYBRID EV-GAS (MHEV) 2.0L L4	-
2018-2025	Jeep	JL/JT	Wrangler	-	Turbocharged 2.0L L4	-
2020-2023	Jeep	JL/JT	Wrangler	-	Turbocharged Diesel 3.0L V6	-
2018-2025	Jeep	JL/JT	Wrangler	-	3.6L V6	-
2020-2023	Jeep	JL/JT	Wrangler	-	MILD HYBRID EV-GAS (MHEV) 3.6L V6	-
2020-2025	Jeep	JL/JT	Gladiator	-	3.6L V6	-
2021-2023	Jeep	JL/JT	Gladiator	-	Turbocharged Diesel 3.0L V6	-

OEM Part Numbers

• Jeep: 68314786AC
• Jeep: 68314786AB
• Jeep: 68314786AA

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 7340 Warranty Term: 2 years
