FR-S/BRZ/86/GR86 All-Aluminum Filler Neck w/1.4 bar High Pressure Radiator Cap
FR-S/BRZ/86/GR86 All-Aluminum Filler Neck w/1.4 bar High Pressure Radiator Cap
Where to buy
Find a Dealer
Click Here for the Full Press Release

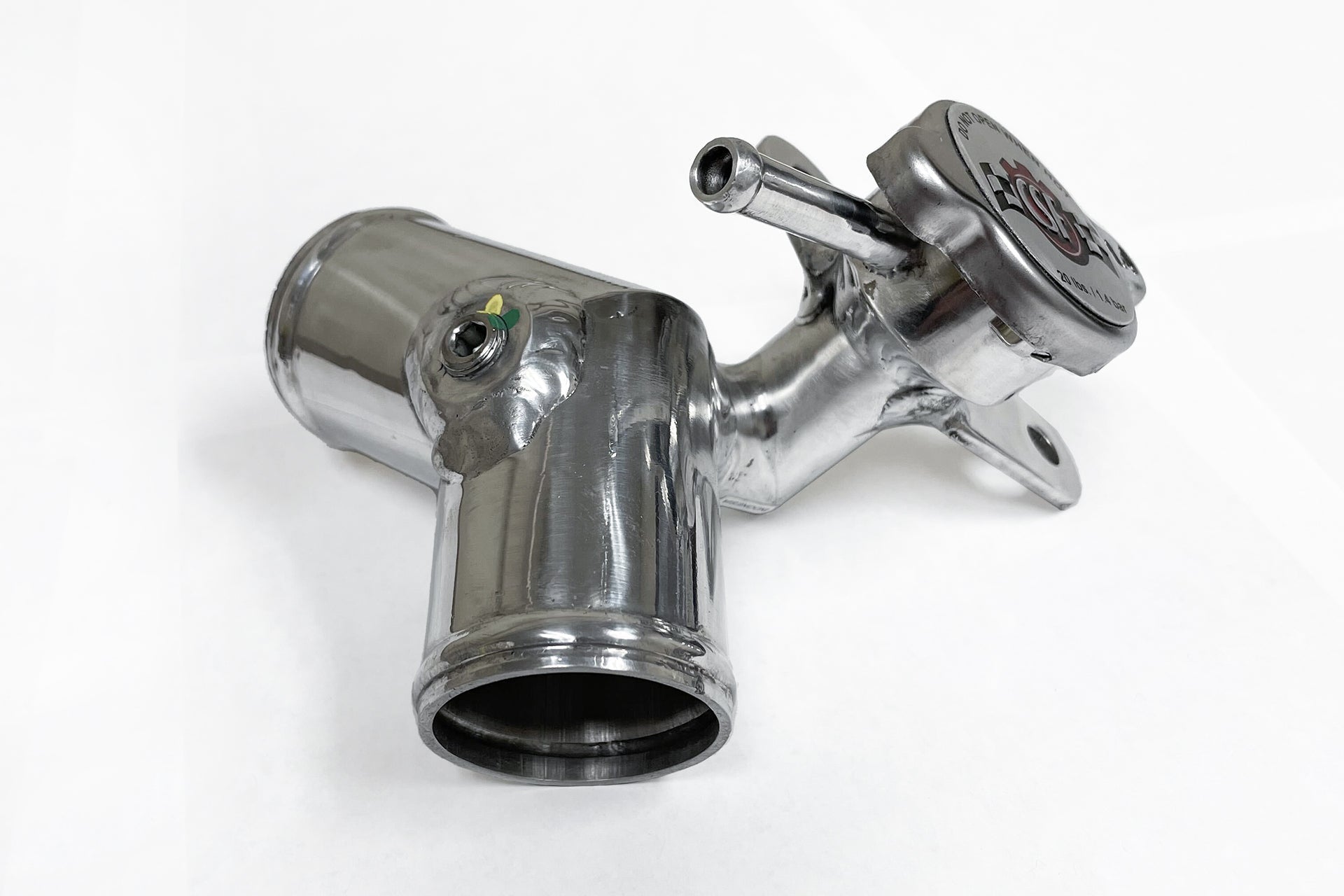

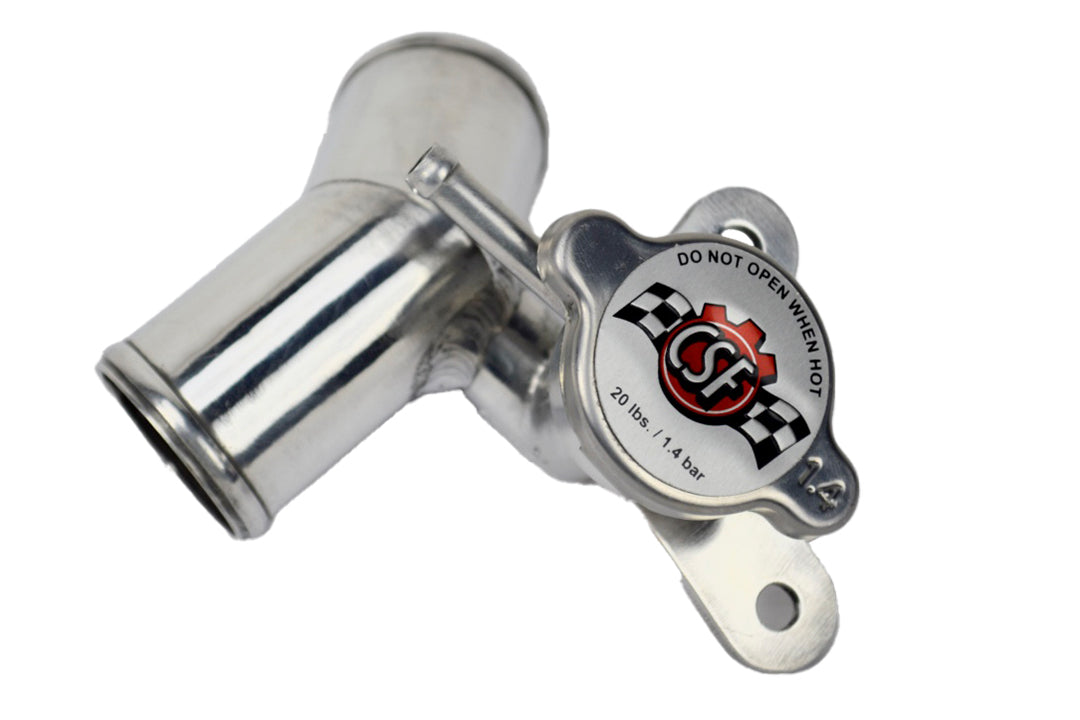

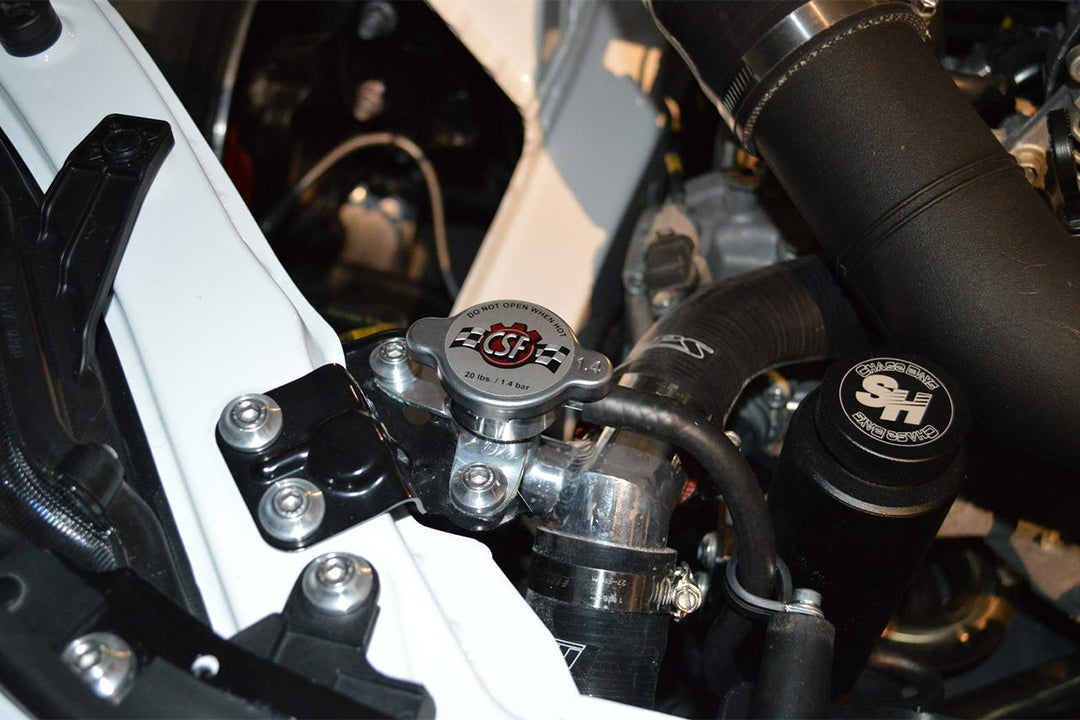

Replace the weak plastic auxiliary filler neck of your FRS/BRZ/86 with an all-aluminum 100% TIG-welded and mirror polished upgraded version from CSF. Complete with a 1.4bar high-pressure cap with a high-quality "mini style" radiator cap, embossed with the CSF logo. This cap style is most commonly used with high-performance aftermarket caps if you wish to replace the CSF cap with another brand. Easy drop-in replacement with no modifications - can be installed in less than 5 minutes.
Features
- All-aluminum 100% TIG-welded
- Mirror polished

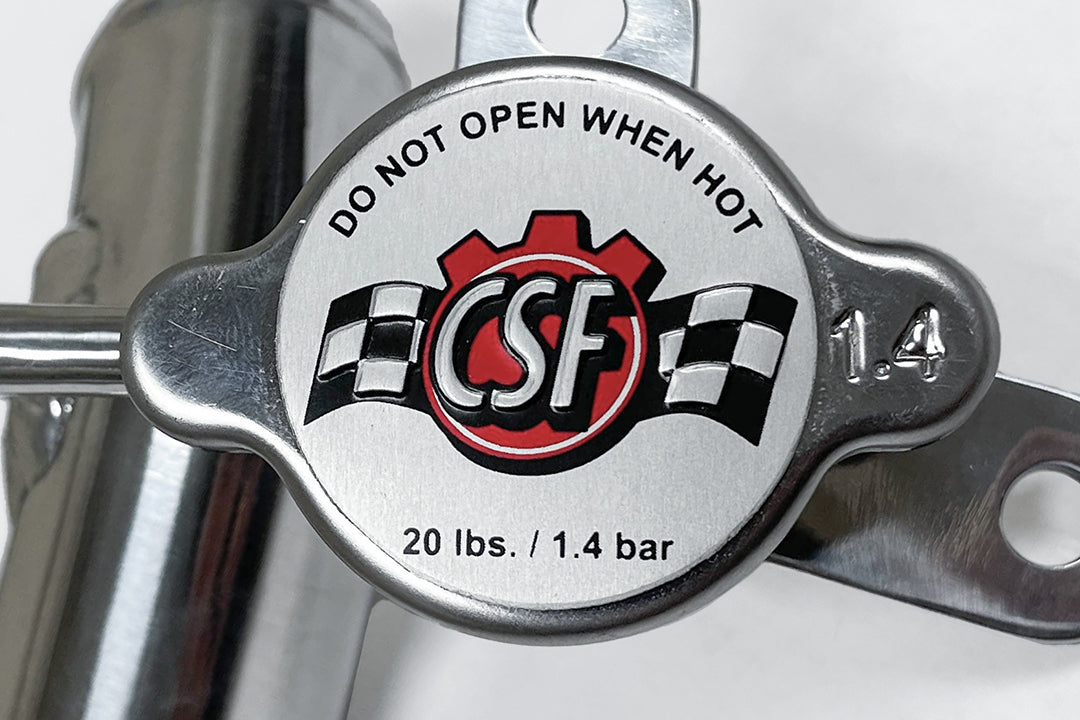

- 1.4bar high-pressure cap
- Integrated 1/8 NPT sensor port & preinstalled optional plug for aftermarket sensors
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 2013-2016 | Scion | ZN6 | FR-S | - | 2L H4 | - |
| 2022-2025 | Subaru | ZN8 | BRZ | - | 2.4L H4 | - |
| 2024-2025 | Subaru | ZN8 | BRZ | Limited | 2.4L H4 | - |
| 2024-2025 | Subaru | ZN8 | BRZ | Premium | 2.4L H4 | - |
| 2024-2025 | Subaru | ZN8 | BRZ | Sport-tech | 2.4L H4 | - |
| 2013-2020 | Subaru | ZN6 | BRZ | - | 2L H4 | - |
| 2017-2020 | Toyota | ZN6 | 86 | - | 2L H4 | - |
| 2022-2023 | Toyota | ZN8 | GR86 | - | 2.4L H4 | - |
OEM Part Numbers
- Subaru: 45151CA000
- Subaru: 45151CC000
- Toyota: SU003 03939
- Toyota: SU003-03939
- Toyota: SU00303939
- Toyota: SU003 09080
- Toyota: SU003-09080
- Toyota: SU00309080
Warranty
Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page
SKU# 8044 Warranty Term: 2 years
