Mercedes AMG GT/R/C / W205 C63 / W213 E63 / GLC63 Heat Exchanger w/ Rock Guard

Click Here for the Full Press Release & Additional Product Details

This is the Ultimate High-Performance All-Aluminum Heat Exchanger for the Mercedes Benz AMG 4.0L V8 bi-turbo engine. This AMG V8 utilizes a charge air cooler system - a water circuit (which flows through a pump into the charge coolers) and a heat exchanger (which uses the water to cool the compressed air).

CSF's High-Performance Heat Exchanger is larger and cools the water more efficiently than the OEM plastic/aluminum unit. This helps deliver cooler and denser air through the charge air cooling system increasing power capabilities. In testing, Regal Autosport saw significant performance improvements consisting of up to a 68% reduction in Intake Air Temperatures (IATs) and a 400% improvement in heat soak reduction when compared to stock.

As with all of CSF's high-performance products, the same degree of engineering that has gone into the effectiveness of each product has gone into other aspects of its quality - from its hand-polished mirror finish to extensive testing and perfect "drop-in" fitment that the CSF name prides itself upon.

Product Details

Design & Engineering

CSF's All-Aluminum High-Performance Heat Exchanger is larger and cools the water more efficiently than the OEM plastic/aluminum unit thus helping deliver cooler and denser air through the charge air cooling system increasing power capabilities. In its recent testing, Regal Autosport saw significant performance improvements consisting of up to a 68% reduction in IATs (intake air temperatures) and a 400% improvement in heat soak reduction when compared to stock.

CSF vs OEM

The TIG welded aluminum tanks are much larger than the OE plastic tanks offering superior strength and fluid volume. A larger 2-row 42mm core increases cooling efficiency and capacity. This high efficiency core uses CSF's Exclusive B-Tube Technology, maximizing airflow and heat dissipation. CSF's multi-louvered fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while maintaining proper airflow.

Feature	CSF	OEM
Core Thickness	42mm	26mm
Core Rows	2	1
Core Material	Aluminum	Aluminum
Tank Material	Aluminum	Plastic
Construction	100% TIG Welded	Crimp on Gasket

100% All-Aluminum construction ensures the best performance and durability. The mounting tabs and brackets are much stronger and more durable than the OE plastic design. In addition, the Heat Exchanger also features an integrated bolt on rock guard to keep the cooler safe. CSF knows the kind of punishment the front of a car can take on or off the track. The wrong bit of debris flying through the front grille can quickly punch a hole in a cooler. Now you can feel more confident that your cooling system is safer from debris.

Testing

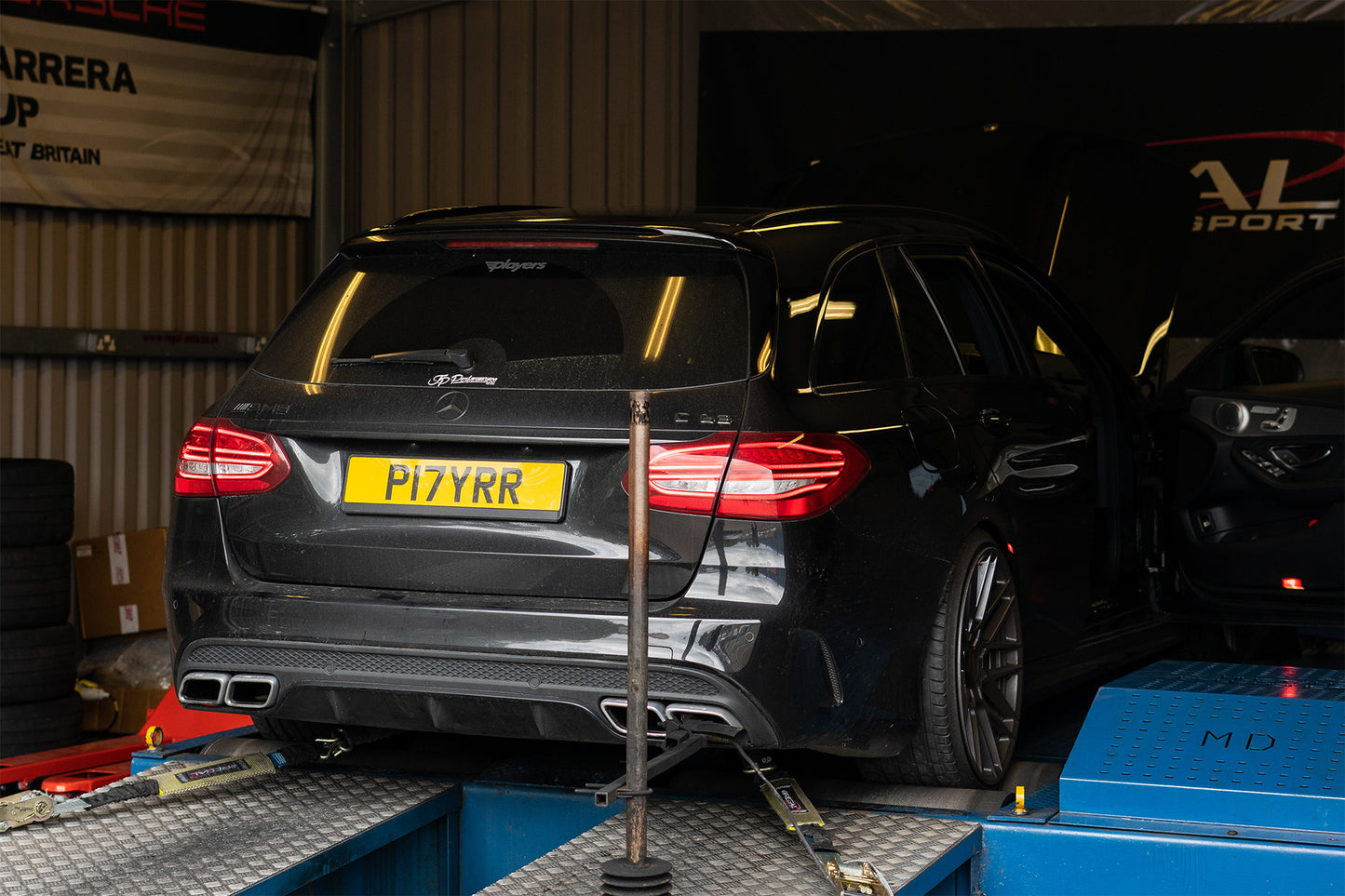

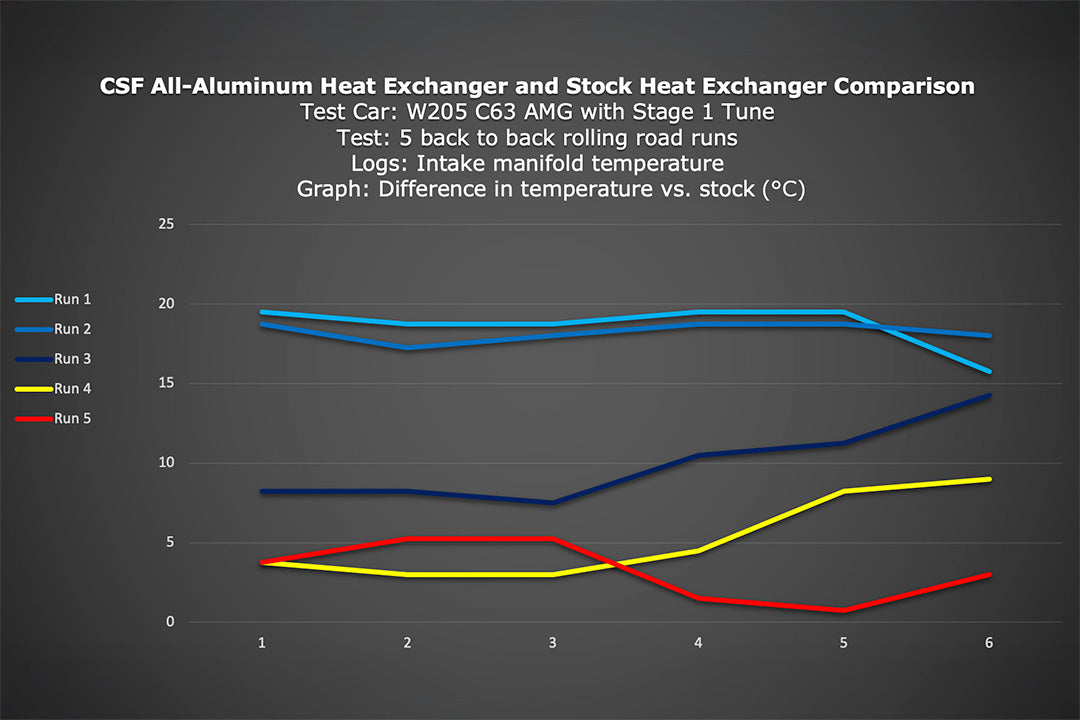

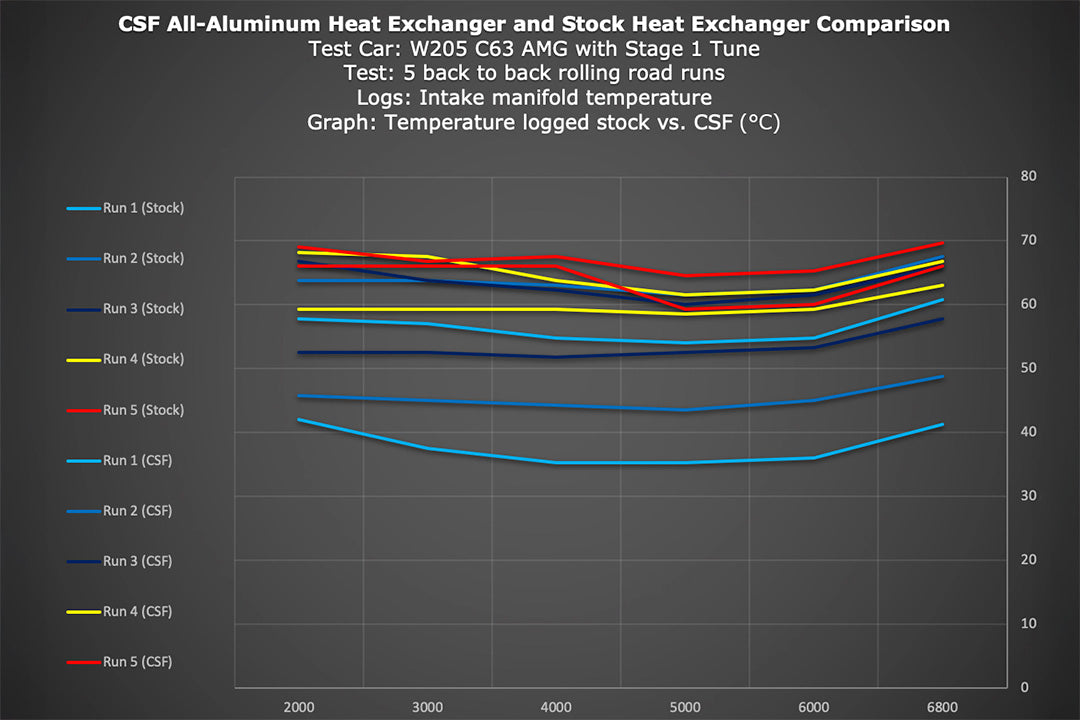

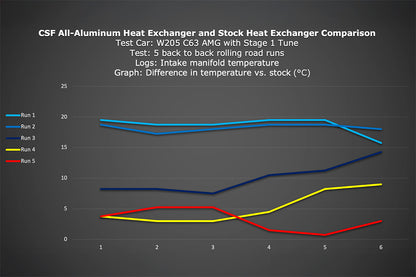

In independent testing at Regal Autosport, they found that the Heat Exchanger can reduce charge air temperatures by as much as 20 degrees at their peak and improve resistance to heat-soak by 4 times when compared to the stock heat exchanger.

Testing show a 68% reduction in IATs (intake air temperatures) and a 400% improvement in heat soak compared to the factory heat exchanger (low temp radiator).

Features

• Significantly Reduced Intake Air Temperatures for Maximum Performance
• 2 Row, 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
• Core Features Ultra-Efficient, 6mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• Individually Leak and Pressure Tested
• CNC Machined Brackets and Fittings for Superb Fit and Durability
• Integrated All-Aluminum Race Style Bleeder Screw
• 1 Hour "Mirror Finish" Hand Polish
• "Drop-in Fit" Requires No Modifications to Install
• Includes Detachable Rock Guard

Applications

Year Range	Make	Chassis Code	Model	Trim	Engine / Trans / Etc	Notes
2017-2021	Mercedes-Benz	C190	AMG GT	-	Turbocharged 4.0L V8	-
2019-2021	Mercedes-Benz	X290	AMG GT 63	-	Turbocharged 4.0L V8	-
2019-2021	Mercedes-Benz	X290	AMG GT 63 S	-	Turbocharged 4.0L V8	-
2018-2021	Mercedes-Benz	C190	AMG GT C	-	Turbocharged 4.0L V8	-
2018-2021	Mercedes-Benz	C190	AMG GT R	-	Turbocharged 4.0L V8	-
2020	Mercedes-Benz	C190	AMG GT R Pro	-	Turbocharged 4.0L V8	-
2016-2020	Mercedes-Benz	C190	AMG GT S	-	Turbocharged 4.0L V8	-
2016	Mercedes-Benz	W205	C63 AMG	-	Turbocharged 4.0L V8	-
2017-2021	Mercedes-Benz	C205	C63 AMG	-	Turbocharged 4.0L V8	-
2016-2021	Mercedes-Benz	W205	C63 AMG S	-	Turbocharged 4.0L V8	-
2020-2021	Mercedes-Benz	W213	E63 AMG	-	Turbocharged 4.0L V8	-
2018-2022	Mercedes-Benz	W213	E63 AMG S	-	Turbocharged 4.0L V8	-
2018-2021	Mercedes-Benz	X253	GLC63 AMG	-	Turbocharged 4.0L V8	-
2018-2021	Mercedes-Benz	X253	GLC63 AMG S	-	Turbocharged 4.0L V8	-

OEM Part Numbers

• Mercedes-Benz: 099 500 54 03
• Mercedes-Benz: 099-500-54-03
• Mercedes-Benz: 0995005403

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 8088 Warranty Term: 2 years
