2009-2014 Ford F-150 & Raptor High-Performance Transmission Oil Cooler

Click Here for the Full Press Release & Additional Product Details

When pushing your F-150 or Raptor to its limits, transmission fluid temperatures can reach critical levels. Whether you are towing heavy loads, conquering off-road terrain, that extra heat compromises both performance and longevity.

CSF Race, in collaboration with Full-Race, are proud to introduce a game changing transmission oil cooler engineered for the 12th generation Ford F-150 and 1st gen Raptor (2009-2014). These high-performance coolers deliver the temperature control serious truck owners demand.

Why Every F-150 & Raptor Owner Should Upgrade

• Extends transmission life by maintaining optimal fluid temperatures
• Improves towing capacity by enhancing cooling efficiency
• Eliminates performance limitations during demanding driving conditions
• Provides peace of mind with superior engineering and construction

Product Details

Design & Engineering

When transmission fluid overheats, performance suffers and long-term damage becomes more likely. CSF & Full-Race engineers identified this critical vulnerability during extensive real-world testing of F-150 and Raptor models under demanding conditions. Having to stop and wait for your transmission to cool down is more than just an inconvenience, it is a limitation that shouldn't exist in a truck like this.

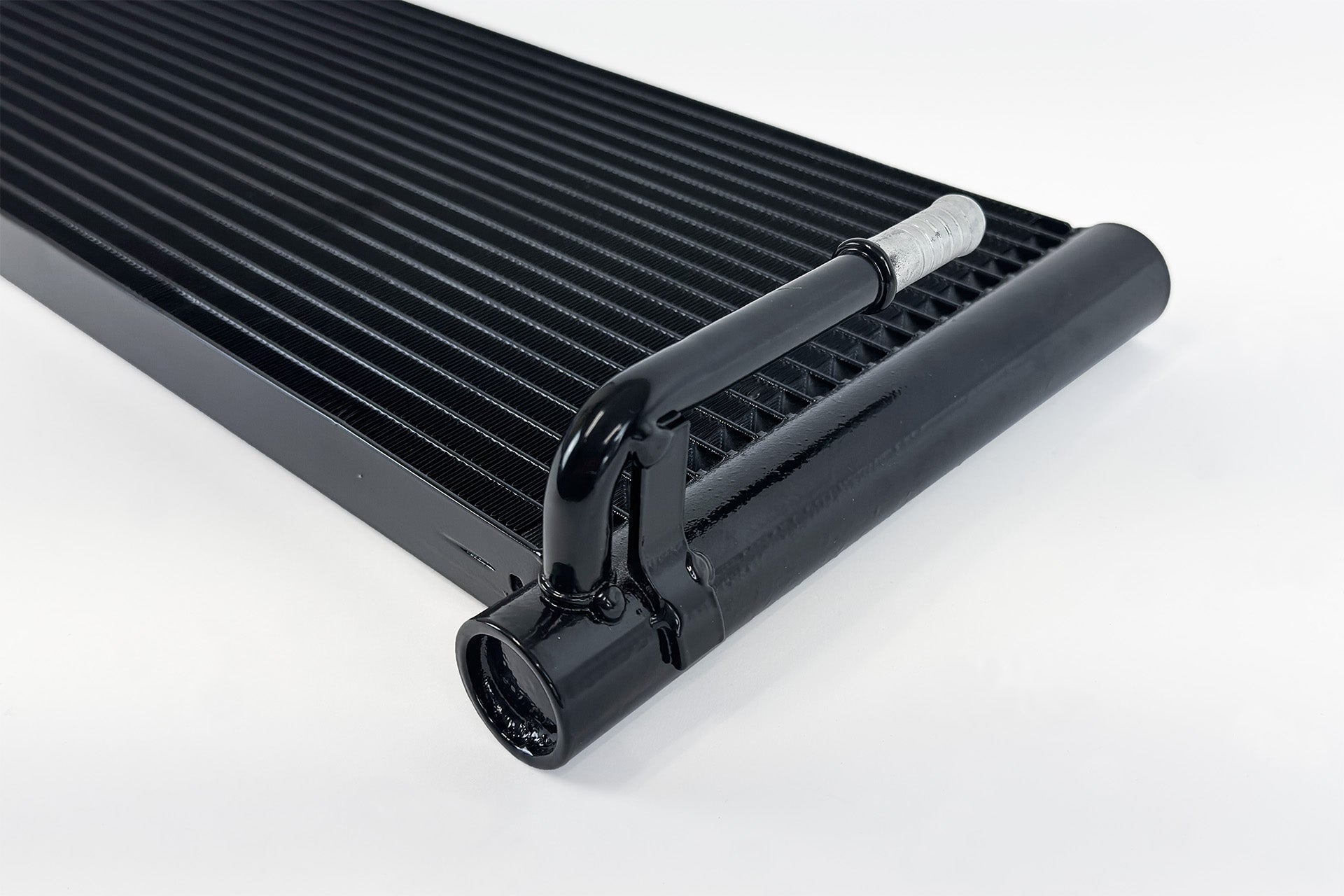

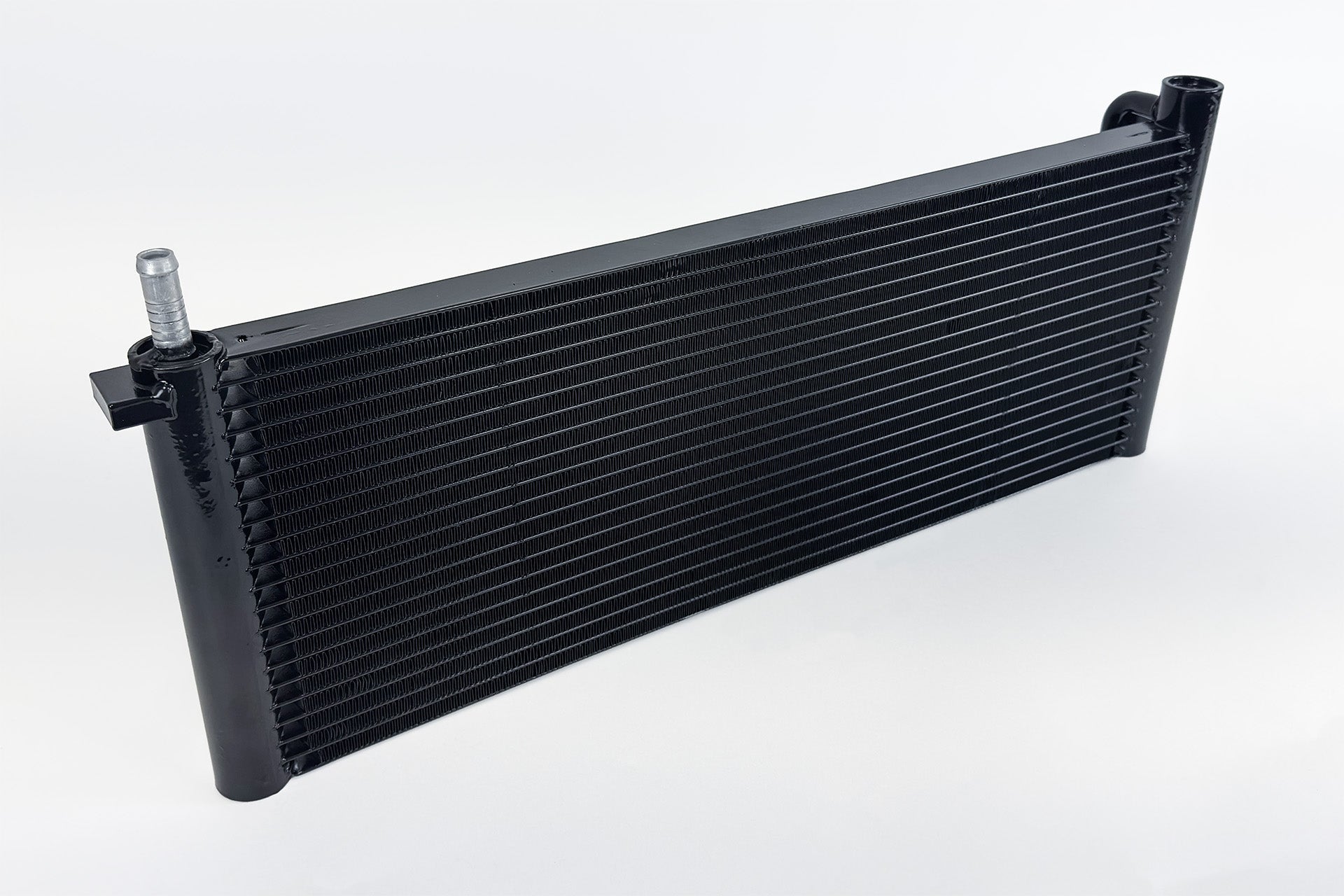

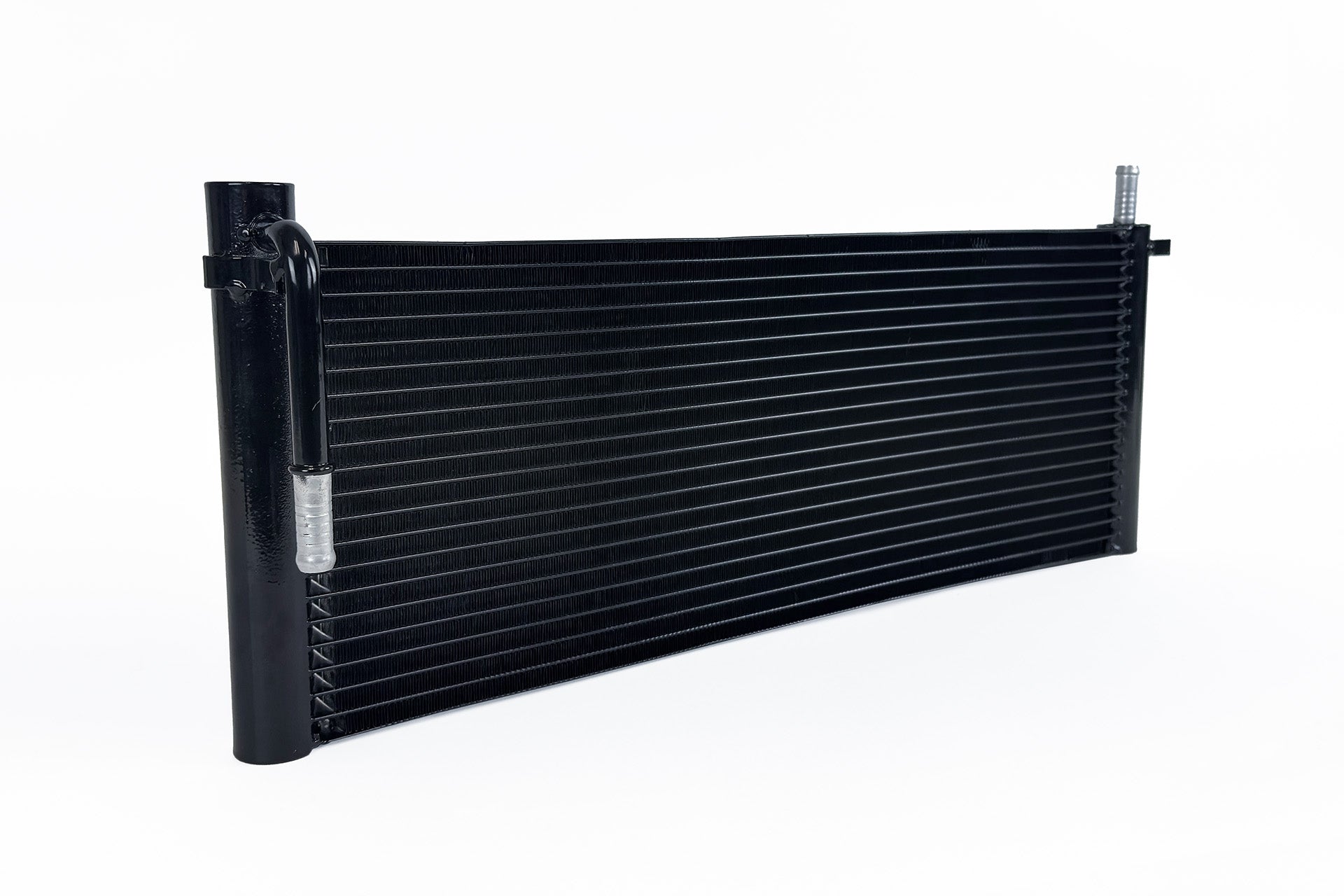

The CSF transmission oil cooler eliminates the concern of overheating. The advanced design features CSF's proprietary AC Condenser Technology, utilizing a 1-Row Super-High Pressure 26mm 10-Channel Microtube architecture that maximizes both oil flow and cooling surface area. The result is dramatic temperature reduction under all driving conditions.

CSF vs OEM

The factory transmission oil coolers for the 12th Generation F-150s were definitely ample for daily driving and even light towing. However, even the larger cooler on trucks with the Heavy Duty Towing Package can't always keep up with hauling in adverse conditions and/or extreme off-roading. The CSF design offers:

• 30% larger fluid capacity than factory cooler
• 2-4x more cooling fins and tubes for superior heat dissipation
• 20 rows of 8mm tall multi-louvered fins for maximum cooling efficiency
• Perfect for daily driving, towing, and off-road adventures

Feature	CSF	OEM	OEM w/ Towing Package
# Cooling Tubes	19	4	9
# Cooling Fin Rows	20	5	10
Fin Height/Width	8mm	~12mm	~12mm
Core Dimensions	7.9 x 20.1 in.	2.4 x 20.1 in.	4.8 x 20.1 in.
Core Material	Aluminum	Aluminum	Aluminum

Plug and Play Installation

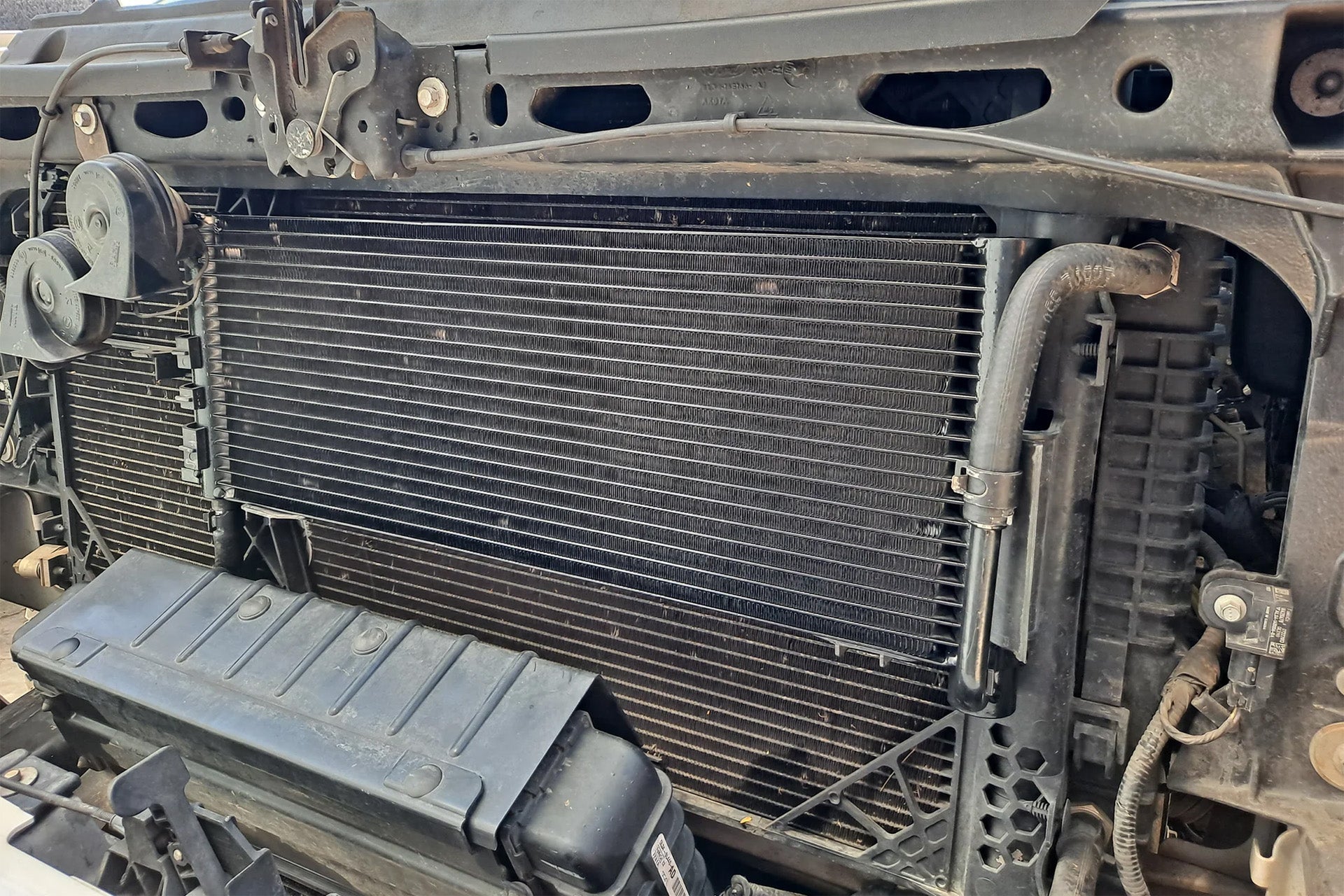

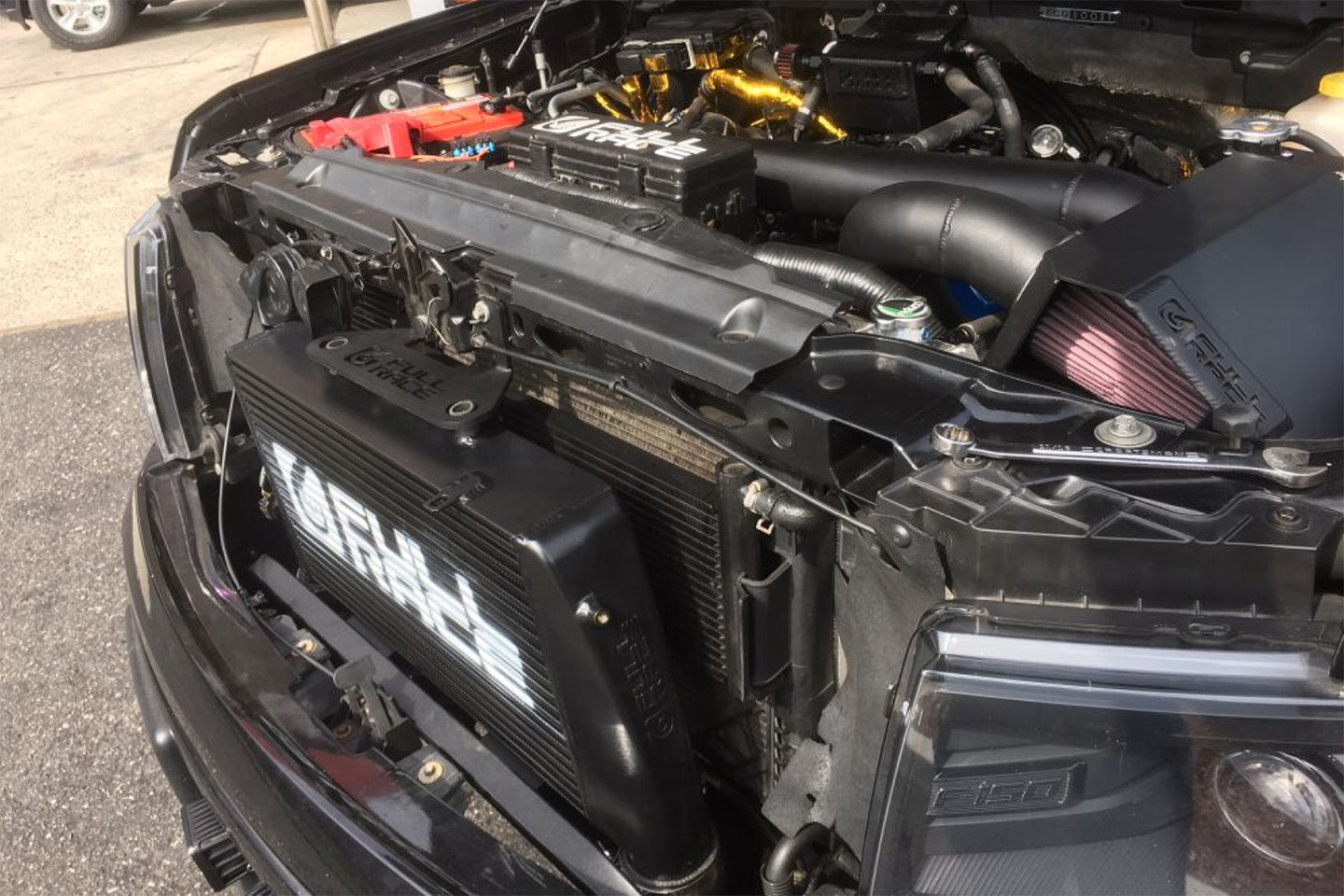

CSF & Full-Race designed the Transmission Oil Cooler to easily replace the OEM unit. The Plug-and-Play "Drop-in Fit" installation takes under 30 minutes and greatly improves the reliability and longevity of your transmission.

---

Make it a package

CSF offers a Heavy-Duty/High-Performance All-Aluminum Radiator for the 2010-2014 F-150 & Raptor (CSF #8094) that perfectly compliments the upgraded Transmission Oil Cooler. An upgraded radiator helps eliminate the concern of overheating. These advanced designs feature larger 2-Row, 42mm aluminum cores which increase the fluid capacity of the radiators, and greatly improves heat dissipation. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the ultra-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The result is a dramatic temperature reduction under all driving conditions.

Features

• Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 32mm 10-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
• 20 Rows of 8mm Tall Multi-Louvered Fins
• Welded All-Aluminum Construction

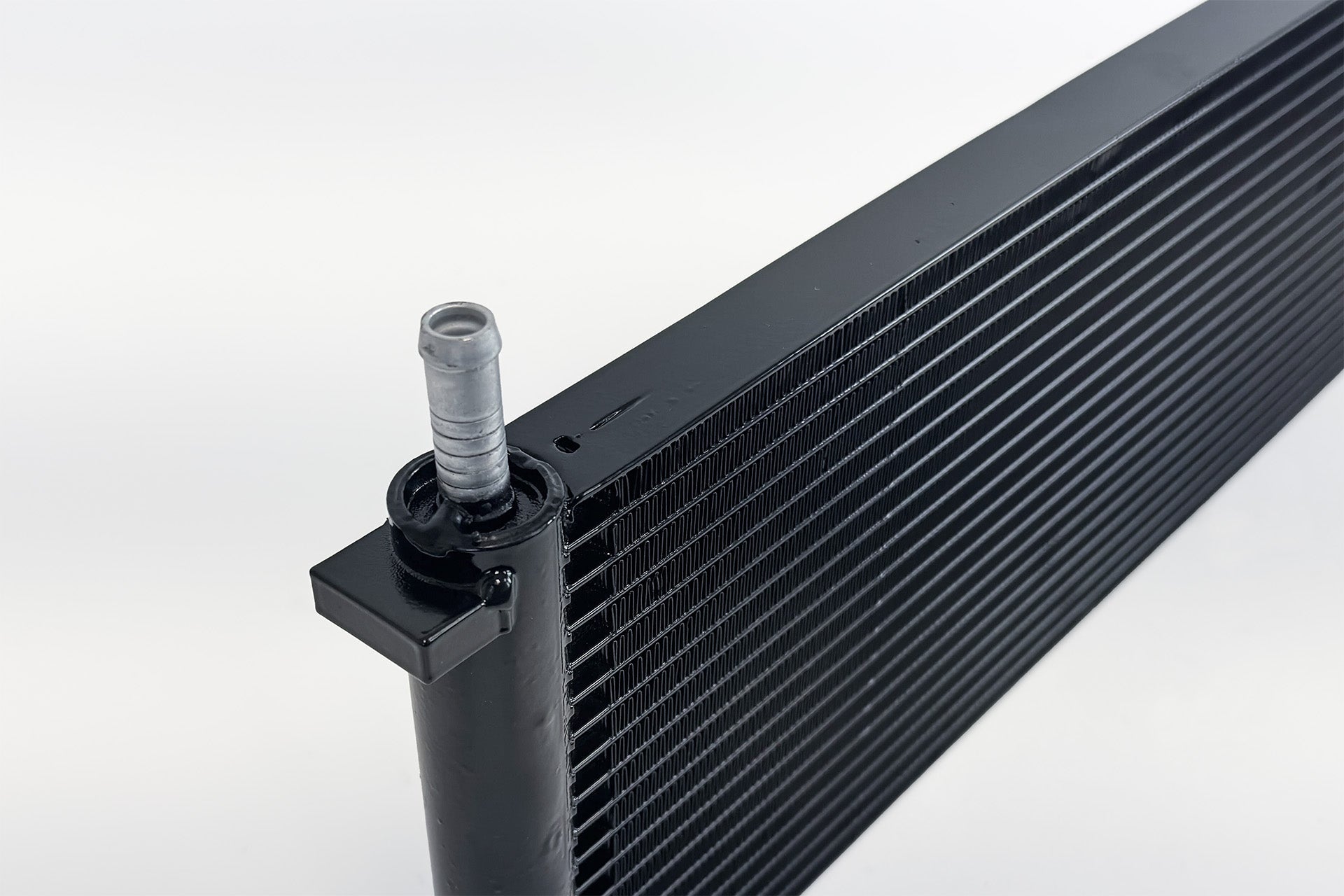

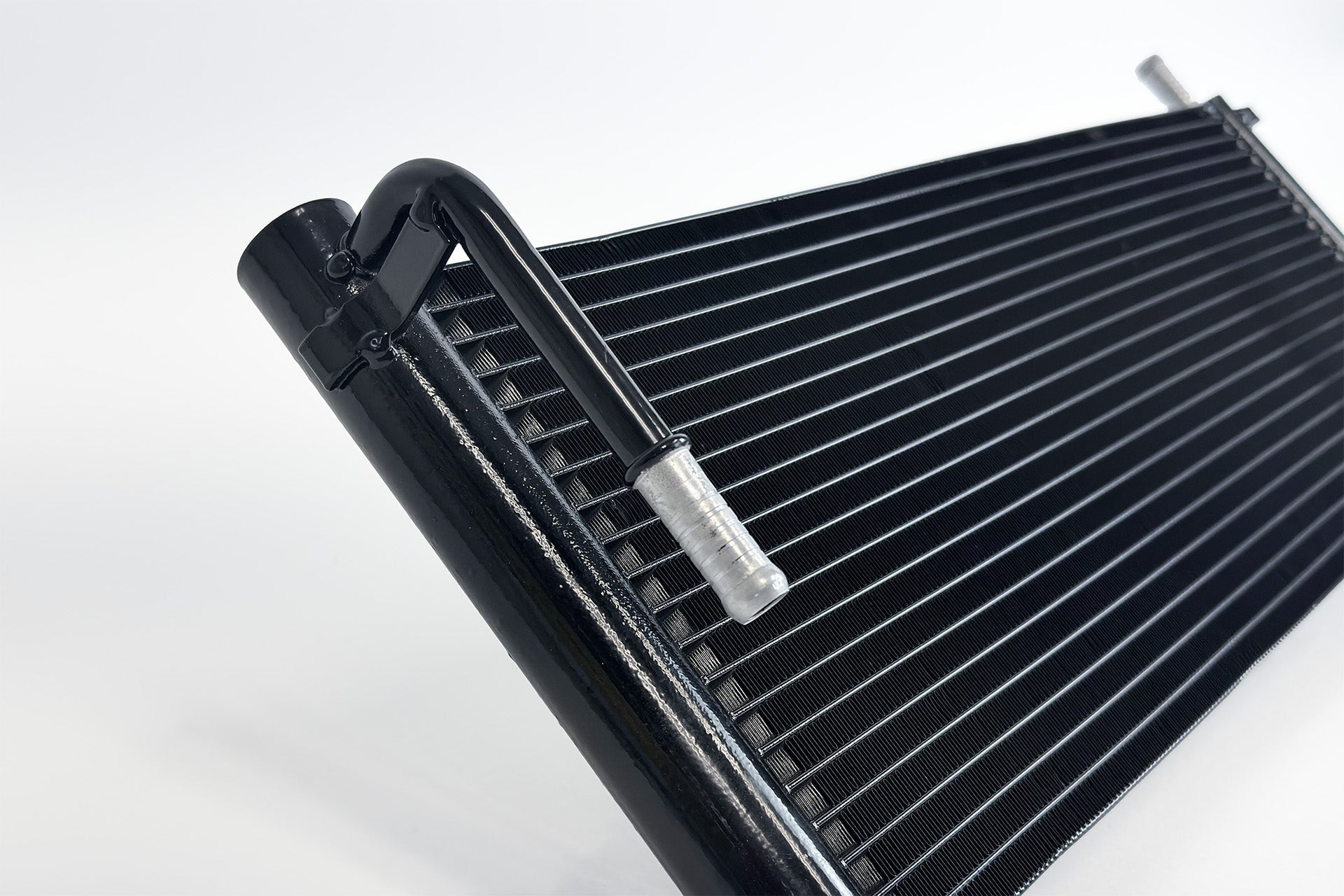

• OEM Style Inlet/Outlet Connections
• 30% Larger than factory cooler
• Drop-in Fit Requires No Modifications to Install
• Black Finish for OEM+ Look
• 2-Year Limited Warranty

Applications

Year Range	Make	Chassis Code	Model	Trim	Engine / Trans / Etc	Notes
2007-2014	Ford	3rd Gen	Expedition	-	5.4L V8	-
2010-2014	Ford	12th Gen	F-150	SVT Raptor	6.2L V8	-
2011-2014	Ford	12th Gen	F-150	-	Turbocharged 3.5L V6	-
2011-2014	Ford	12th Gen	F-150	-	3.7L V6	-
2009-2010	Ford	12th Gen	F-150	-	4.6L V8	-
2011-2014	Ford	12th Gen	F-150	-	5.0L V8	-
2009-2010	Ford	12th Gen	F-150	-	5.4L V8	-
2010-2014	Ford	12th Gen	F-150	-	6.2L V8	-
2015-2017	Lincoln	3rd Gen	Navigator	-	Turbocharged 3.5L V6	-
2007-2014	Lincoln	3rd Gen	Navigator	-	5.4L V8	-

OEM Part Numbers

• Ford: DL3Z-7A095-A
• Ford: DL3Z 7A095 A
• Ford: DL3Z7A095A
• Ford: 7L1Z-7A095-B
• Ford: 7L1Z 7A095 B
• Ford: 7L1Z7A095B

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 8101 Warranty Term: 2 years
