CSF Small Universal Porsche 964 & 993 Oil Cooler

Click Here for the Full Press Release & Additional Product Details

The most compact sized oil cooler from the CSF range, this oil cooler can be mounted and used in many different configurations. The oil cooler design allows endless mounting configurations in ways most conventional oil coolers cannot. Also, the durability of the bar/plate core enables it to be installed in areas where a large amount of debris would typically be a problem for fear of puncture and failure.

CSF's Universal Oil Cooler #8119 is the most compact in the CSF line up. The smaller size makes it ideal for mounting in tight locations and in many different configurations. It has become incredibly popular on Air-Cooled Porsches as a supplementary oil cooler and as an OEM replacement depending on the application.

Product Details

The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system. Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system. The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris.

993 Turbo/S & GT2 Front Oil Cooler

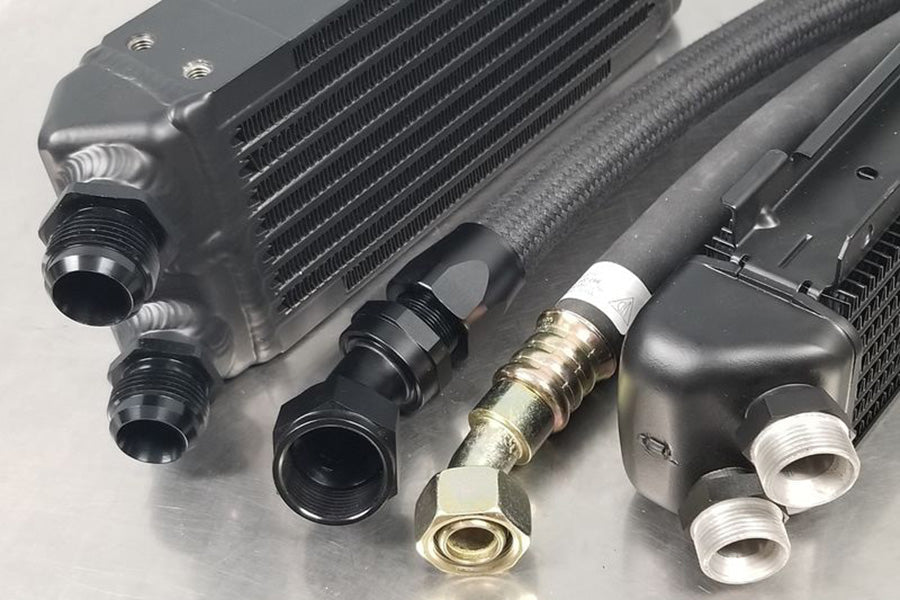

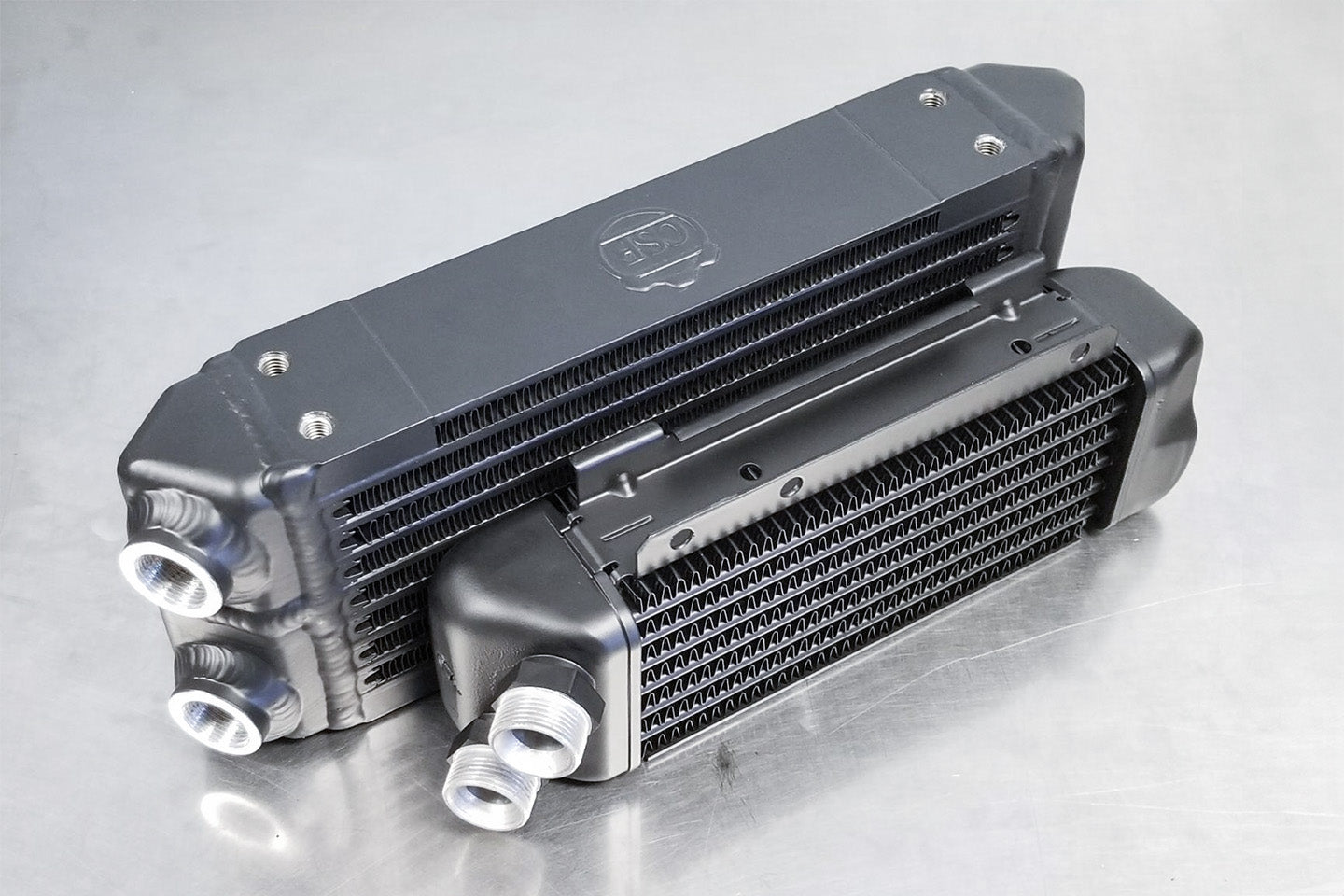

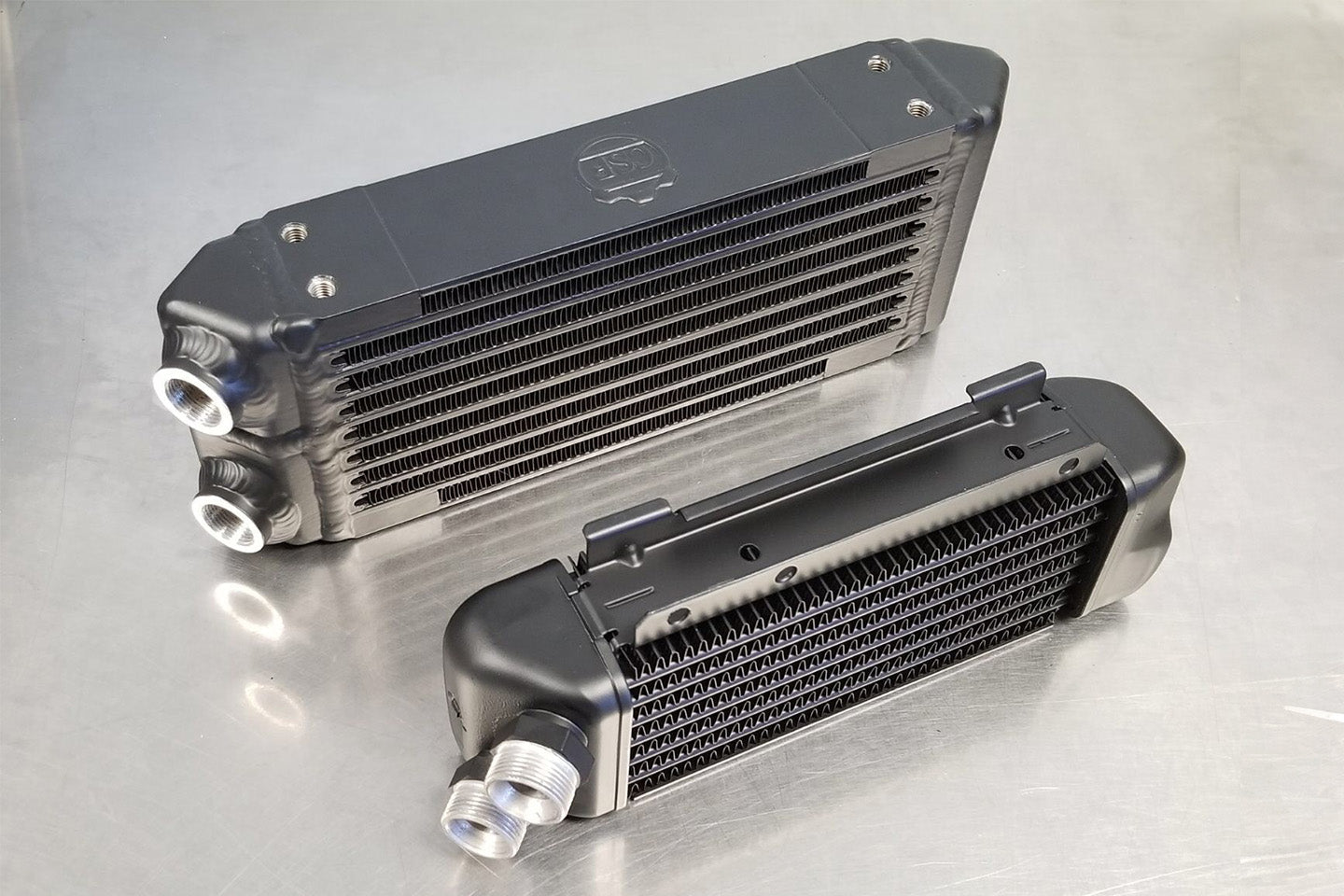

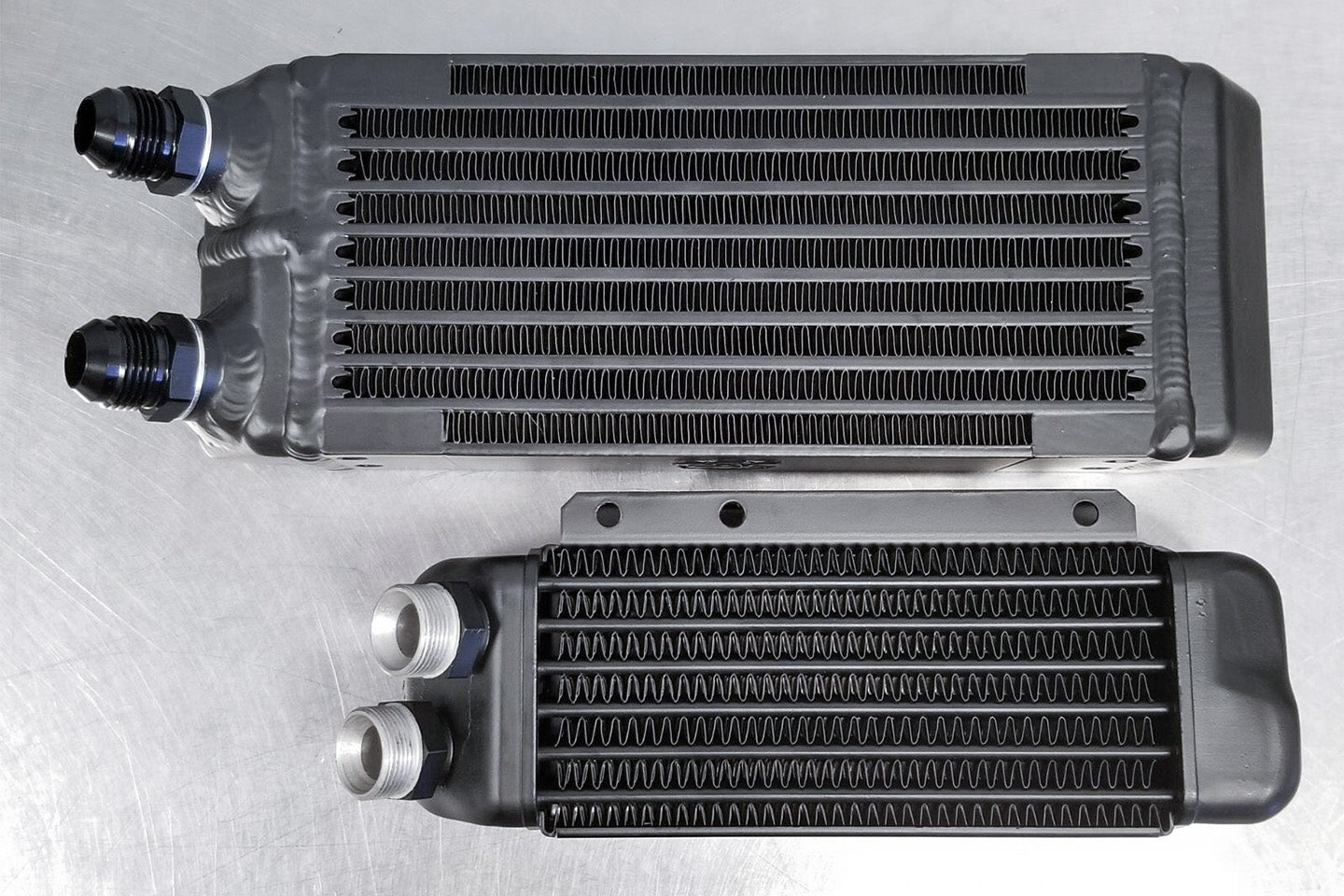

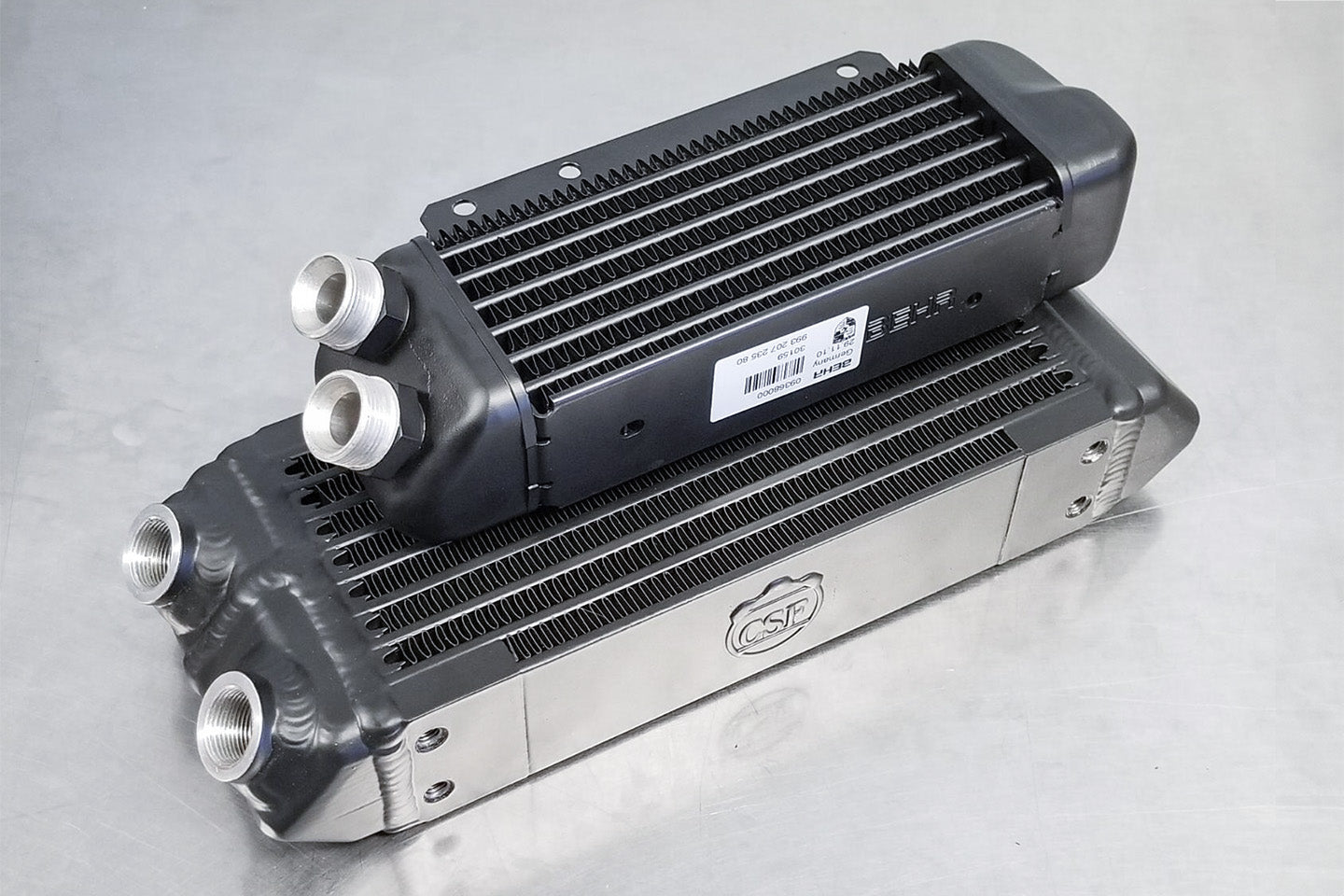

The CSF #8119 can also be used as an upgrade/OEM+ Upgrade for the Porsche 993 Turbo/S & GT2 Oil Cooler. The CSF Cooler is larger, more robust, and about 1/4 the cost of a new OE unit (993 207 235 08) from Porsche. This upgrade requires fittings for oil lines and a custom bracket to mount to OE mounting location. Euro Parts West makes a full bolt on kit for the Porsche 993 using the #8119.

964 & 993 Additional Front Oil Cooler

The CSF #8119 can also be used as an additional oil cooler on the 964 & 993. This is a perfect OEM+ Oil Cooler Upgrade for the 911. Both Euro Parts West and CARGRAPHIC use the cooler in a bolt on/plug and play kit that is designed to run in series with the OE cooler.

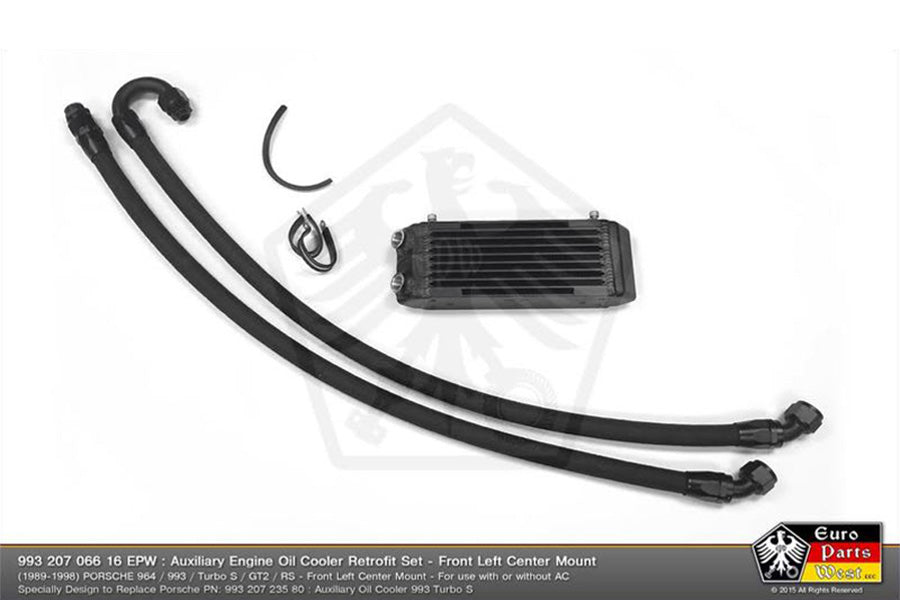

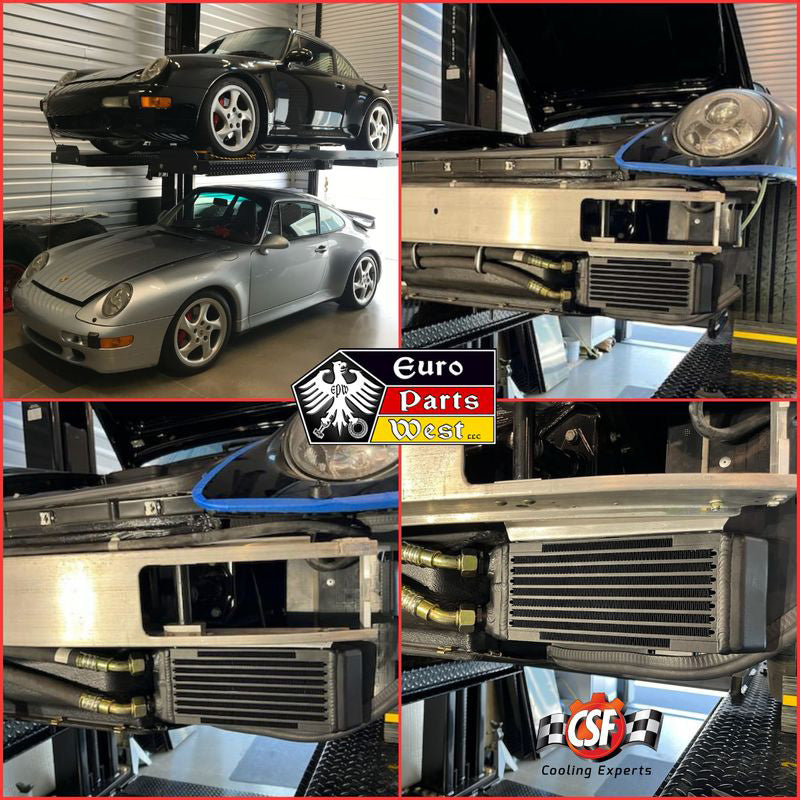

Euro Parts West Kit

Buy from Euro Parts West

993 216 8119 81 EPW - Auxiliary Engine Oil Cooler Retrofit Kit: Fits 1989-1998 Porsche 964 / 993 / Turbo S / GT2 / RS (Front Left Center Mount - For use with or without AC)

Retrofit Set Includes:
(1) 993 207 238 80 EPW : Engine Oil Cooler (CSF #8119) Turbo S Retrofit Reproduction - 64% Greater Core Surface Area compared to the original Porsche cooler (993 207 238 80)
(1) 993 207 340 16 EPW : Engine Oil Cooler Hose Line Set (Feed / Return / Metric Line Adapter Hardware / -16AN Lightweight Hose / Fittings)
(1) Mounting Set M8 Hardware for simple suspension under impact bumper.

Note: Original Air Duct Cover for Engine Oil Cooler requires trimming modification or new air duct cover PN: 964 575 522 02.

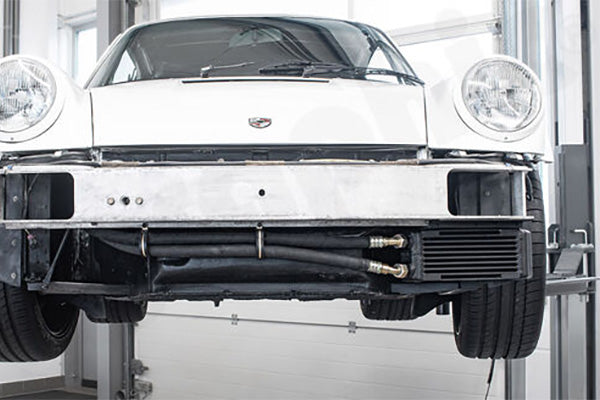

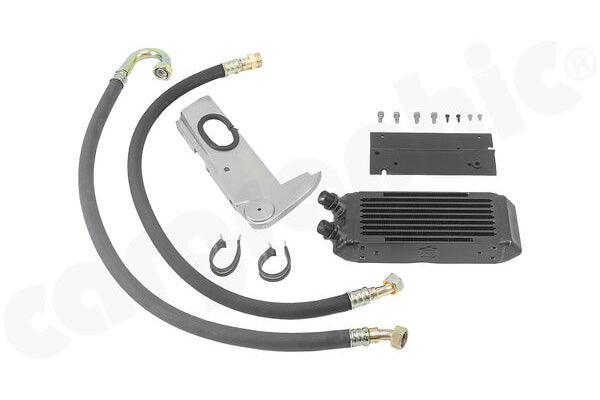

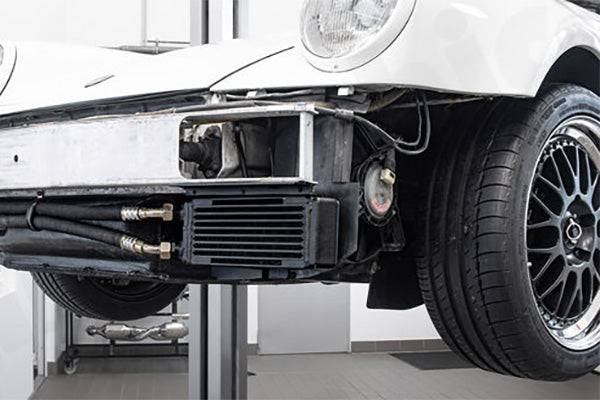

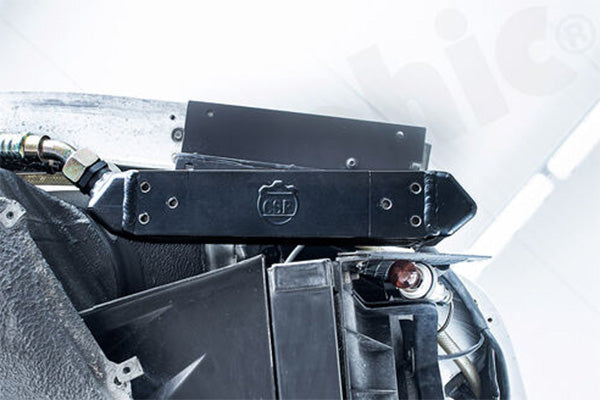

CARGRAPHIC Kit

CARGRAPHIC additional oil cooler kit for models with-/without air conditioning - R6420020700

Kit Includes:

• Alloy CSF High Performance oil cooler radiator 8 rows 330 x 121 x 57mm
• Connectors M30 x 1.5mm, internal diameter 19mm, stainless steel
• 2 x COHLINE DN20 oil pressure hoses: Internal diameter 19mm
• 180° stainless steel connecting tube M30 x 1.5mm, internal diameter 19mm, to right OE / Factory oil cooler in front right wheel arch
• Mounting Kit

Features:

• Newly designed auxiliary oil cooler kit with focus on a consistent 19mm internal diameter without reduction
• Increased flow rate - for maximum increased cooling performance
• All connections M30 x 1.5mm and therefore OE compatible
• Made in Germany

Applications:

• Porsche 964 Carrera 2 / 4 / RS
• Porsche 964 Turbo 3.3l / 3.6l
• Porsche 993 Carrera 2 / 4 / S / RS
• Porsche 993 Turbo

Buy from CARGRAPHIC

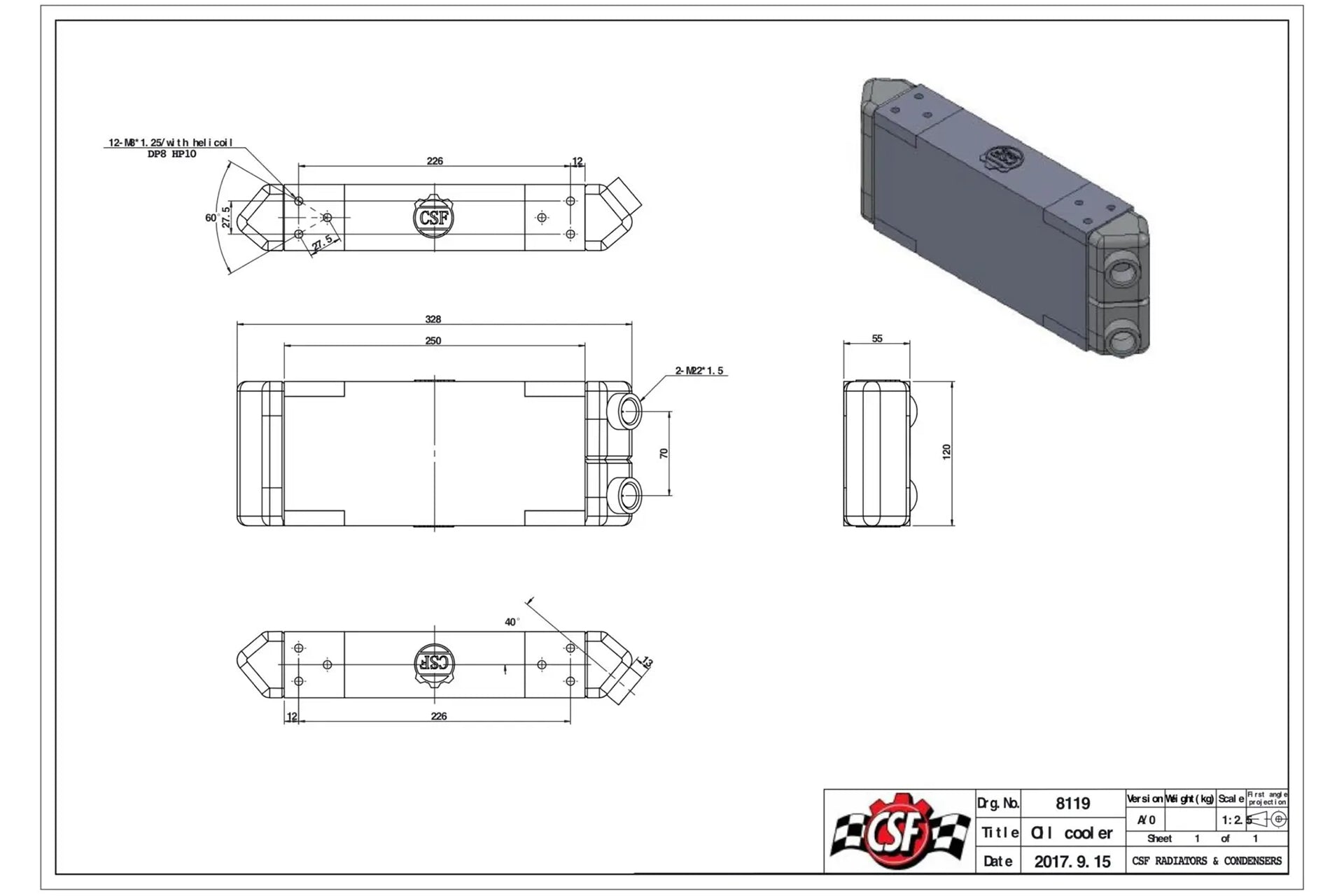

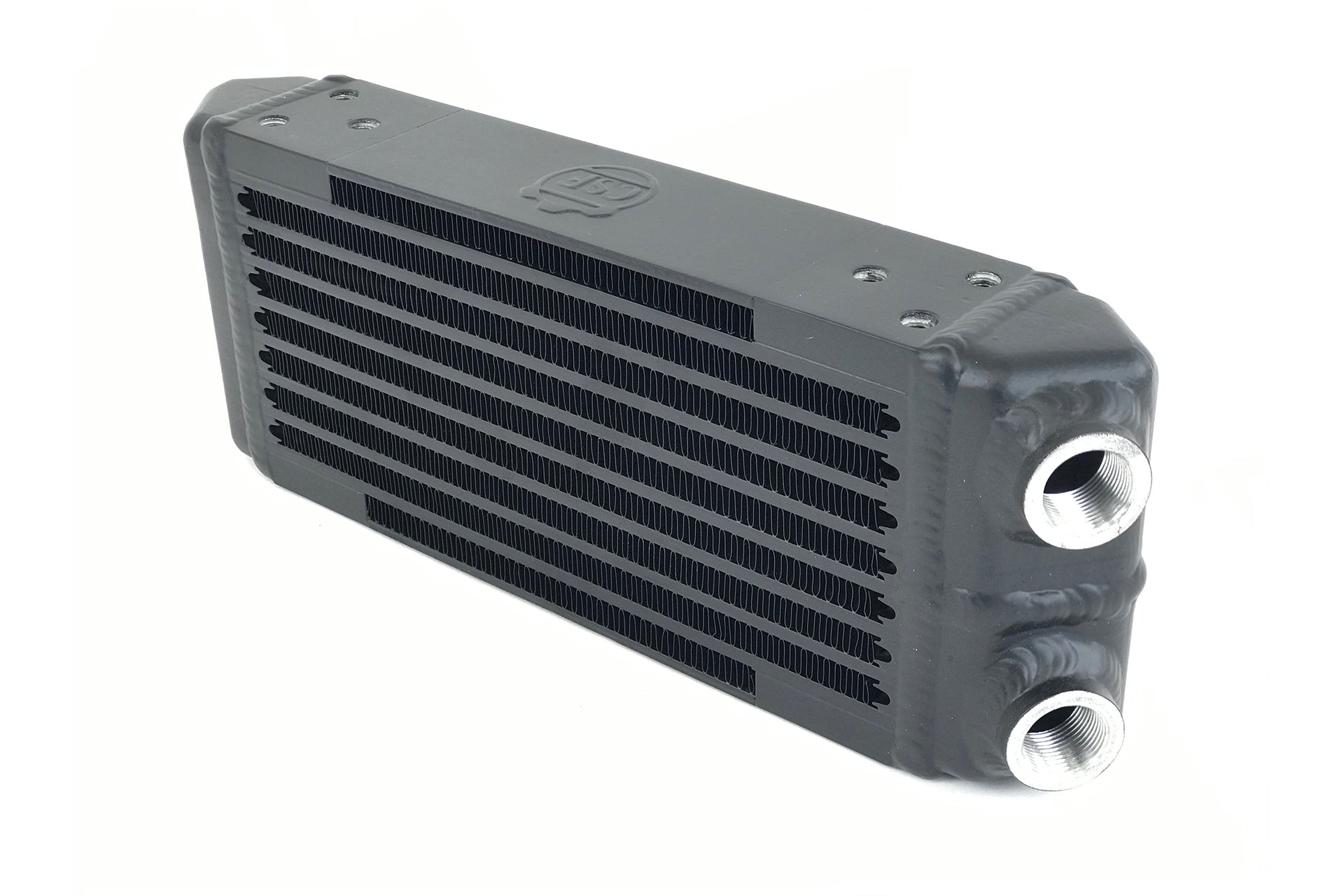

Features

• 8 Rows of High-Pressure Bar/Plate Oil Cooling
• Dual-Pass Design
• Universal Style M22 x 1.50 Female Fittings on Same Side (Feed and Return w/ 40-Degree Angle)
• For Use With M30 / -16AN / -12AN Union Adapters
• Overall Dimensions: 13" L x 4.75" H x 2.25" W
• Core Surface Dimensions: 9.85" L x 4.72" H x 2.25" W
• Fluid Capacity: 0.47L

Applications

Year Range	Make	Chassis Code	Model	Trim	Engine / Trans / Etc	Notes
1996-1997	Porsche	993	911	Turbo	Turbocharged 3.6L H6	-
1995-1997	Porsche	993	911	GT2	Turbocharged 3.6L H6	-
1997-1998	Porsche	993	911	Turbo S	Turbocharged 3.6L H6	-
1990-1994	Porsche	964	911	Carrera 2	3.6L H6	-
1990-1994	Porsche	964	911	Carrera 4	3.6L H6	-
1993-1994	Porsche	964	911	RS America	3.6L H6	-

OEM Part Numbers

• Porsche: 993 207 235 08
• Porsche: 993-207-235-08
• Porsche: 99320723508

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 8119-PORSCHE Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
