BMW F3X/F2X B58/B48 Triple-Pass Heat Exchanger w/ Rock Guard - Black
BMW F3X/F2X B58/B48 Triple-Pass Heat Exchanger w/ Rock Guard - Black
Where to buy
Find a Dealer
Click Here for the Full Press Release
As the 3.0 Liter B58B30M0 (1st gen B58) turbo engine platform continues to be developed by the high performance industry and more power is extracted from the engine, CSF's high performance heat exchanger for the BMW B58 engine will be a critical component to keeping the vehicle charge air cool, and out of limp mode. The CSF BMW B58 upgraded heat exchanger for F-series vehicles will be especially important to install in upgraded turbo applications and/or vehicles running high performance tuning software.

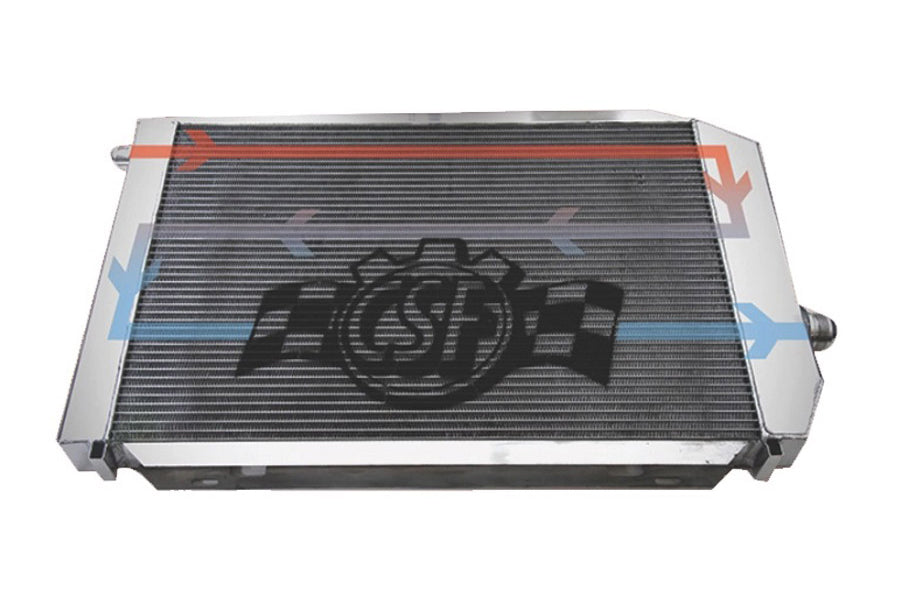

The original OEM B58 heat exchanger is a 1-row unit that is 27mm thick. In comparison, CSF has used its industry-exclusive world's largest 2-row core (68mm) with CSF's B-Tube technology. A unique tank design allows the larger CSF core to still fit into the OEM cooling system housing. Another critical feature of the CSF BMW B58 high-performance heat exchanger is its unique triple-pass flow design. The water traveling through the upgraded heat exchanger flows through the radiator three times before exiting the cooler and flowing back into the manifold charge cooler. This ensures that the outlet water temperature of the heat exchanger is the absolute lowest it can be. The OEM design, as well as more expensive aftermarket designs, all have single-pass flow structures.

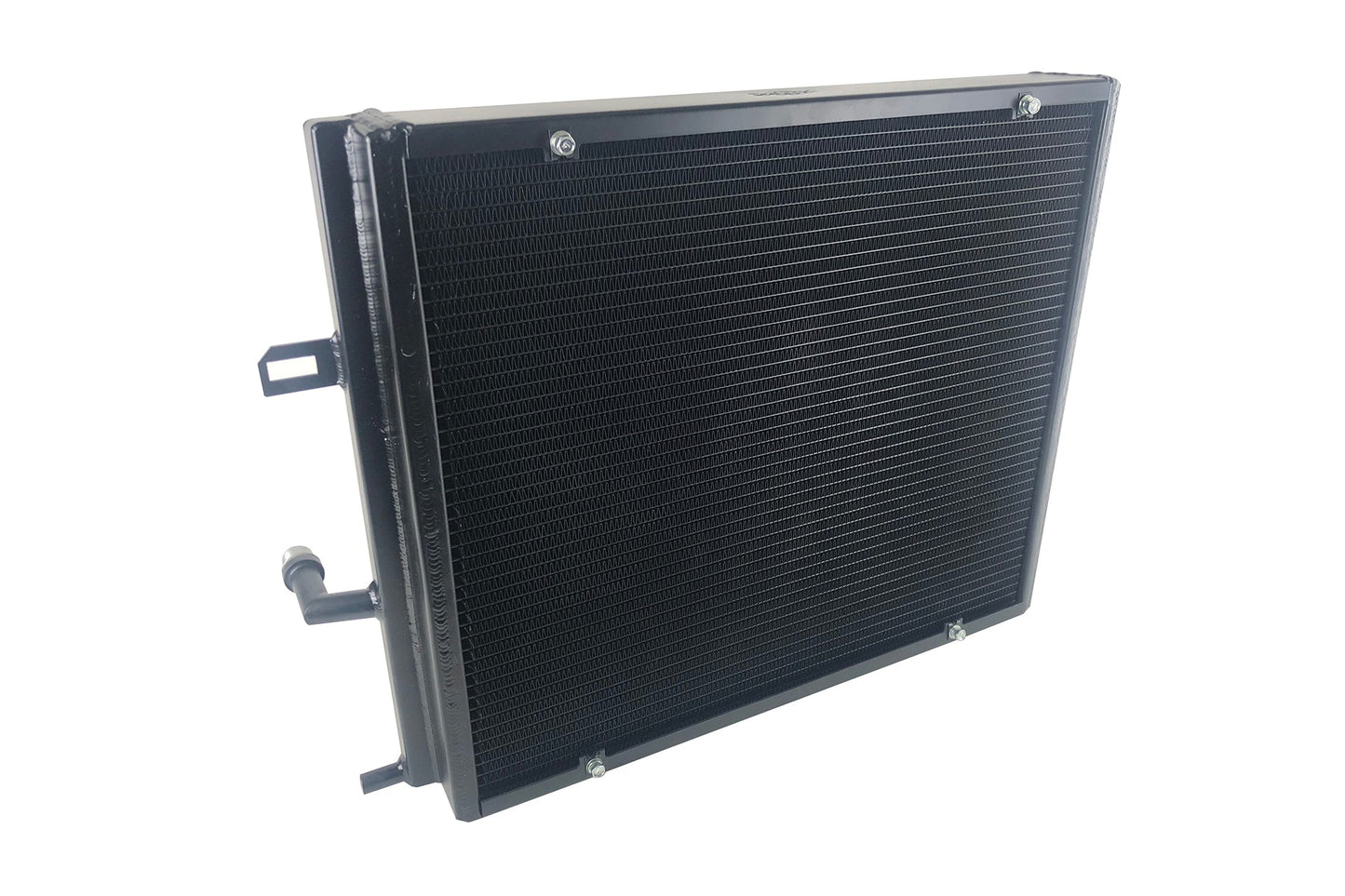

The CSF #8131B comes in a Satin Black Finish for OEM+ look. It is also available in a Polished Finish (CSF #8131).
Features
- Core Size: 524mm Length x 478mm Height x 69mm Wide
- 68mm 2-Row Core with CSF's B-Tube Technology (World's Largest 2-Row Core)
- 6.5mm Multi-Louvered Fin Height
- Triple-Pass Flow Design

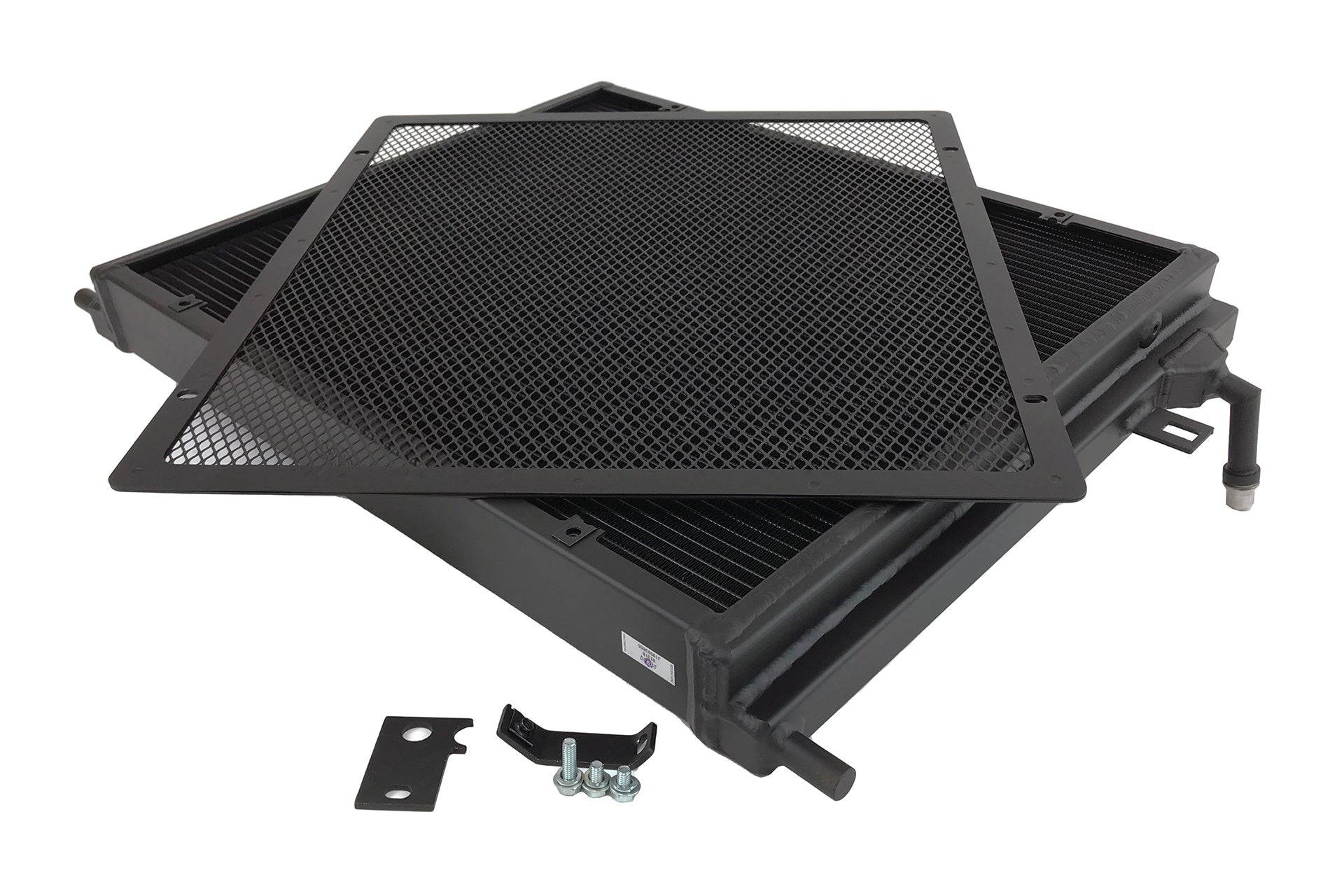

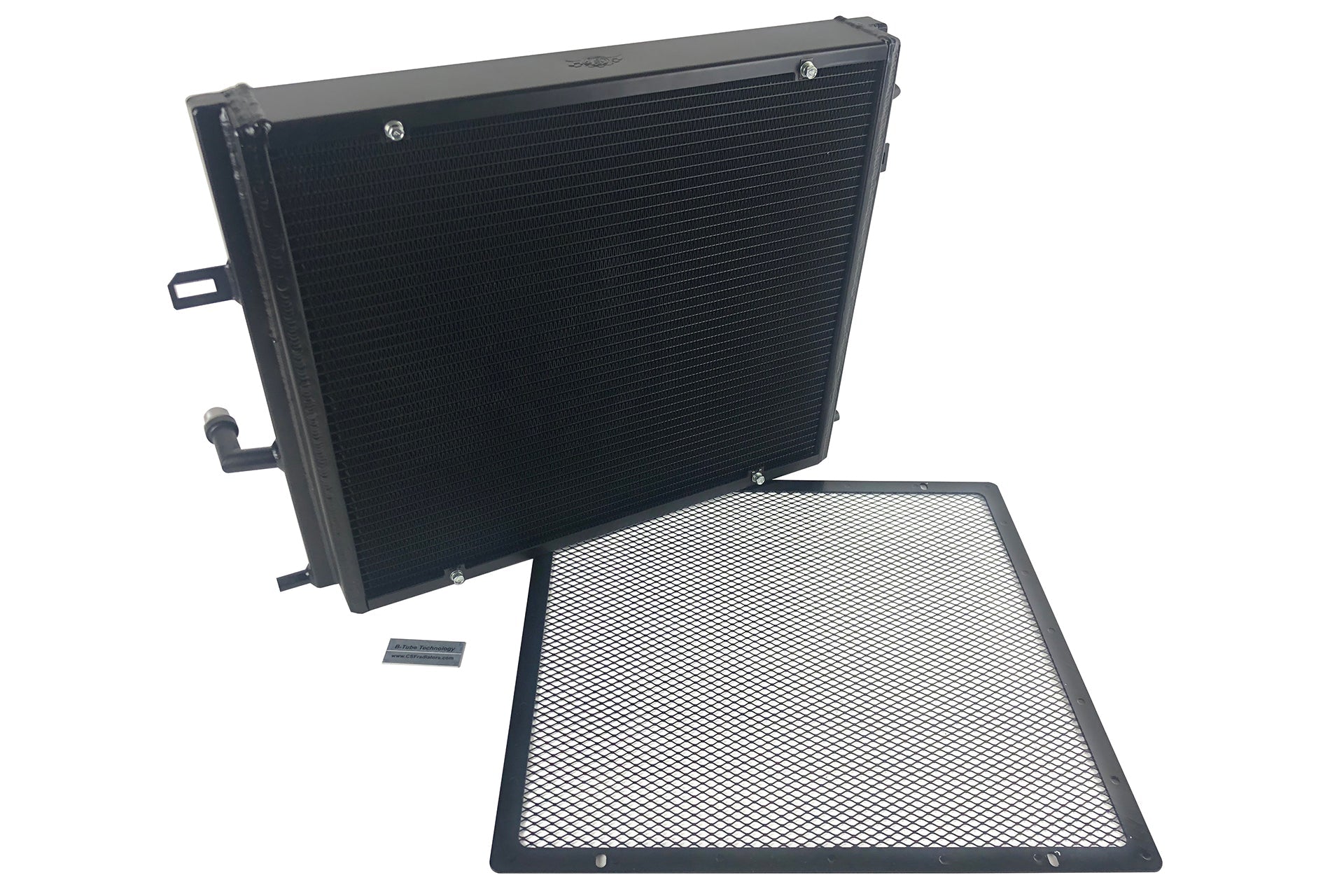

- Included Detachable Rock Guard
- OEM CNC Machined Mounting Location Pins and Brackets

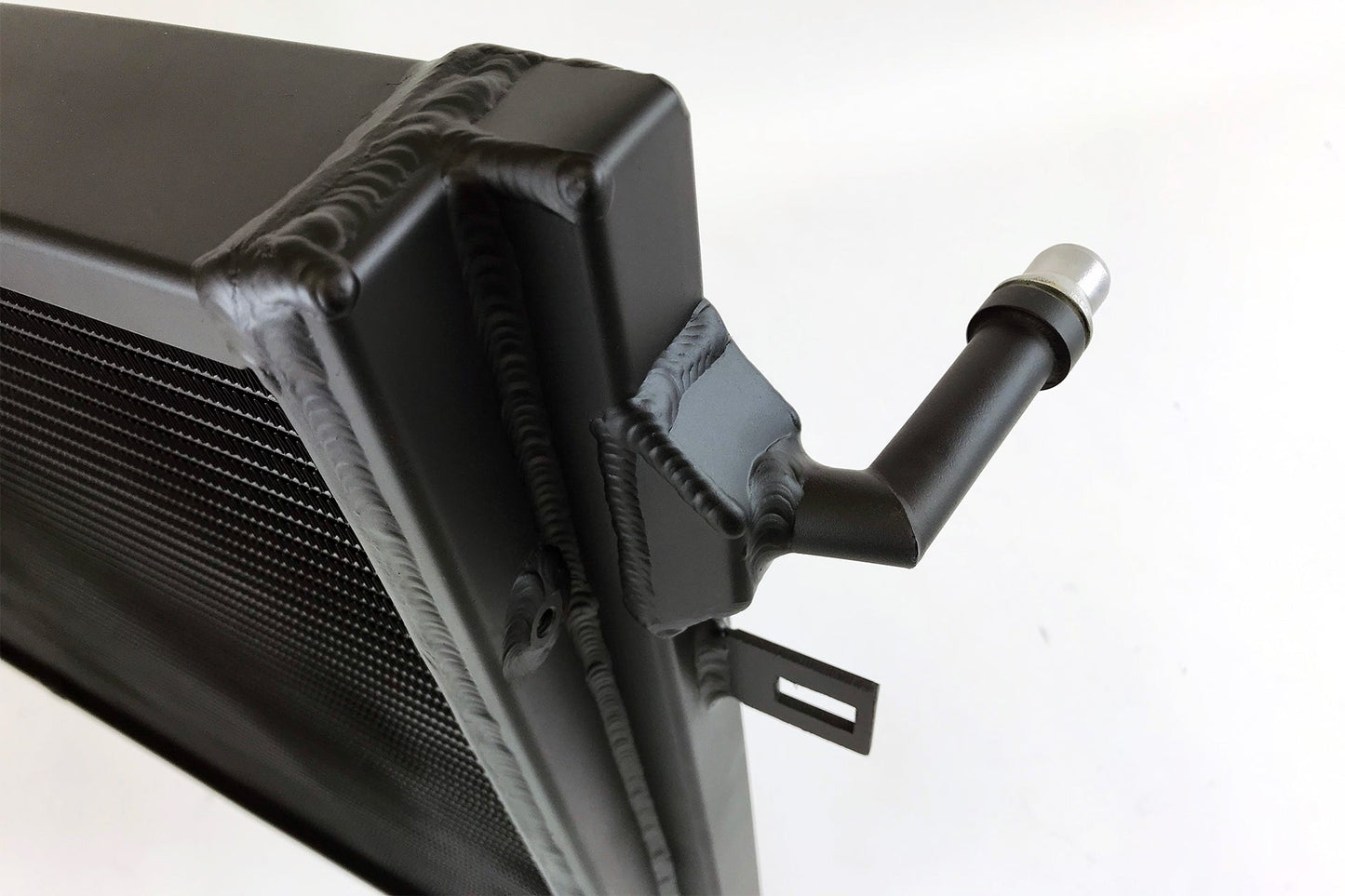

- Direct Plug-and-Play Design, Including CNC Machined "Quick Connect" Inlet/Outlet Water Fittings
- No Modifications Needed to Install
- Semi-Gloss Black Finish
- Replaces OEM Part Number: 17118741830
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 2017-2021 | BMW | F22/F23 | 230i | - | Turbocharged 2L L4 | - |
| 2017-2021 | BMW | F22/F23 | 230i xDrive | - | Turbocharged 2L L4 | - |
| 2016-2018 | BMW | F3X | 330e | - | Turbocharged 2L L4 | - |
| 2017-2018 | BMW | F3X | 330i | - | Turbocharged 2L L4 | - |
| 2017-2018 | BMW | F3X | 330i GT xDrive | - | Turbocharged 2L L4 | - |
| 2017-2019 | BMW | F3X | 330i xDrive | - | Turbocharged 2L L4 | - |
| 2016-2018 | BMW | F3X | 340i | - | Turbocharged 3L L6 | - |
| 2017-2019 | BMW | F3X | 340i GT xDrive | - | Turbocharged 3L L6 | - |
| 2016-2018 | BMW | F3X | 340i xDrive | - | Turbocharged 3L L6 | - |
| 2017-2020 | BMW | F3X | 430i | - | Turbocharged 2L L4 | - |
| 2017-2020 | BMW | F3X | 430i xDrive | - | Turbocharged 2L L4 | - |
| 2017-2020 | BMW | F3X | 430i xDrive Gran Coupe | - | Turbocharged 2L L4 | - |
| 2017-2020 | BMW | F3X | 440i | - | Turbocharged 3L L6 | - |
| 2017-2020 | BMW | F3X | 440i Gran Coupe | - | Turbocharged 3L L6 | - |
| 2017-2020 | BMW | F3X | 440i xDrive | - | Turbocharged 3L L6 | - |
| 2017-2020 | BMW | F3X | 440i xDrive Gran Coupe | - | Turbocharged 3L L6 | - |
| 2017-2021 | BMW | F22/F23 | M240i | - | Turbocharged 3L L6 | - |
| 2017-2021 | BMW | F22/F23 | M240i xDrive | - | Turbocharged 3L L6 | - |
OEM Part Numbers
- BMW: 17 11 8 741 830
- BMW: 17-11-8-741-830
- BMW: 17118741830
Warranty
Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page
SKU# 8131B Warranty Term: 2 years
