CSF x Midwest Bayless - Fiat Bertone X1/9 & Lancia Scorpion/Montecarlo Radiator
CSF x Midwest Bayless - Fiat Bertone X1/9 & Lancia Scorpion/Montecarlo Radiator
Where to buy
Shop Midwest-Bayless
Click Here for the Full Press Release

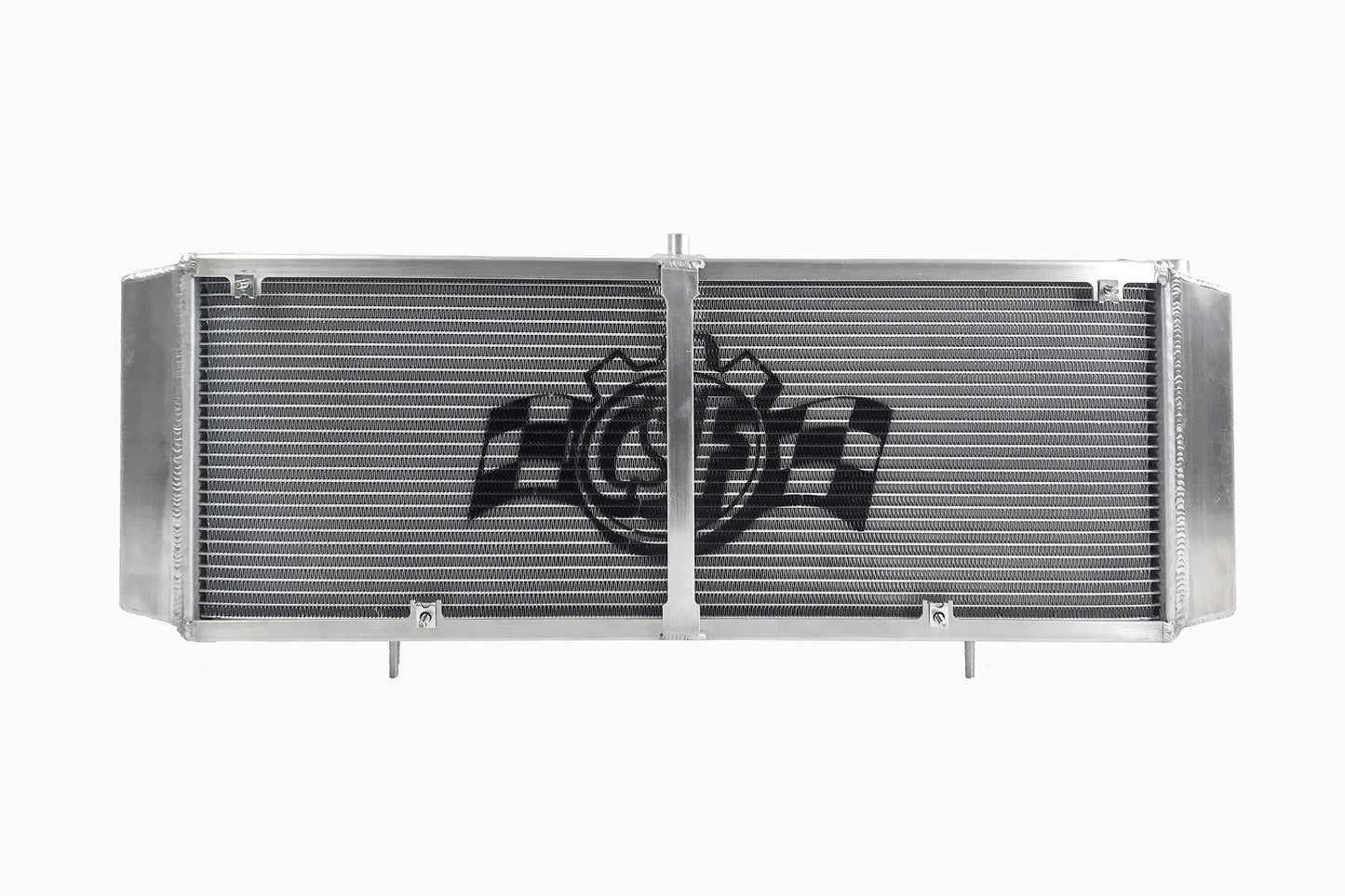

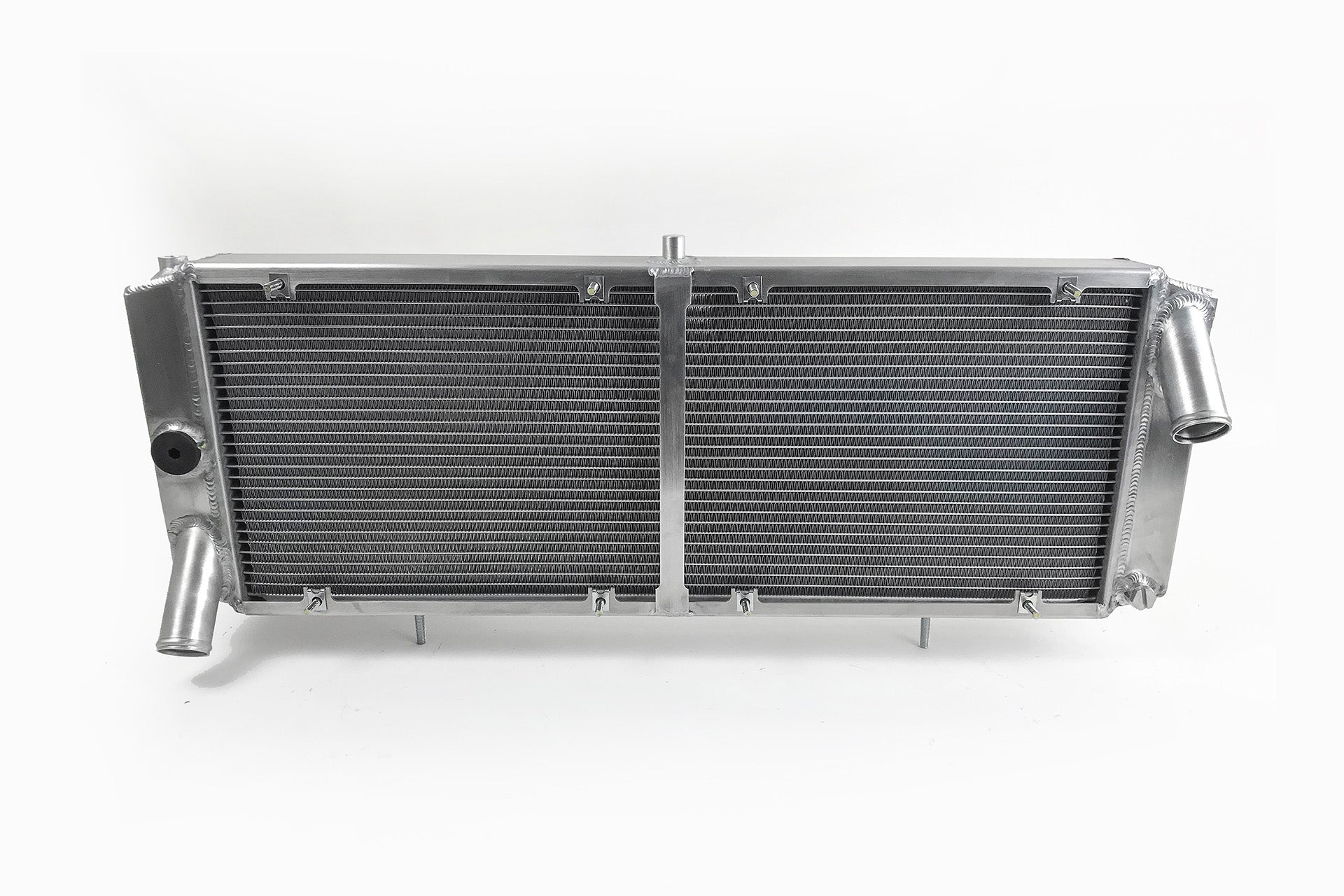

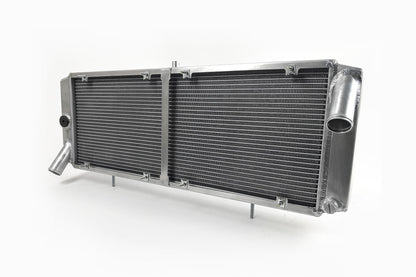

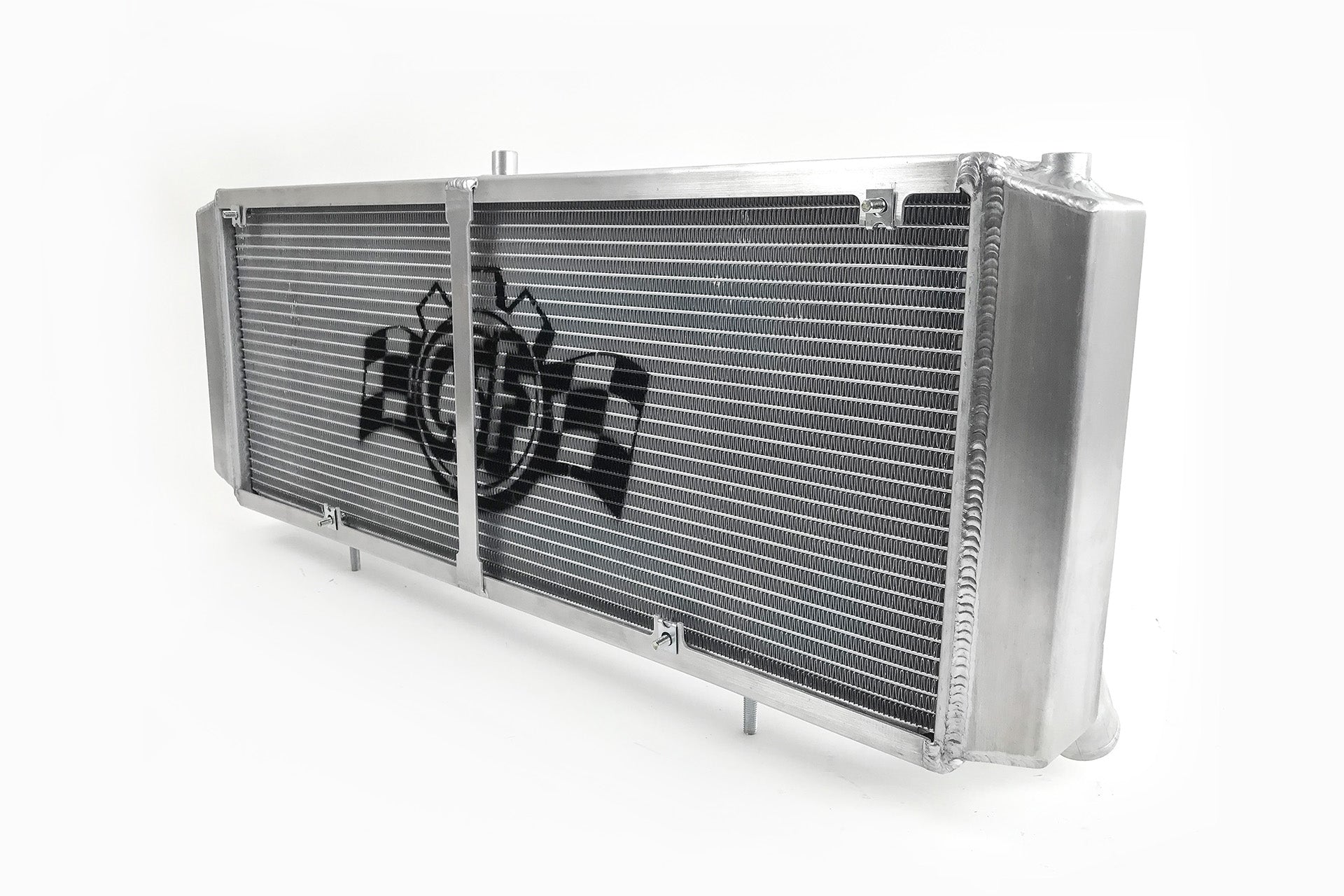

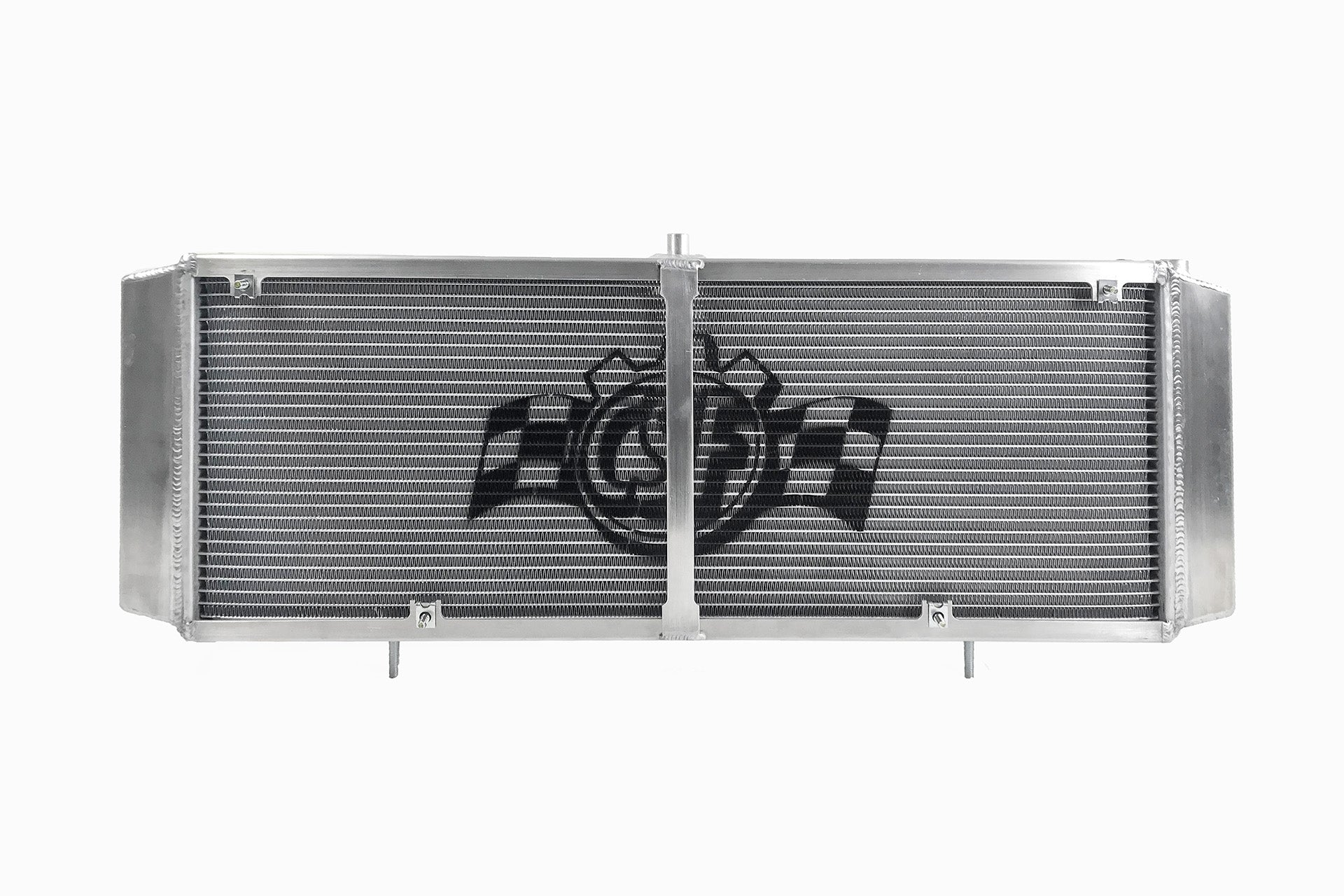

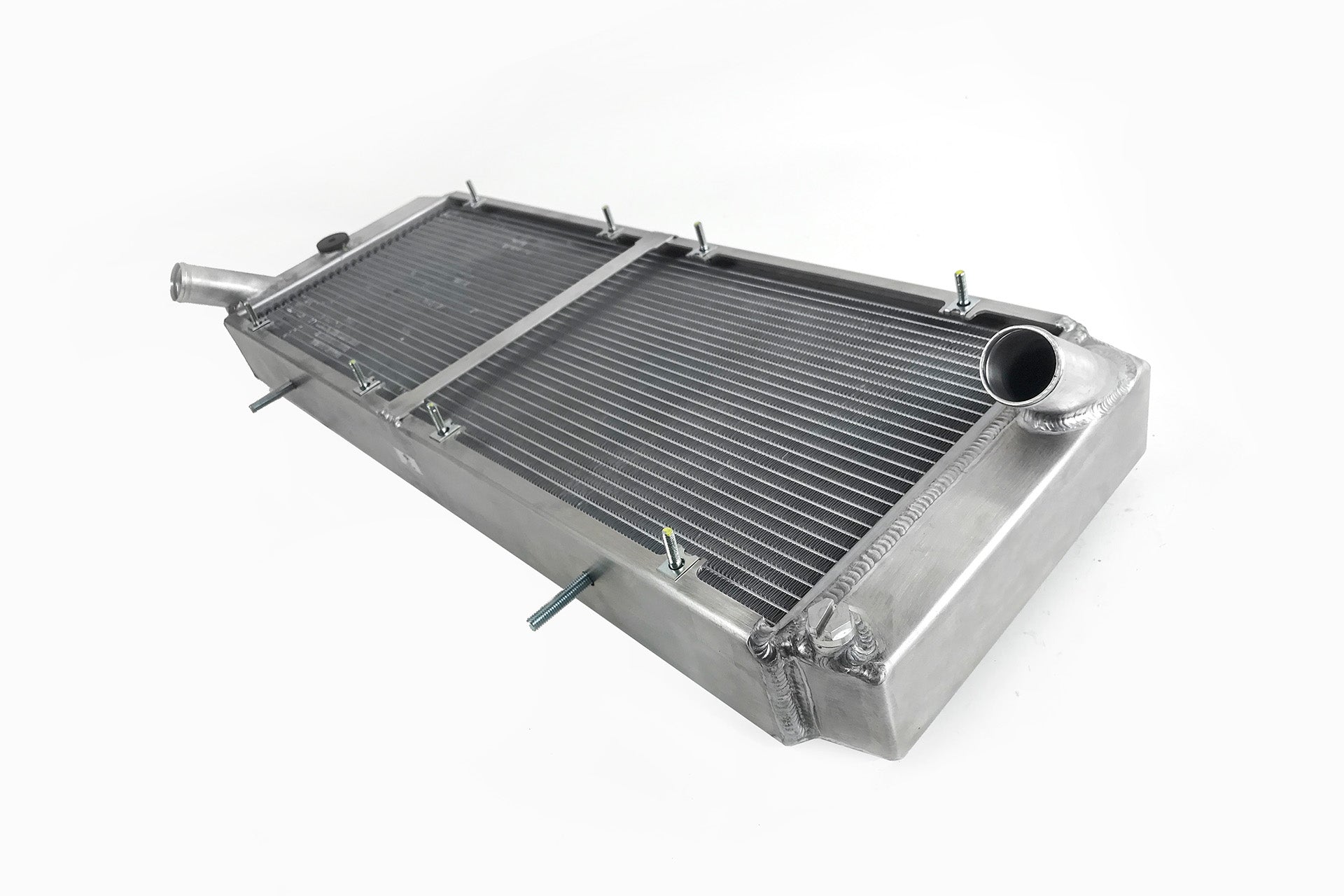

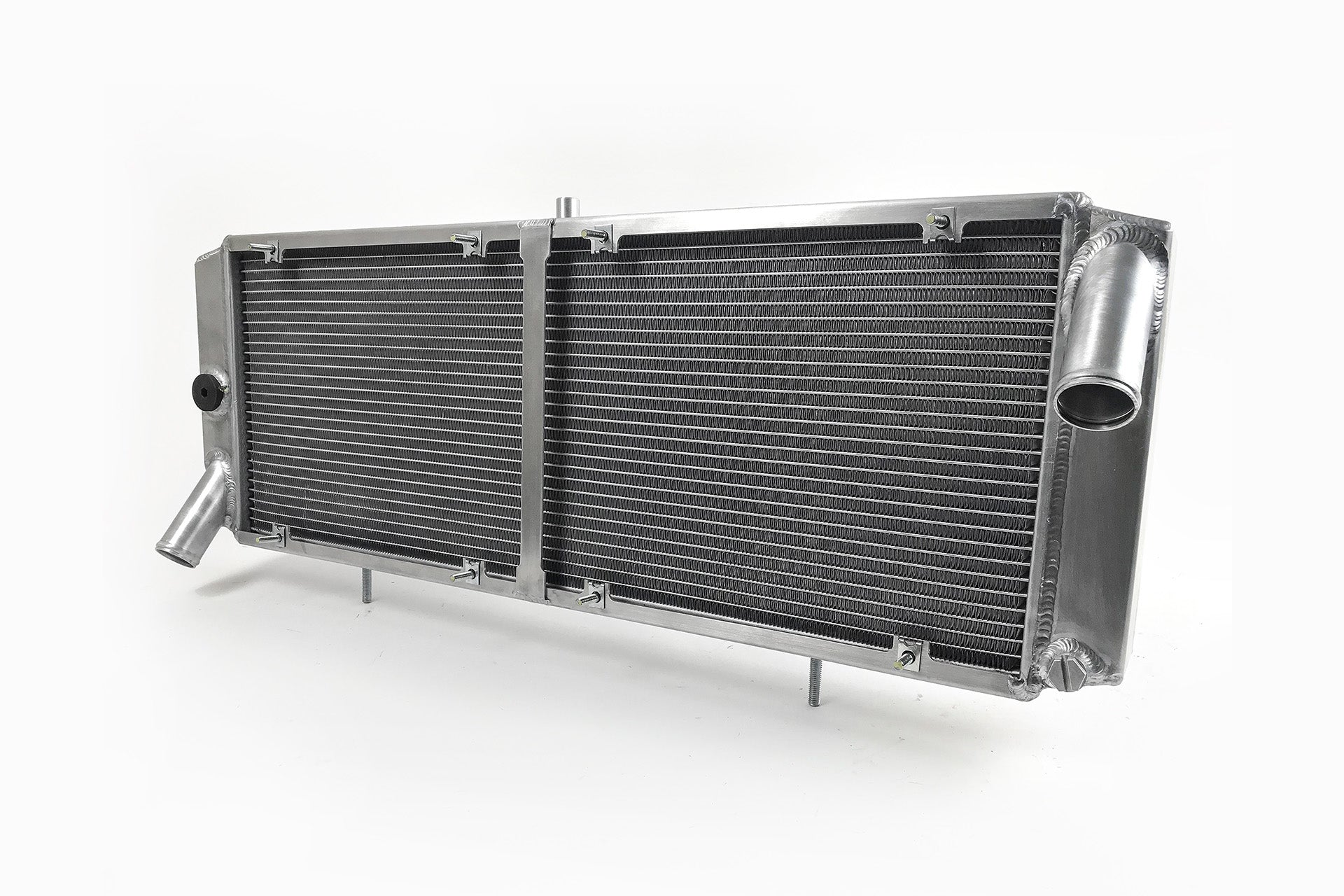

This is a faithful all-aluminum reproduction of a Factory OE radiator applicable to any model year Fiat or Bertone X19. Identical in size and fitment to those in Lancia Scorpion / Montecarlo.
Made exclusively for Midwest-Bayless by CSF, this is a sturdier and more accurate design than all other units on the market, and is backed by a full 3-year warranty. This unit offer both performance and reliability for a job you only want to do once.

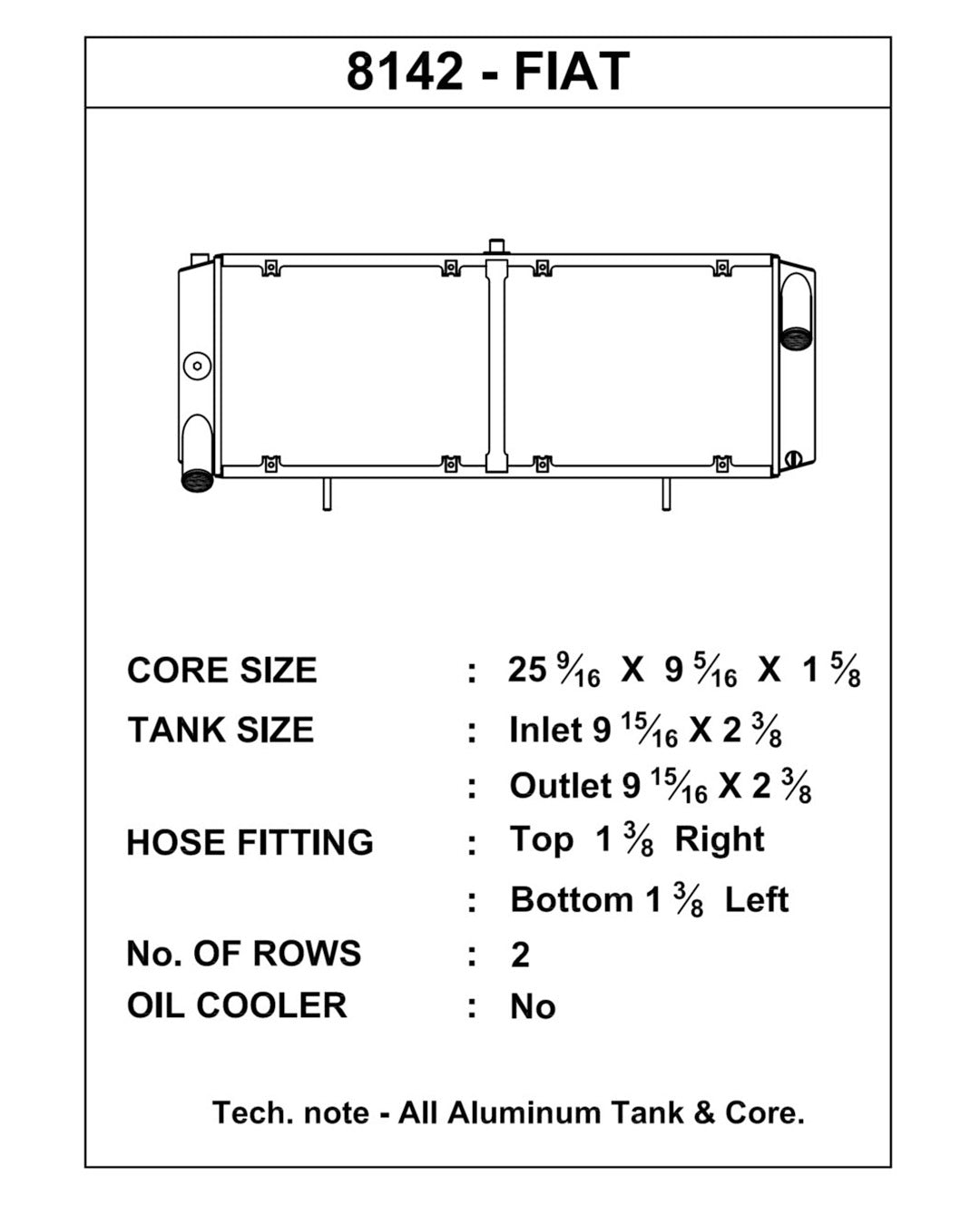

The radiator is the exact factory dimensions for width and height, with steel hardpoints for lower supports and upper centering mount. 1 3/8" inlets and outlets for stock-sized hoses. Accepts one or two factory-style cooling fans in the rear, and an air conditioning condenser unit in front, using steel studs in the factory locations. The upper air bleeder port and radiator fan temperature switch port are stock sized, and placed in original locations.
Features
- Ultra-High-Performance All-Aluminum Core
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- Exact factory dimensions for width and height
- Steel hardpoints for lower supports and upper centering mount
- 1 3/8" inlets and outlets for stock-sized hoses
- Accepts one or two factory-style cooling fans
- Compatible with A/C condenser unit in front
- Factory size upper air bleeder port and radiator fan temperature switch port
- Bleeder screw and radiator fan thermo-switch are not included, and must be transferred from your original X1/9 radiator, or purchased new.
- Lightweight - 11lbs
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 1974-1978 | Fiat | - | X-1/9 | - | 1.3L L4 | - |
| 1979-1989 | Fiat | - | X-1/9 | - | 1.5L L4 | - |
| 1983-1985 | Fiat | - | X-1/9 | - | 2L L4 | - |
| 1983-1985 | Bertone | - | X-1/9 | - | 2L L4 | - |
| 1979-1989 | Bertone | - | X-1/9 | - | 1.5L L4 | - |
| 1976 | Lancia | - | Scorpion | - | 1.8L L4 | - |
OEM Part Numbers
- Fiat: 4344976
Warranty
Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page
SKU# 8142 Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
