DMS 2nd Gen CTS-V high-performance Intercooler Heat Exchanger

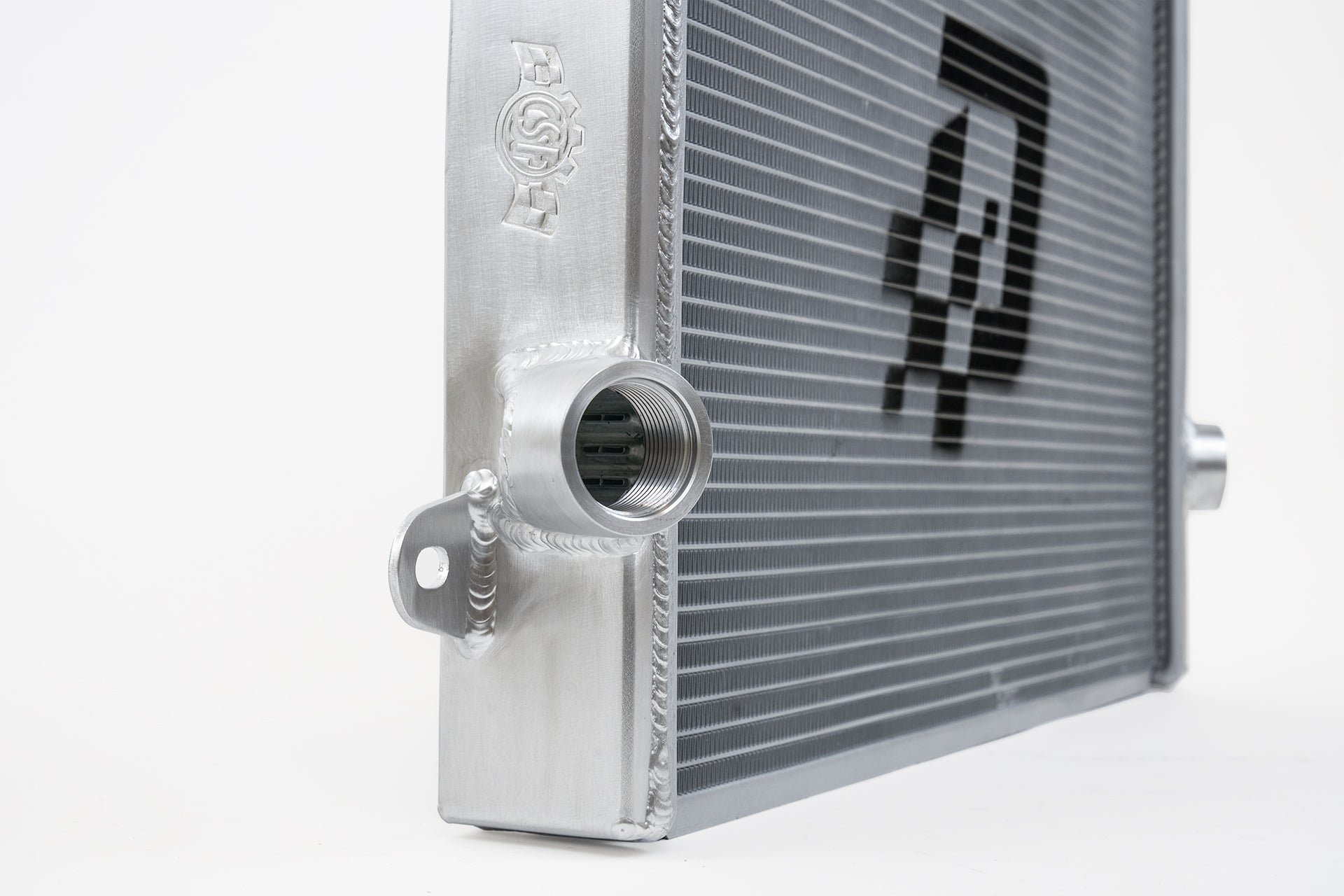

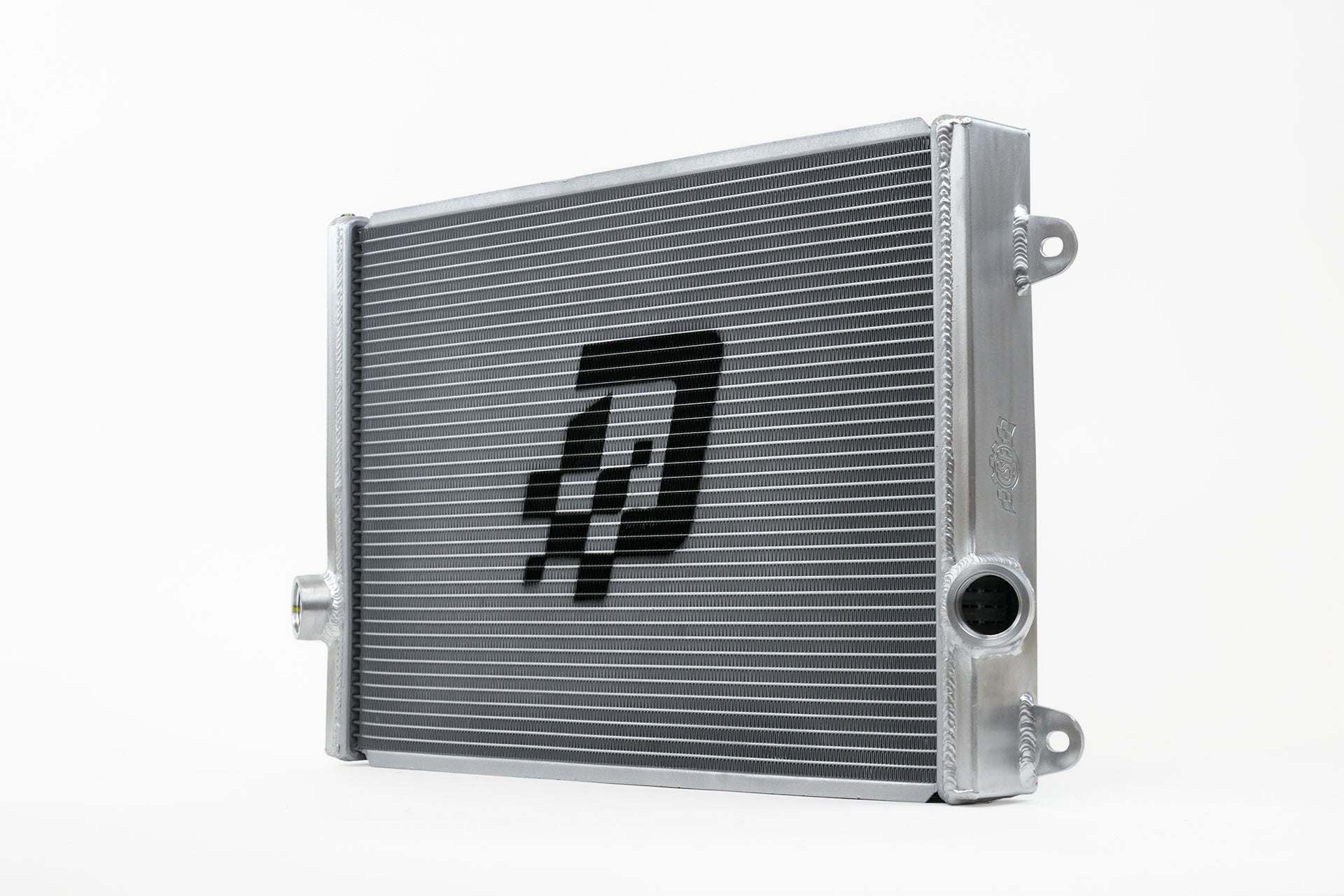

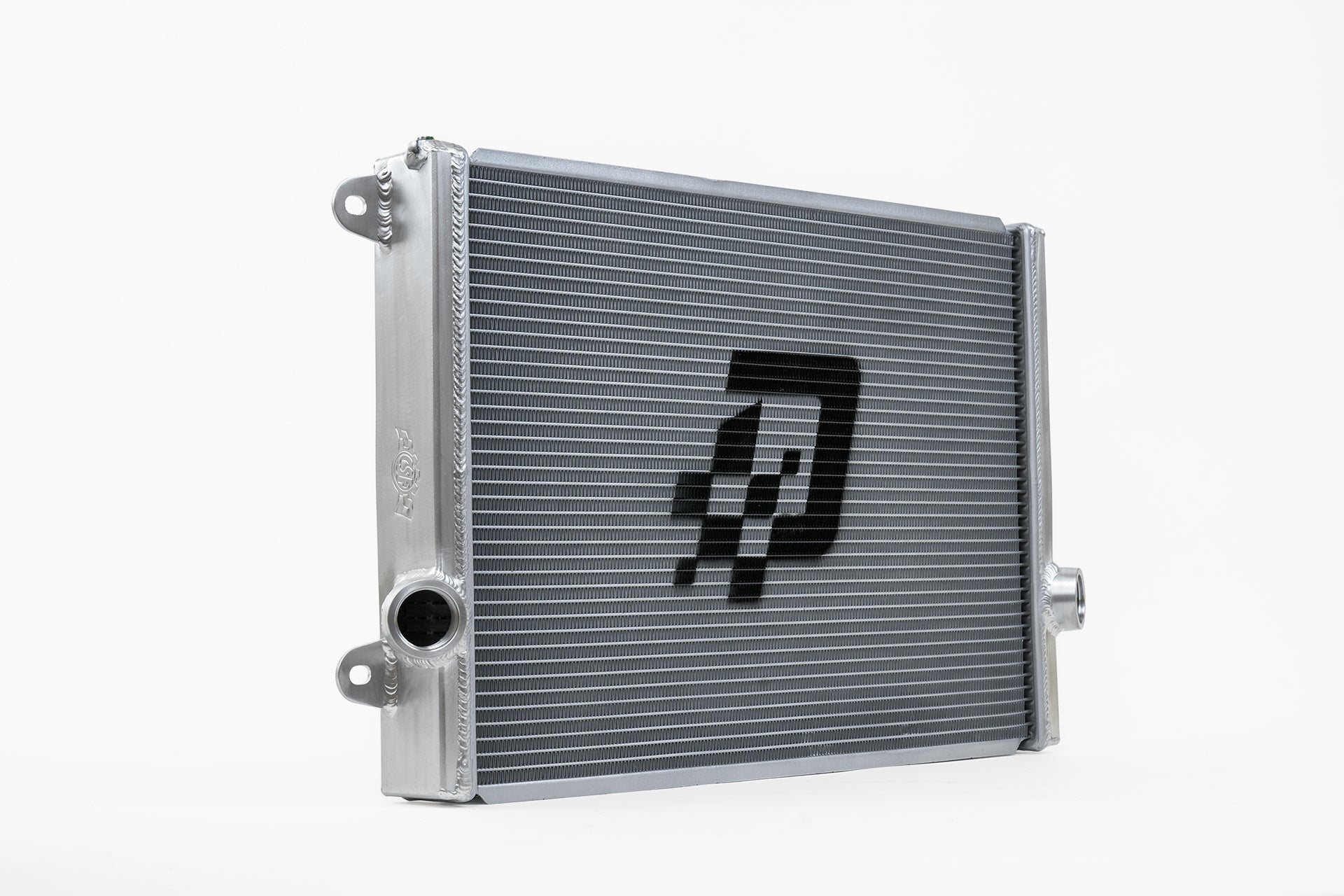

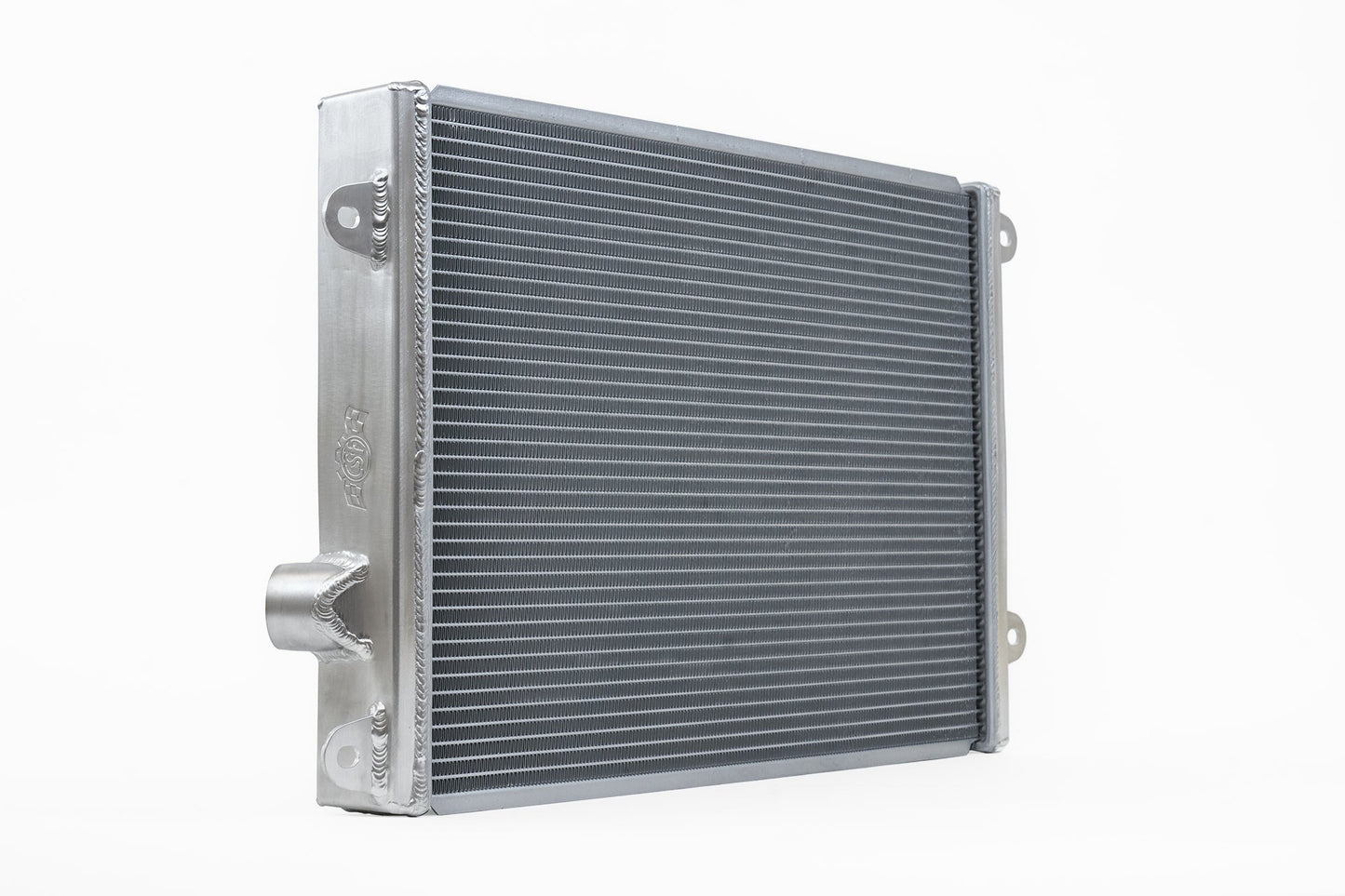

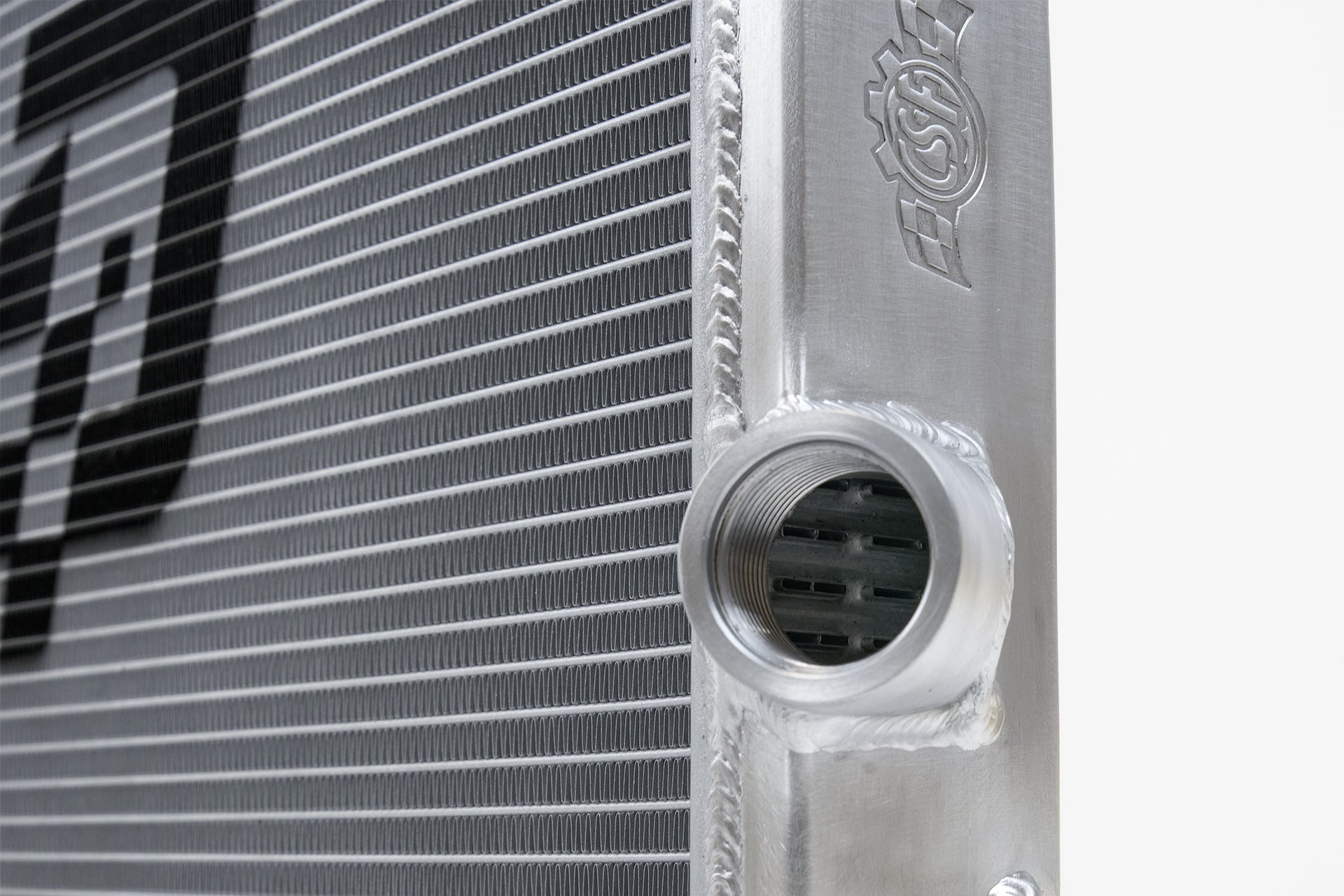

Dedicated Motorsports brings you another partnered product with CSF Racing. We set out to bring you the ultimate in cooling and flexibly. This means not only increasing the size of the HX but increased efficiency through the use of CSF's B tube technology and ultra efficient multi louvered fins. A high flow coolant pump is useless if you have major system restrictions. Dedicated Motorsports alleviated restrictions and added flexibility with the addition of -16ORB inlet/outlet fittings. This allows the end user to choose the inlets/outlet size of either 16an (1 Inch) or -12an (3/4 Inch). The use of AN fittings makes installation and service a breeze. Make sure to choose your ORB adapter size before adding to cart.

These heat exchangers feature CSF's high efficiency "B" tubes. Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in a shape of a "B." These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded.

The design (inlet in the middle of tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow".

Features

• Individually leak tested
• Vibration cycle tested
• Thermal cycle tested
• Wind tunnel cycle tested.
• Burst pressure and impulse cycle tested for strength
• Salt spray tested for corrosion
• 10 foot box "drop test" to ensure packaging protection
• 30 point fitment inspection on critical dimensions to ensure OE fitment with no modifications necessary

Applications

OEM Part Numbers

• Cadillac: 25876663

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 8206 Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
