A/C Solutions BMW E30 24v Swap Conversion Kit (S50, S52, S54, and more)

Designed and engineered for the enthusiast, this conversion kit offers a complete, plug-and-play R134a upgrade allowing you to properly run A/C in your 24v swapped E30 without sacrificing the OEM look and feel. Using the E36 M3 Denso compressor and our Denso Compressor Manifold, this has been designed to work with the S50, S52, and S54 as well as the M50, M52, and M54 engine and comes complete with a new Denso compressor, CSF parallel flow condenser and SPAL fan, R134a expansion valve, and new R134a lines (inside and out).

What if my E30 didn't come factory with A/C? A/C Solutions products products are designed to support factory A/C models; however, they can be fitted into non-A/C applications, but you will need to obtain a factory HVAC wiring harness, high-pressure drier return line (long metal return line), evaporator, and factory interior HVAC box with sensors, control module, thermostat, etc.

This product requires no R&D, and is easily reversible using professionally engineered components, OEM-like hardware, and durable replacement parts resulting in a trouble-free installation that can be completed in 4-6 hours by a professional. It is designed to fit factory S50, S52, and S54 headers while providing ample clearance around the factory oil cooler lines and OEM brake ducting/undertray. Proper functionality of the evaporator, expansion valve, and HVAC sensors is required for a fully functional system.

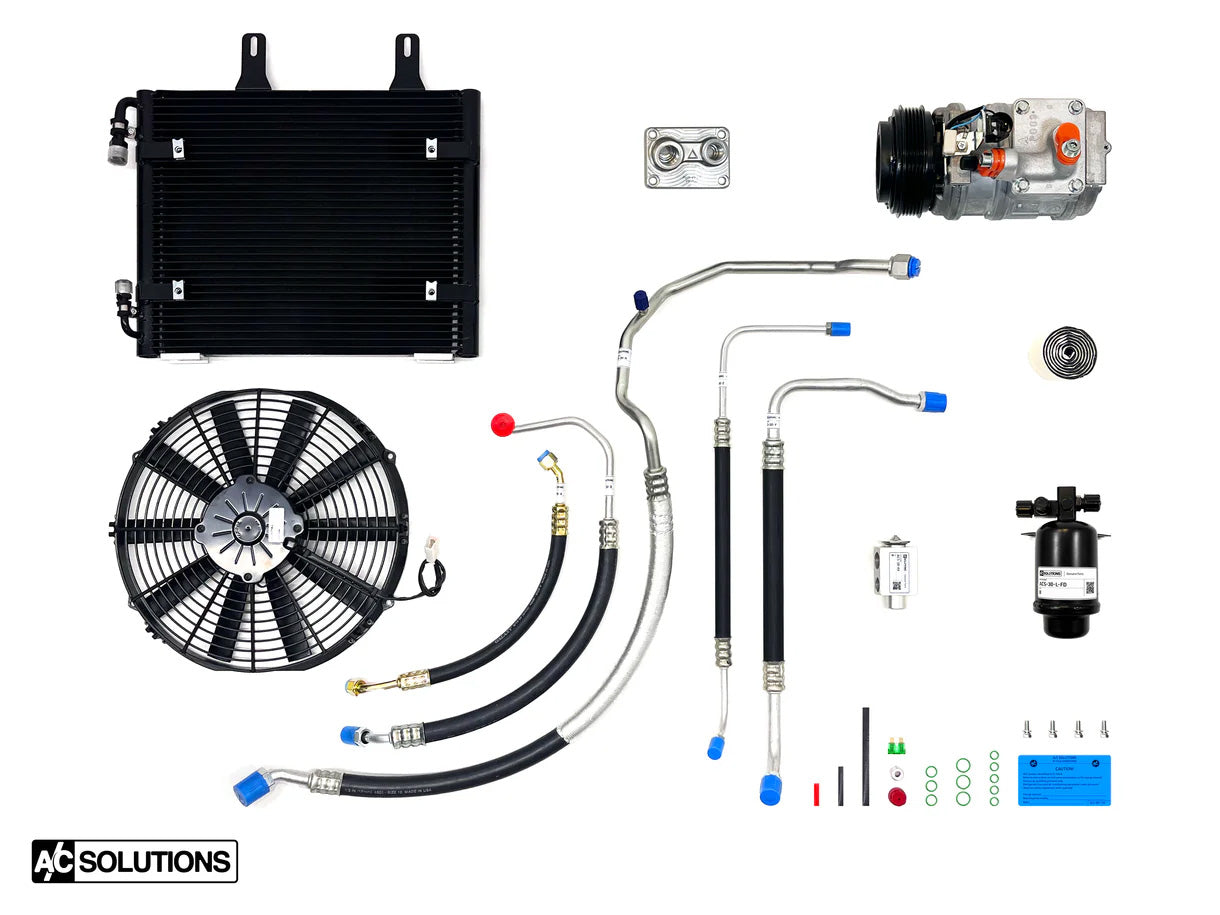

Features

• Genuine Denso E36 compressor

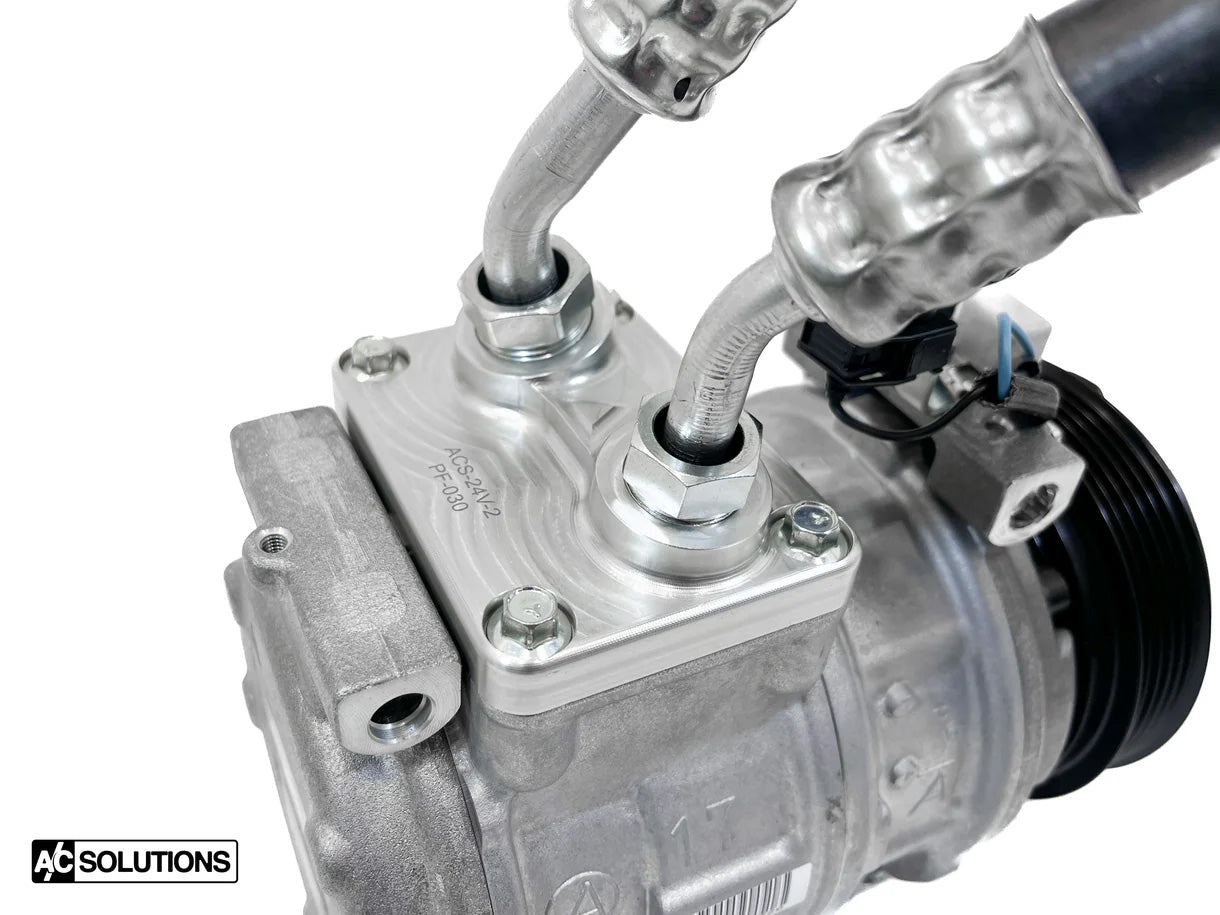

• A/C Solutions 24v Denso compressor manifold
• CSF parallel flow condenser w/ genuine SPAL 13" fan and hardware (optional)
• Nissens parallel flow condenser (optional)
• Interior line set (optional)
• Low-pressure suction line (bulkhead to compressor)
• High-pressure discharge line (compressor to drier)
• High-pressure condenser return line (condenser to drier)
• OE R134a filter drier
• R134a expansion valve
• R134a high-pressure adapter fitting
• Model specific R134a o-ring kit
• R134a retrofit label
• Wiring kit and misc. hardware
• Detailed installation instructions

Applications

OEM Part Numbers

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# ACS-30-24V Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
