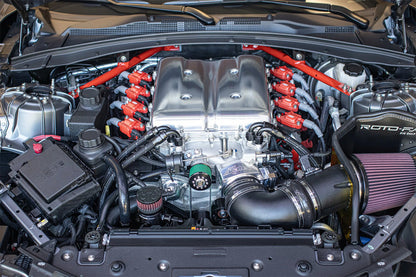

GMS Camaro ZL1 STAGE.III Super-Charger Cooling Package

Griffin Motorsports' goal when developing their Stage.III Super Charger Cooling System was simple; Improve the efficiency and effectiveness of the heat exchanger system while utilizing the OEM pump. They achieved this by carefully finding and eliminating all major restrictions, as well as adding and upgrading many components to improve volume, heat soak resistance and overall efficiency.

Knowing that GMS wanted their kit to look as good as it performed, it was critical to get the part combination perfect. After testing several combinations and hose configurations they settled on what you see now. A detailed kit that not only adds that upgraded richer look under the hood, but also unlocked a 50% increase in HX coolant flow bumping the test car up to 5.1GPM with the OEM pump.

System Benefits:

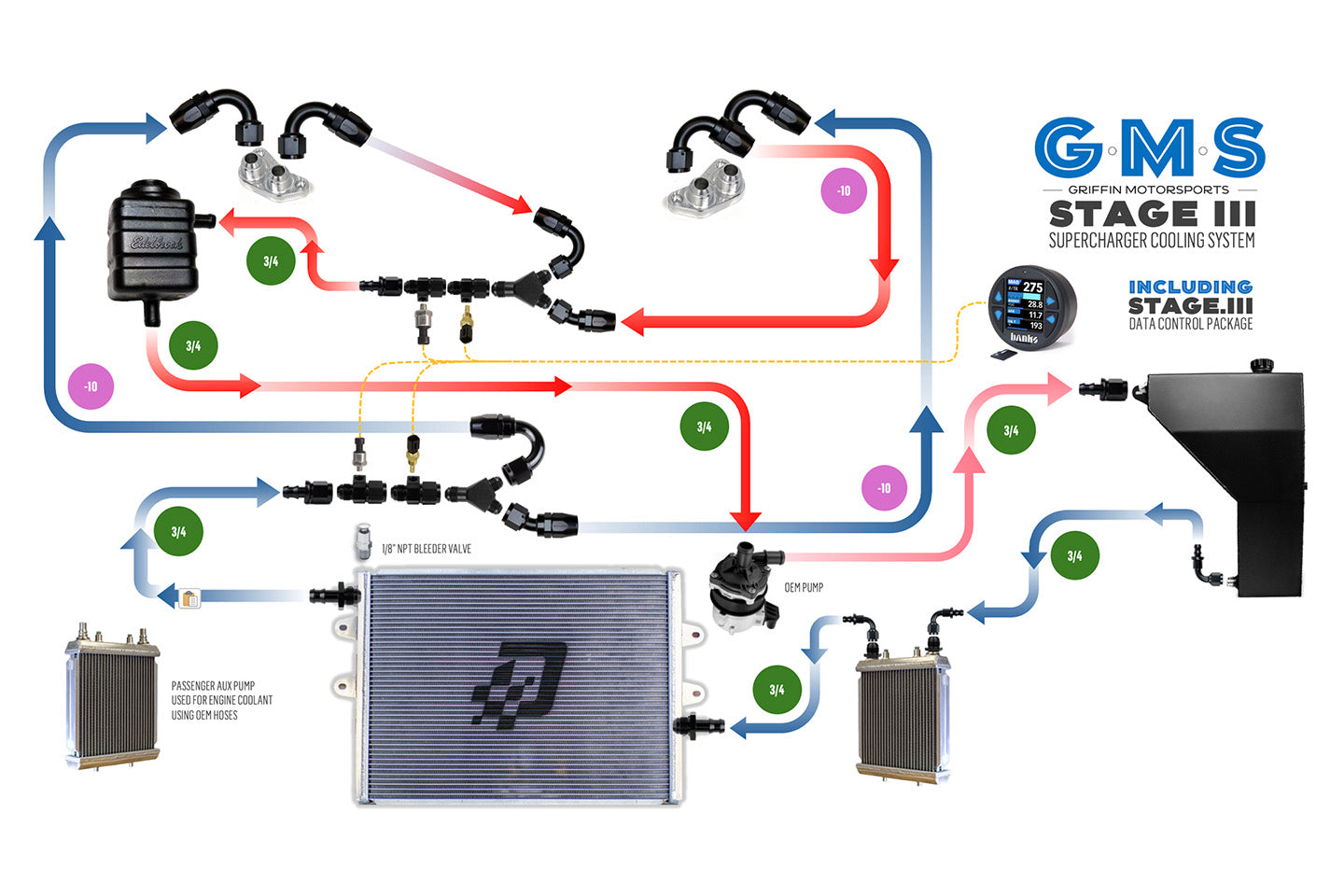

• Dedicated IN/OUT manifolds prevent passenger side supercharger brick coolant starvation by feeding each brick its own balanced pressure flow thanks to our Y-block fittings.
• GMS High Flow Impact Bar allows for a straighter path to cool the upgraded DMS main front HX as well as provides a perch to install the GMS Stage.II Oil Cooler Package (sold separately)
• 50% increase in HX coolant flow observed in our test vehicle with this package.
• 3/4" Flexlab Silicone tubing is flexible and easy to install.
• Additional Edelbrock reservoir with pressure cap makes pump priming and system filling a breeze.
• DMS Fender tank provides a buffer for hot coolant existing in the blower, as it sheds its heat while mixing with the other 2 gallons of much cooler coolant.
• Save over money with the bundle vs purchasing the parts separately.

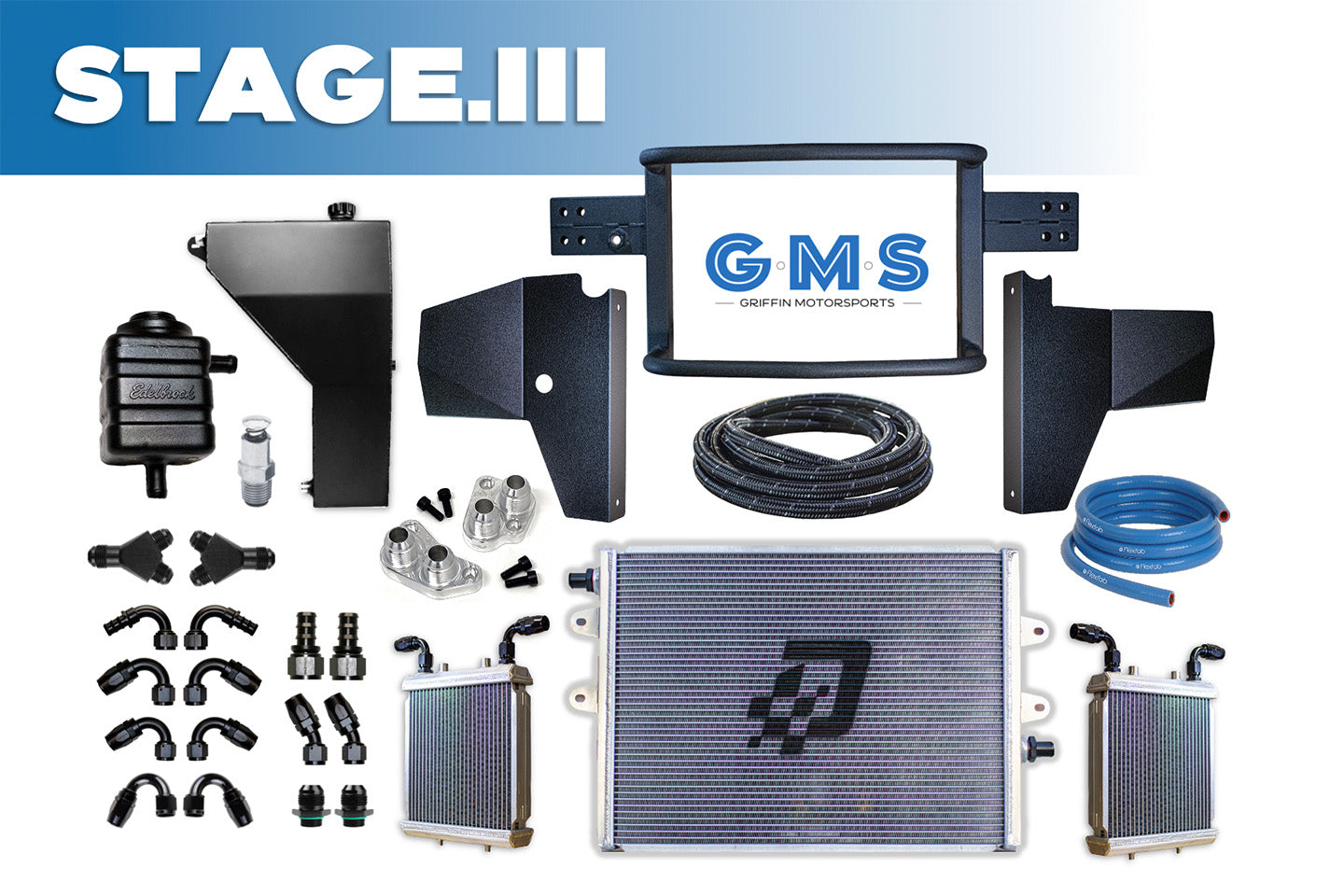

STAGE.III Super-Charger Cooling Package Includes:

• (1) Signature GMS High Flow Impact Bar
• (1) Large Main front DMS Heat Exchanger
• (2) GMS High Flow AUX Coolers with ORB
• (1) Large DMS 2 - Gallon Fender Tank
• (1) Edelbrock Coolant Reservoir with pressure cap & brackets
• (2) -10 AN 45 degree Fittings
• (4) -10 AN 120 degree Fittings
• (2) -10 AN 150 degree Fittings

• (1) 1/8" NPT Push-top Bleeder Valve
• (2) -12 AN to 3/4" Hose Barb Fittings
• (2) -12 AN to -10 AN Y-Block Connectors
• (19) feet of 3/4" Blue Silicone Flex-lab hose
• (2) -10AN RMS Billet Coolant Manifold Adapters
• (2) -10 ORB to -12 AN Male Low Profile Adapters
• (2) -12 AN to 3/4" 120 degree Hose Barb Fittings
• (15) feet of -10AN RaceFlux's RH1 lightweight racing hose

Product Details

STAGE.III Super-Charger Cooling Package Includes:

• (1) Signature GMS High Flow Impact Bar
• (1) Large Main front DMS Heat Exchanger
• (2) GMS High Flow AUX Coolers with ORB
• (1) Large DMS 2 - Gallon Fender Tank
• (1) Edelbrock Coolant Reservoir with pressure cap & brackets
• (2) -10 AN 45 degree Fittings
• (4) -10 AN 120 degree Fittings
• (2) -10 AN 150 degree Fittings

• (1) 1/8" NPT Push-top Bleeder Valve
• (2) -12 AN to 3/4" Hose Barb Fittings
• (2) -12 AN to -10 AN Y-Block Connectors
• (19) feet of 3/4" Blue Silicone Flex-lab hose

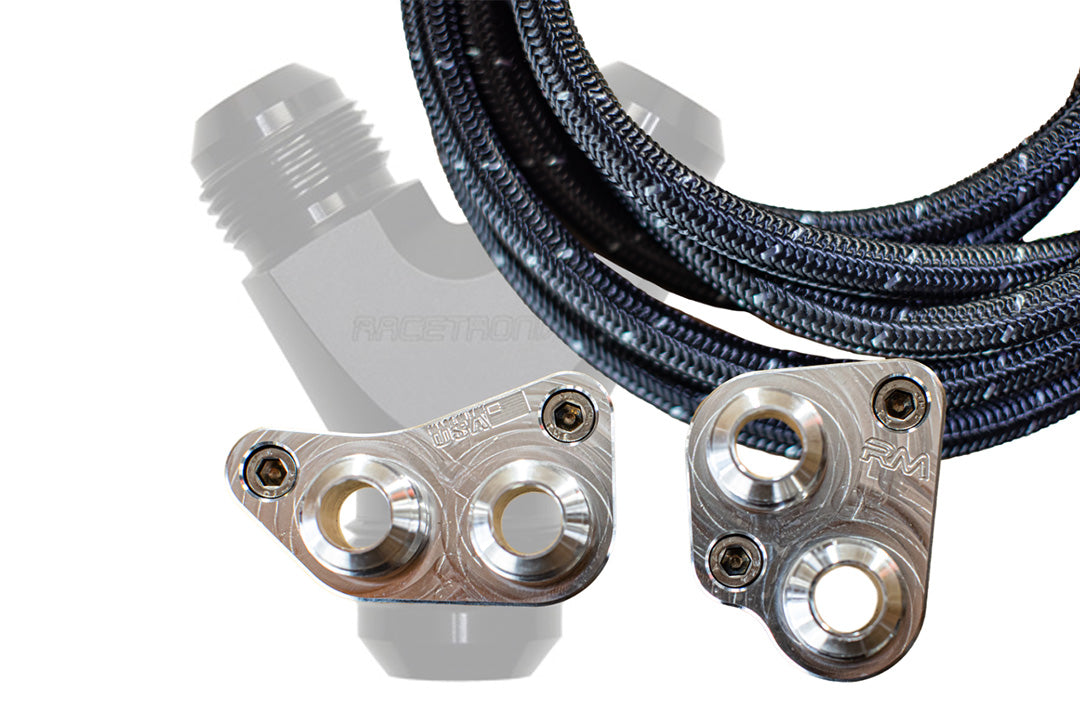

• (2) -10AN RMS Billet Coolant Manifold Adapters
• (2) -10 ORB to -12 AN Male Low Profile Adapters
• (2) -12 AN to 3/4" 120 degree Hose Barb Fittings
• (15) feet of -10AN RaceFlux's RH1 lightweight racing hose

What You will need to provide:

• Patience and attention to detail for installation... or, someone like that, who you trust with your beloved, adorned, magnificent, earth shaking, alarm sounding Camaro ZL1 or SS.
• Cut-off wheel or large cable cutters in order to cut your braided lines to fit.
• Additional connectors, hoses and fittings may be needed depending on your existing system design or preferred routing path. Email me if you have any other needs or questions about path design.
• More 50/50 coolant. Some nice hose pinch clamps are not required, but a good addition for peace of mind.
• Note; as you can see from the photos we have re-purposed the passenger side AUX cooler for the HX system. This is only recommended if you have the GMS Stage.I or Stage.II Oil Cooler which heavily reduces the load on the engine coolant system, allowing you to remove the AUX cooler with no negative impacts to cooling effectiveness.

Design & Engineering

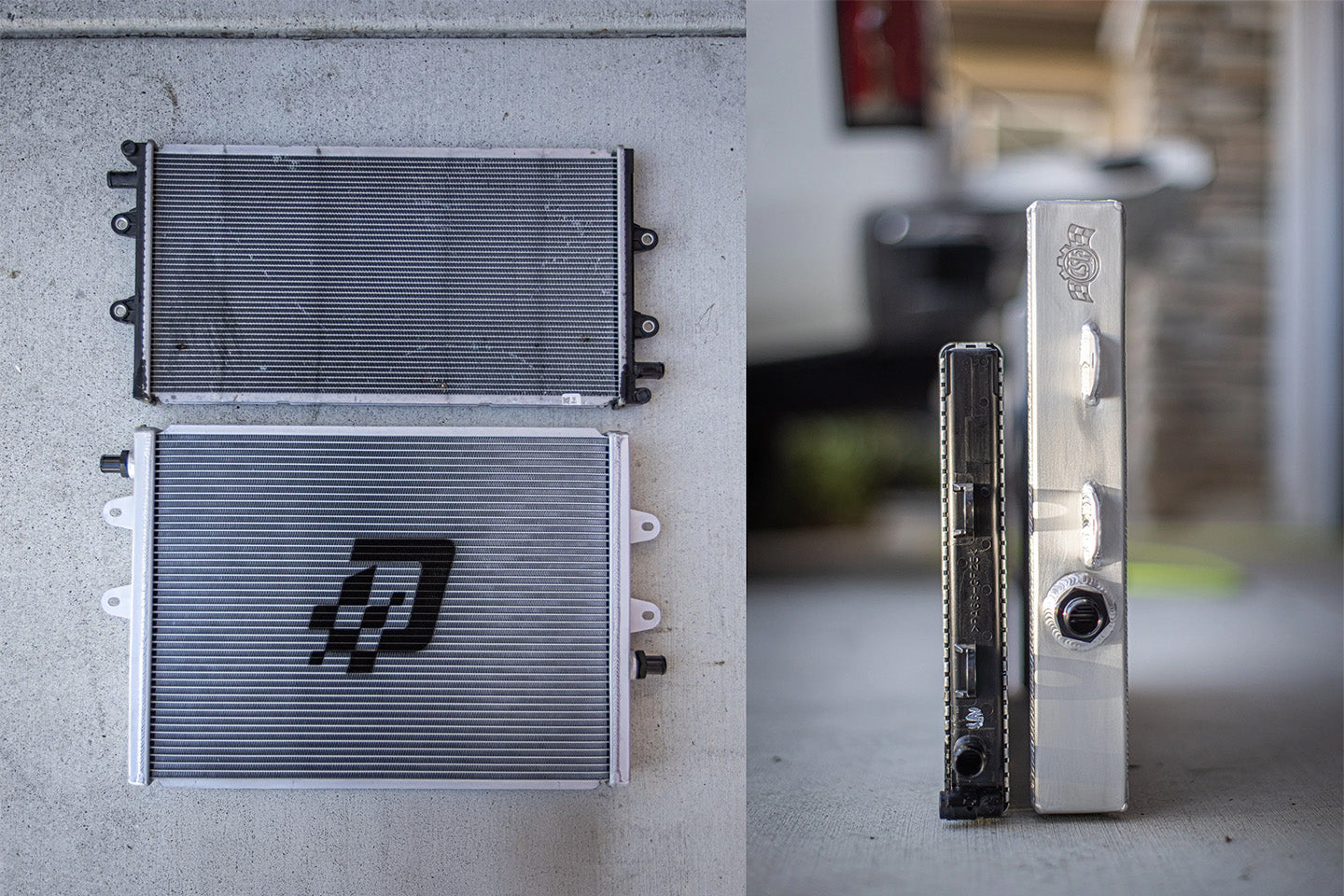

DMS High-Performance Heat Exchanger

The Stage.II solution starts with the most popular front HX on the market for the 6th gen Camaro. CSF teamed up with DMS to offer a huge upgrade for the Camaro ZL1 and CTS-V. This Heat Exchanger is the largest upgrade possible for both vehicles and offers a massive increase in core size and fluid volume. At more than 2 times the size of the factory heat exchanger, the DMS cooler greatly reduces the ZL1/CTS-V's heat soak issues.

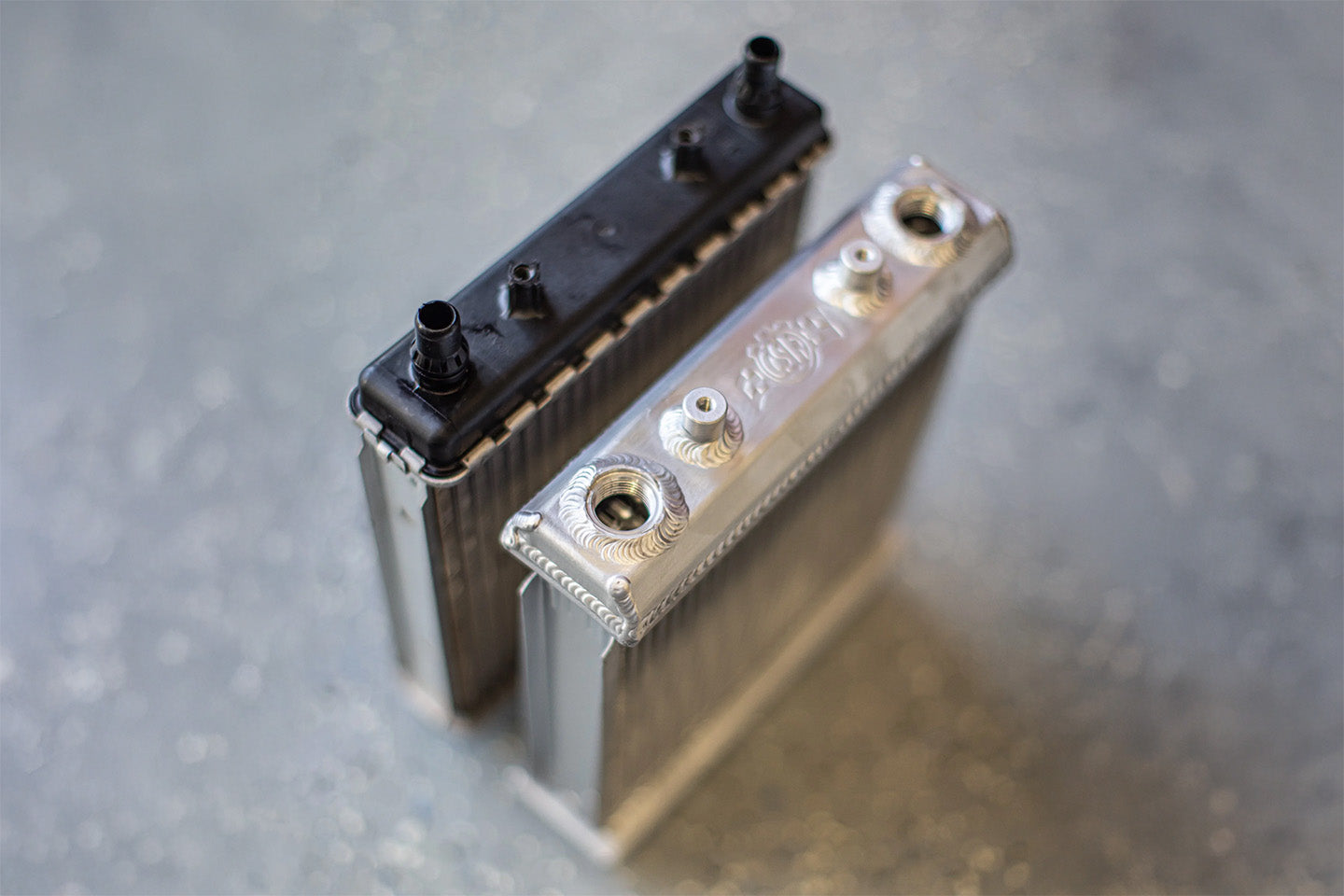

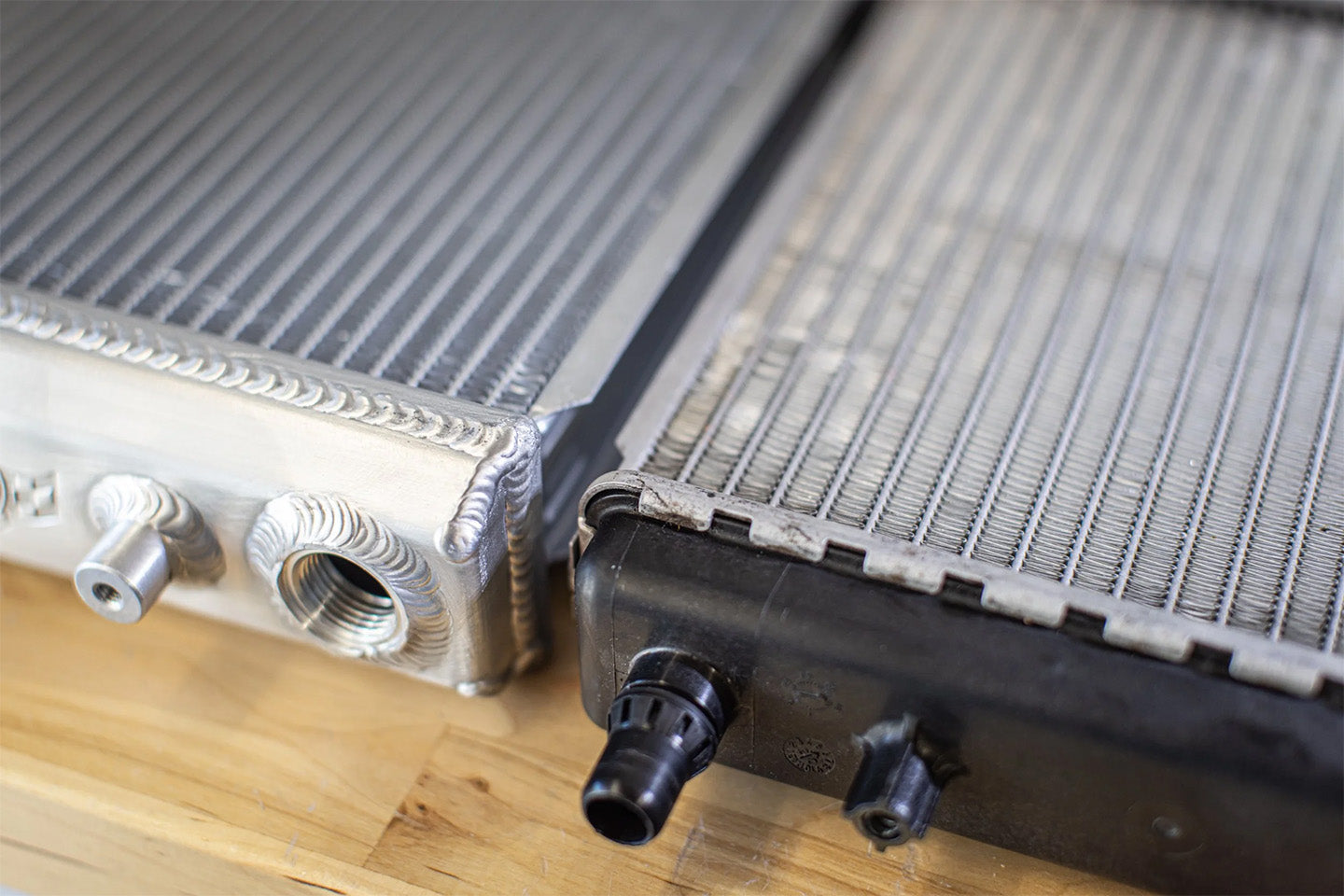

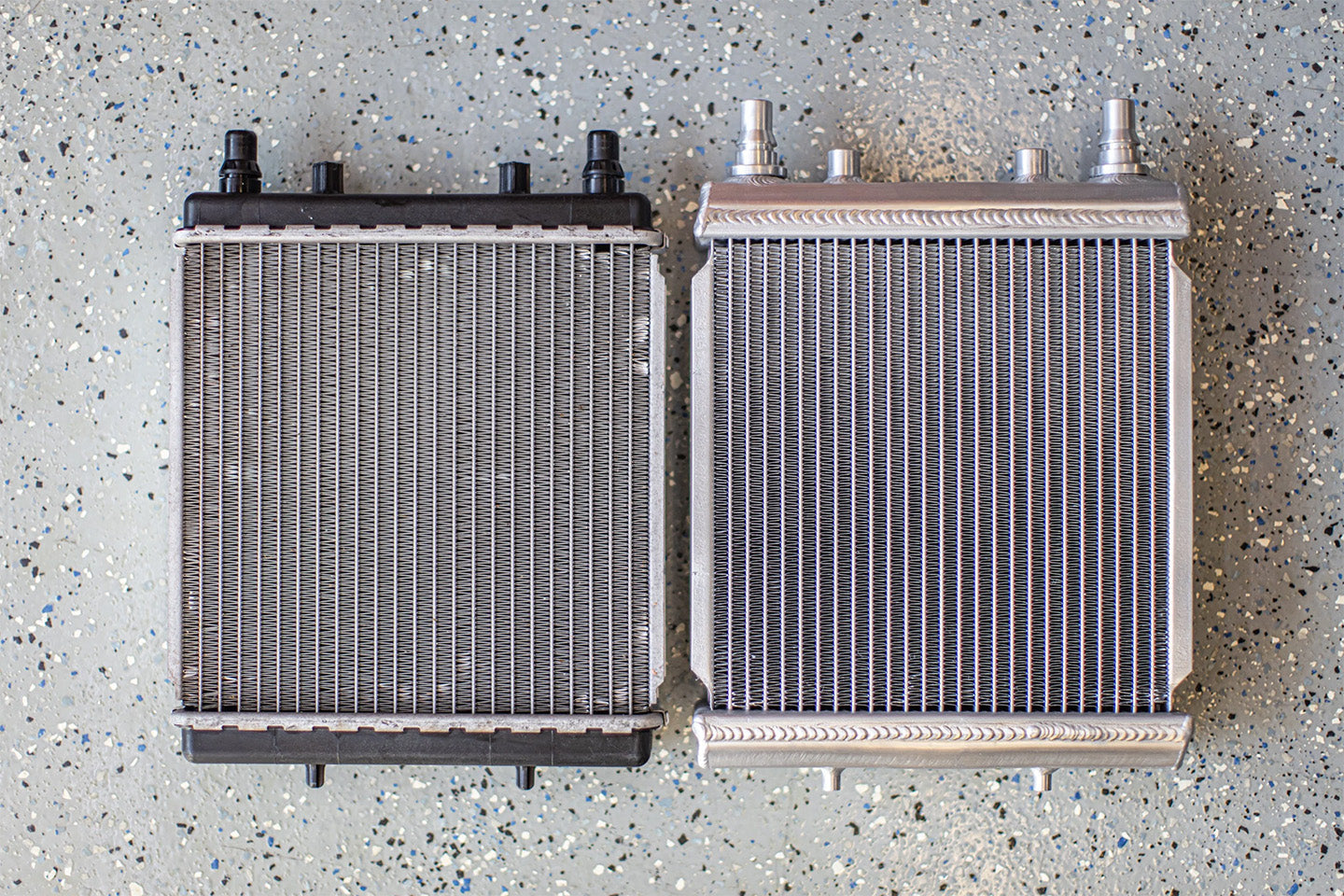

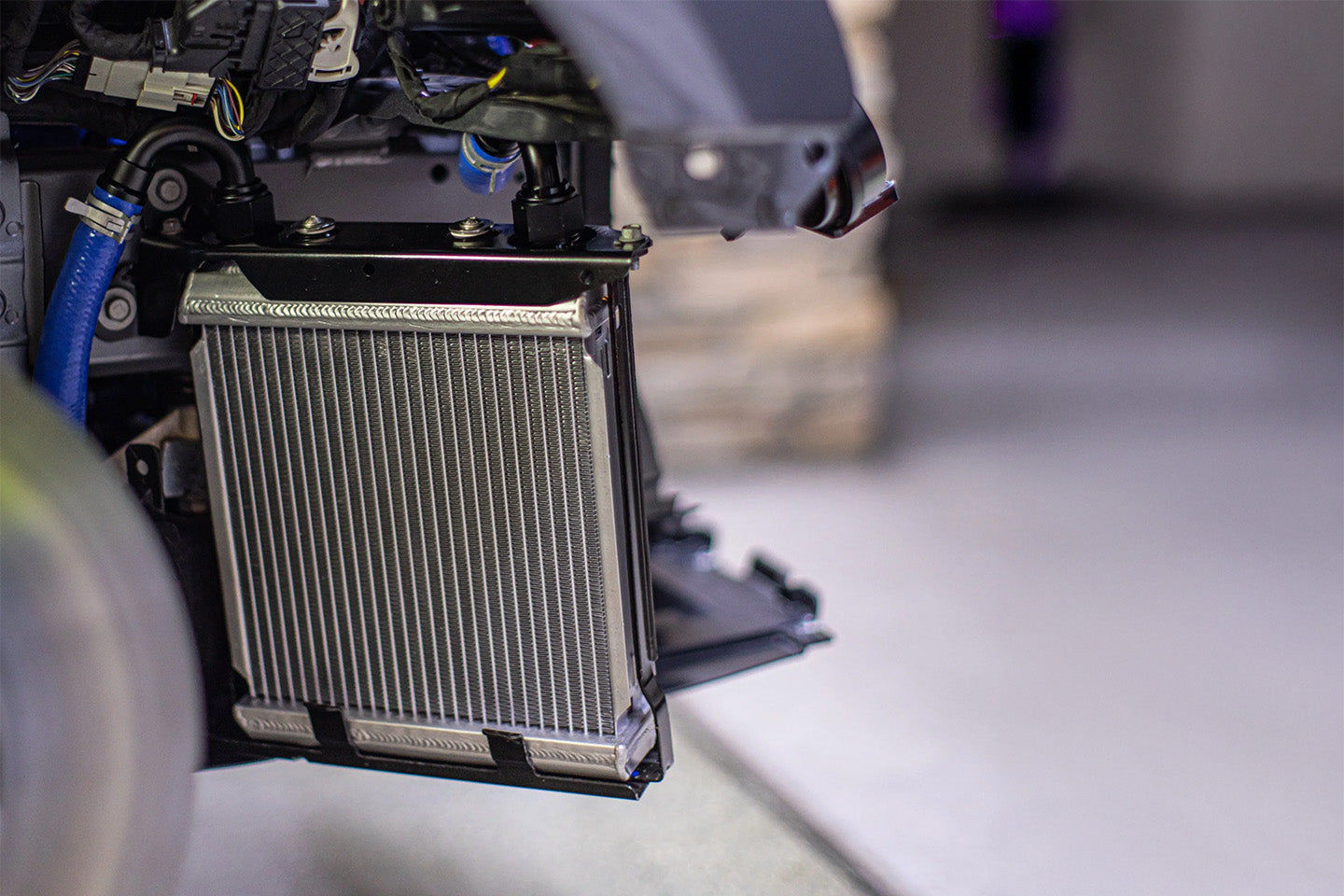

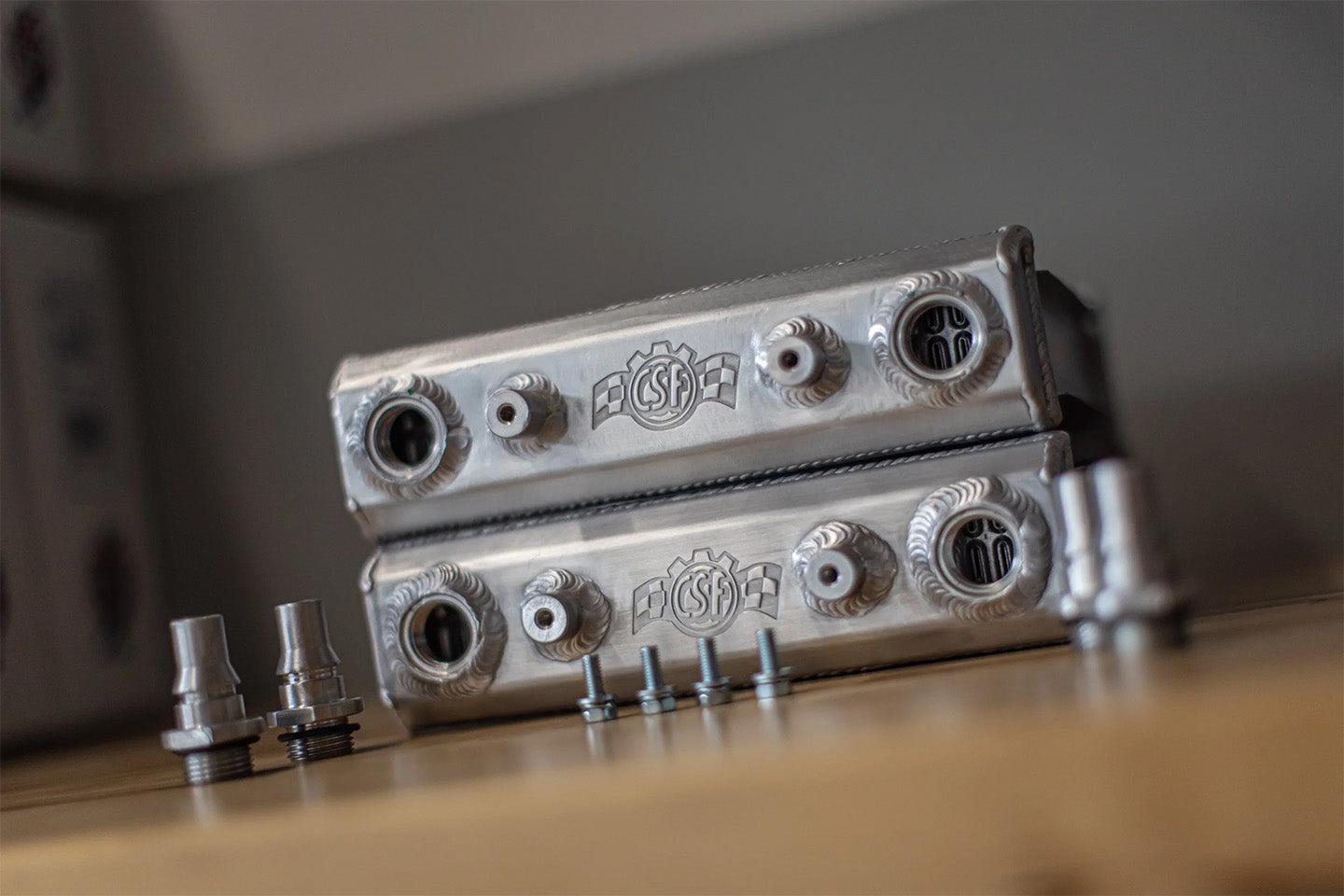

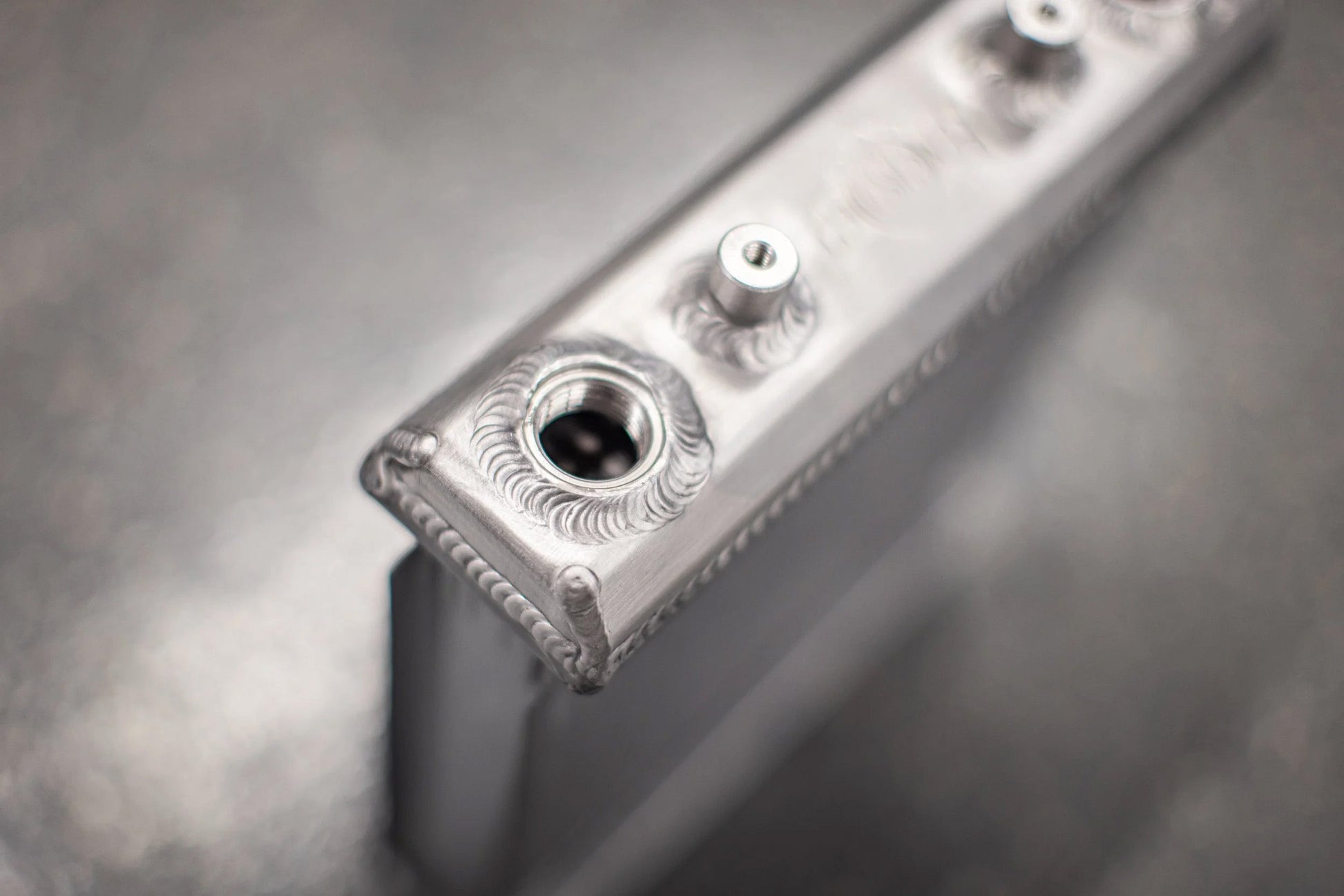

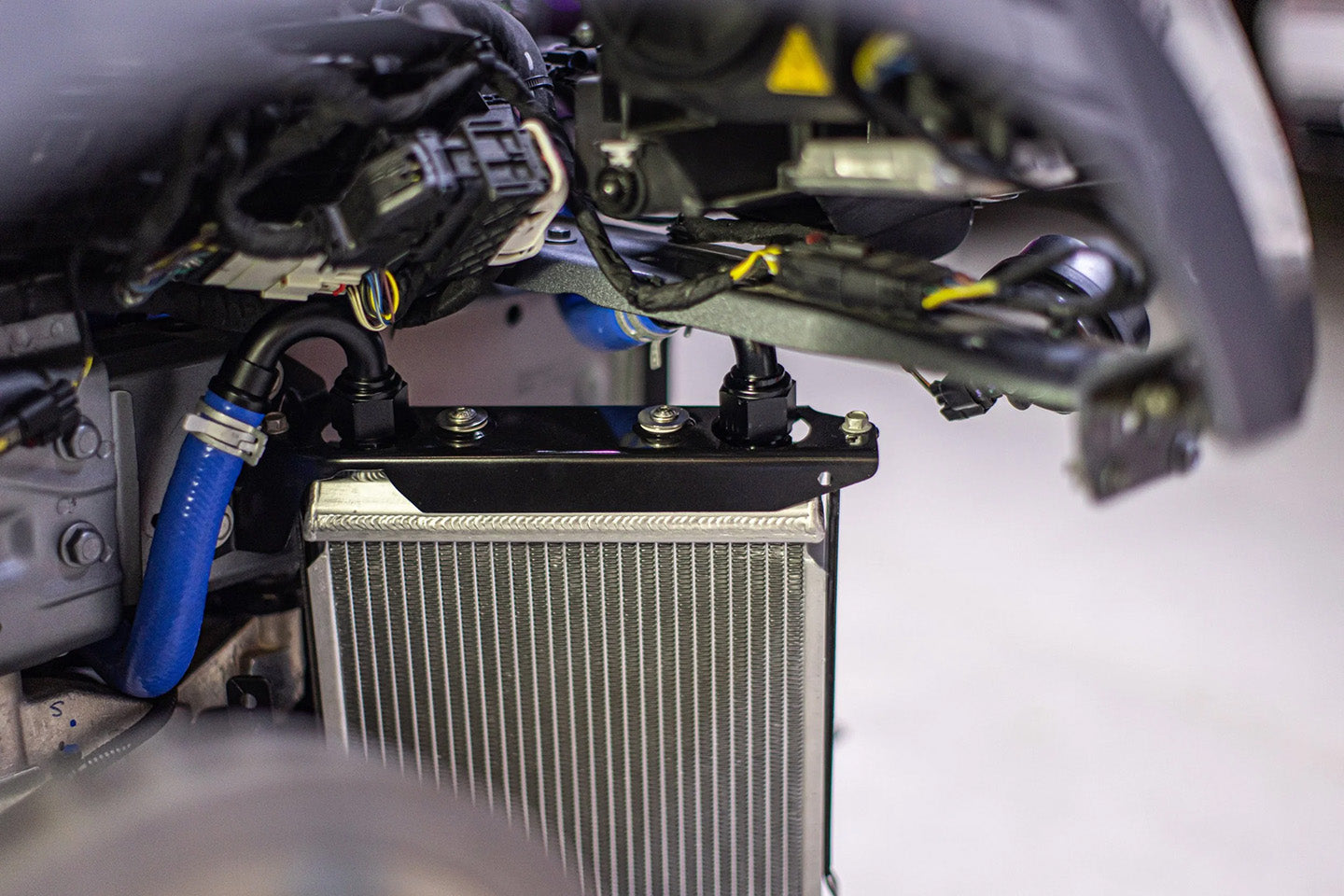

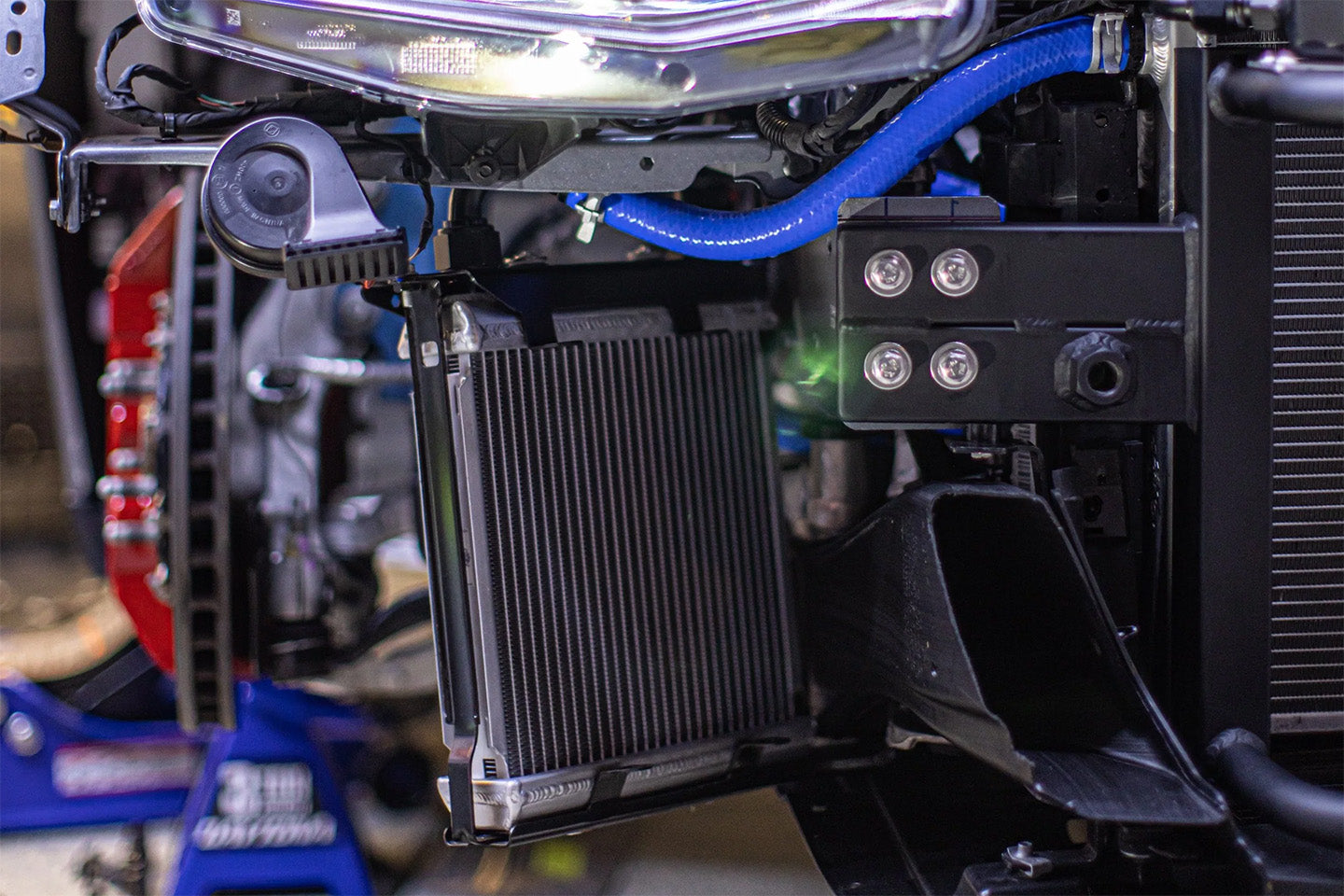

GMS Auxiliary Radiators

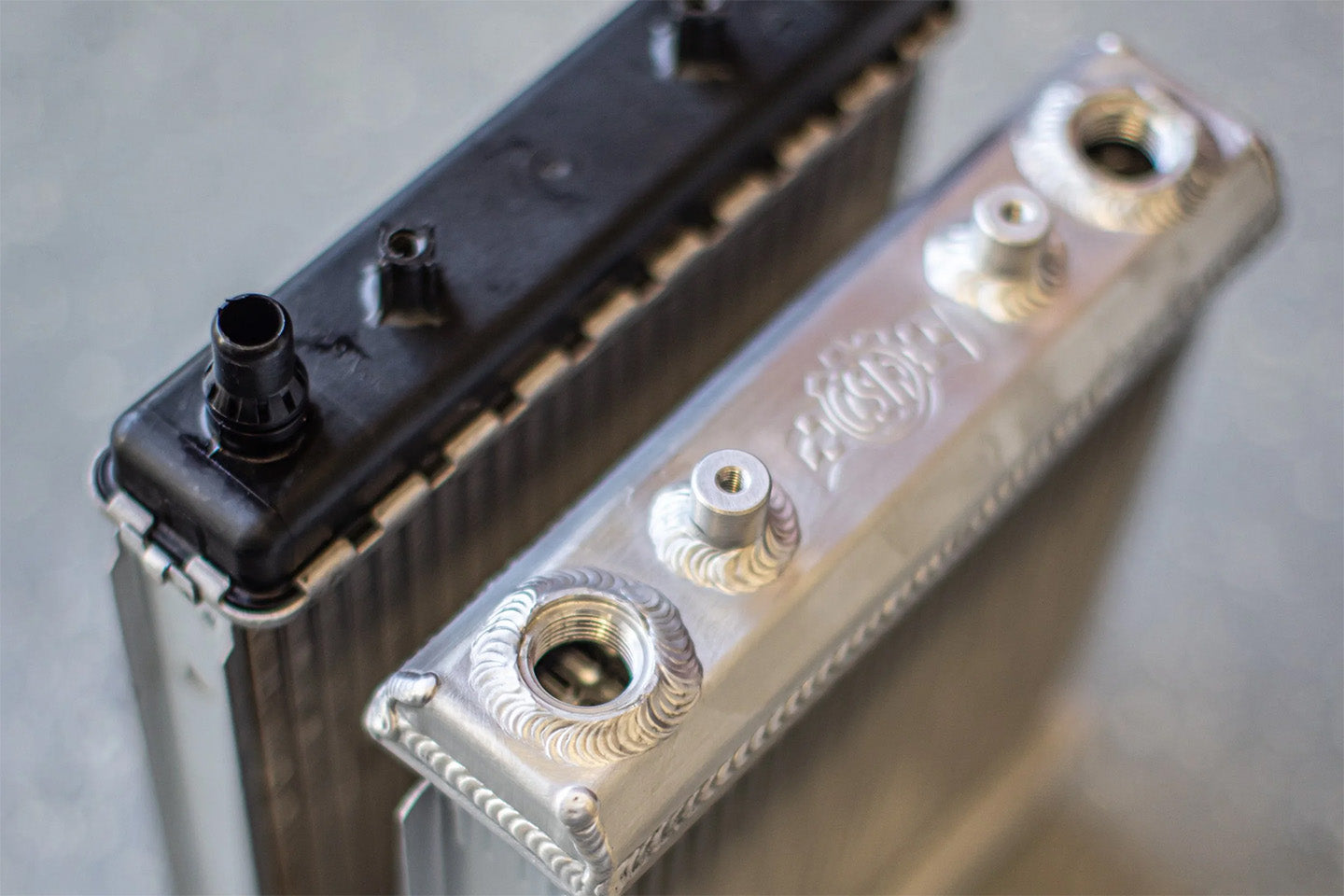

GMS worked closely with the team at CSF to make some improvements to our existing #8207 design by removing the fixed GM quick connect fittings in favor of a pair of 10 ORB female bosses which gives you the flexibility to run the OEM 5/8" quick connects (included in the box), push lock or AN fittings of your choice. GMS also changed the finish so all three units match in color and provide uniform aesthetics as well as proven cooling results. The ORB bungs also allow you to remove the OEM 5/8" hose / fittings and upgrade to 3/4" between the AUX and Main HX by simply installing a 10 ORB to 12 AN adapter.

Note: In an effort to maximize the size of these units, cutting the upper bracket in one corner may be needed on some cars. Additionally, modifications will be needed for the 3/4" option depending on the fittings and preferred hose routing. This effort to upgrade to 3/4" fittings and hoses yielded us a 20% increase in flow using the factory pump!!!

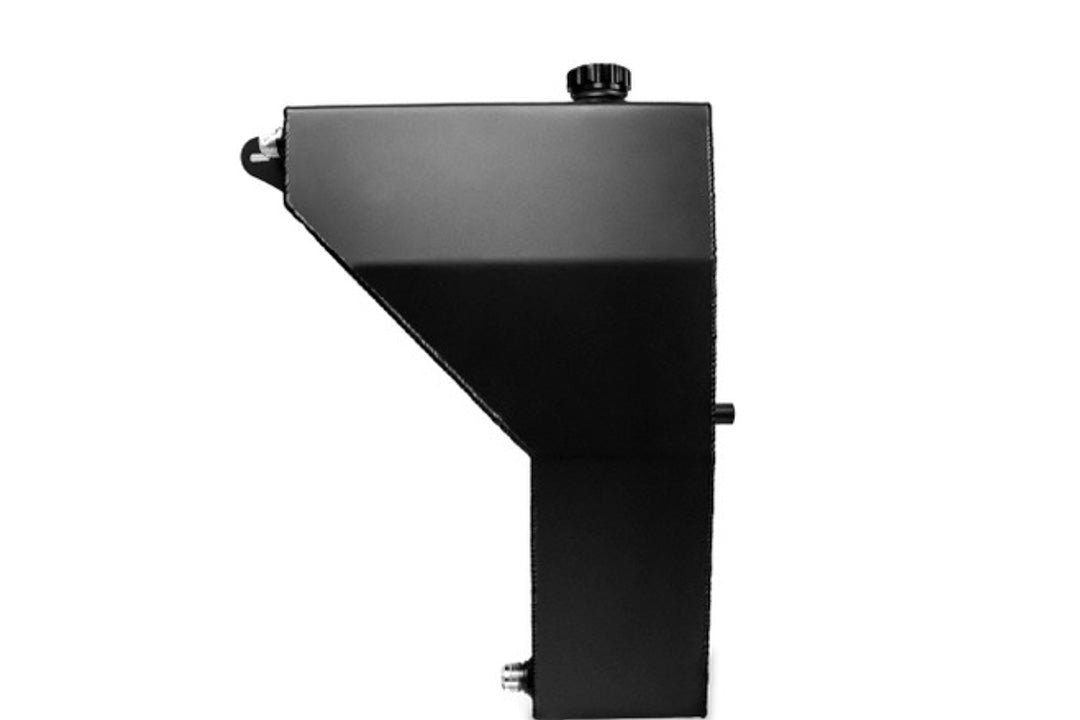

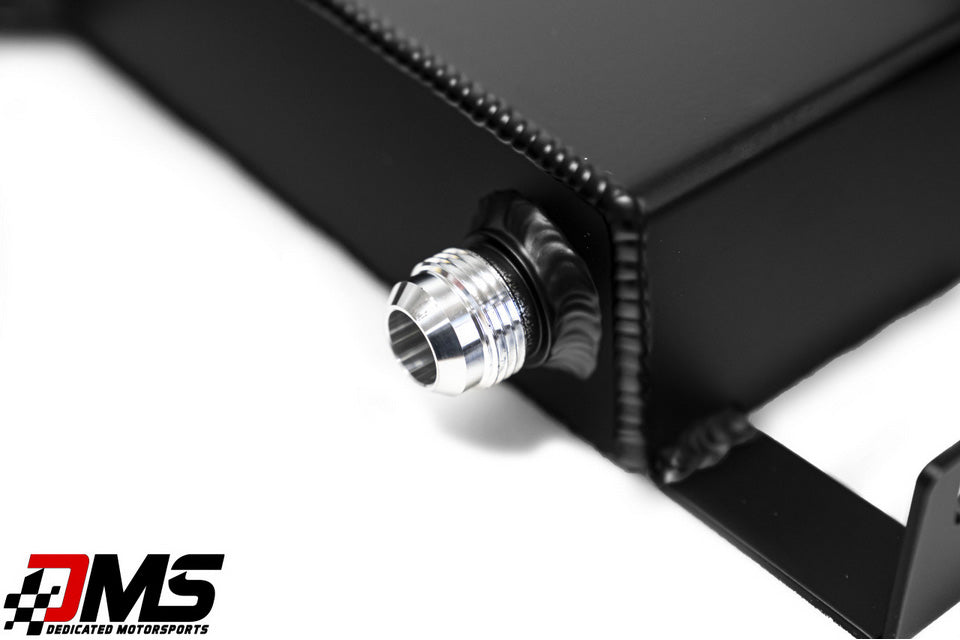

DMS Fender Tank

The Dedicated Motorsports coolant expansion tank for the 2017-2024 Camaro ZL1 adds 2 gallons of additional coolant capacity. This additional volume will not only help keep intake air temps lower but it will also allow air to escape the system making the system more efficient overall. This tank also aids in filling/bleeding the system with the addition of a 1.5" Filler cap and the included funnel that aids in filling the tank through the fender opening. This is perfect for cars with Magnuson superchargers and no coolant fill port.

The DMS fender tank is constructed out of durable .125" aluminum, expertly tig welded in house at DMS and powdered coated in a satin black finish. It features -12 ORB inlet/outlet barbs with -12an ORB fittings allowing you to run 3/4" hose or upgrade to AN lines and fitting. The GMS Kit includes a pair of pre-made -12an feed and return lines along with all hardware for trouble free installation.

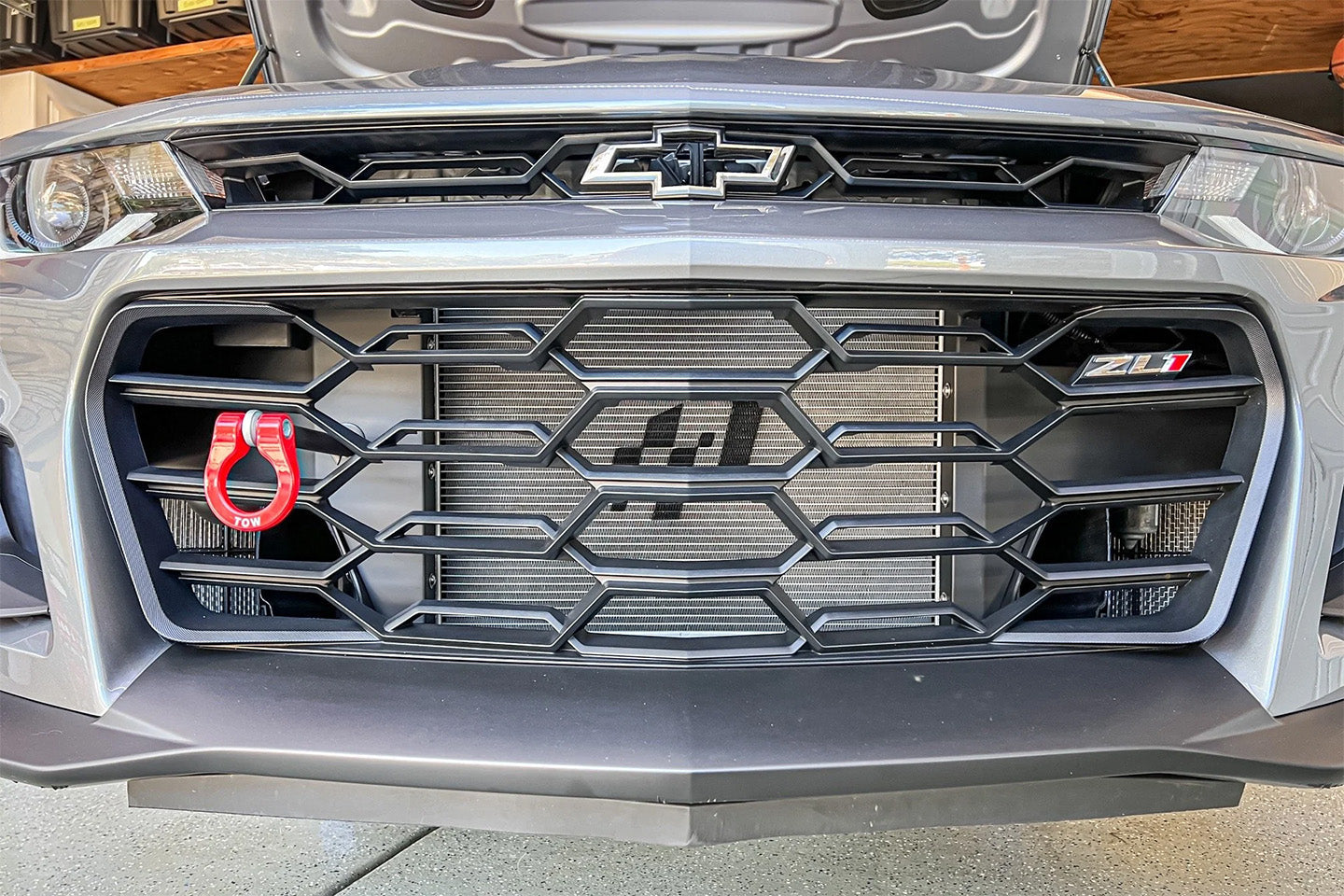

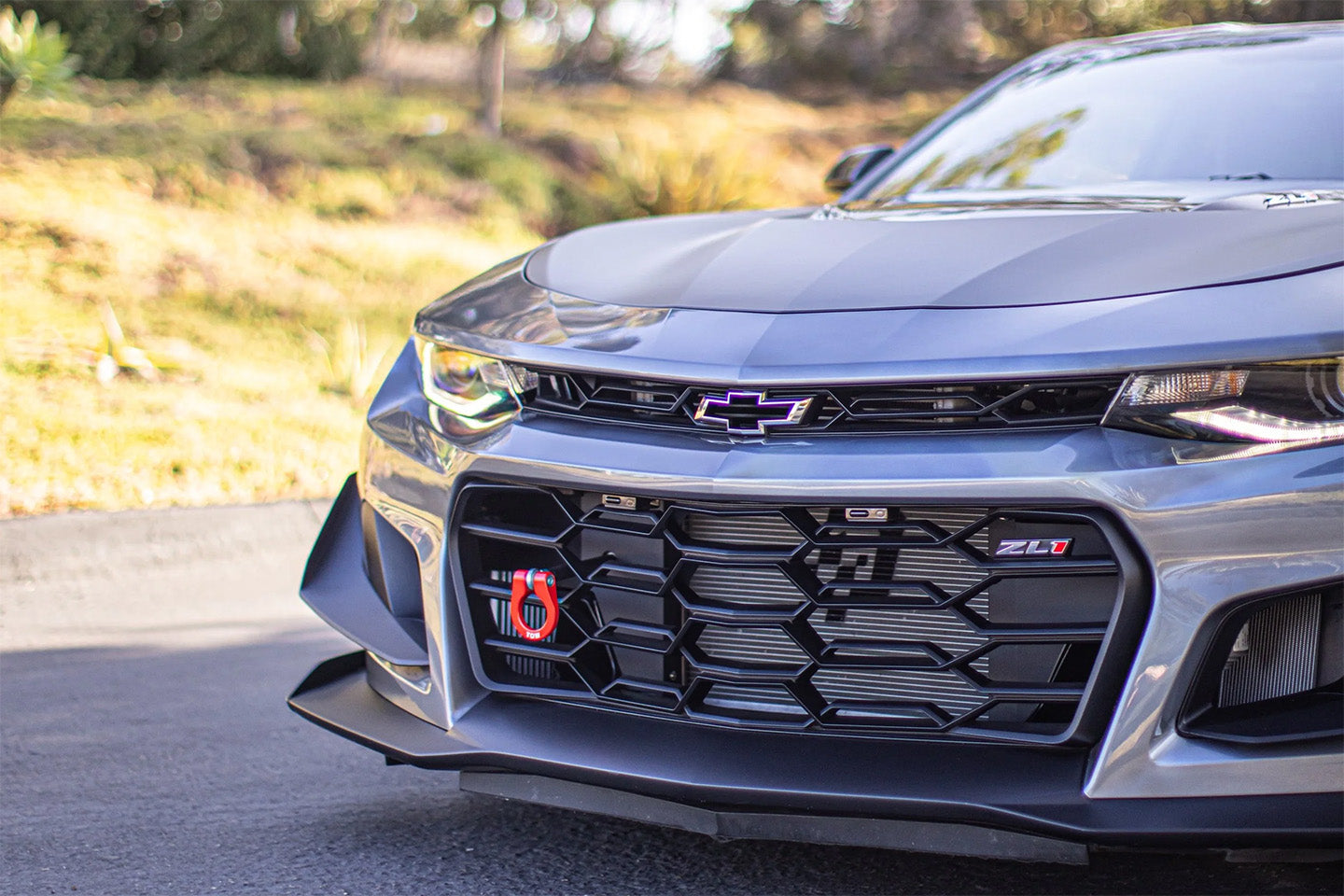

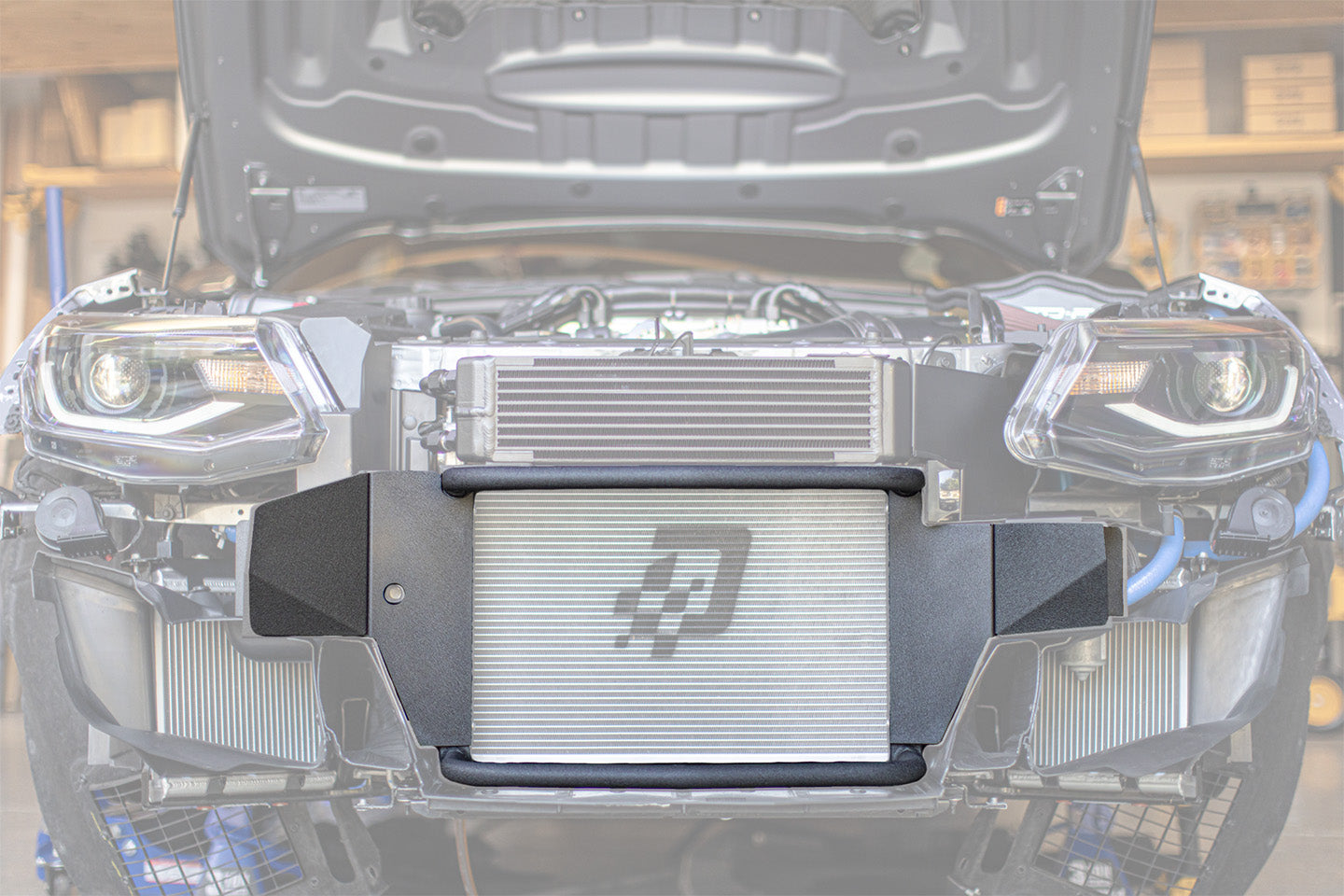

GMS High Flow Impact Bar

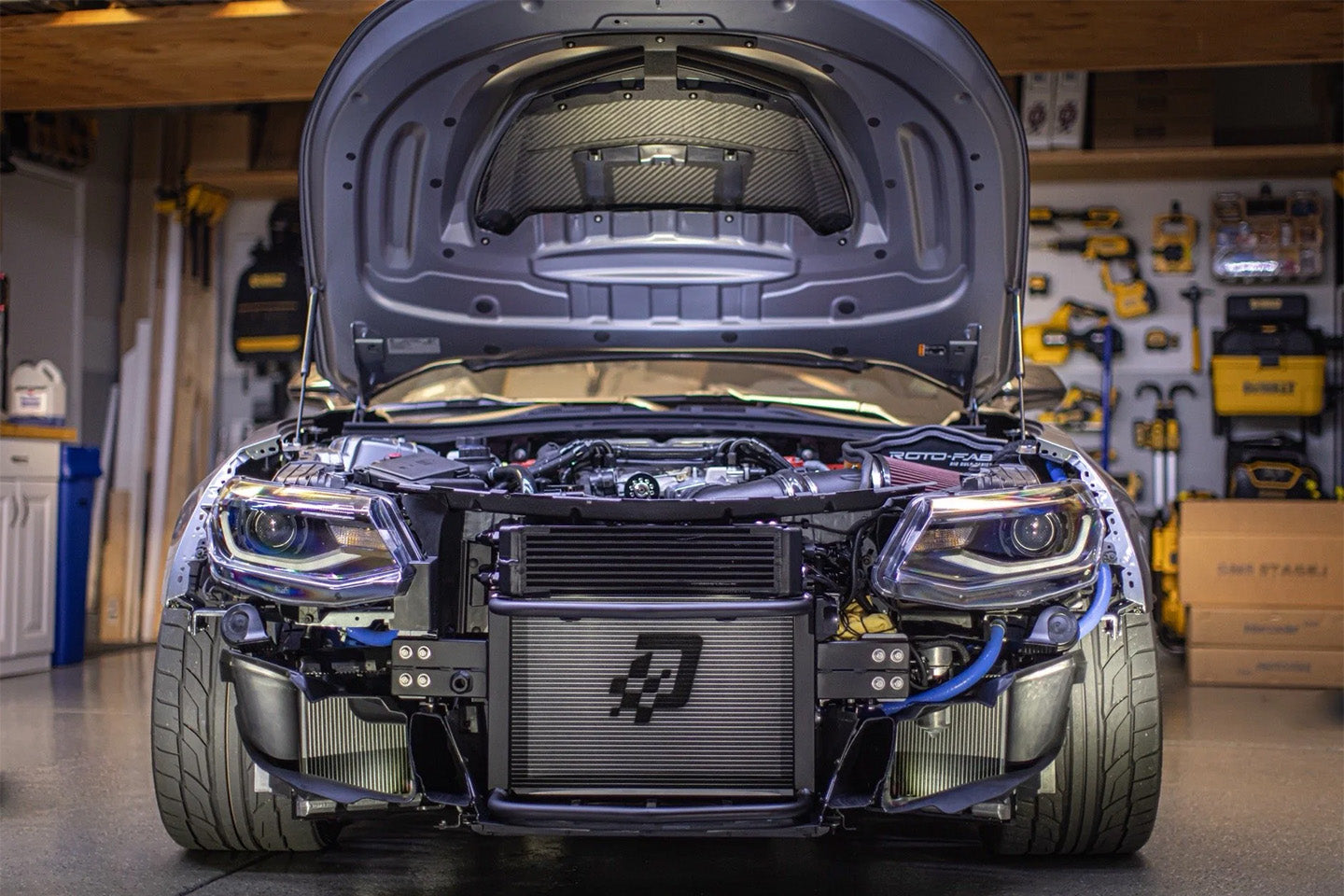

Rounding out the parts list is our signature High Flow Impact Bar which not only provides a clear view of your new massive DMS heat exchanger for a clear aesthetic improvement, but also the improvement in airflow.

Adding to this innovative patent pending design is a pair of custom two-piece CNC'd aluminum air deflectors that help prevent air from trapping at the bolt flanges. Rather, they channel to either the main or auxiliary coolers.

Outfitted with a heavy duty front tow hook coupler and treated to a matte black powder coated finish, this product was designed to offer a turn-key solution to improve a poorly designed OEM part. This product ships with installation instructions and hardware. Although this product was literally designed in the garage, this 3D modeled assembly is fabricated using precision laser cut parts for a professional fit. Note: This package ships in (3) separate boxes.

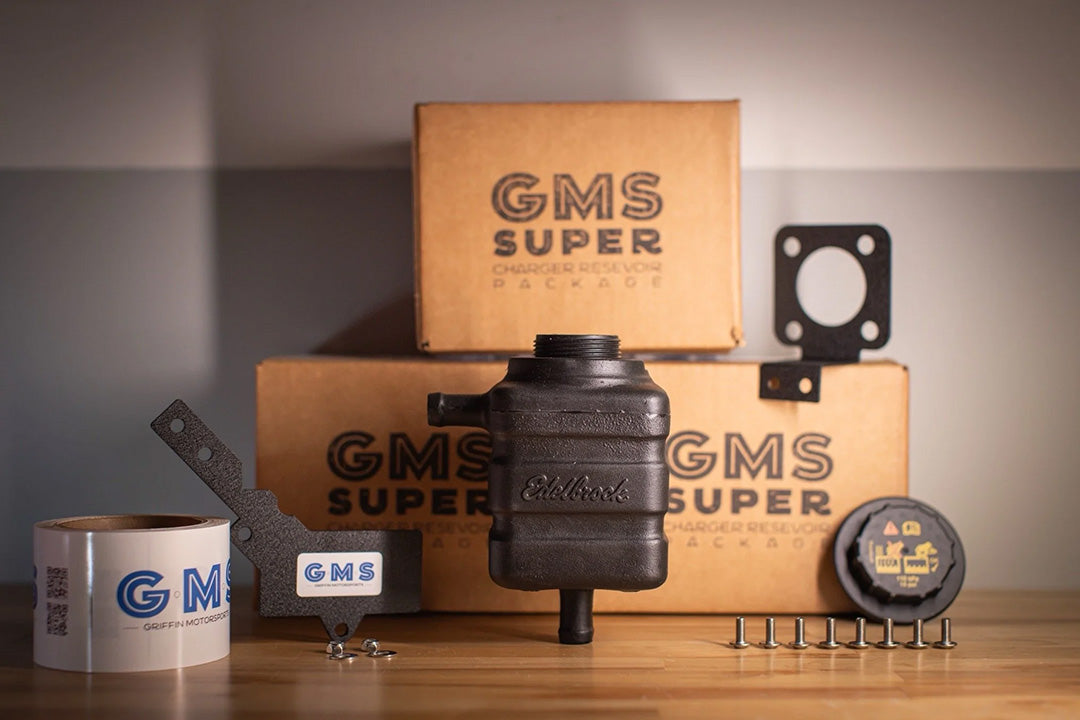

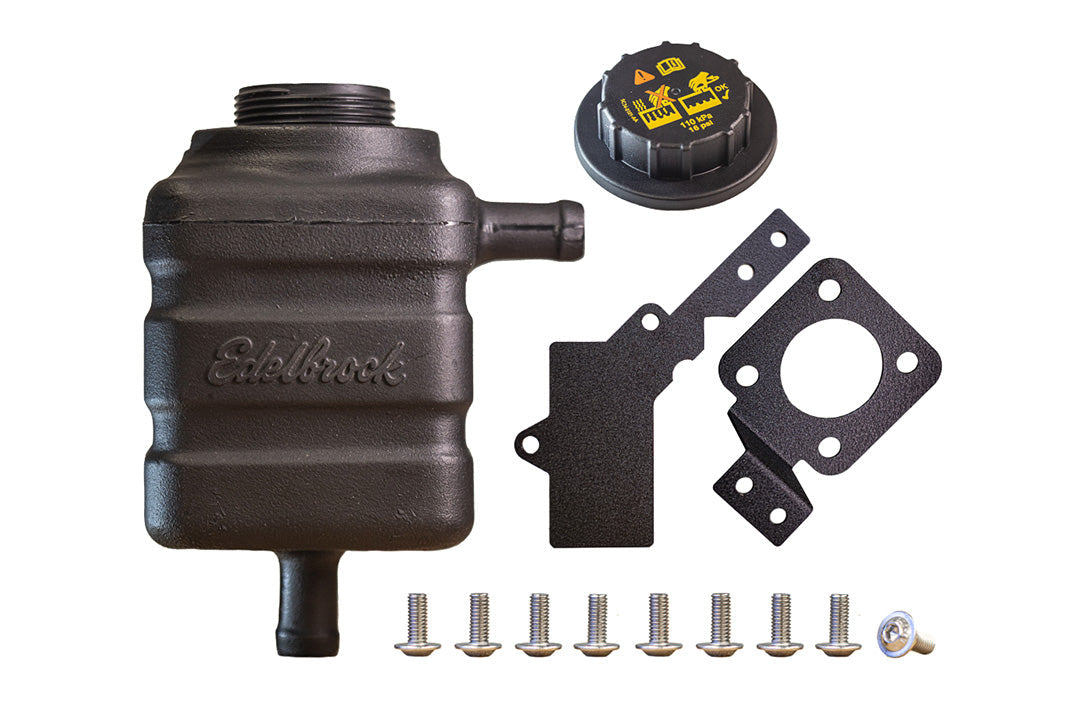

Edelbrock Coolant Reservoir with pressure cap & brackets

Although the DMS fender tank allows for system filling, and easy bleeding due to the "high point" of the system factor, it does not provide a pressure cap, and does not allow for easy pump priming. Which is why GMS added a small Edelbrock coolant reservoir to the system and mounted it in a way that allows for easy pump priming. The GMS kit places the reservoir between the ECU and engine coolant tank using a custom bracket that bolts to the top of the OEM PCV box.

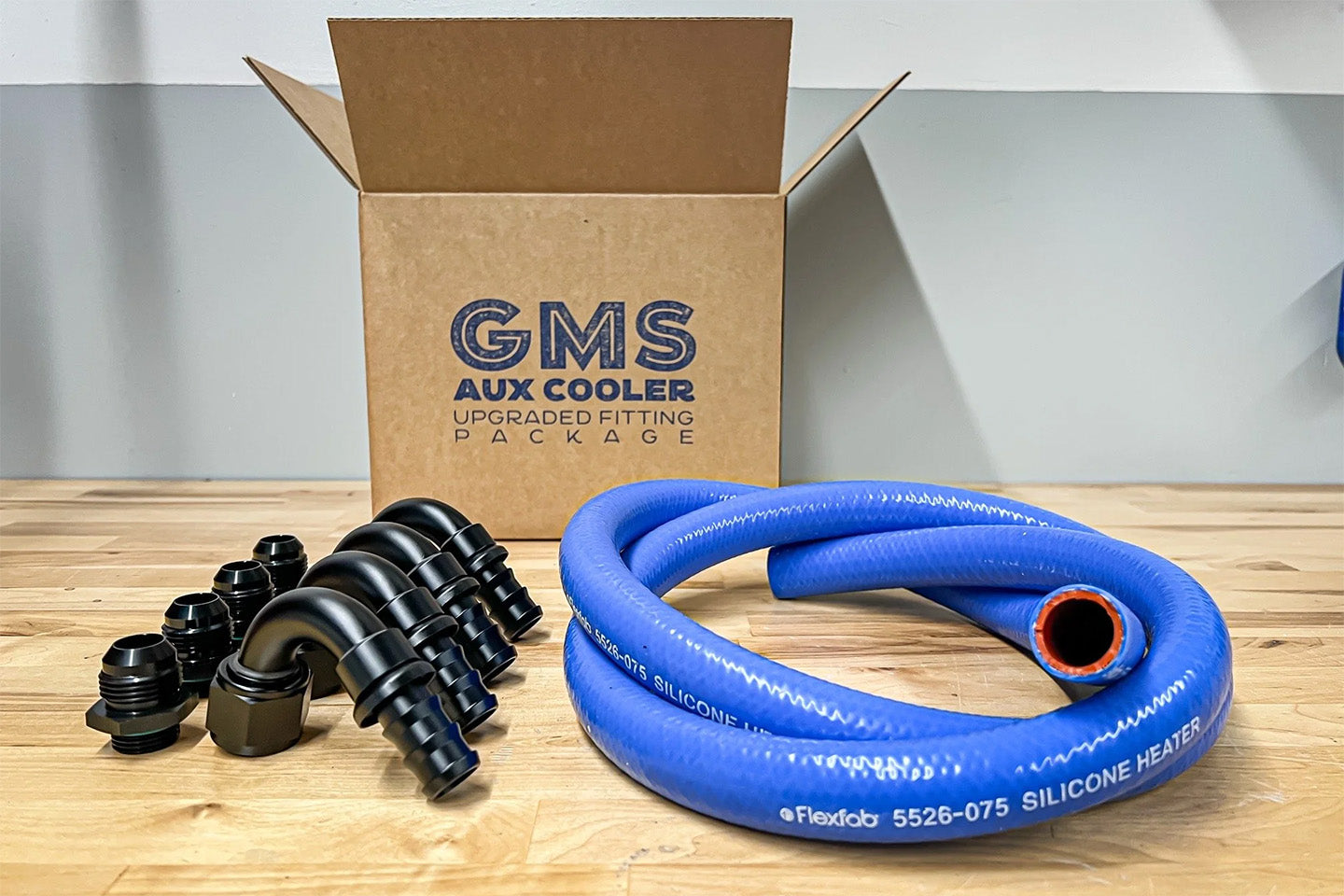

Hoses, Fittings, and Adapters

This kit includes all of the various fittings, hoses, and fitting adapters you will need to install the kit. Additional connectors, hoses and fittings may be needed depending on your existing system design or preferred routing path. Email GMS if you have any other needs or questions about path design.

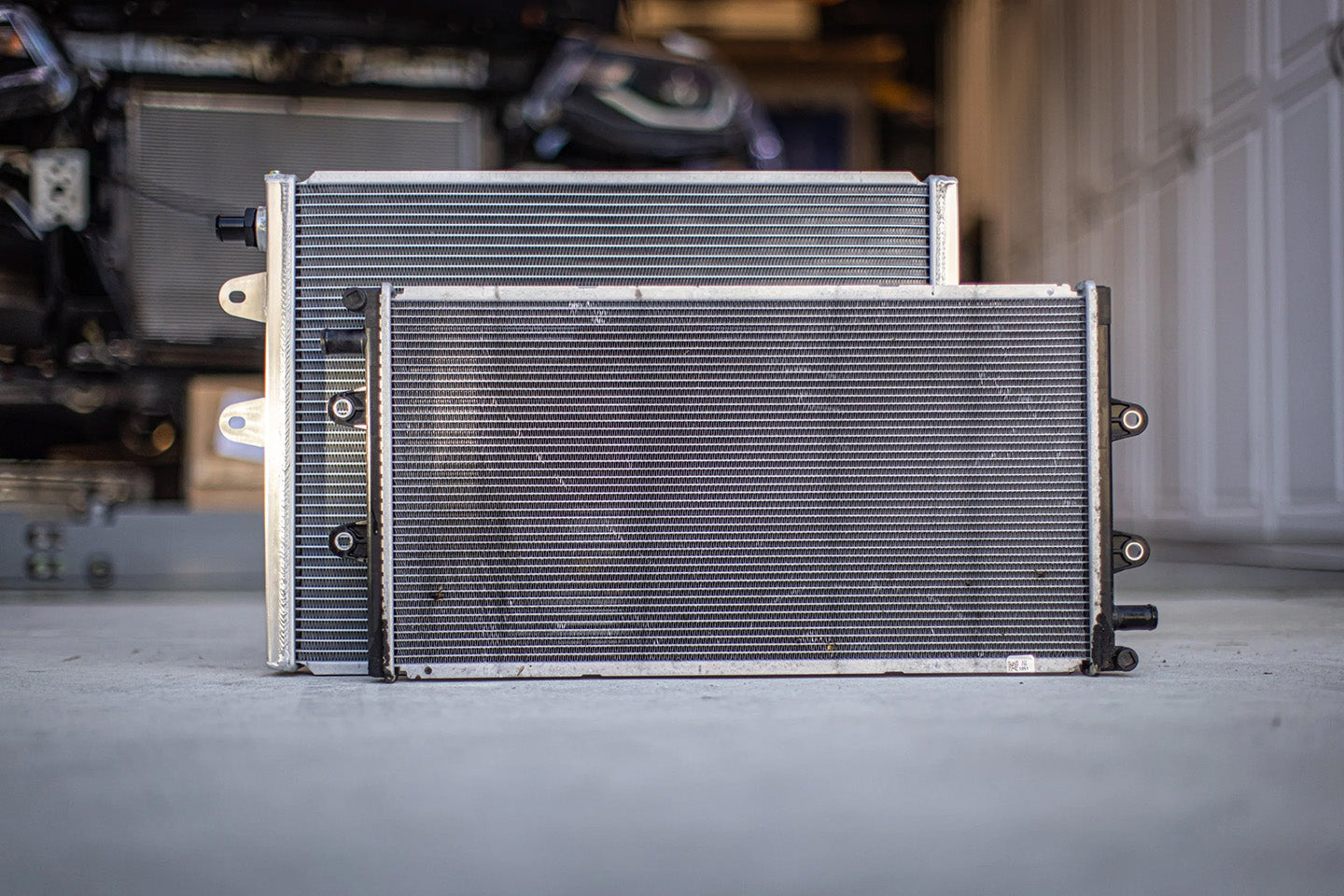

GMS vs OEM

Not only are all these parts more efficient and more durable than OEM but combined with the 2 gallon fender tank this kit holds approximately 715% more fluid than the OEM Heat Exchanger and Auxiliary Radiators. The stage 2 system increases the overall fluid volume from 3 quarts to 12.25 quarts (or ~3 gallons). This greatly reduces heat soak and can keep your charge air system running optimally in almost any situation.

---

⚠ Fitment Notes

Auxiliary Radiators: In an effort to maximize the size of these units, cutting the upper bracket in one corner may be needed on some cars. Additionally, modifications will be needed for the 3/4" option depending on the fittings and preferred hose routing. This effort to upgrade to 3/4" fittings and hoses yielded us a 20% increase in flow using the factory pump!!!

Features

• GMS High Flow Impact Bar + Tow Hook Coupler
• Left and Right Black Aluminum Air Deflectors
• Pair (qty. 2) GMS Aux Coolers + DMS Supercharger Heat Exchanger
• 2-Row 42mm High-Performance Core Featuring CSF's B-Tube Technology
• Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• 100% All-Aluminum TIG-Welded Construction
• Aux Rads: -10 ORB female bosses with 5/8" OEM Style "Quick Connect" Inlet/Outlet Fittings
• Heat Exchager: -12ORB femail bosses with with 3/4” barb inlet/outlet fittings
• Increased Fluid Volume: from 3 quarts to 12.25 quarts (or 3 gallons)
• Individually Leak and Pressure Tested
• High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
• Hand Brushed Satin Finish
• DMS Fender Tank with hoses and fittings
• Edelbrock Coolant Reservoir with pressure cap & brackets
• NPR Bleader Value, AN Fittings & Connectors, and Hoses/Lines
• Complete Hardware Kit & Installation Instructions

Applications

Year Range	Make	Chassis Code	Model	Trim	Engine / Trans / Etc	Notes
2017-2024	Chevrolet	-	Camaro	ZL1	Supercharged 6.2L V8	-

---

⚠ Fitment Notes

Auxiliary Radiators: In an effort to maximize the size of these units, cutting the upper bracket in one corner may be needed on some cars. Additionally, modifications will be needed for the 3/4" option depending on the fittings and preferred hose routing. This effort to upgrade to 3/4" fittings and hoses yielded us a 20% increase in flow using the factory pump!!!

OEM Part Numbers

• Chevrolet: 22879421
• Chevrolet: 84510352

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# GMS8207-8205-S3 Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
