LIMIT+1 GR Corolla Power Package 3

LIMIT+1 offers a complete power package to save you time and money when upgrading your GR Corolla. This package is built around the CSF x Jackson Racing Intercooler which offers the largest core of any drop-in fit design. Paired with an Eventuri Intake, custom Ecutek tune, and LIMIT+1 Downpipe + Midpipe, this package will drastically improve your GRC's power output.

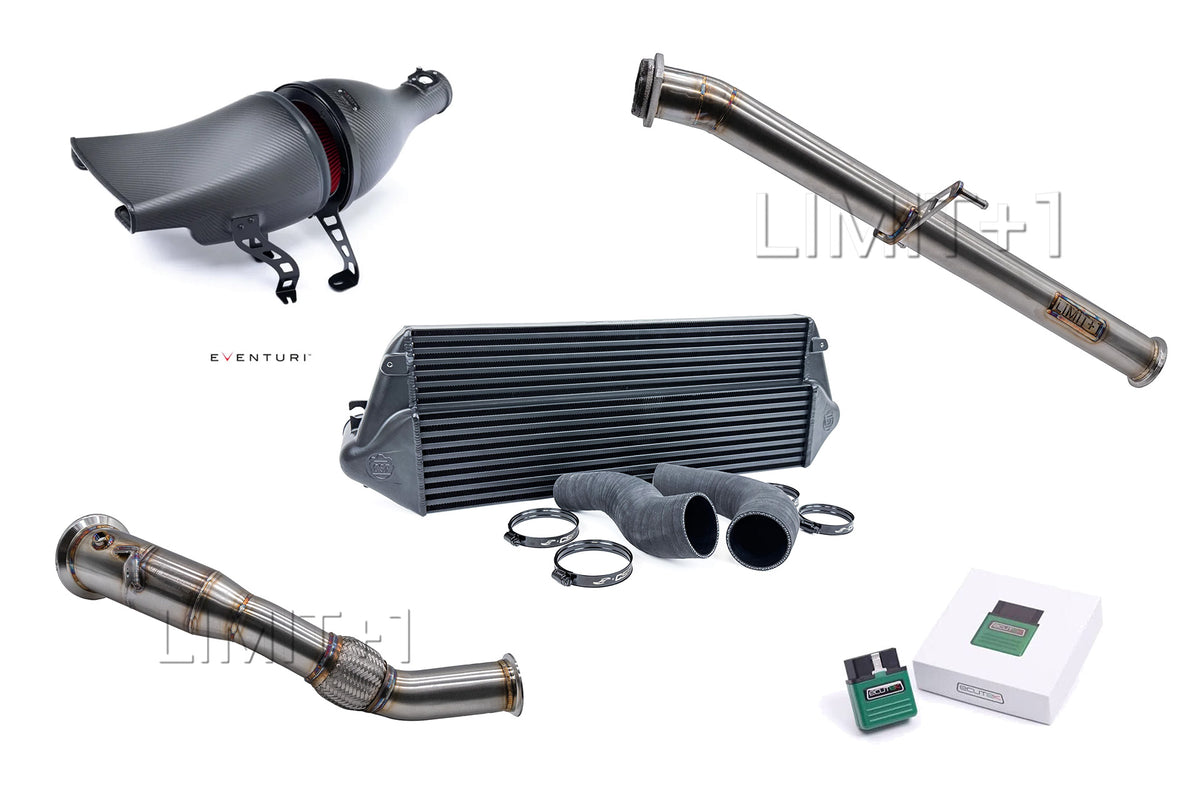

LIMIT+1 GR Corolla Power Package 3 Includes:

• CSF x Jackson Racing GR Corolla Stepped-Core Intercooler (Silver or Black Finish)
• LIMIT+1 x Boosted Performance Tuning - GR Corolla Ecutek Phone Flash Custom Tuning
• Eventuri GR Corolla Carbon Intake System (Gloss Or Matte Finish)
• LIMIT+1 GR Corolla Downpipe + Midpipe
• Optional LIMIT+1 x Delicious Tuning Flex Fuel Kit: Only available with Flex Fuel Tune

Product Details

Design & Engineering

The LIMIT+1 Package combines all the necessary parts for making more power on your GR Corolla. Each part of the package removes restrictions, optimizes air flow, and allows for tuning on a variety of fuel options. Each tune is custom tailored to your vehicle.

LIMIT+1 GR Corolla Power Package 3 Includes:

• CSF x Jackson Racing GR Corolla Stepped-Core Intercooler (Silver or Black Finish)
• LIMIT+1 x Boosted Performance Tuning - GR Corolla Ecutek Phone Flash Custom Tuning
• Eventuri GR Corolla Carbon Intake System (Gloss Or Matte Finish)
• LIMIT+1 GR Corolla Downpipe + Midpipe
• Optional LIMIT+1 x Delicious Tuning Flex Fuel Kit: Only available with Flex Fuel Tune

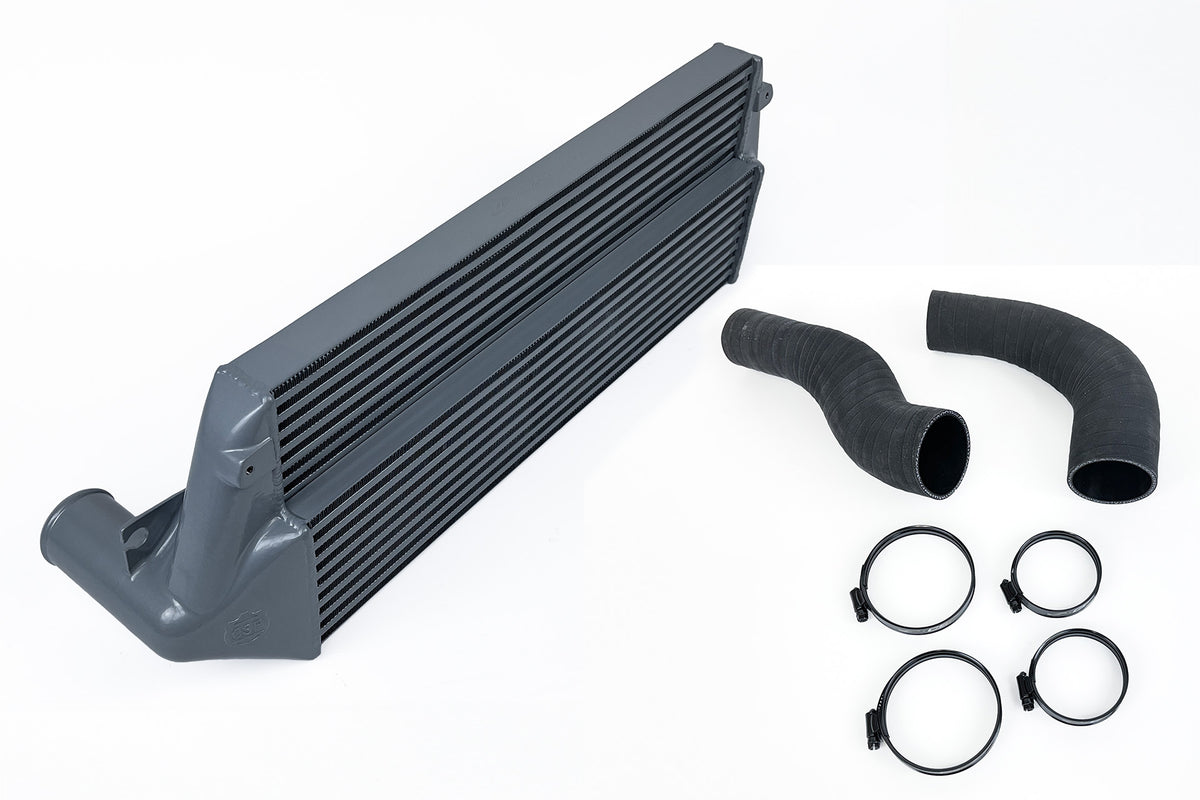

CSF x Jackson Racing Toyota GR Corolla Stepped-Core Intercooler (#8285/8285B)

CSF teamed up with Jackson Racing to offer the most advanced and efficient intercooler on the market for the GR Corolla and GR Yaris. Moto IQ conducted their independent testing on the intercooler and said it was "The BEST Performing Intercooler We've Ever Tested". Available in Black (8285B) for a stealthy performance look and Silver (8285) for a more OEM look or to just show a bit more through the grille.

Stepped Core

The stepped core design increases the overall volume of the intercooler core by 45% and the surface area by 73%. The step core allows for maximum surface area and volume but utilizing all the available space without requiring the bumper or any core supports to be modified or cut. The tanks were carefully engineered to optimize flow through the lower and upper cores resulting in incredible smooth and even flow with maximum heat transfer.

Hoses, Clamps, & Inlet/Outlet

Each Intercooler kit includes motorsport grade hoses and clamps designed specifically to hold up to high boost. High grade 5-ply silicone construction makes the hoses incredibly strong and have a matte black finish for a more stealthy performance look. The clamps are a unique new design that incorporates a bead lock system to help hold up to extremely high boost.

These hoses step up from the factory 1.85in (47mm) diameter to a larger 2.5in (63.5mm) diameter to match the Intercoolers large inlet and outlet. They connect to the factory charge pipes but can be replaced down the line if you want to upgrade your turbo, charge pipes, etc.

See the CSF #8285/8285B Product Listings for full details

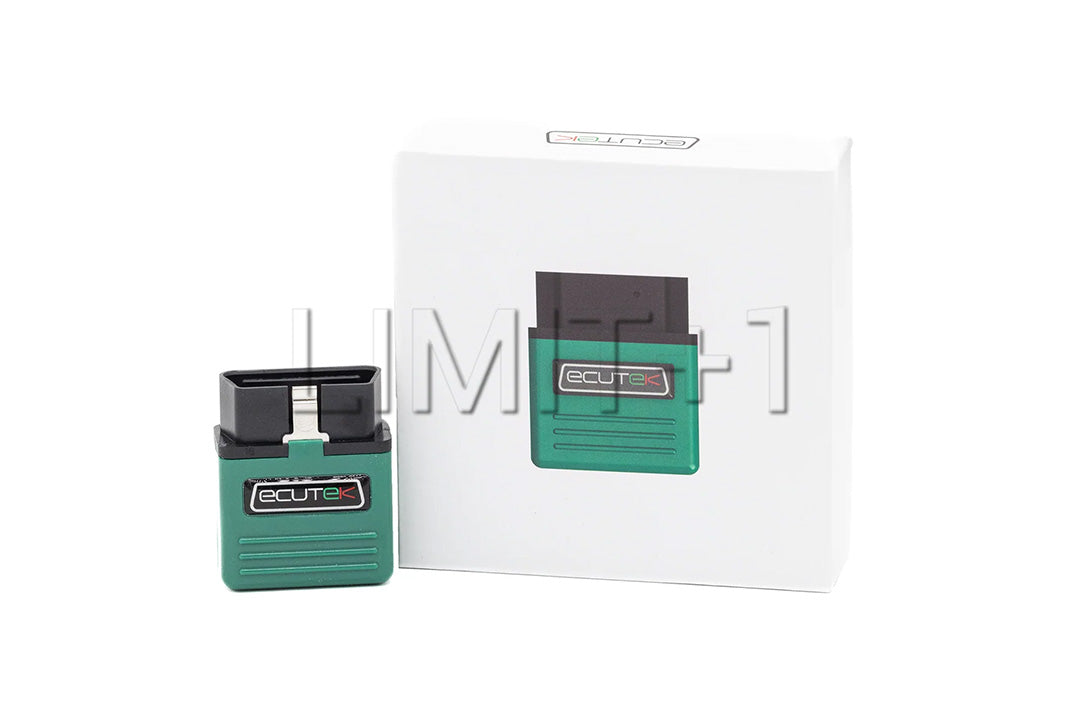

Ecutek Phone Flash Custom Tuning

The EcuTek Bluetooth Dongle and ECU Licensing allows LIMIT+1 x Boosted Performance Tuning to do a custom tuning calibration for your specific setup of modifications. The tuning also includes full RaceROM features:

This tuning also eliminates the P2C90 code triggered by aftermarket intakes and catch cans.

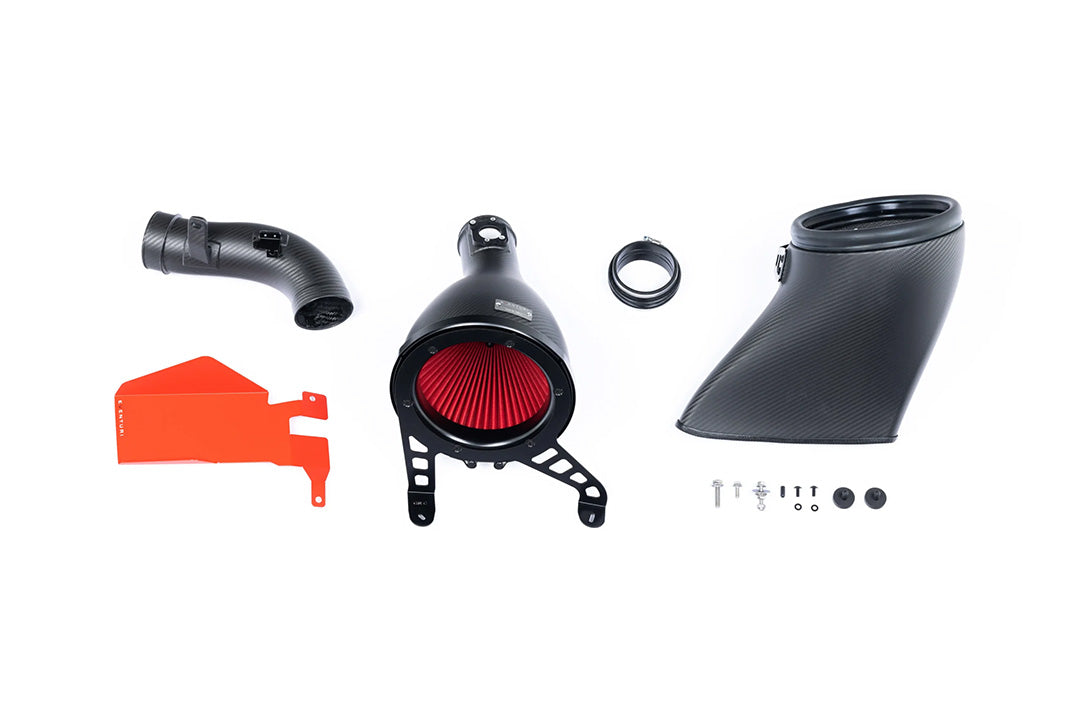

Eventuri GR Corolla Carbon Intake System

The GR Corolla Intake has been developed through extensive data logging of temperatures, flow rates and dyno testing. Since this is a turbocharged engine, heat and volume were the main considerations during development. This intake system has been developed to offer the highest possible flow rate whilst maintaining the lowest intake temperatures possible. Each component has been designed to provide the turbo with a smooth and free flowing path. By ensuring a sealed system we have improved on the IAT's of the OEM airbox whilst at the same time increasing the internal volume to reduce the pressure drop and therefore reduce pumping losses of the turbo. In doing so the turbo is able to operate more efficiently and therefore reaches peak boost sooner to produce a net performance gain.

EVE-GR4CR-CF-INT : Toyota GR Corolla Intake Gloss Carbon

EVE-GR4CR-CFM-INT : Toyota GR Corolla Intake Matte Carbon

The filter itself has an outer diameter of 210mm or 8.3" with a filtration surface area of over 130,000mm^2. The patented Venturi housing has been designed to provide the maximum internal volume possible for the GR Corolla and provides laminar flow to the turbo tube.

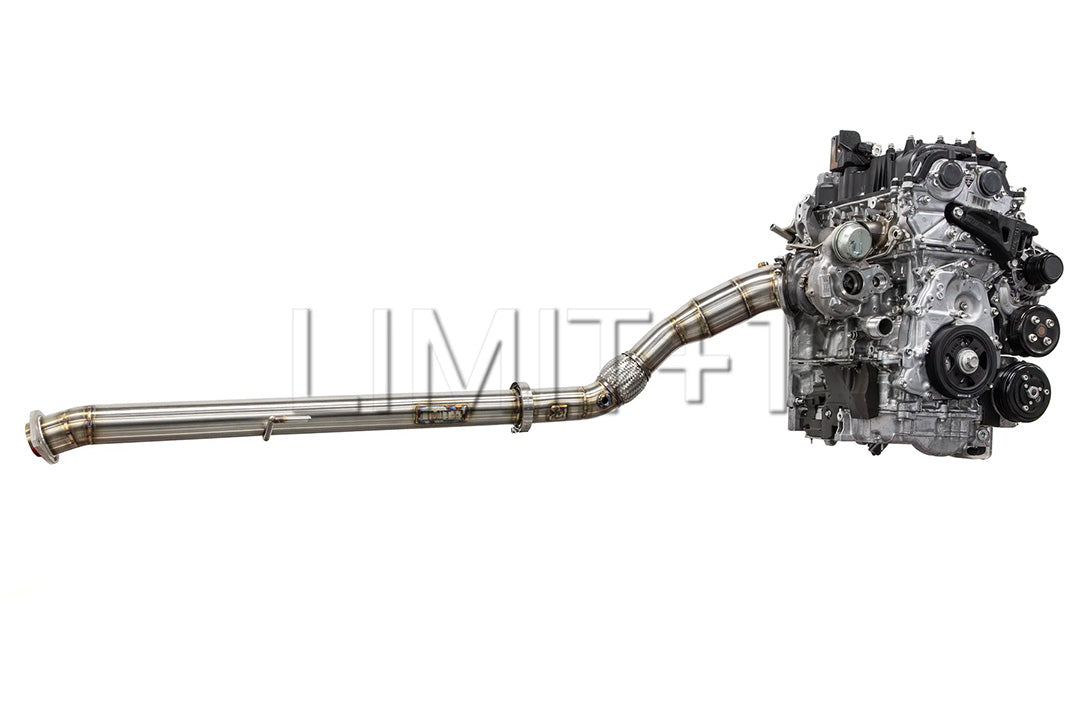

LIMIT+1 GR Corolla High Flow Downpipe + Midpipe w/ EPA Approved GESI Cat

The LIMIT+1 High Flow Downpipe + Midpipe for the 2023+ Toyota GR Corolla is designed for enthusiasts looking to improve exhaust flow while maintaining reliability and drivability. Recognizing the differences between manual and automatic models, LIMIT+1 have developed dedicated versions for each application to ensure proper fitment and performance.

Each downpipe is hand built in-house at the LIMIT+1 facility in Crystal Lake, IL using premium 304 stainless steel and precision CNC-machined flanges for exceptional fitment, strength, and long-term durability.

Featuring a genuine GESi G-Sport 400-cell high-flow catalytic converter, the LIMIT+1 Downpipe + Midpipe provides improved exhaust flow and supports increased performance, with the greatest gains achieved through proper ECU tuning. Reduced back pressure helps alleviate any potential for valve float. Careful design and extensive testing ensure reliable operation while maintaining emissions compliance.

Every unit is individually fabricated, fully welded, and test fitted before leaving the LIMIT+1 facility to ensure consistent fitment, exceptional quality, and long-term reliability.

Optional LIMIT+1 x Delicious Tuning GR Corolla Flex Fuel Kit

LIMIT+1 x Delicious Tuning: CAN FlexFuel Kit for EcuTek takes all the guess work out of determining what the ethanol/gasoline (petrol) ratio is in your vehicle. Our FlexFuel system determines the content ratio between gasoline and ethanol content in the fuel. It then sends a signal to the ECU which dynamically computes the correct air/fuel ratios, ignition timing values, boost levels, cam angles, traction control and more based on the ethanol content.

CANBus Integration: The CAN Flex Fuel Kit communicates over the vehicle's CANBus network, because of that, no sensors are removed from the vehicle, no codes are disabled or altered, and the installation is 100% plug-n-play.

Features

• CSF x Jackson Racing GR Corolla Stepped-Core Intercooler:
• High-Performance Tube & Fin Stepped Core Design for Maximum Surface Area Contact and Internal Air-Flow Volume
• Largest "Drop-in Fit" Intercooler Available in the Industry
• Designed with 3D Scanning/Rapid Prototype Technology to Ensure Precise Fitment and Maximum Surface Area Utilization
• 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
• Includes Motorsport Grade Hoses and Clamps with larger 2.5in (63.5mm) Inlet/Outlet Connections
• Available in Silver (#8285) and Black (#8285B) Finishes
• True Plug-and-Play "Drop-in Fit" Installation. The OE Air Ducting requires minor trimming to be used with the Intercooler
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty
• Real World Testing by MotoIQ
• LIMIT+1 x Boosted Performance Tuning - GR Corolla Ecutek Phone Flash Custom Tuning:
• EcuTek Bluetooth Dongle and ECU Licensing W/ Phone Flash
• Limit+1 x Boosted Performance Tuning Custom Calibration
• Eventuri GR Corolla Carbon Intake System:
• Carbon Fiber Patented Venturi Filter
• Housing with integrated MAF section
• Bespoke High Flow Dry Cone Filter
• Carbon Fiber Inlet Duct
• Carbon Fiber Rear Tube
• Laser Cut Front Air Scoop
• Custom Made Hardware
• Laser Cut Stainless Steel Brackets
• Custom EPDM Hose
• CNC Machined MAF Boss and Bracket Mounts
• LIMIT+1 GR Corolla High Flow Downpipe + Midpipe w/ EPA Approved GESI Cat:
• Premium 304 stainless steel construction
• Precision CNC-machined flanges
• Genuine GESi G-Sport 400-cell EPA Compliant Catalytic Converter
• Improved exhaust flow
• V-band connection for better sealing (reduces exhaust leaks) / easier installation & removal
• Includes V-band clamp / mounting hardware
• Individually hand built and test fitted

Applications

OEM Part Numbers

• Toyota: 17940-18020
• Toyota: 17700-18060
• Toyota: 25051-18130
• Toyota: 25051-18120
• Toyota: 17410-18081
• Toyota: 17410-18150

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# LP1-P3-8285 Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
