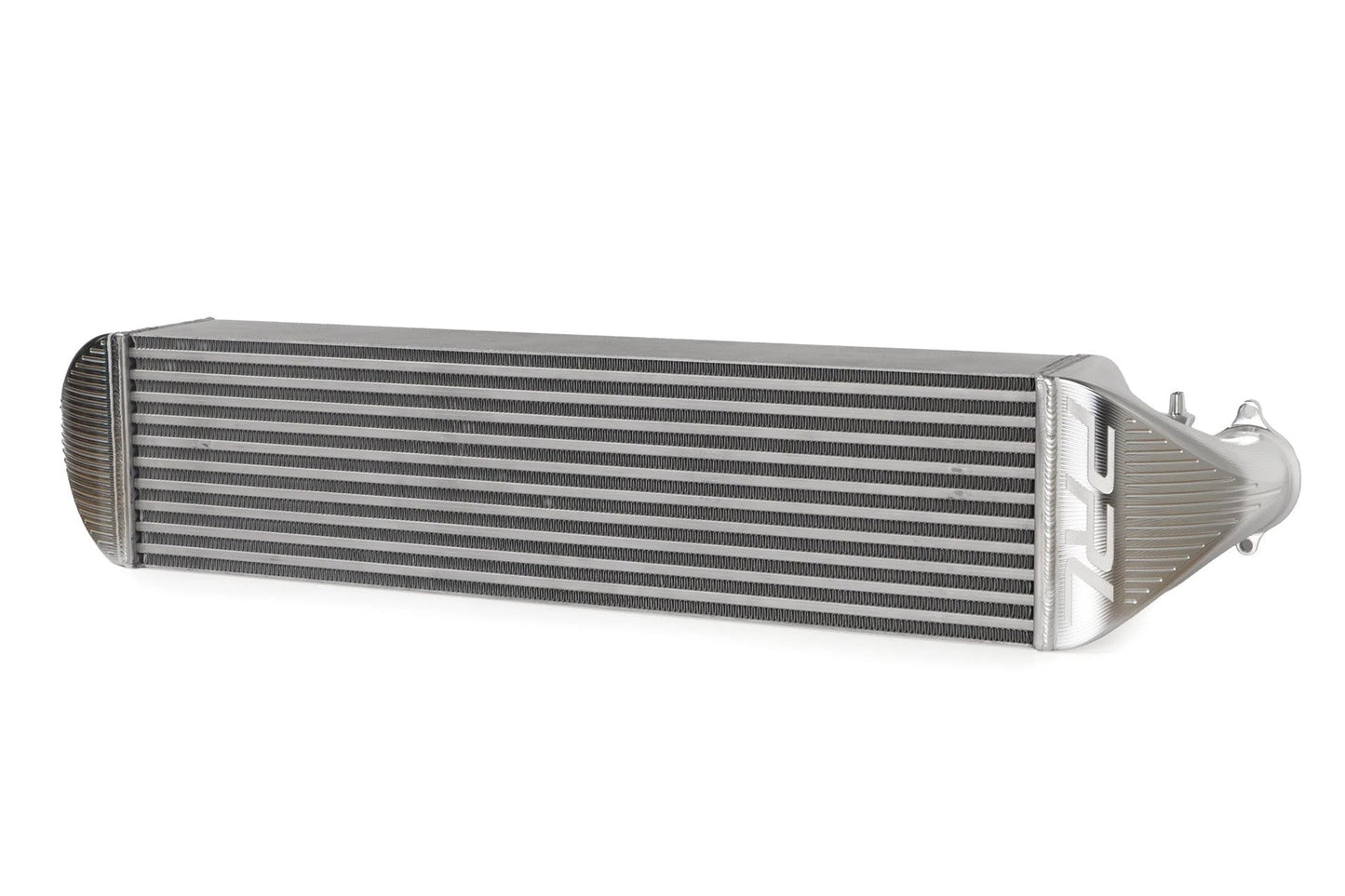

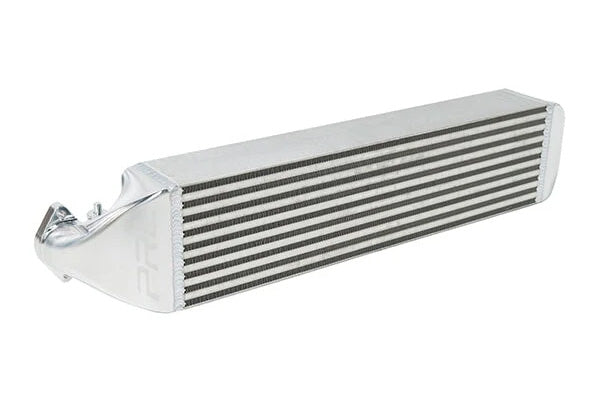

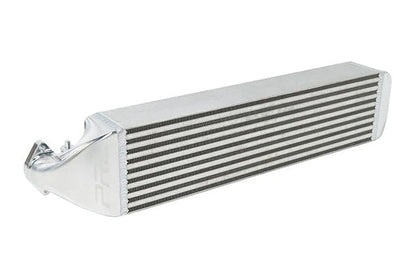

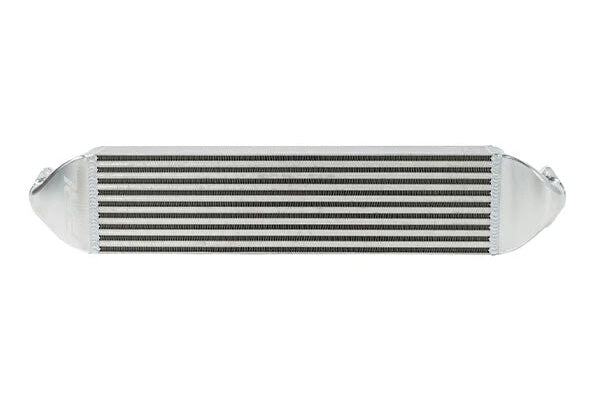

PRL FL5 Honda Civic Type-R Billet Intercooler

It's no secret that Honda's Turbo Civic is extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs.

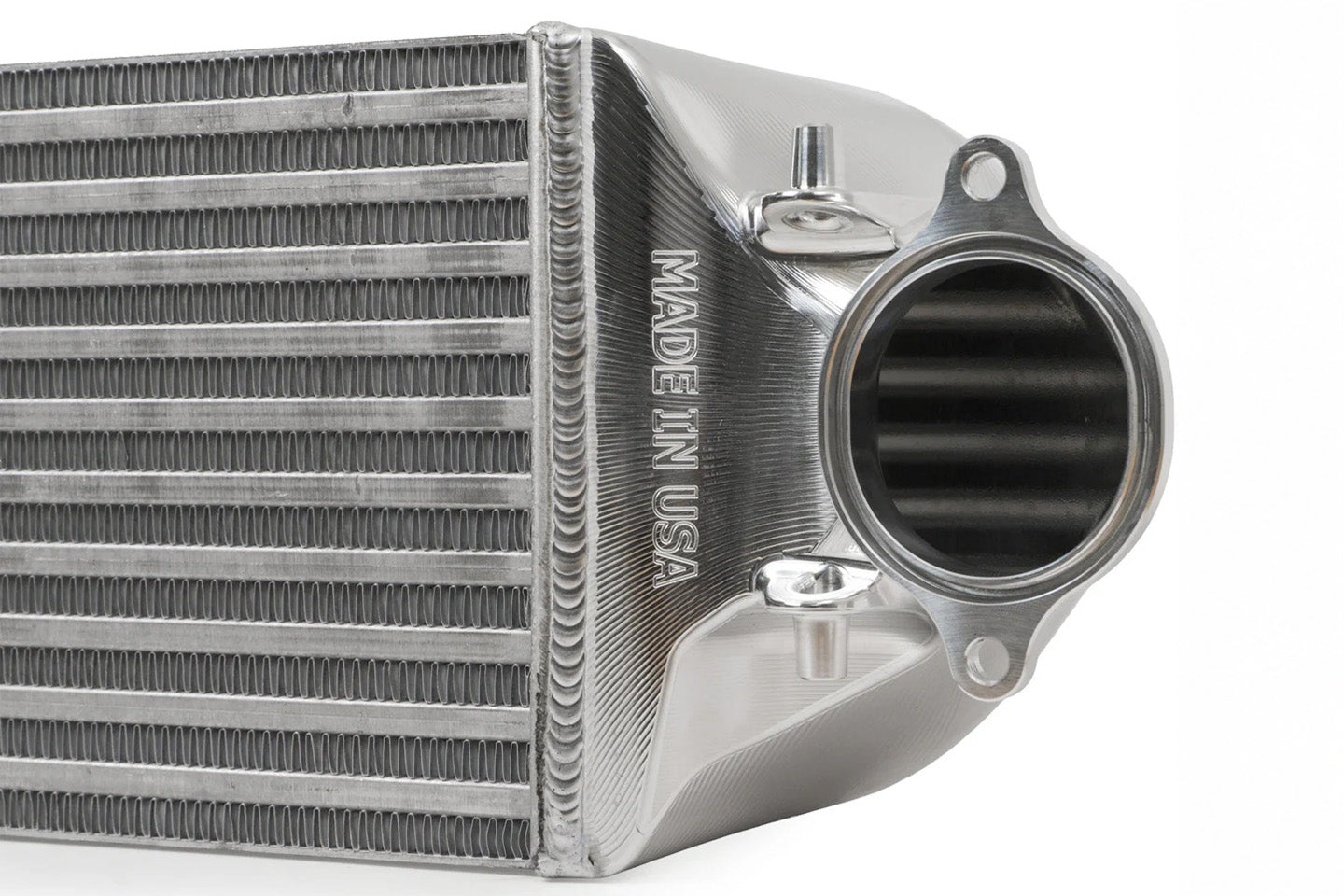

The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 28.2"x7.25"x4.25" 600+ horsepower rated tube and fin core. The CSF intercooler core increases surface area by 31% and internal flow to allow optimal cooling and airflow. Billet machined aluminum end tanks maximize efficiency while looking as smooth as they flow.

This intercooler utilizes factory mounting spots with billet machined end tanks as well as all factory air ducts/shrouds. The intercooler fins were extended to take up the entire width of the front bumper's opening to increase cooling to/through the intercooler into the radiator.

Product Details

Design & Engineering

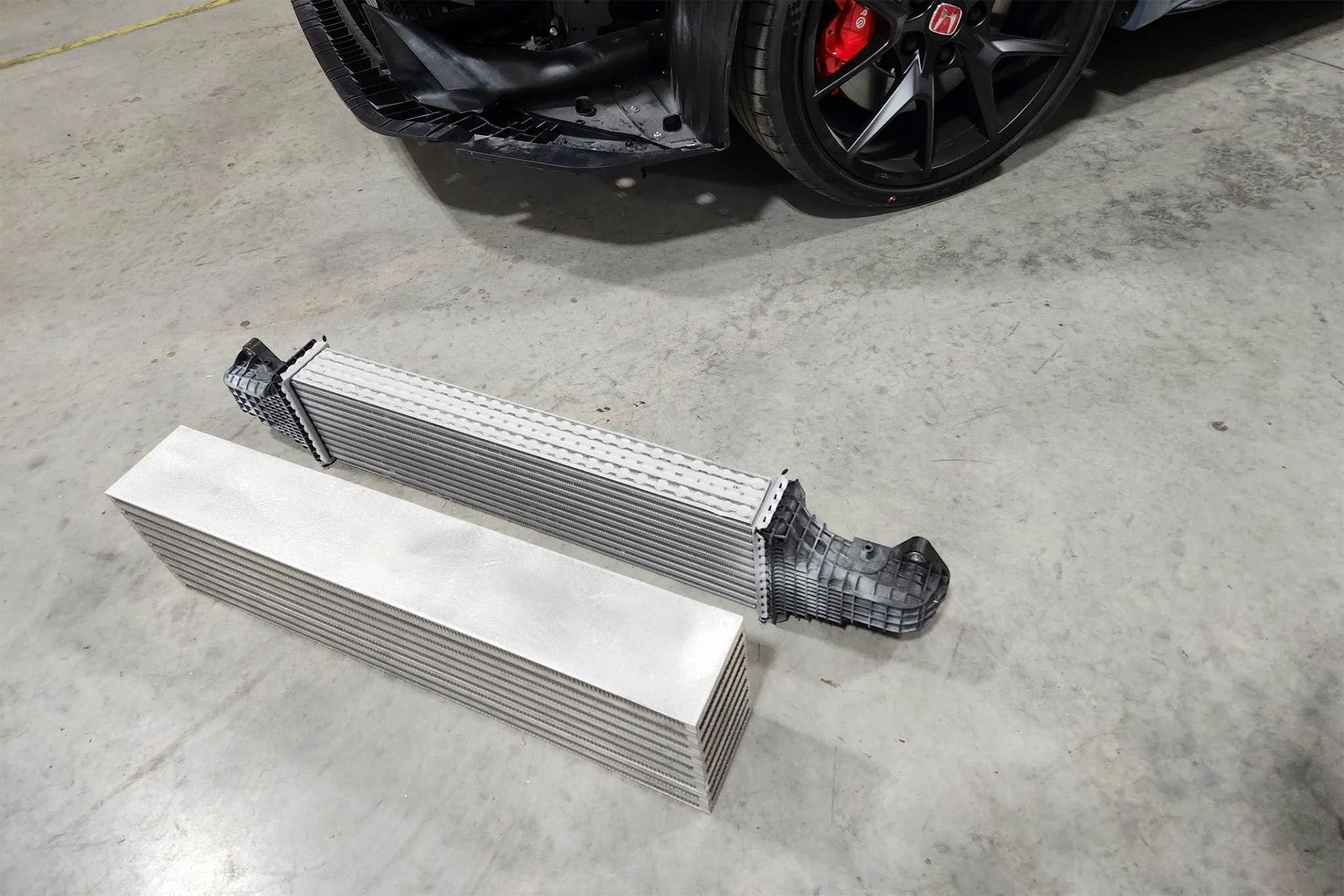

This kit utilizes billet 6061 aluminum end tanks with integrated mounting brackets, factory-fitment flanges, and a high-density tube and fin intercooler core (first iteration used a bar-and-plate core). The CSF sourced core (28.2"x7.25"x4.25") allows for a ~10% increase in frontal surface area and a ~28% increase in potential airflow volume overtop of the PRL FK8 Intercooler Upgrade. By removing the factory air guides, the PRL intercooler assembly was able to be pushed even farther forward and includes new air guides for maximum airflow.

PRL x CSF vs OEM Testing

For the FL5 intercooler testing, PRL conducted a controlled, same-day comparison between the OEM intercooler, the existing PRL bar-and-plate intercooler, and the new PRL tube-and-fin intercooler. Ambient temperatures remained steady in the mid-70°F range.

Testing focused on how each intercooler behaves under continuous, high-load conditions; specifically, how quickly they heat soak and how they recover.

Test & Testing Methodology

To ensure consistency, each intercooler was tested under identical conditions:

• Multiple 4th-gear dyno pulls were performed back-to-back.
• No cool-down periods were allowed, intentionally pushing each unit to its maximum heat-soak point.
• Cold-side charge temperatures were used to determine when heat soak was reached.
• A high-power dyno fan supplied consistent airflow for every test.

This setup simulates demanding scenarios like long track sessions. Real-world track driving will typically offer better thermal recovery due to braking zones and higher vehicle speeds, but for comparison purposes, this same-day, same-conditions approach offers accurate, repeatable data. At-speed temperatures will vary, but the comparative results remain representative.

Figure 1: Charge-Air Temperature Comparison

OEM Intercooler (Green Line)

The OEM intercooler is already heat-soaked on the very first pull, starting at 136°F. Temperatures increase rapidly, rising into the 200°F range, and eventually peak at 220°F under maximum heat soak. This demonstrates the limited thermal capacity and cooling efficiency of the stock unit during repeated high-load use.

PRL Bar-and-Plate Intercooler (Orange Line)

The bar-and-plate intercooler begins at 86°F, showing minimal temperature rise during the first two pulls, only slightly exceeding 100°F on pull two. This makes it excellent for drag racing and street driving where short bursts of load are common.

However, with each additional pull, temperatures increase by roughly 10°F until stabilizing around 190°F as the unit's thermal mass becomes saturated.

PRL Tube-and-Fin Intercooler (Blue Line)

Early pulls resemble the bar-and-plate unit, though temperatures sit 5-10°F higher initially. This is due to the tube-and-fin's lighter construction and reduced thermal mass.

As testing continues, however, its efficiency begins to shine. Later runs stabilize between 160-170°F, indicating superior performance during sustained high-airflow scenarios like track sessions or extended spirited driving.

Figure 2: Performance Overlay – Understanding Advantage Zones

Figure 2 overlays all intercooler results, highlighting performance "zones."

• In the orange zone, the bar-and-plate unit maintains a slight early advantage due to its greater thermal mass, acting as a thermal "battery" that absorbs heat.
• As the test progresses, the tube-and-fin design surpasses the bar-and-plate, demonstrating more efficient heat transfer under continuous load.

It is important to note that the tube-and-fin intercooler is 8 pounds lighter than the bar-and-plate. The fact that it remains this competitive early on, despite having significantly less thermal mass, is very impressive.

Tube-and-Fin Core Construction

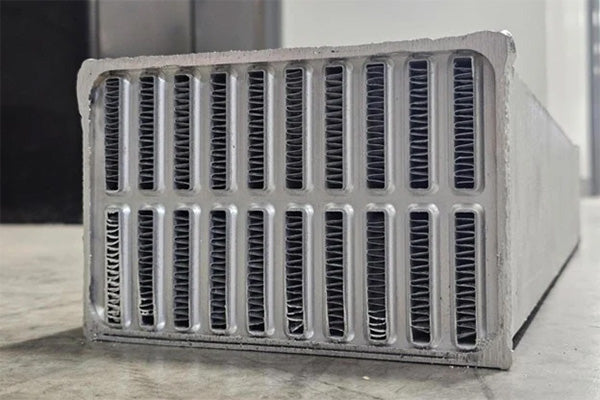

Each oval represents a tube within the heat exchanger, secured in place by the surrounding end plate. These tubes feature much thinner cross-sections compared to the bars inside a bar-and-plate core. This allows:

• Reduced weight
• Faster heat transfer
• Higher cooling efficiency

This lightweight, efficient structure is what enables the tube-and-fin intercooler to excel during longer sessions where sustained airflow is available.

The data makes it clear. If your driving demands consistent cooling over long sessions, the tube-and-fin intercooler is the most stable, efficient option in our lineup.

Features

• Utilizes CSF High-Performance Tube & Fin Core
• CNC Billet machined aluminum end tanks maximize efficiency
• Retains Factory Intercooler Mounting Points, Hardware, and Ducts/Shrouds
• No Ecu Calibration Required
• Major mid-range power gains
• Increased efficiency & consistency in power delivery
• Increased engine safety

Applications

OEM Part Numbers

• Honda: 19710-66V-A01
• Honda: 19710 66V A01
• Honda: 1971066VA01

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# PRL-FL5-IC Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
