CARGRAPHIC Porsche 911 3.2l Carrera RSR Style Centre-Mounted Oil Cooler Kit

CARGRAPHIC designed a kit specifically for the early Porsche 911 model 3.2l Carrera. This high performance oil cooler kit using the CSF #8110 reduces oil temperature by up to 20 degrees, extending engine life and optimising performance. Whether you're on the track or over a mountain pass, the CARGRAPHIC oil cooler kit lets you get the most out of your Porsche.

The CSF #8110 Universal Dual-Pass Oil Cooler was originally designed for direct-fitment as a front mount center oil cooler for Porsche 911/930 models (up to 1989) (for IROC-style or similar front bumper). However, due to its size and mounting capabilities CSF saw the potential for its use in a variety of custom applications.

The OEM Porsche oil cooler is now more than 30 years old, and is very hard to find. Used RS oil coolers go for $3,000+ USD in the resale market. CSF has filled the void for consumers looking for an affordable alternative with new technology and better fitment than the original. CSF's well thought out design featuring a tapered tank with 15 degree inlet/outlet angle is a huge improvement over the bulkier banjo style fittings of 30+ years ago.

Product Details

The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system.

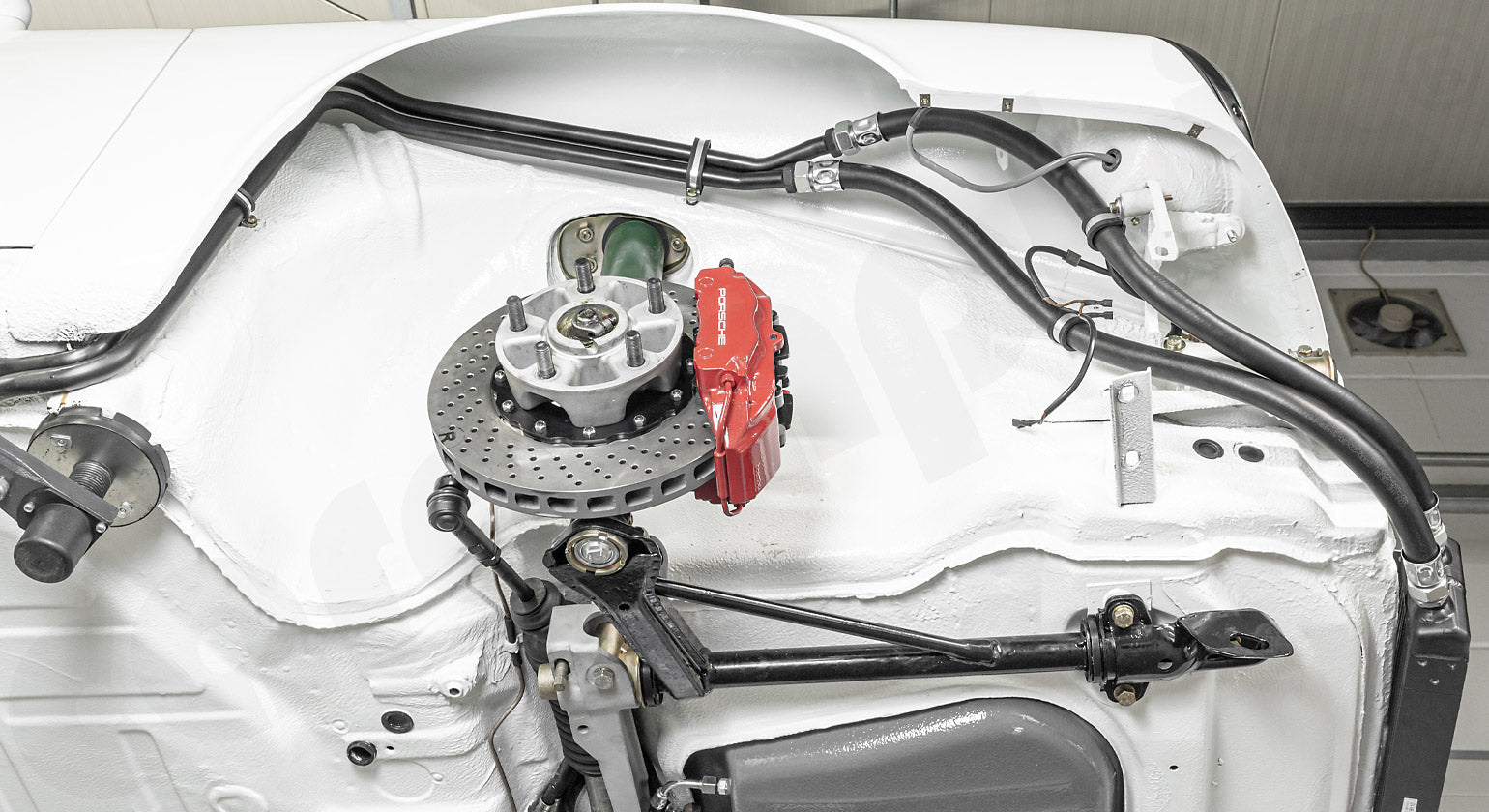

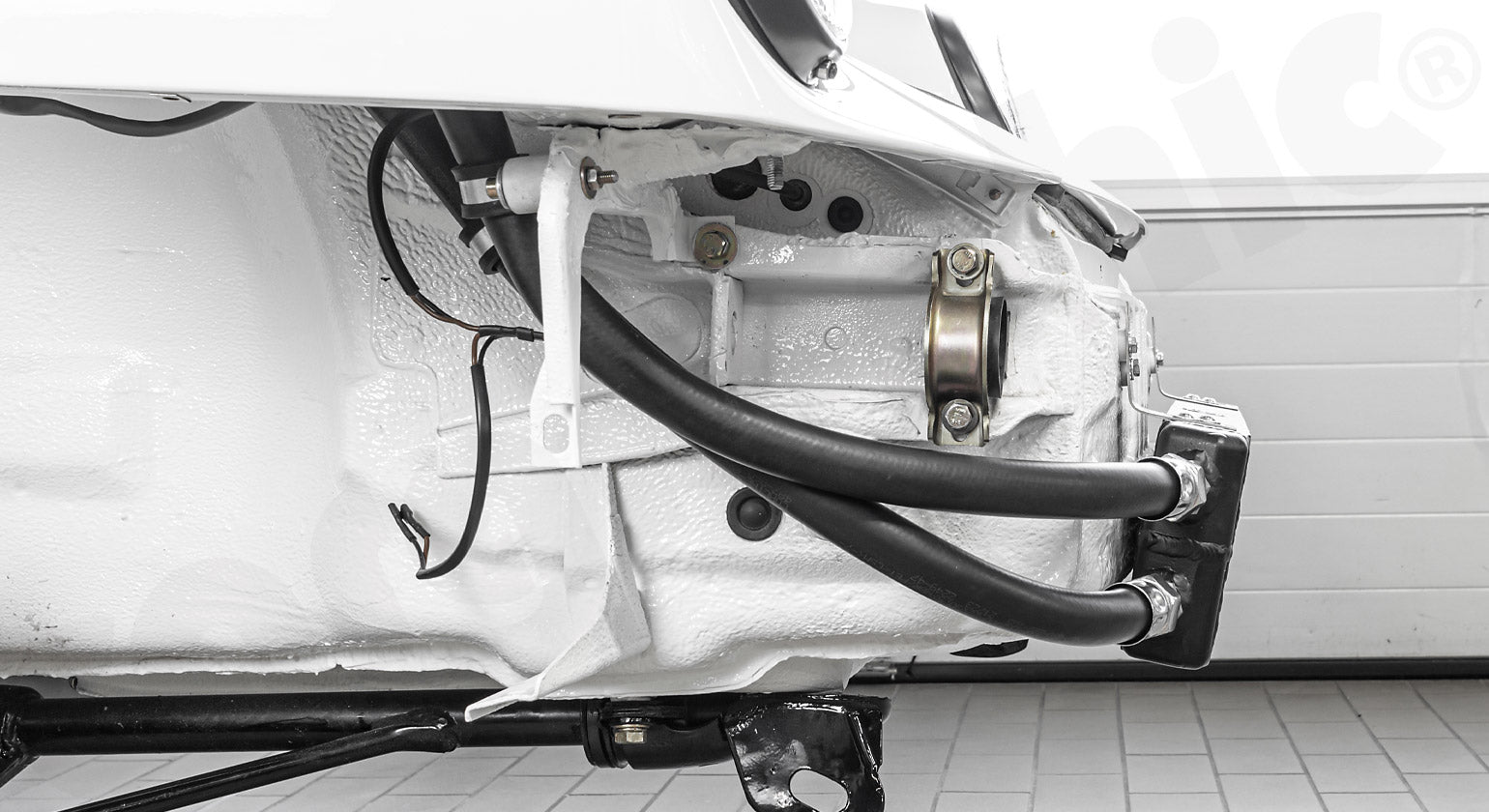

Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system.

The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc...). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris.

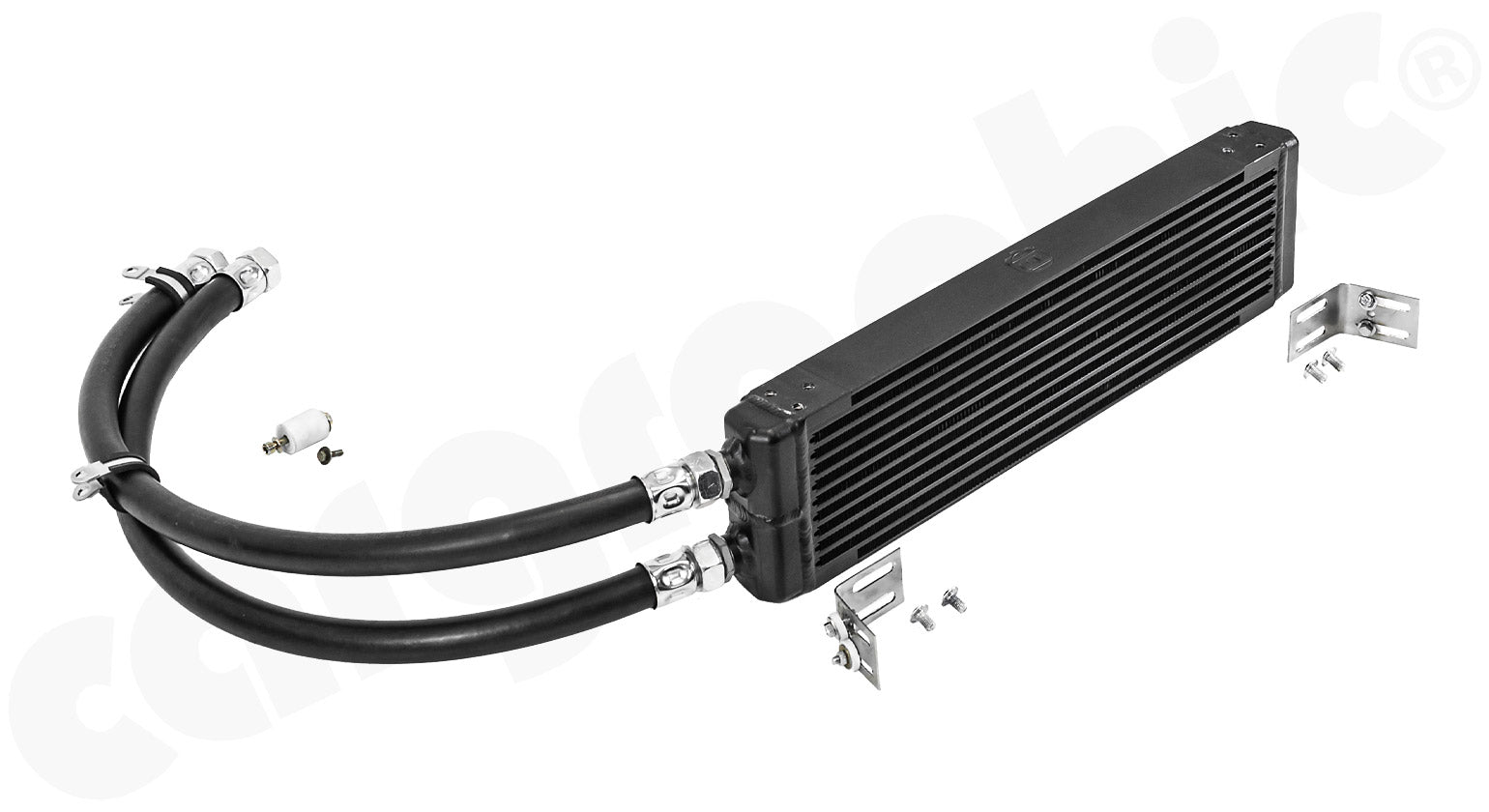

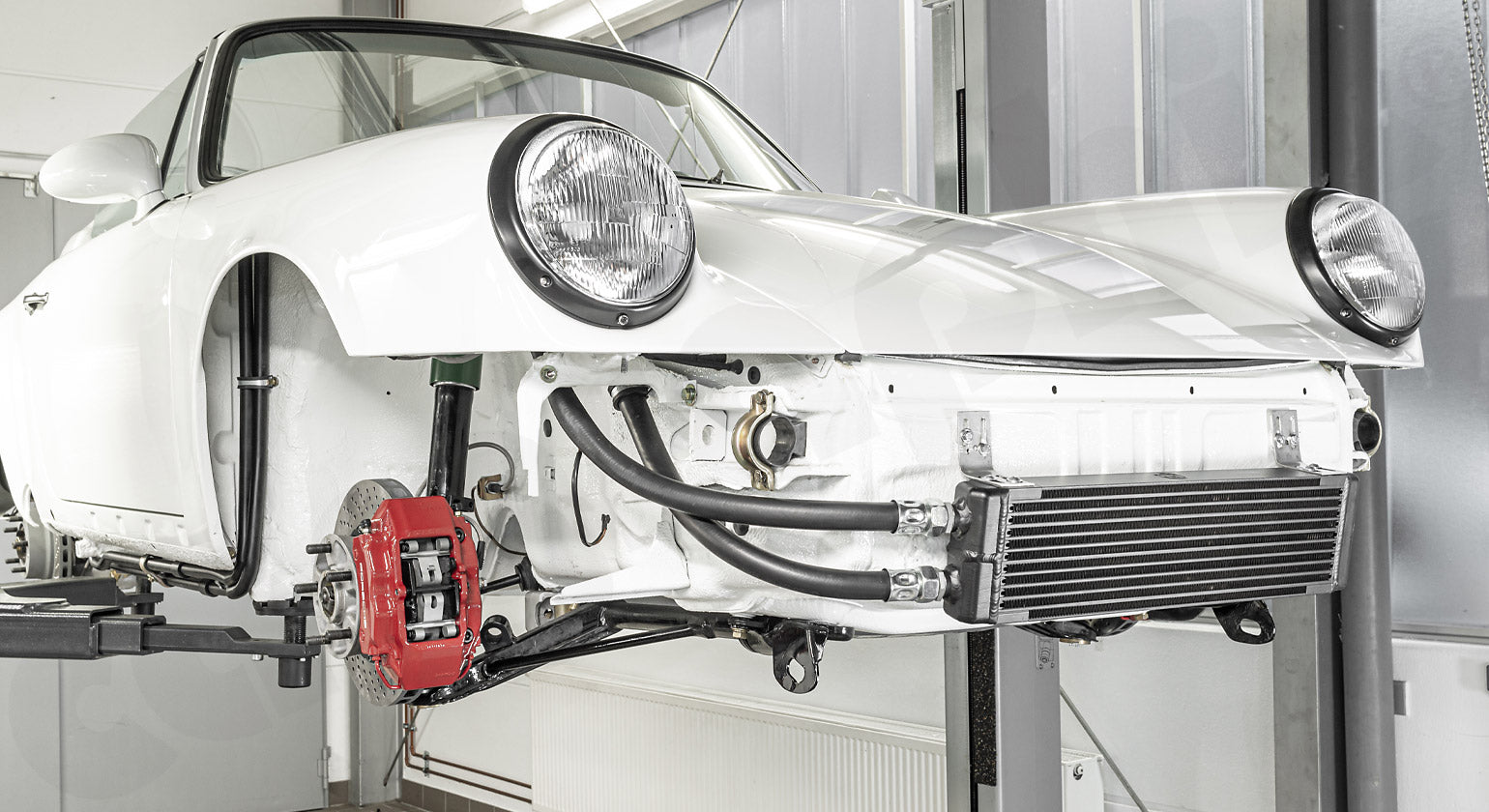

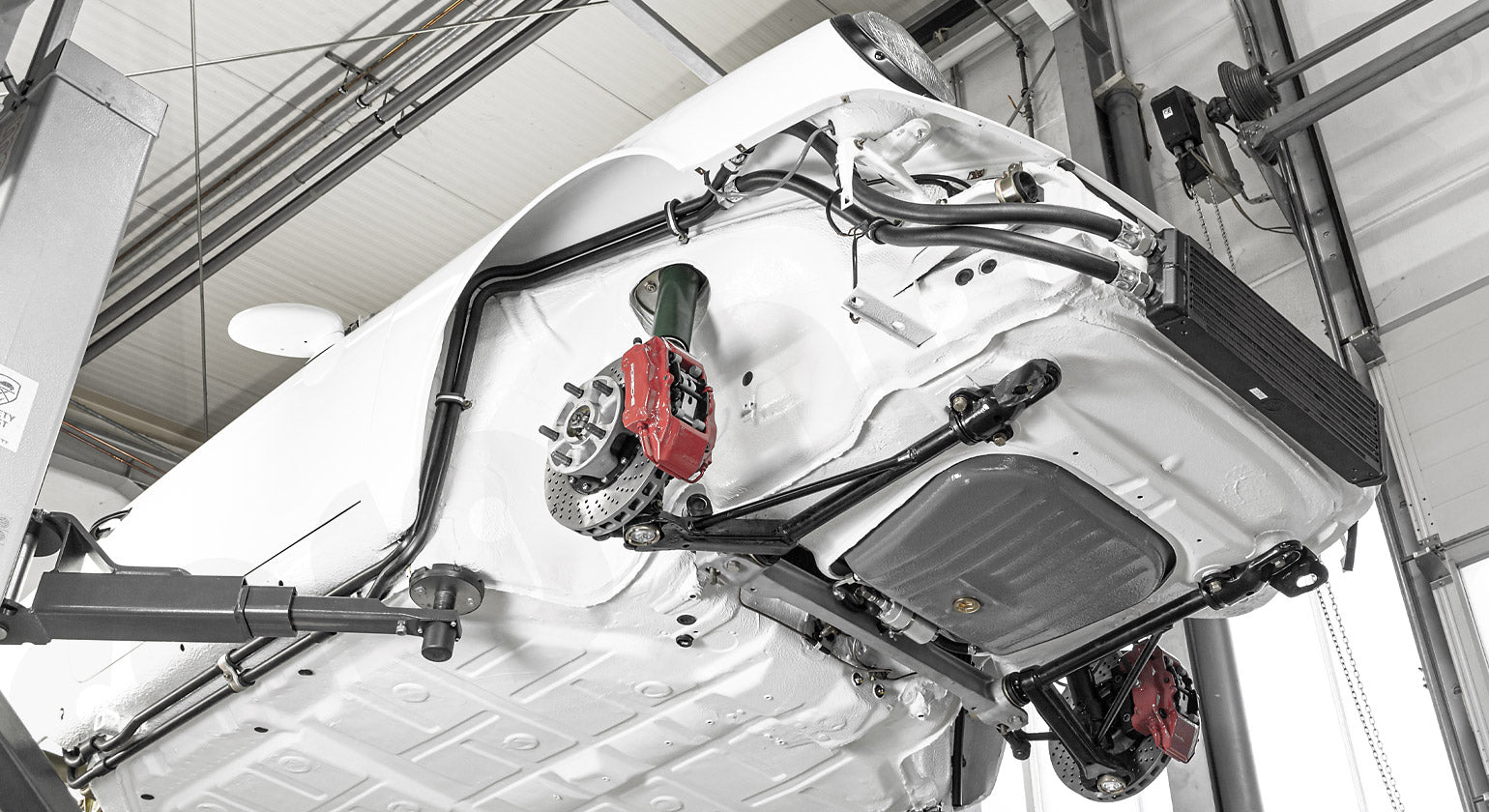

CARGRAPHIC RSR style centre-mounted oil cooler kit - R1120020700

Designed specifically for the early Porsche 911 model 3.2l Carrera, this high performance oil cooler reduces oil temperature by up to 20 degrees, extending engine life and optimising performance. With its 10 rows and dimensions of 610x146x57mm, it offers maximum cooling capacity.

Whether you're on the track or over a mountain pass, the CARGRAPHIC oil cooler kit lets you get the most out of your Porsche.

Features

• CSF #8110 High Performance Oil Cooler - 10 rows 610 x 146 x 57mm
• 10 rows of high pressure bar/plate oil cooling

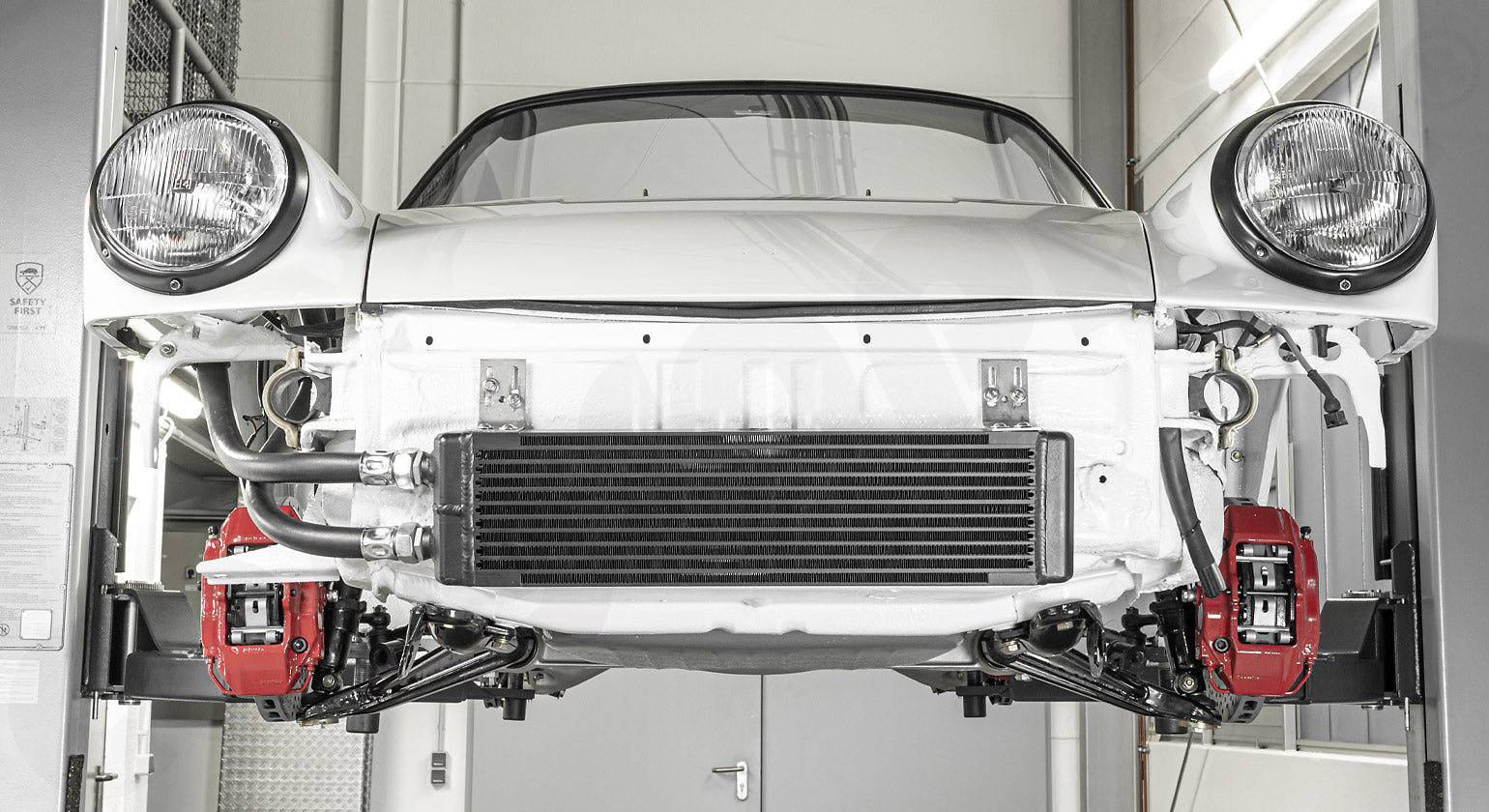

• Dual-pass design (Porsche "RS" front center mount oil cooler)
• Core dimensions: 21.50'L x 5.75'H x 2.25W (541mm x 146mm x 55mm)
• Fluid Capacity 0.89L (0.94 quarts)
• 2 x COHLINE DN20 ID19 M30 x 1.5mm

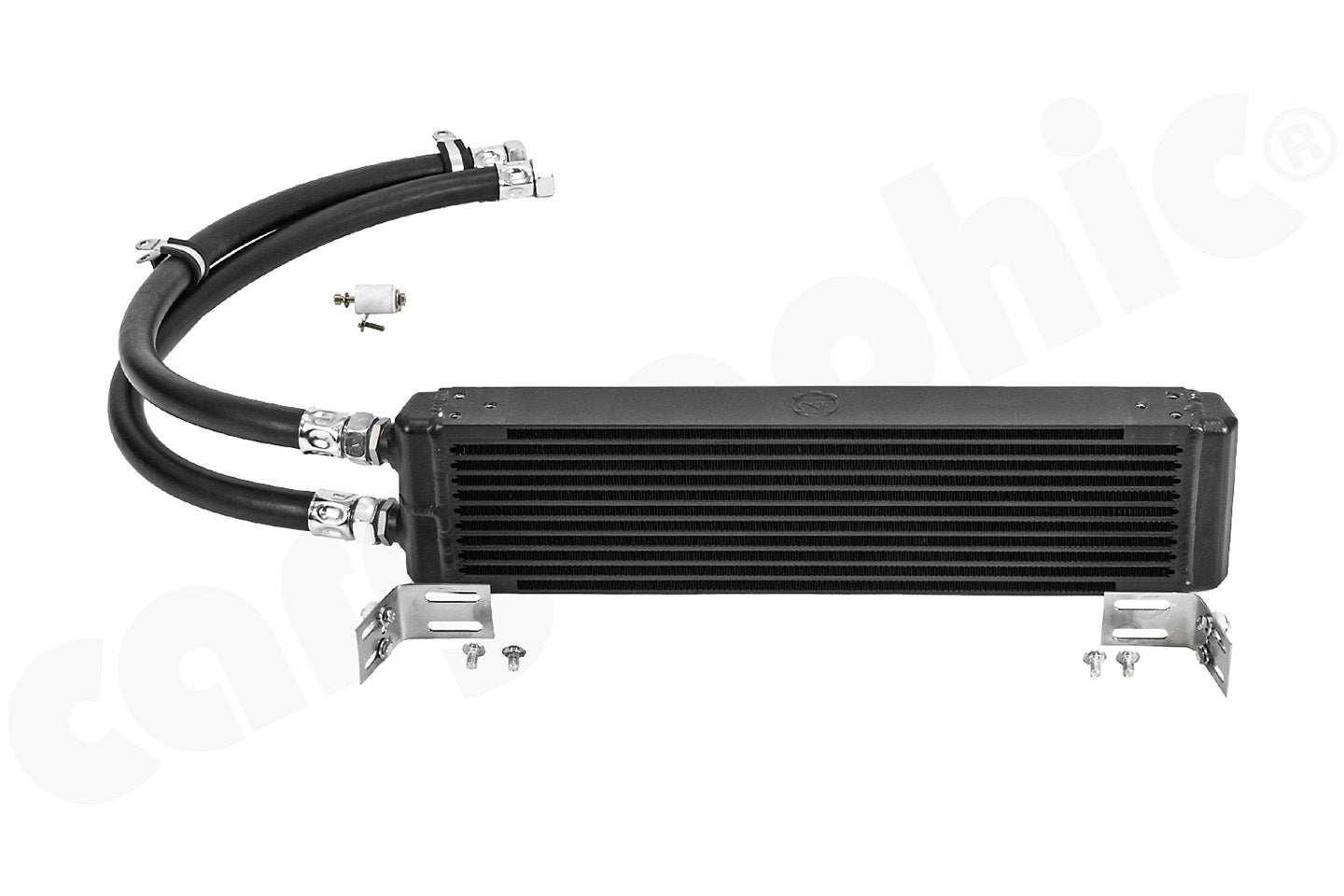

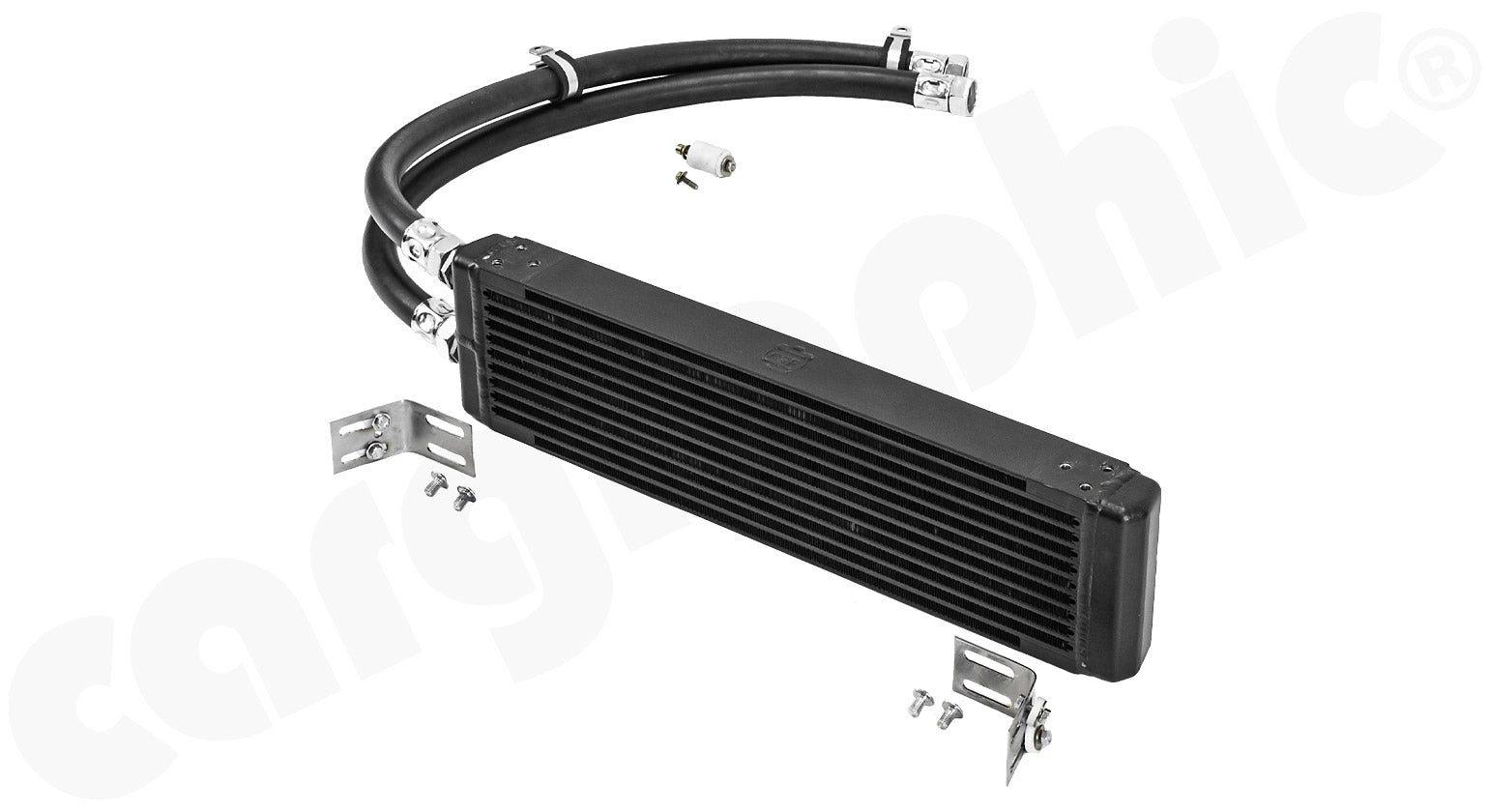

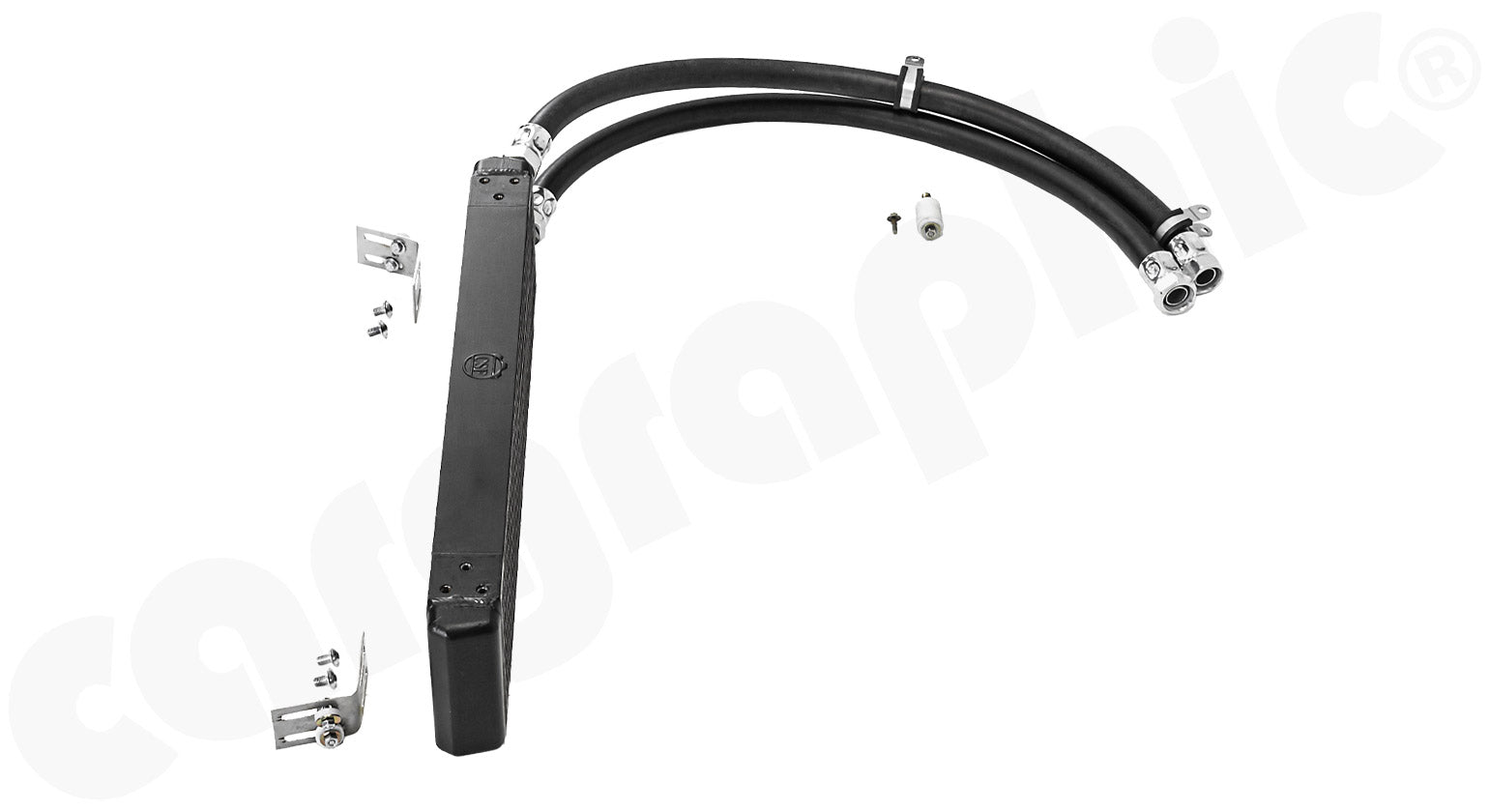

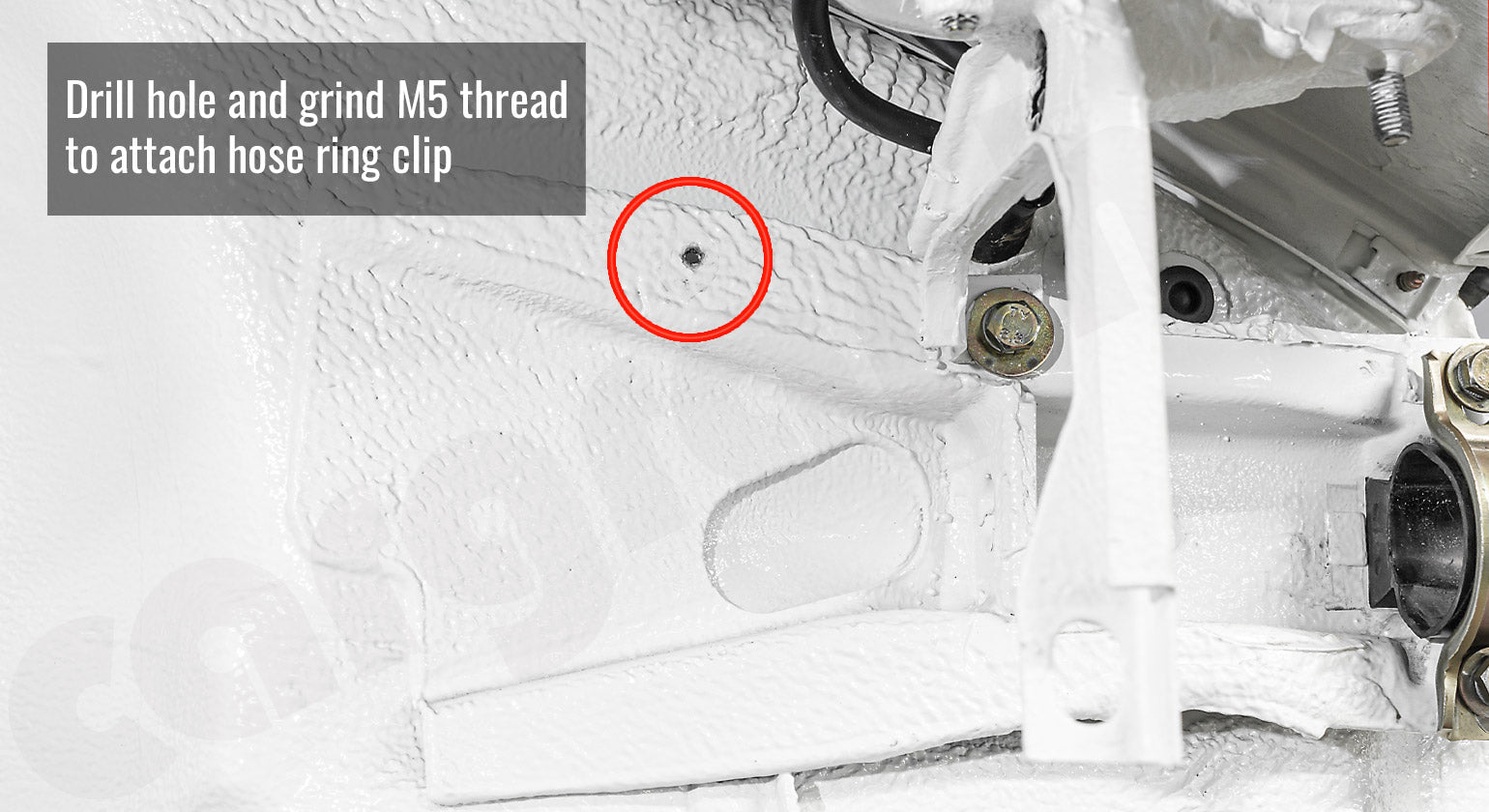

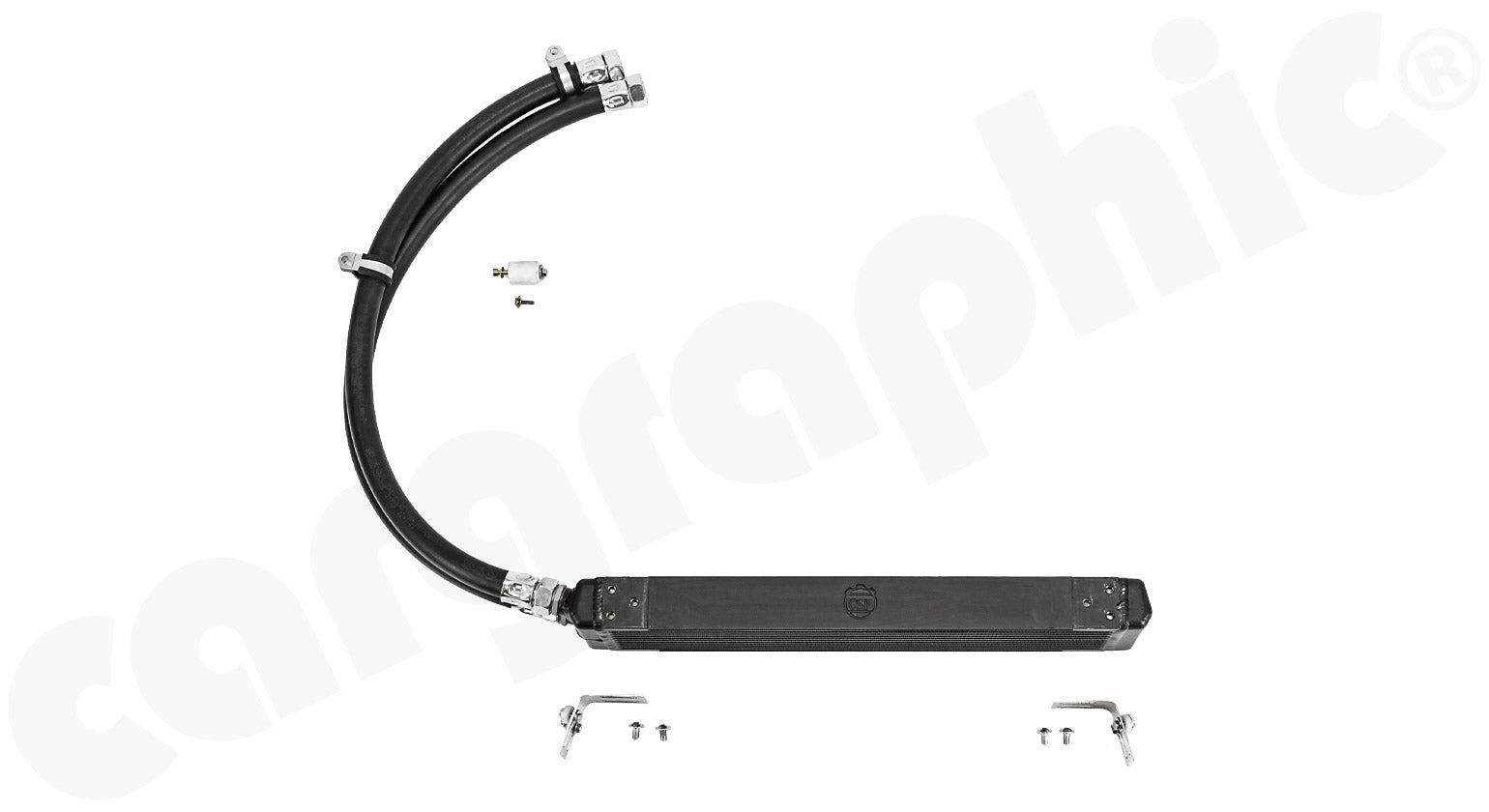

• Fitting Kit - Mounting Brackets, Hose Rings, Hose Ring Standoff
• Up to 20 degrees cooler oil temperatures for maximum engine life
• Increased power and torque due to optimum lubrication
• Improved reliability even at high revs
• Perfect for vehicles with performance upgrades

Applications

OEM Part Numbers

• Porsche: 911 107 051 01
• Porsche: 911-107-051-01
• Porsche: 91110705101

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# R1120020700 Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
