Rampage RS-1600 Billet Race Intercooler - R35 GT-R
Rampage RS-1600 Billet Race Intercooler - R35 GT-R
Where to buy
Shop Rampage Fabrication & Design

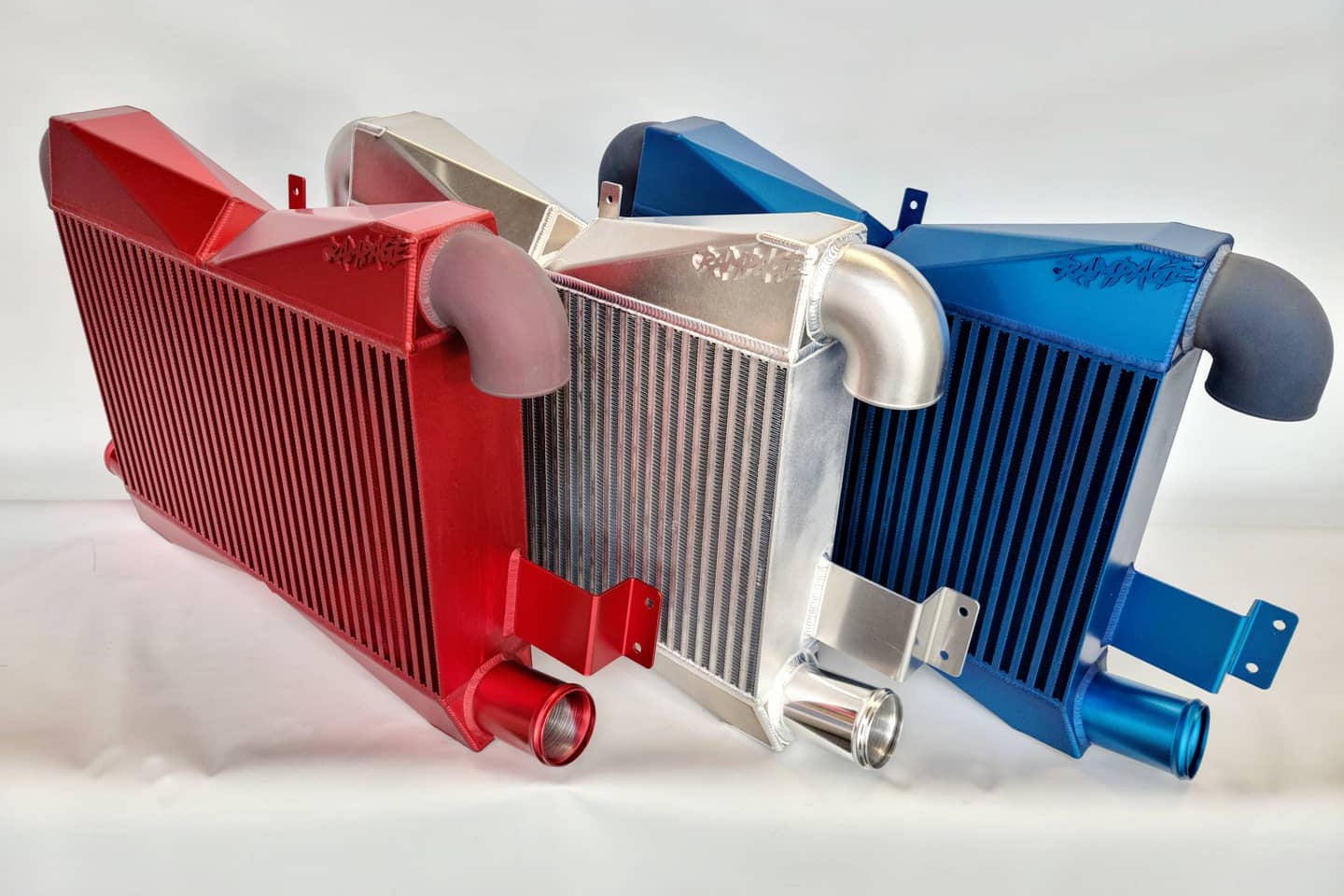

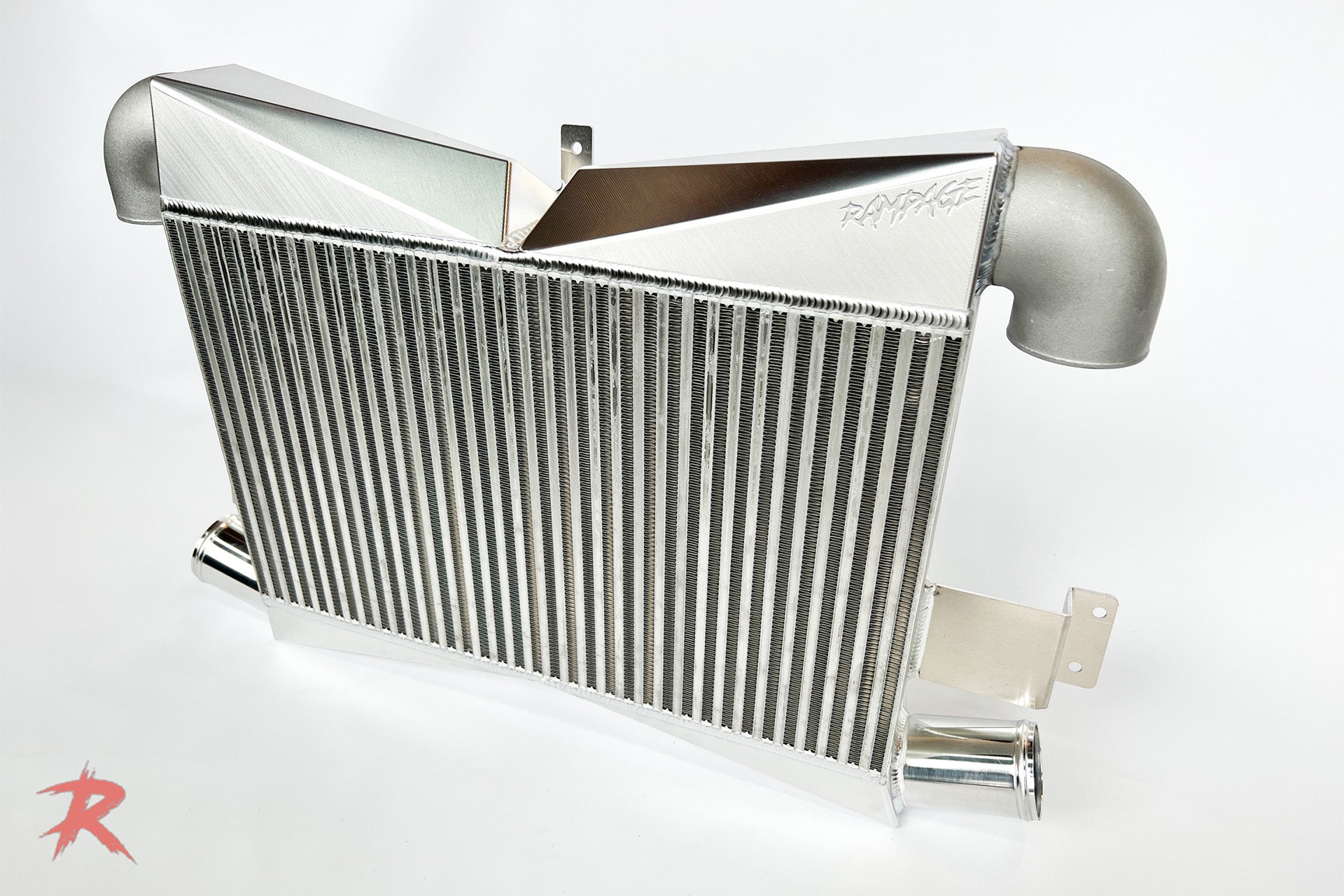

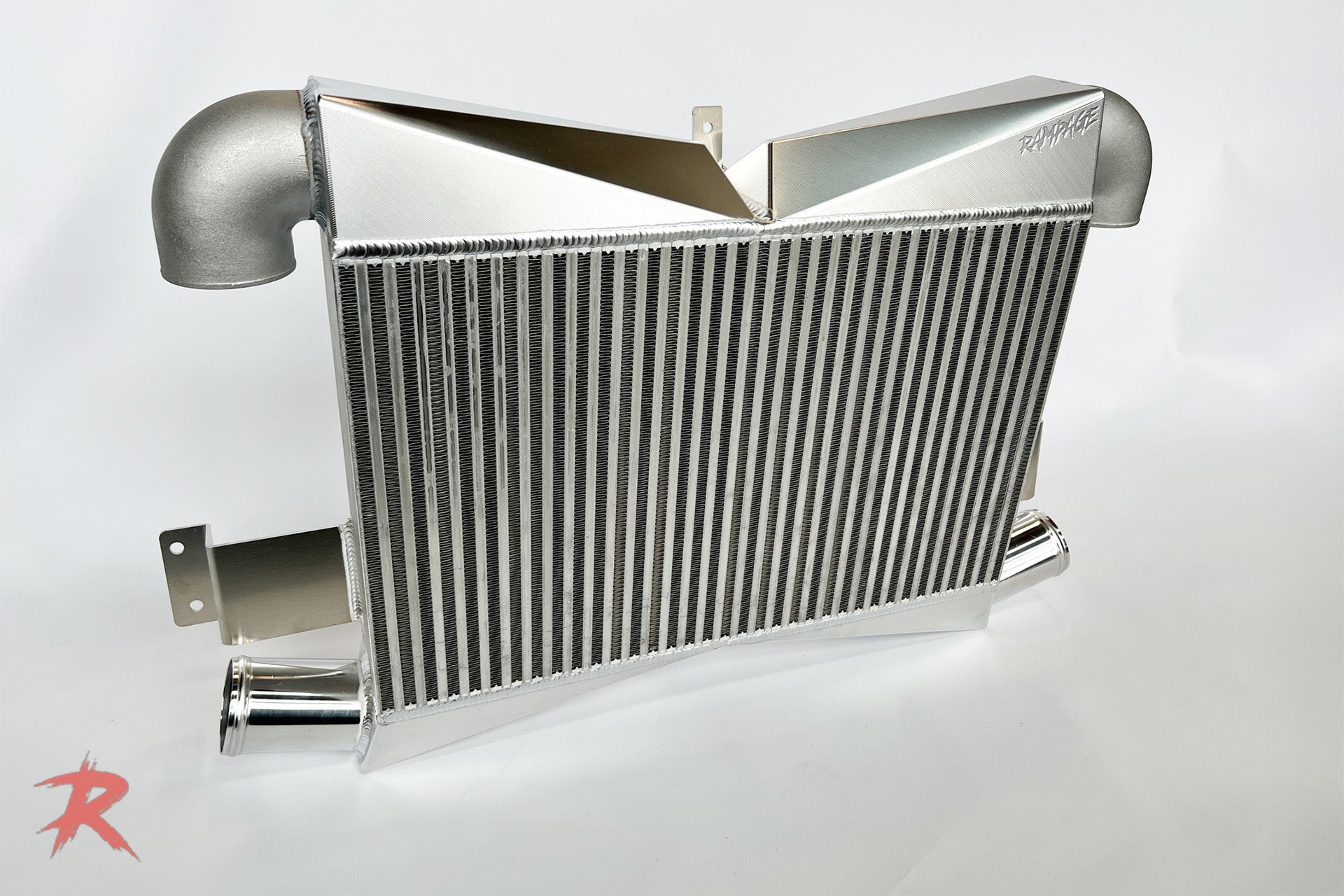

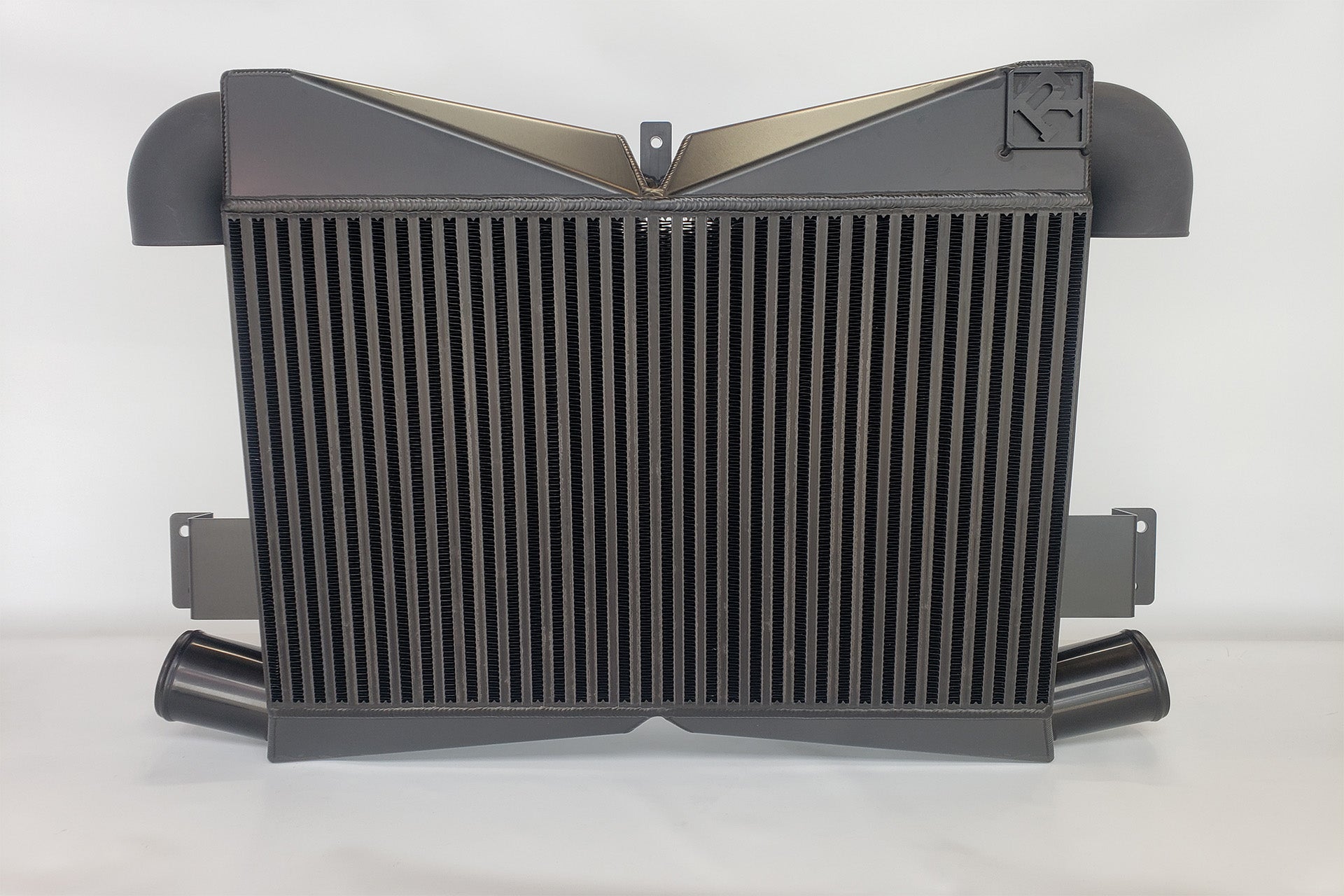

The Rampage RS-1600 Race Intercooler starts with the very high quality and efficient core from CSF Radiators, and is paired with our new Billet 6061 end tanks that are 5-axis CNC machined for the ultimate finish and fitment. These intercoolers have been tested and verified for function on cars producing upwards of 1500whp.
The intercooler comes complete with mounting tabs on the top and sides so installation is a breeze once the factory composite structure is trimmed to clear a race intercooler. Intercooler core dimensions: 22" x 14" x 4.5" core.
The RS-1600 intercooler is available either as a single item or with one of our two piping kit options.

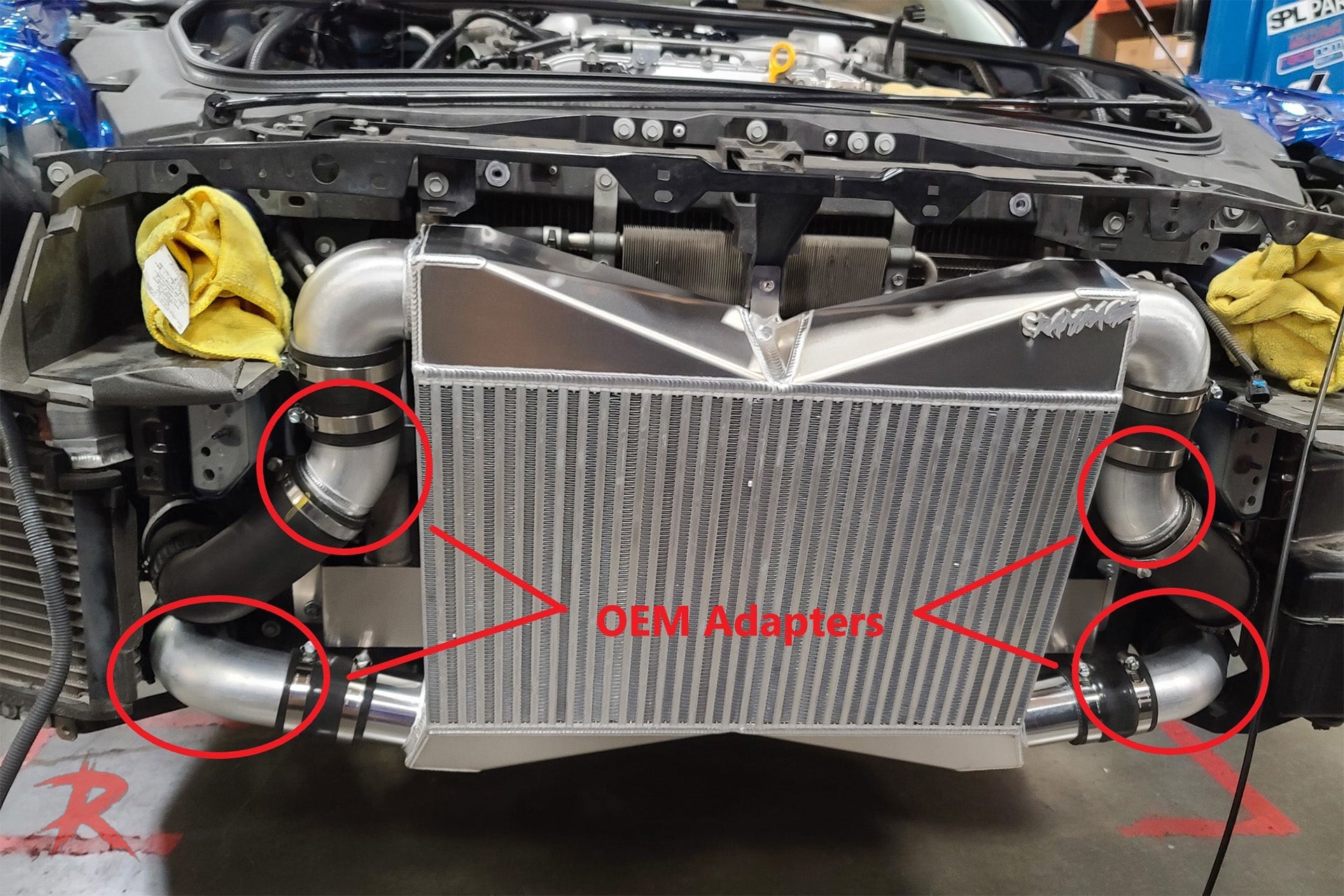

OEM Pipe Adapter Kit - Includes aluminum charge pipes that are designed to work with the OEM piping kit, or any aftermarket street intercooler piping kit.

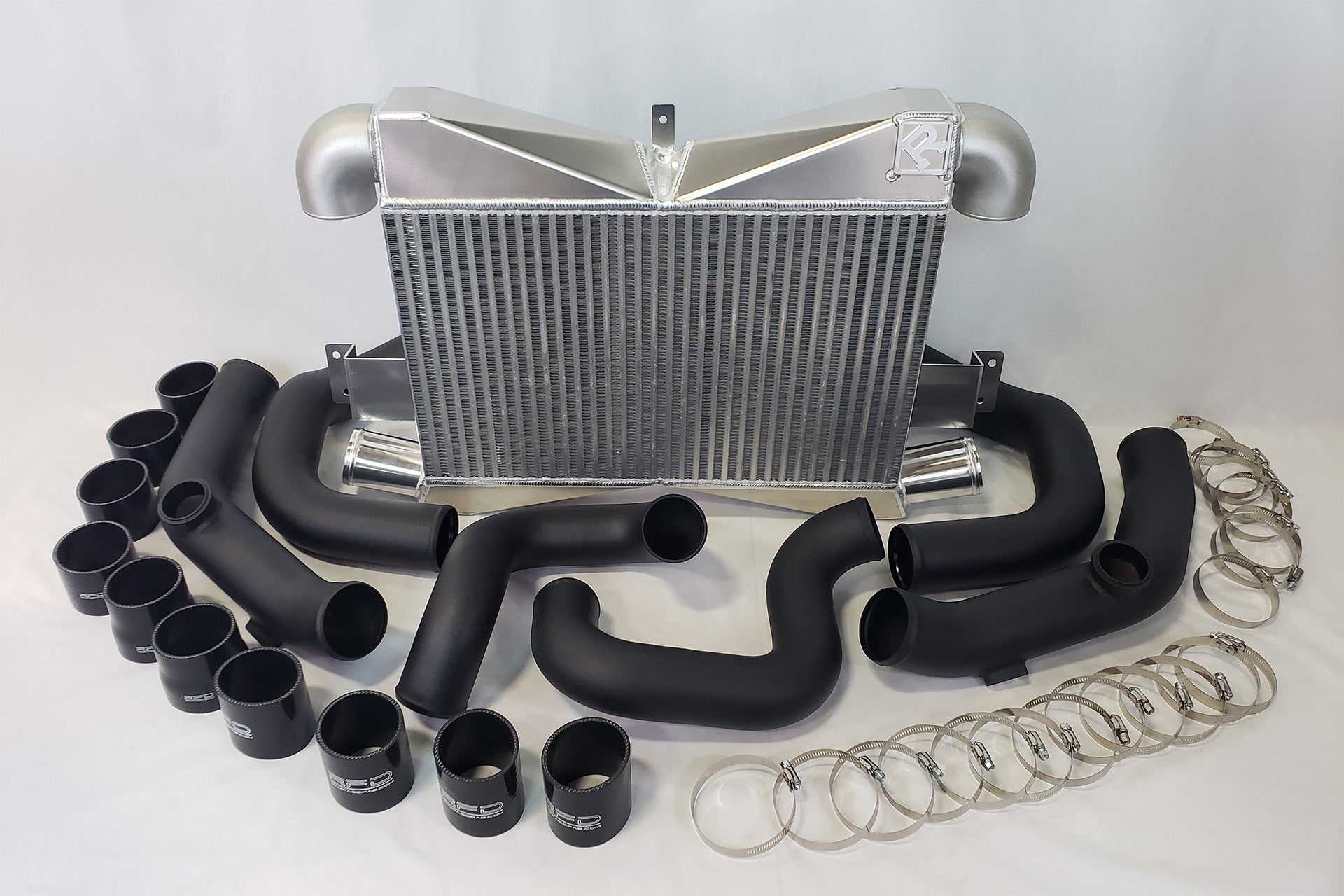

Race Piping Kit - Includes powder coated aluminum charge pipes that are made in house, and designed to fit Tial 50mm blow off valves or TurboSmart RacePorts (female). The upper charge piping is constructed from 3" mandrel bent tubing, and the lower 1-piece piping is 2.75" diameter.
Features
- Very high quality and efficient core from CSF

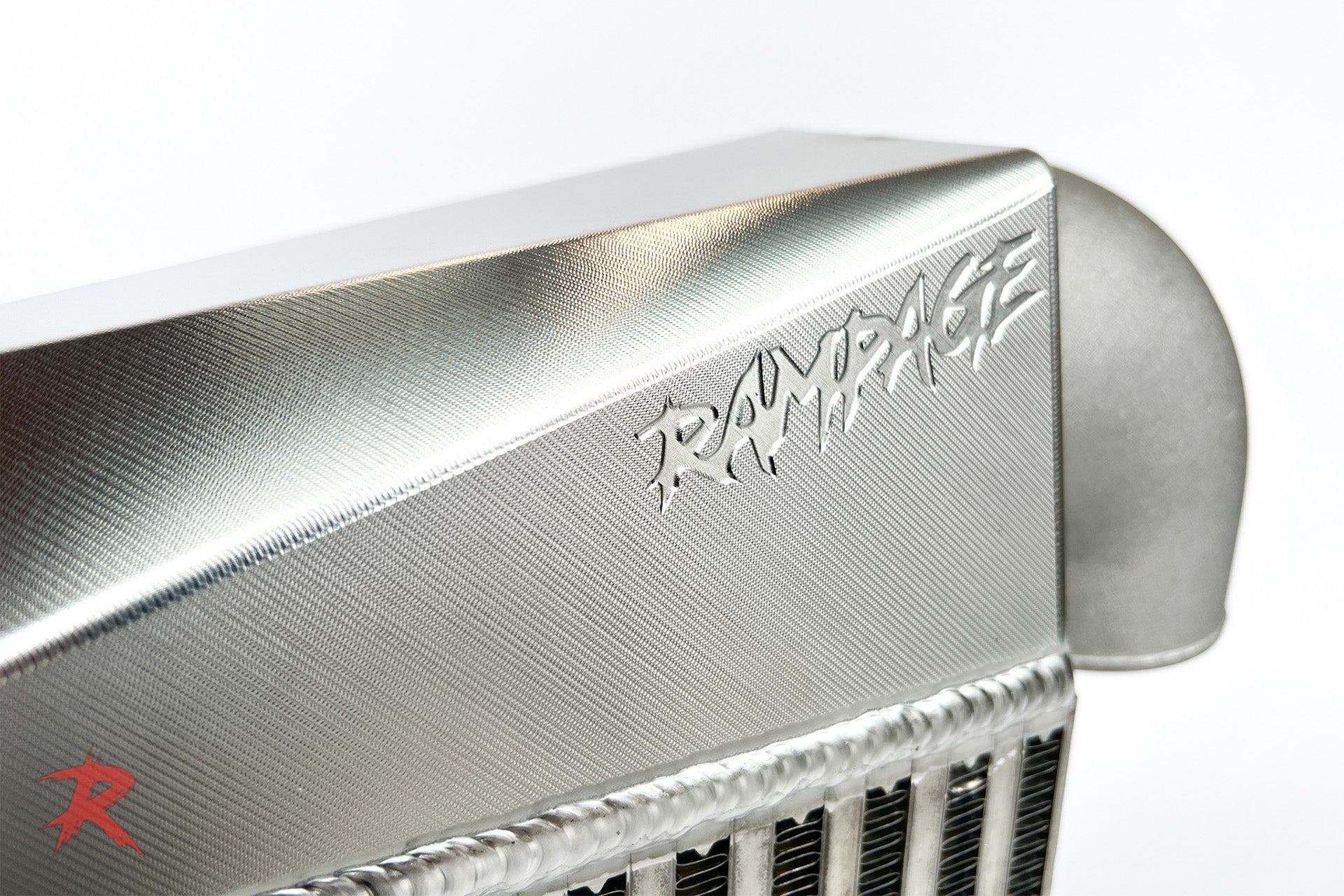

- Billet 6061 end tanks that are 5-axis CNC machined for the ultimate finish and fitment
- Tested and verified for function on cars producing upwards of 1500whp
- Comes complete with mounting tabs on the top and sides so installation is a breeze once the factory composite structure is trimmed to clear a race intercooler
- Intercooler core dimensions: 22" x 14" x 4.5"
- Available either as a single item or with one of our two piping kit options
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 2009-2024 | Nissan | R35 | GT-R | - | Turbocharged 3.8L V6 | - |
OEM Part Numbers
- Nissan: 14461-KJ10A *Right
- Nissan: 14461-KJ11A *Left
- Nissan: 14461 KJ10A *Right
- Nissan: 14461 KJ11A *Left
- Nissan: 14461KJ10A *Right
- Nissan: 14461KJ11A *Left
Warranty
Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page
SKU# RR-35-1600 Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
