Rampage RS-2000 Intercooler - R-35 GT-R
Rampage RS-2000 Intercooler - R-35 GT-R
Where to buy
Shop Rampage Fabrication & Design

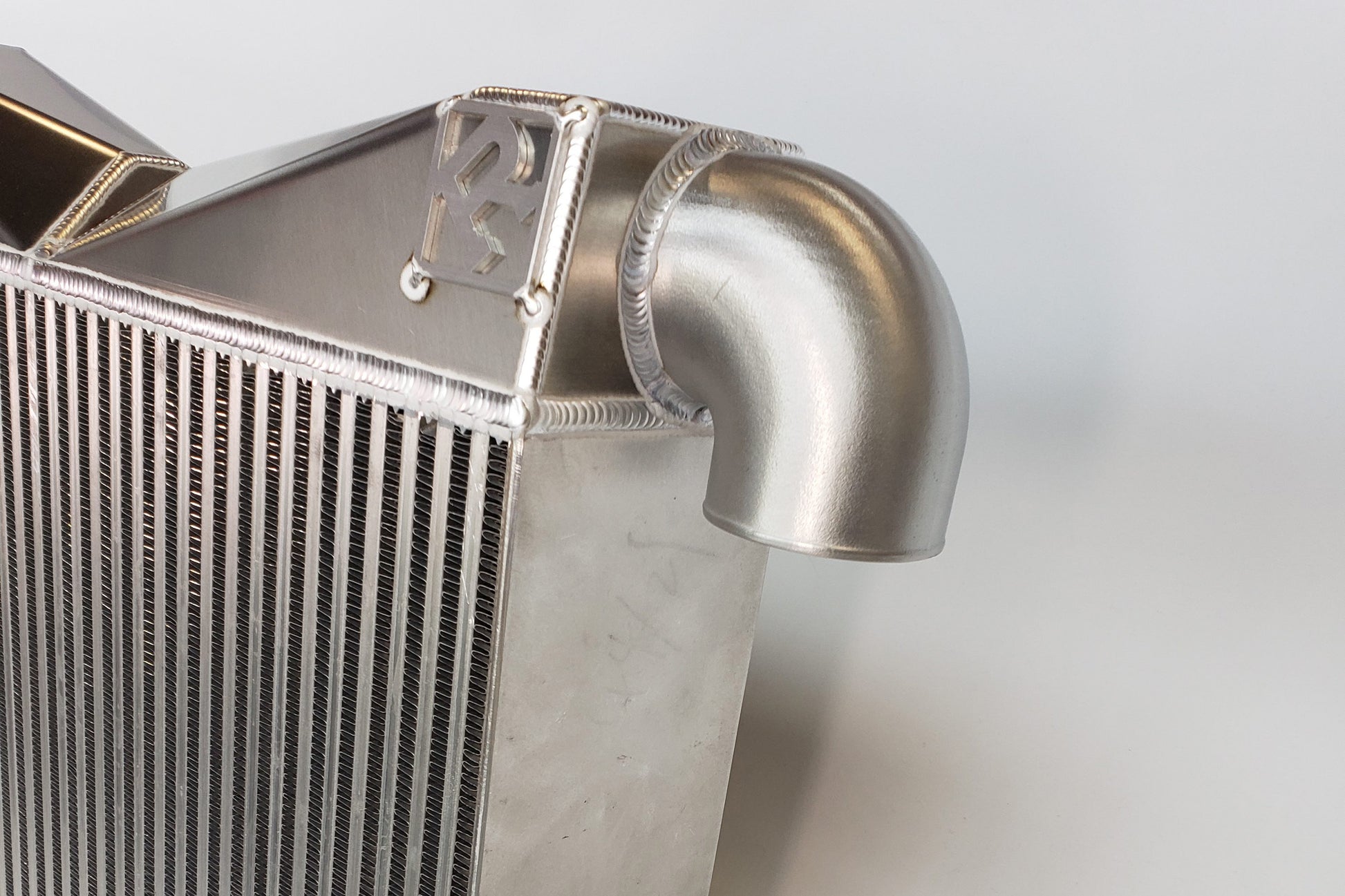

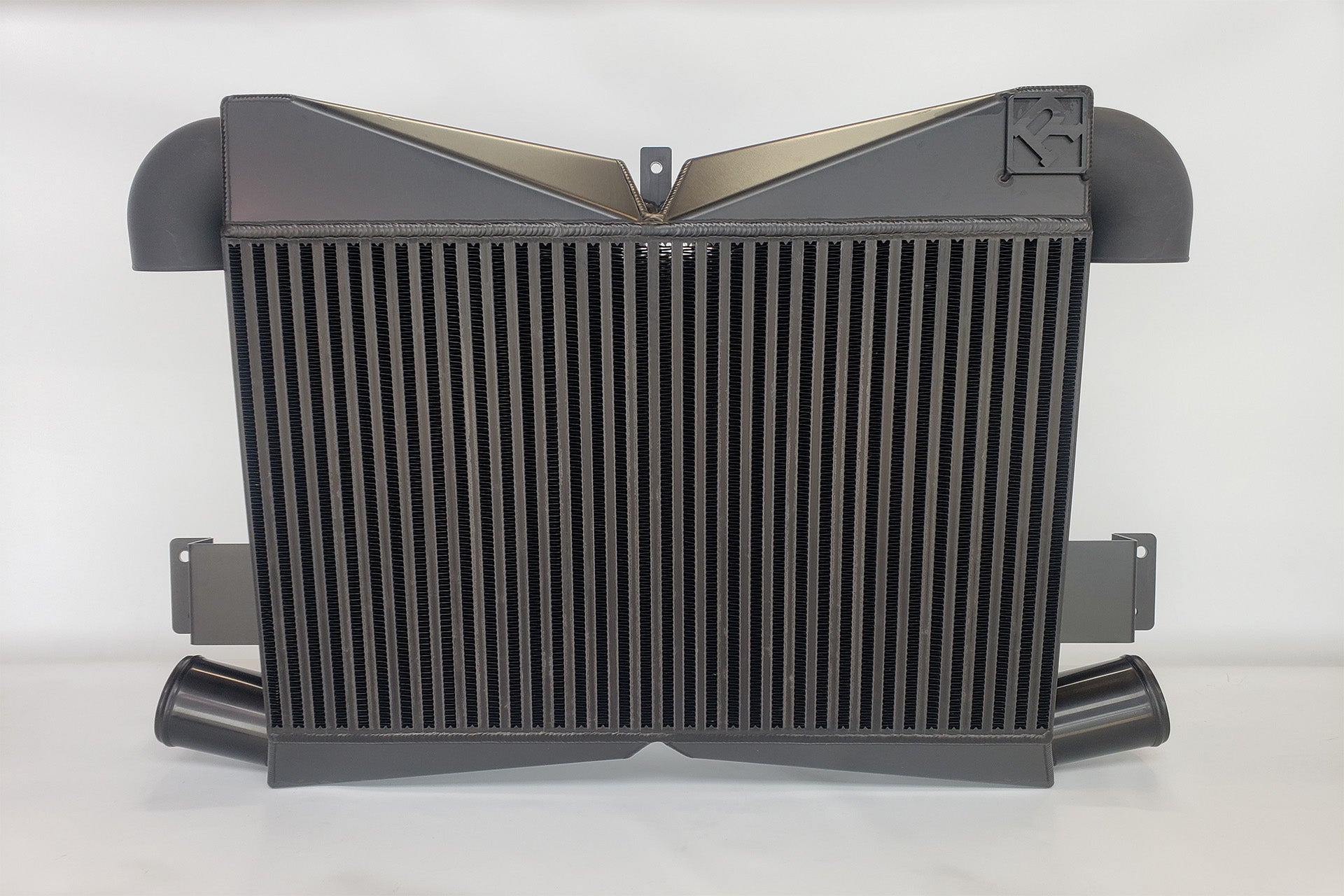

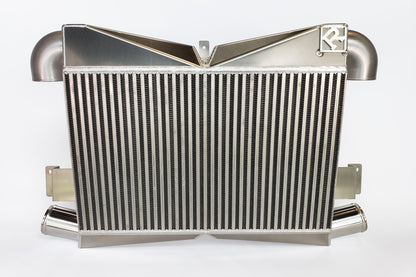

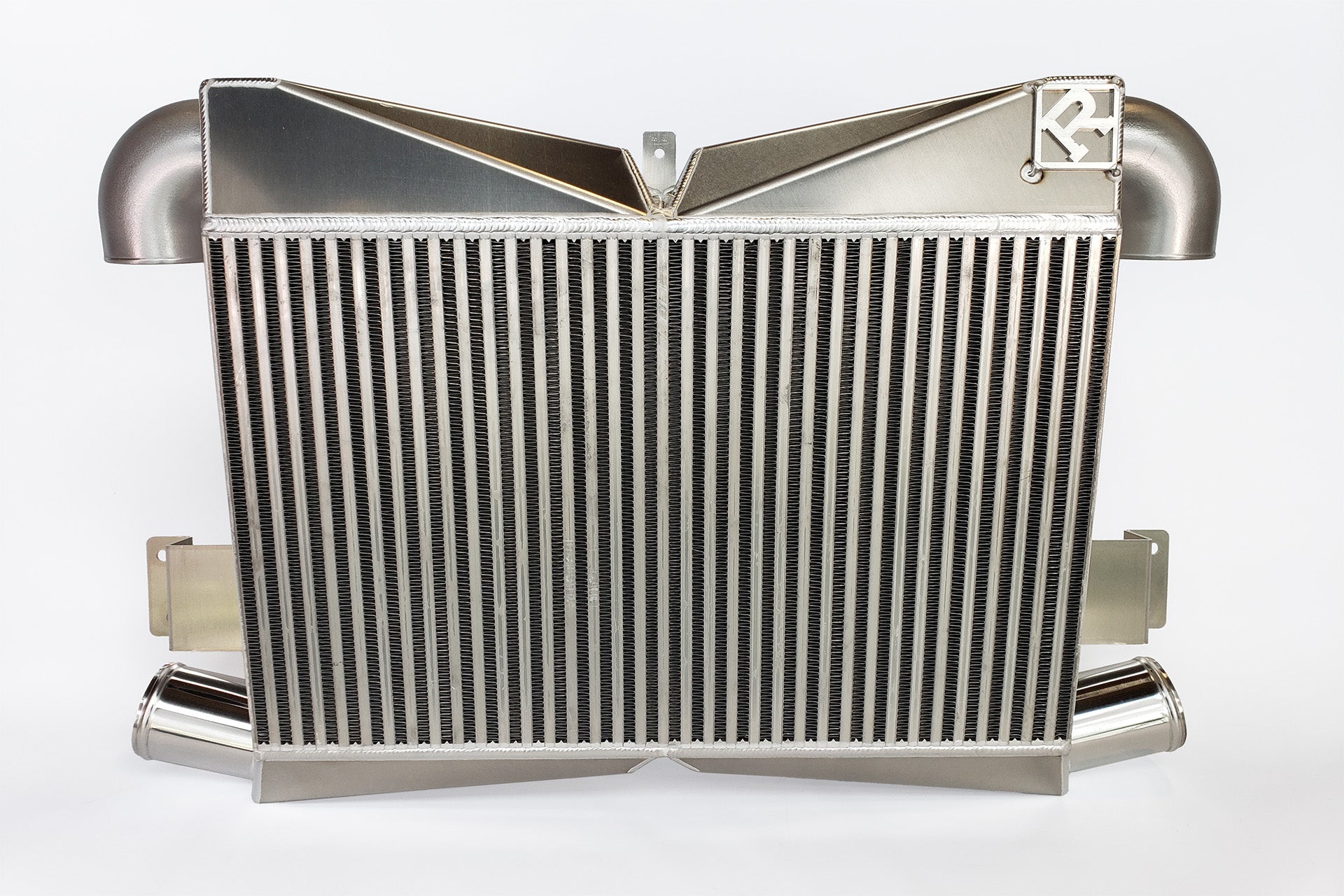

Rampage RS-2000 intercooler starts with the very high quality and efficient core from CSF, we then hand-fabricate and TIG weld each set of tanks in-house. The end tanks are constructed from .125" thick 5052 aluminum for high boost applications, tested to over 80 psi in fact!

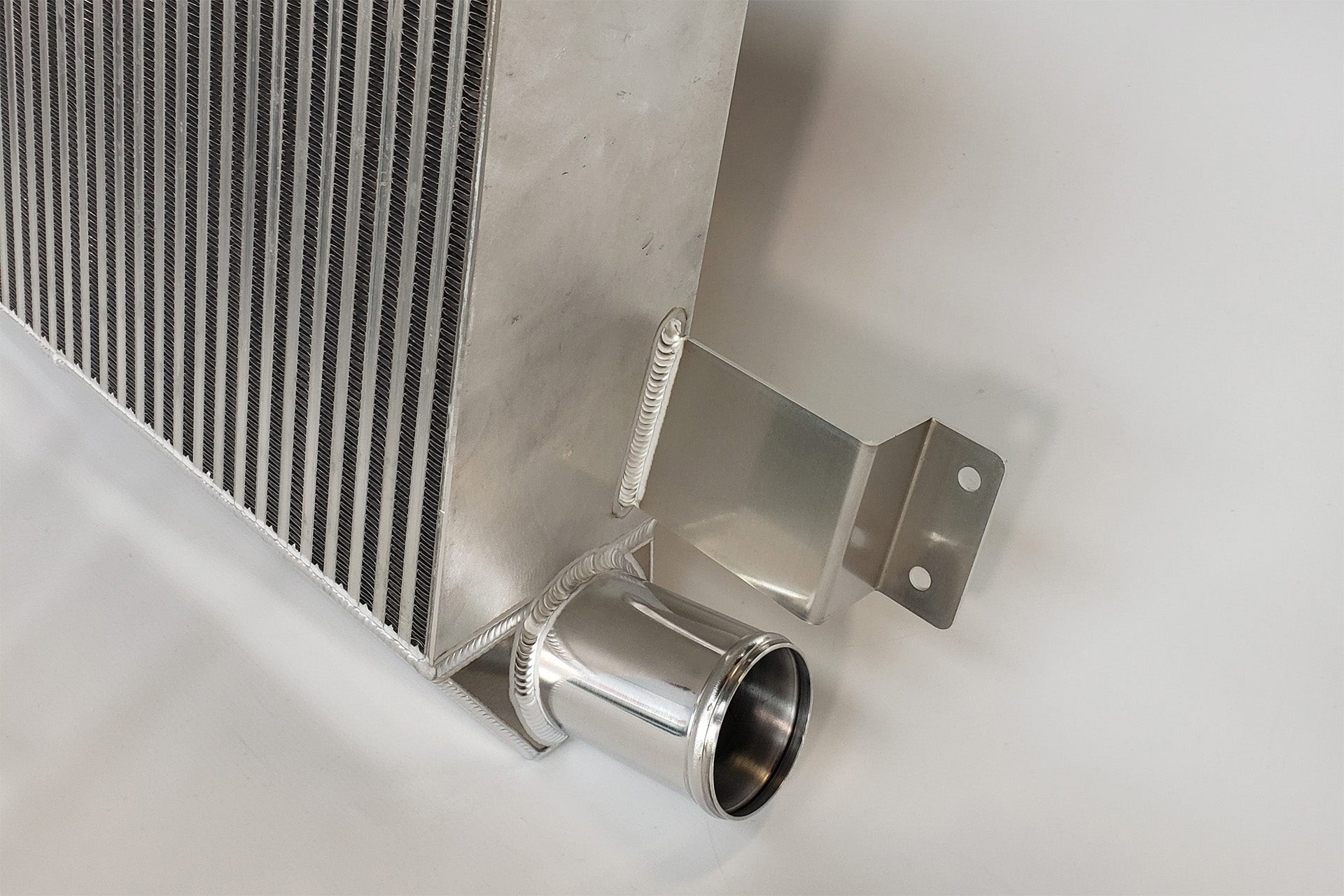

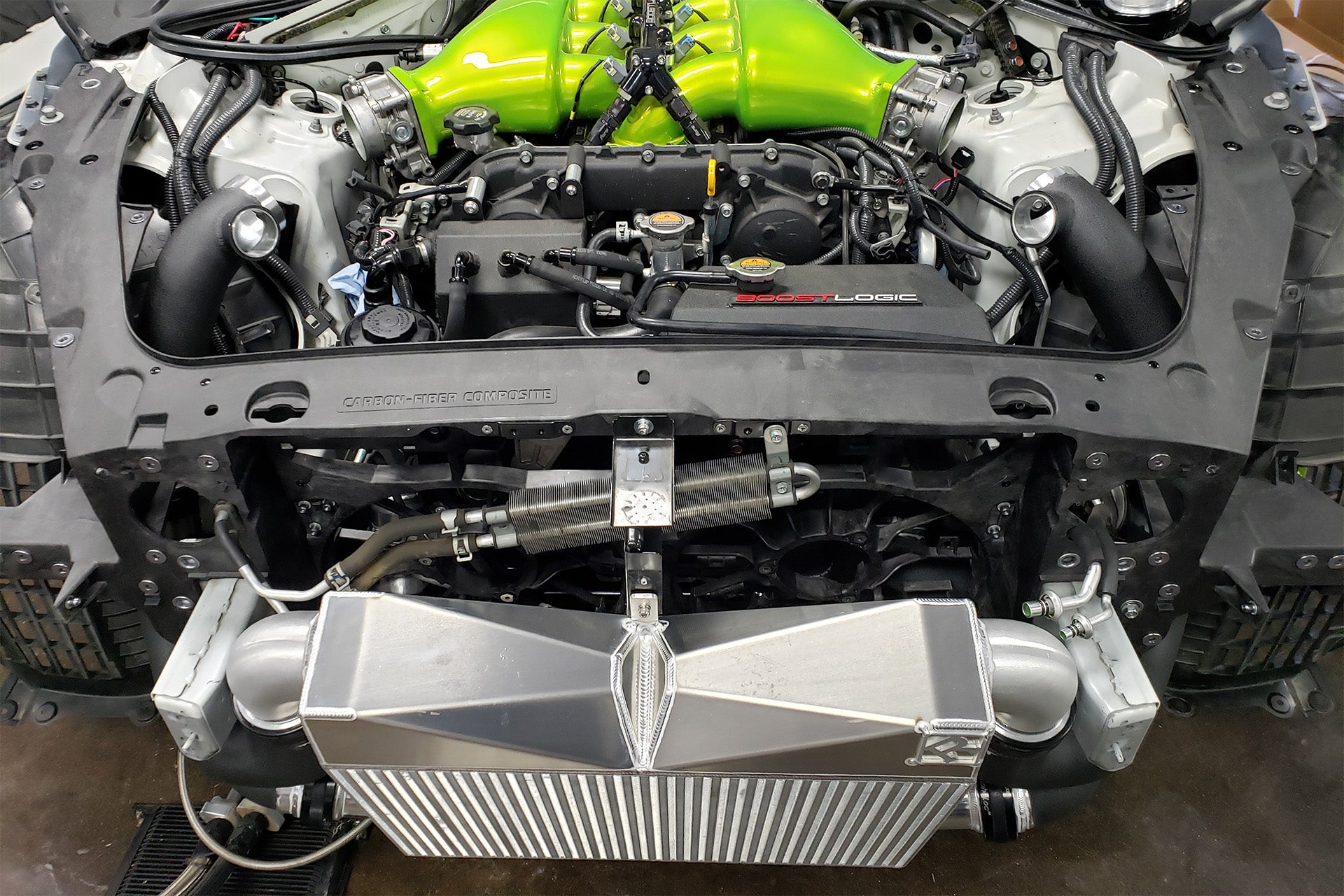

The intercooler comes complete with mounting tabs on the top and sides so install is also a breeze once the factory composite structure is cut to clear the intercooler. They also offer this kit with an optional Chromoly Crash bar that clears the larger core unlike the OEM Aluminum bar.
Rampage have paired this intercooler with a set of powder-coated Aluminum charge pipes that are made in the USA, and are designed to fit Tial 50mm blow off valves and Turbosmart Raceports. The upper charge piping is constructed from 3" mandrel bent tubing and the lower 1-piece piping is 2.75" diameter. Intercooler core dimensions: 22" x 14" x 5.5" core.
All intercooler and piping kits are available with Turbosmart blow off valves.
Features
- Very high quality and efficient core from CSF

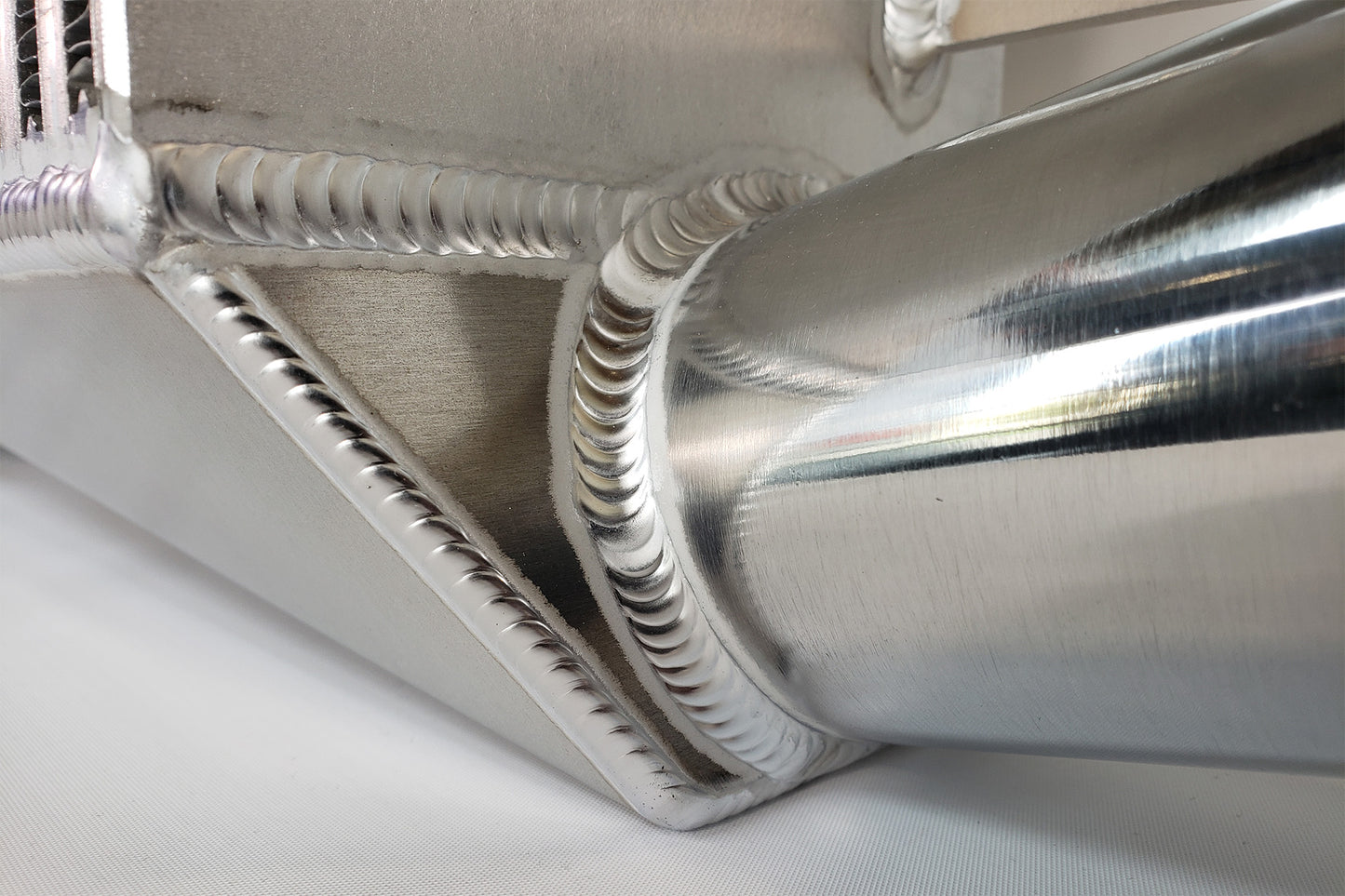

- Hand-Fabricate and TIG weld tanks made in-house
- Includes a set of powder-coated Aluminum charge pipes that are made in the USA - designed to fit Tial 50mm blow off valves and Turbosmart Raceports
- Upper charge piping is constructed from 3" mandrel bent tubing
- Lower 1-piece piping is 2.75" diameter
- Intercooler core dimensions: 22" x 14" x 5.5"
- Optional Chromoly Crash bar that clears the larger core unlike the OEM Aluminum bar
Applications
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 2009-2024 | Nissan | R35 | GT-R | - | Turbocharged 3.8L V6 | - |
OEM Part Numbers
- Nissan: 14461-KJ10A *Right
- Nissan: 14461-KJ11A *Left
- Nissan: 14461 KJ10A *Right
- Nissan: 14461 KJ11A *Left
- Nissan: 14461KJ10A *Right
- Nissan: 14461KJ11A *Left
Warranty
Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page
SKU# RR-35-1800 Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
