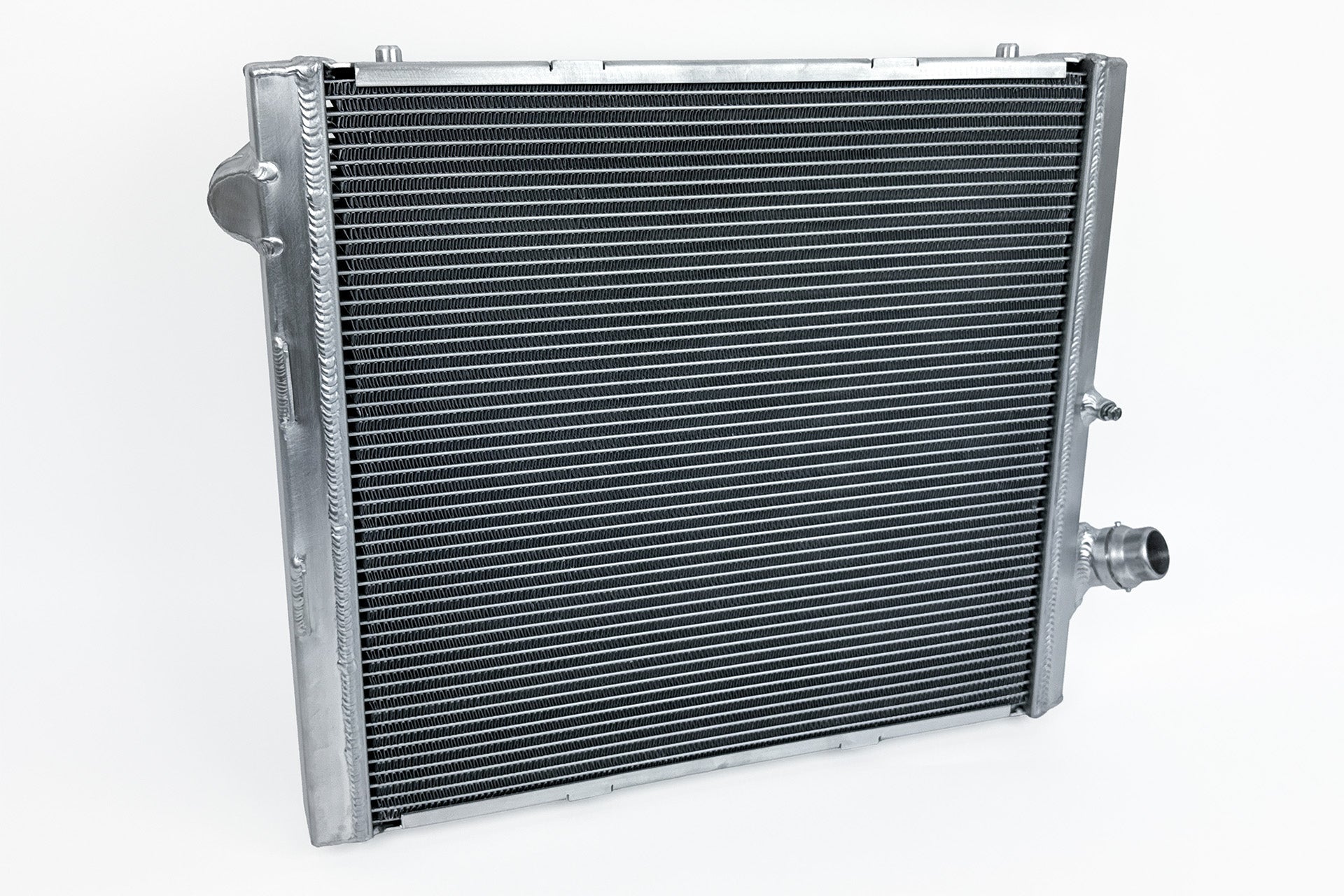

Porsche 992 911 High-Performance All-Aluminum Radiator (Right)

Click Here for the Full Press Release & Additional Product Details

CSF is well known for making the best Porsche cooling systems in the world. Thousands of Porsche owners have upgraded to CSF Radiators for their water-cooled 911s, Boxsters, Caymans, and even Cayennes. Utilizing cutting edge cooling technology and modern manufacturing techniques, CSF offers the most efficient "drop-in fit" radiators on the market.

Why 992 Owners should upgrade

Upgraded cooling systems are not just for race cars and track builds. Every 911 owner can benefit from an upgraded cooling system. High-Performance All-Aluminum Radiators offer:

• Extends engine life by maintaining optimal coolant temperatures
• Maintains power output by enhancing cooling efficiency
• Eliminates performance limitations during demanding driving conditions
• Provides peace of mind with superior construction and durability

Whether you're building a street sleeper or prepping for your next track day, CSF's 992 Radiators are engineered to handle the heat and then some.

Product Details

Design & Engineering

To design the system for the 992 911, CSF leveraged its strategic partnerships and relationships with world class tuners, builders, and race teams to offer the best possible cooling systems. Working with the companies like M-Engineering, ES Motor, and Pacific German give CSF great insight to the strength and weakness of these modern Porsches as well as real world feedback and testing of new products.

Upgraded radiators help eliminate the concern of overheating. These advanced designs feature larger 2-Row, 42mm aluminum cores which increase the fluid capacity of the radiators, and greatly improves heat dissipation. Paired with CSF's Exclusive B-Tube Technology, heat transfer is increased by 20-25%. In addition, the new ultra-efficient 5mm multi-louvered fins maximize airflow through the core for the best possible performance. The result is the best possible thermal management under all driving conditions.

Key Design Features:

• 20-25% increase in heat transfer efficiency using CSF's new 5mm Fin & Exclusive B-Tube Technology
• Improved cooling performance to support higher-boost and bigger-turbos as well as additional heat generated by high-performance driving and racing.
• Engineered to withstand extreme conditions, providing reliability where it matters most
• Designed to fit perfectly in the OE location utilizing the factory ducting, mounting system, and A/C Condensers.

Whether you're building a street sleeper or prepping for your next track day, CSF's 992 Radiators are engineered to handle the heat and then some.

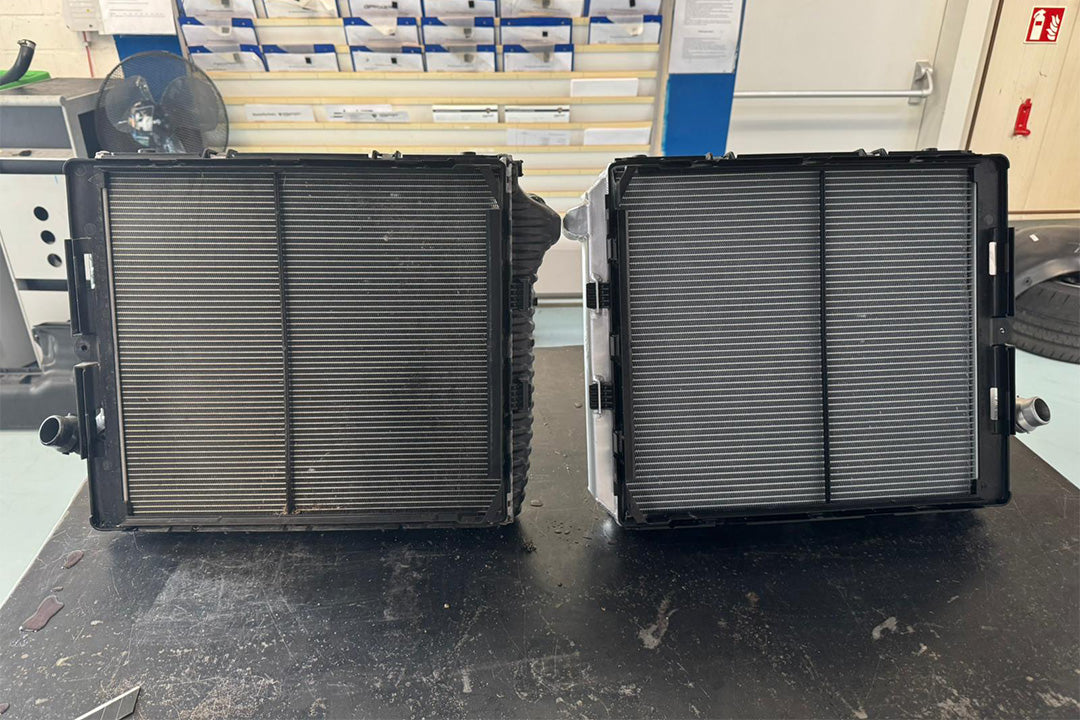

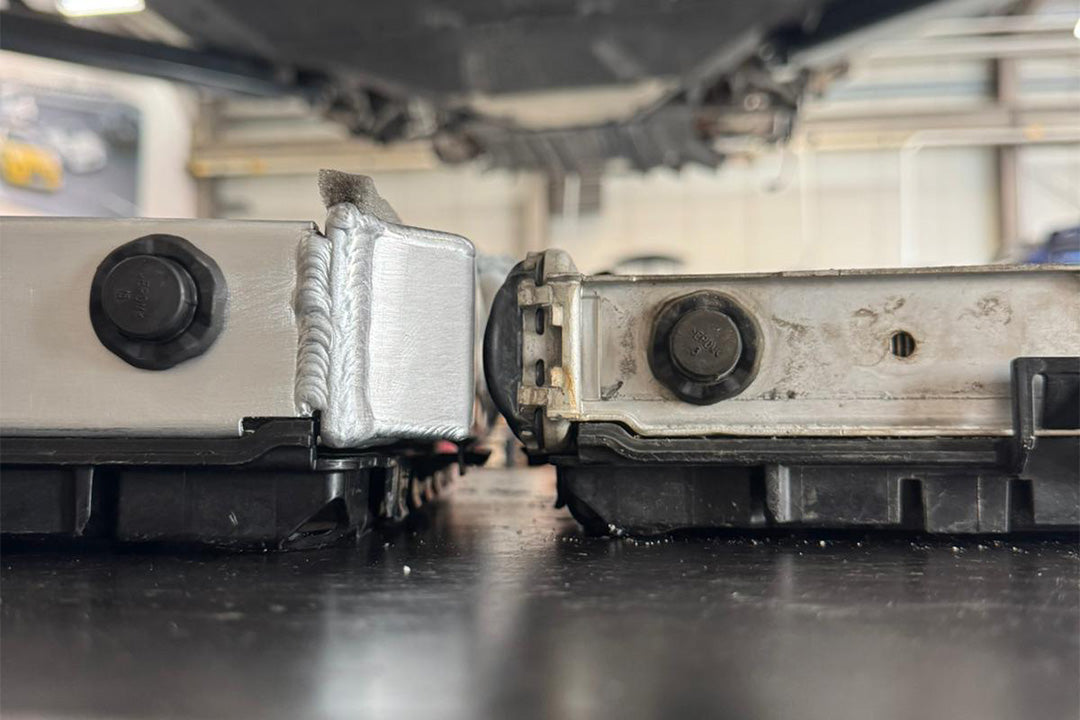

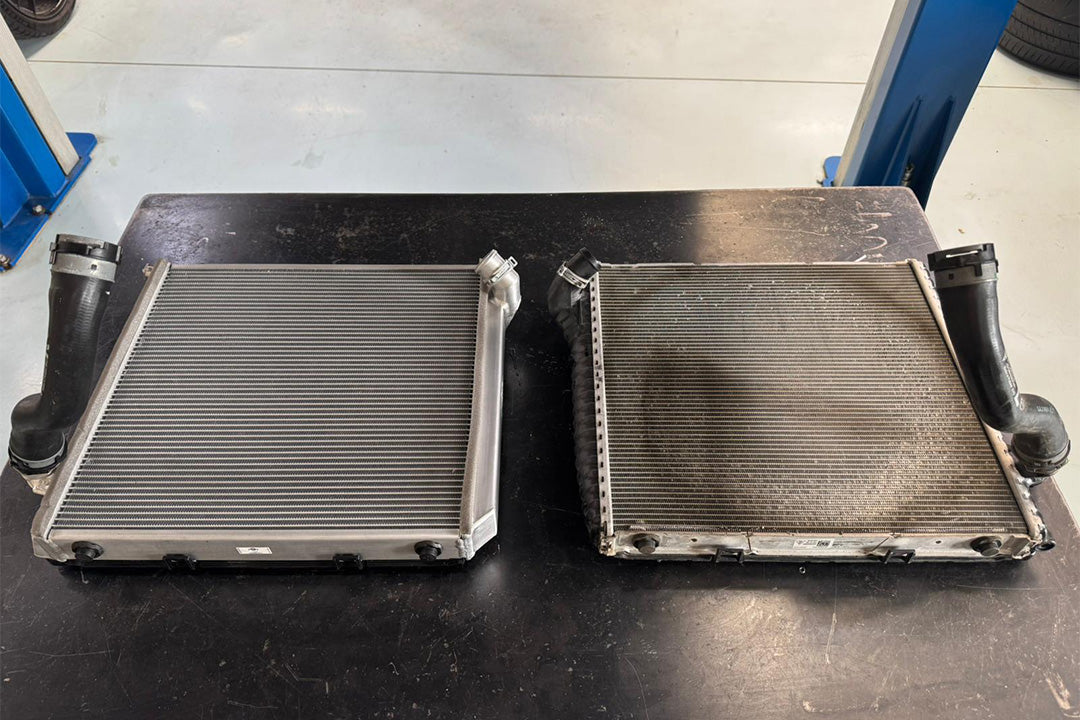

CSF vs OEM

The original OE radiators from Porsche are plastic tanks with single row aluminum cores. While this is the most common OE radiator design and generally acceptable, there is always room for improvement. To compound the factory cooling system limitation, Porsche decided to forgo the center radiator on most models (see fitment notes) except the Turbo, Turbo S, GT3, and 992.2 GTS (Hybrid). This greatly limits the thermal capacity of the system and many owners report seeing high engine temperatures on track with some overheating after a few laps.

The CSF Advantage

The CSF radiators feature the latest 5mm multi-louvered fins. These fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow. The core is much larger than the factory featuring 2-Row 42mm aluminum core. This both increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. Combined with the new 5mm fins, heat transfer is increased by up to 25% overall. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.

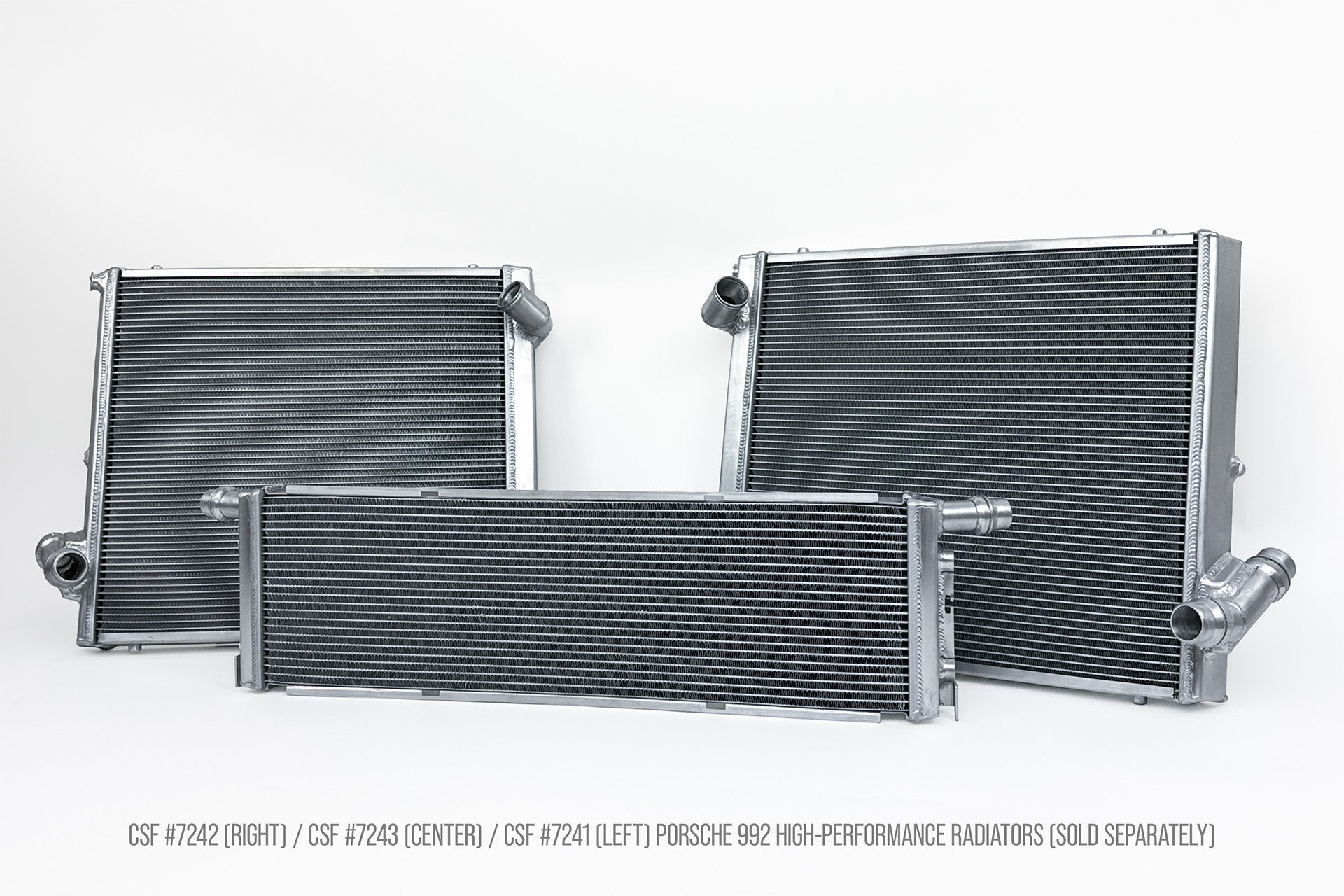

CSF #7241 (Left)

CSF #7243 (Center)

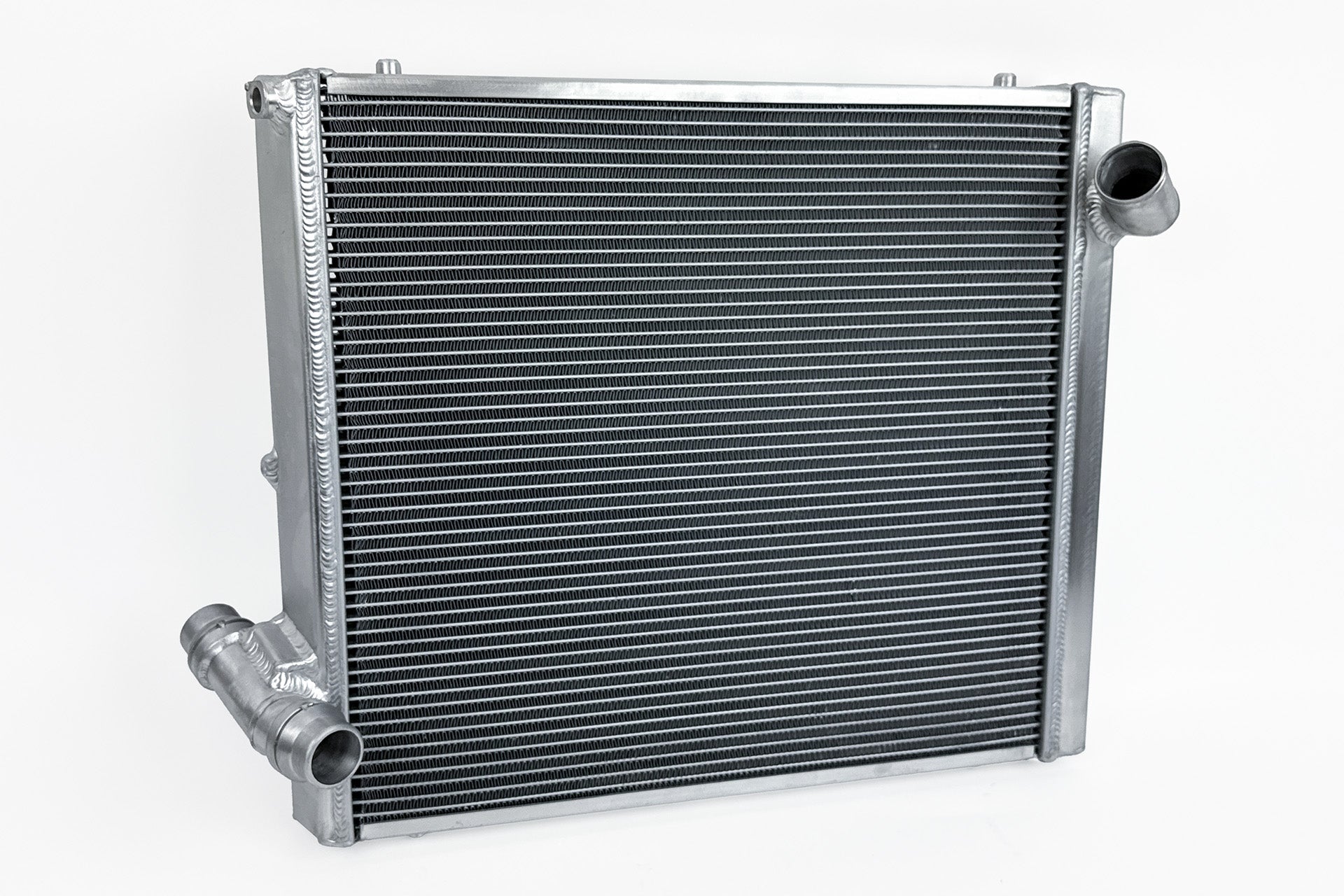

CSF #7242 (right)

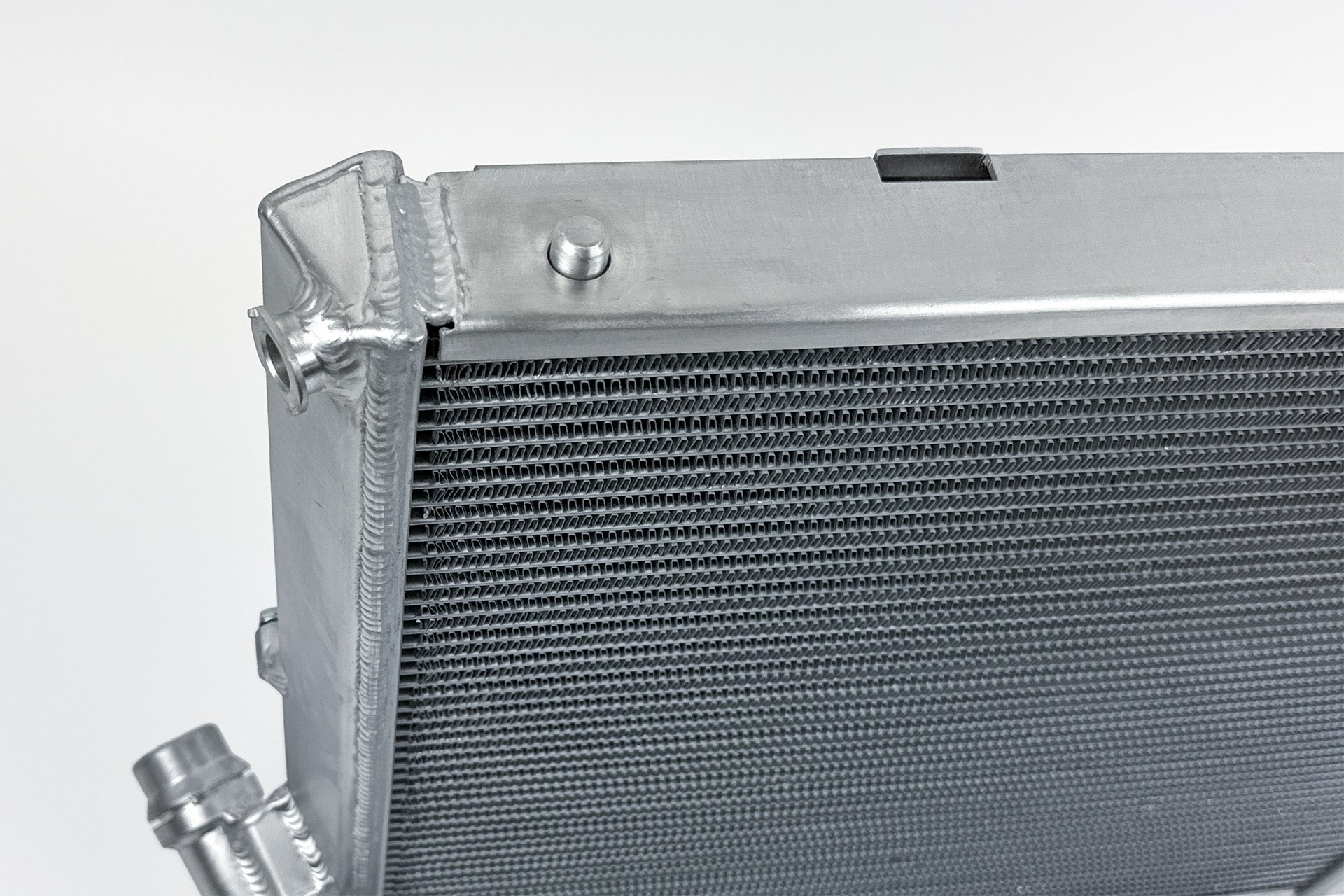

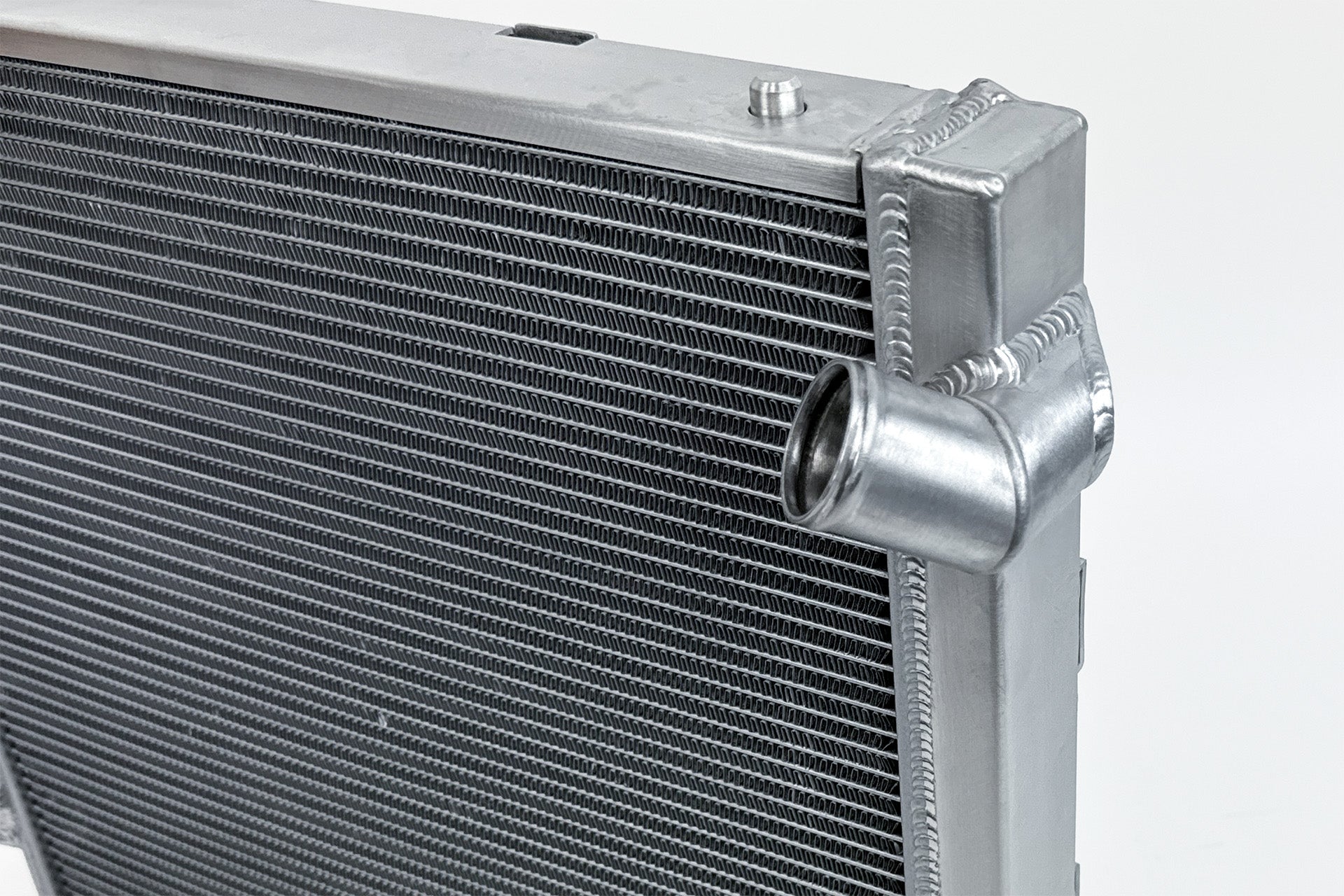

The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting.

Feature	CSF (left / right / center)	OEM (left / right / center)
# Core Rows	2-Row	1-Row
Core Thickness	42mm	37mm
# Cooling Tubes	52 / 52 / 22	63 / 63 / 27
# Cooling Fin Rows	53 / 53 / 23	64 / 64 / 28
Fin Height	5mm	4.7mm
Core Material	Aluminum	Aluminum
Tank Material	Aluminum	Plastic
Construction	100% TIG Welded	Crimp on Gasket

5mm Core Upgrade

CSF always seeks to offer the ultimate cooling solution. The latest 5mm fin technology was introduced at the end of 2023 offers even more heat transfer area and thermal efficiency than CSF's tried and true 6.5mm fins. Porsche owners are known to push their cars hard and CSF is confident this radiator is ready to take on the most demanding conditions in the world.

Plug and Play Installation

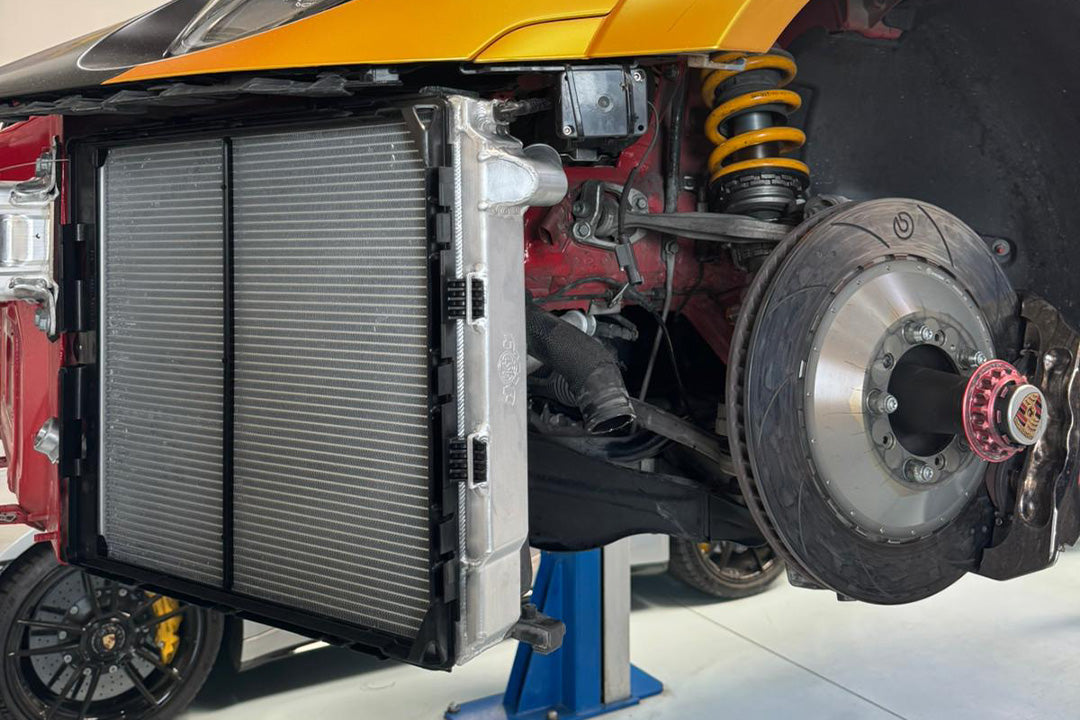

CSF designed these Radiators to easily replace the OEM units. The Plug-and-Play "Drop-in Fit" installation should only take 2-3 hours and greatly improves the performance and the longevity of your engine.

---

Make it a package

CSF recommends upgrading all your radiators at once for the best possible cooling performance and most cost effective installation. Please note that not all 3.0 Turbo Models came with a center radiator but it can be added.

Center Radiator Conversion/Addition

If your 992 911 did not come equipped with a center radiator, it is fairly simple and straight forward to add one on. This can be done using all OEM Porsche Parts to fit the CSF #7243 Center Radiator. Please see the fitment notes in the CSF #7243 Listing for details on how to add a center radiator to your 992.

Features

• 2-Row - 42mm High-Performance Core
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

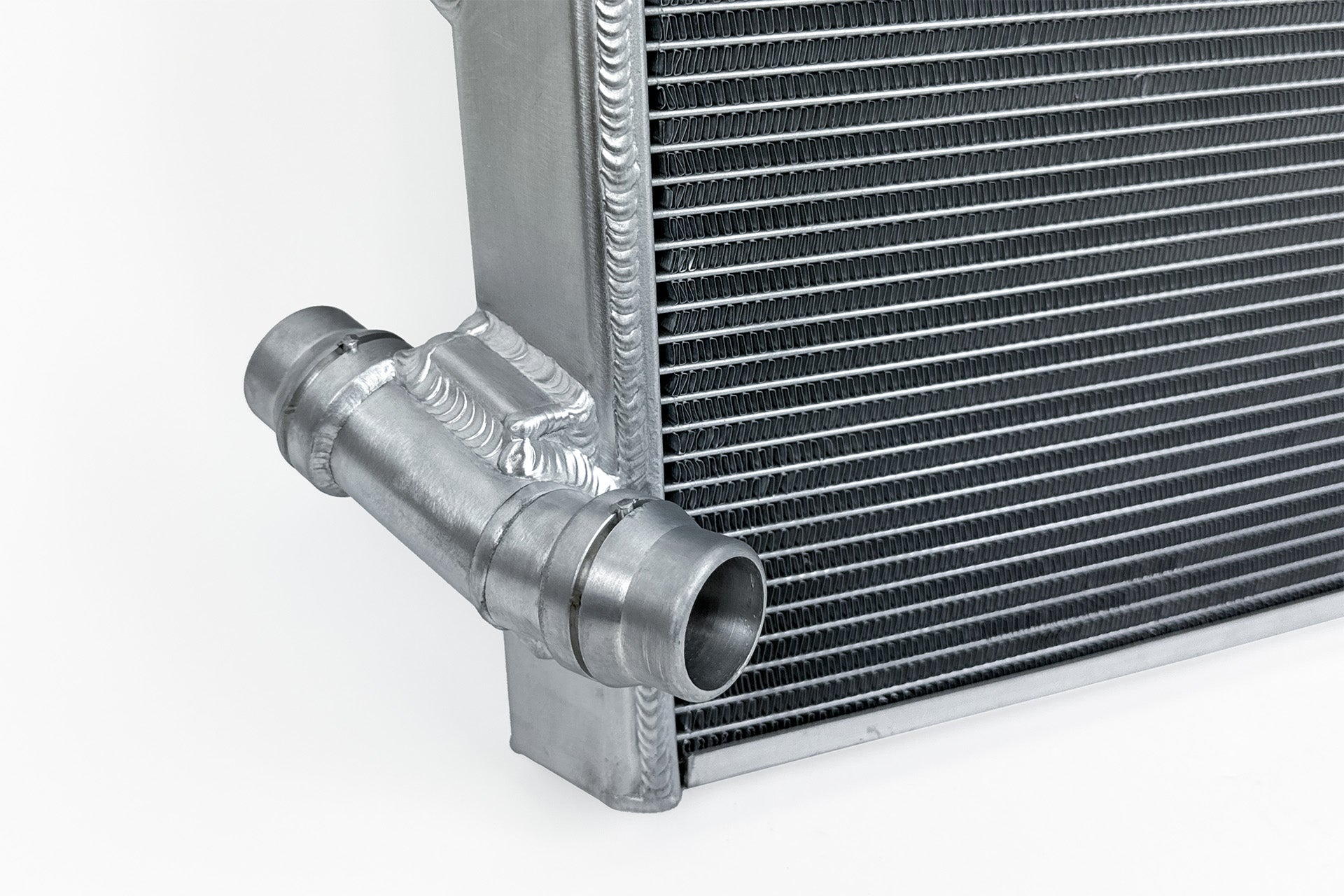

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications

Year Range	Make	Chassis Code	Model	Trim	Engine / Trans / Etc	Notes
2019-2026	Porsche	992.1	911	Carrera	Turbocharged 3.0L H6	-
2019-2026	Porsche	992.2	911	Carrera	Turbocharged 3.0L H6	-
2019-2024	Porsche	992.1	911	Carrera 4	Turbocharged 3.0L H6	-
2019-2024	Porsche	992.1	911	Carrera 4 GTS	Turbocharged 3.0L H6	-
2019-2025	Porsche	992.1	911	Carrera 4S	Turbocharged 3.0L H6	-
2019-2025	Porsche	992.2	911	Carrera 4S	Turbocharged 3.0L H6	-
2019-2022	Porsche	992.1	911	Carrera GTS	Turbocharged 3.0L H6	-
2019-2026	Porsche	992.1	911	Carrera S	Turbocharged 3.0L H6	-
2019-2026	Porsche	992.2	911	Carrera S	Turbocharged 3.0L H6	-
2019-2026	Porsche	992.1	911	Carrera T	Turbocharged 3.0L H6	-
2019-2026	Porsche	992.2	911	Carrera T	Turbocharged 3.0L H6	-
2025	Porsche	992.2	911	Targa 4	Turbocharged 3.0L H6	-
2025	Porsche	992.2	911	Targa 4S	Turbocharged 3.0L H6	-
2023-2024	Porsche	992	911	Sport Classic	Turbocharged 3.7L H6	-
2021-2025	Porsche	992	911	Turbo	Turbocharged 3.7L H6	-
2025	Porsche	992	911	Turbo 50 Years	Turbocharged 3.7L H6	-
2021-2025	Porsche	992	911	Turbo S	Turbocharged 3.7L H6	-
2025-2026	Porsche	992	911	Carrera GTS	Turbocharged FULL HYBRID EV-GAS (FHEV) 3.6L H6	-
2025-2026	Porsche	992	911	Carrera 4 GTS	Turbocharged FULL HYBRID EV-GAS (FHEV) 3.6L H6	-
2021-2024	Porsche	992	911	Targa 4	Turbocharged 3.0L H6	-
2021-2024	Porsche	992	911	Targa 4S	Turbocharged 3.0L H6	-
2021	Porsche	992	911	Targa 4S Heritage Design Edition	Turbocharged 3.0L H6	-
2022-2024	Porsche	992	911	Targa 4 GTS	Turbocharged 3.0L H6	-
2025-2026	Porsche	992	911	Targa 4 GTS	Turbocharged FULL HYBRID EV-GAS (FHEV) 3.6L H6	-

OEM Part Numbers

• Porsche: 992-121-252 *Right
• Porsche: 992 121 252 *Right
• Porsche: 992121252 *Right

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 7242 Warranty Term: 2 years
