BMW F1X M5 & M6 Twin Charge-Air-Cooler Set - Raw Finish

The S63 4.4L Twin Turbo V8 in the BMW F1X M5/M6 is an absolute monster that responds incredibly well to bolt-on upgrades, larger turbos, and performance tuning. Tuners quickly found that increasing power on the S63 pushed charge air temperatures past the OEM Charge-Air-Coolers' limits resulting in dangerously high Intake Air Temperatures (IATs). Pure turbos approached CSF to develop a Charge-Air-Cooler upgrade that would hold up to the extreme boost levels their turbos upgrades could generate and keep the car's IATs in check. The result was the World's 1st Cast End Tank Designed High-Performance Charge-Air-Cooler Set for the F1X M5/M6. CSF used CFD analysis and testing to create the largest charge-air-cooler that could fit in the factory location. The Top/Bottom, Cross-Flow, Dual-Pass Cores are 28% larger than the factory coolers and offer significant reductions in IATs at increased boost levels.

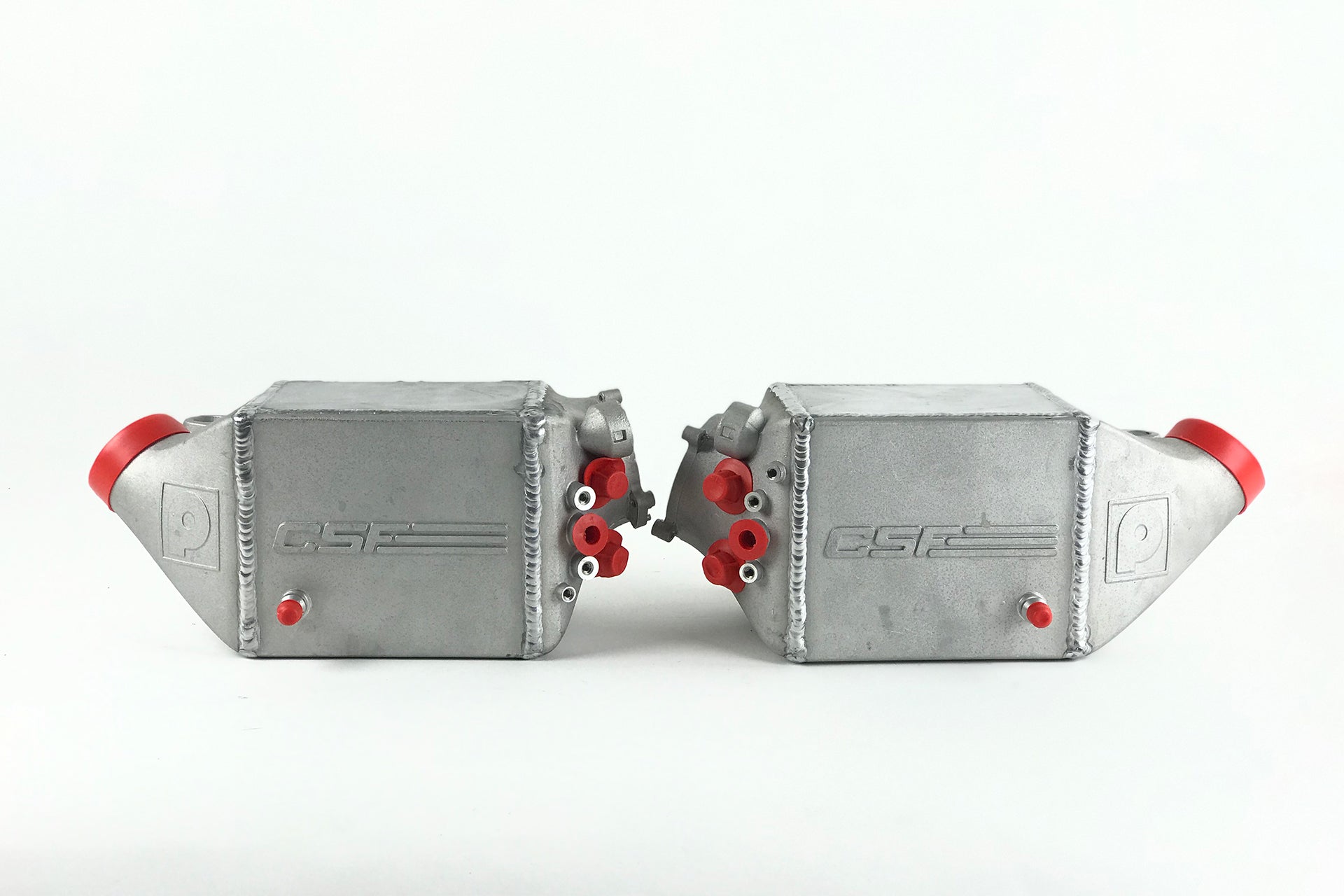

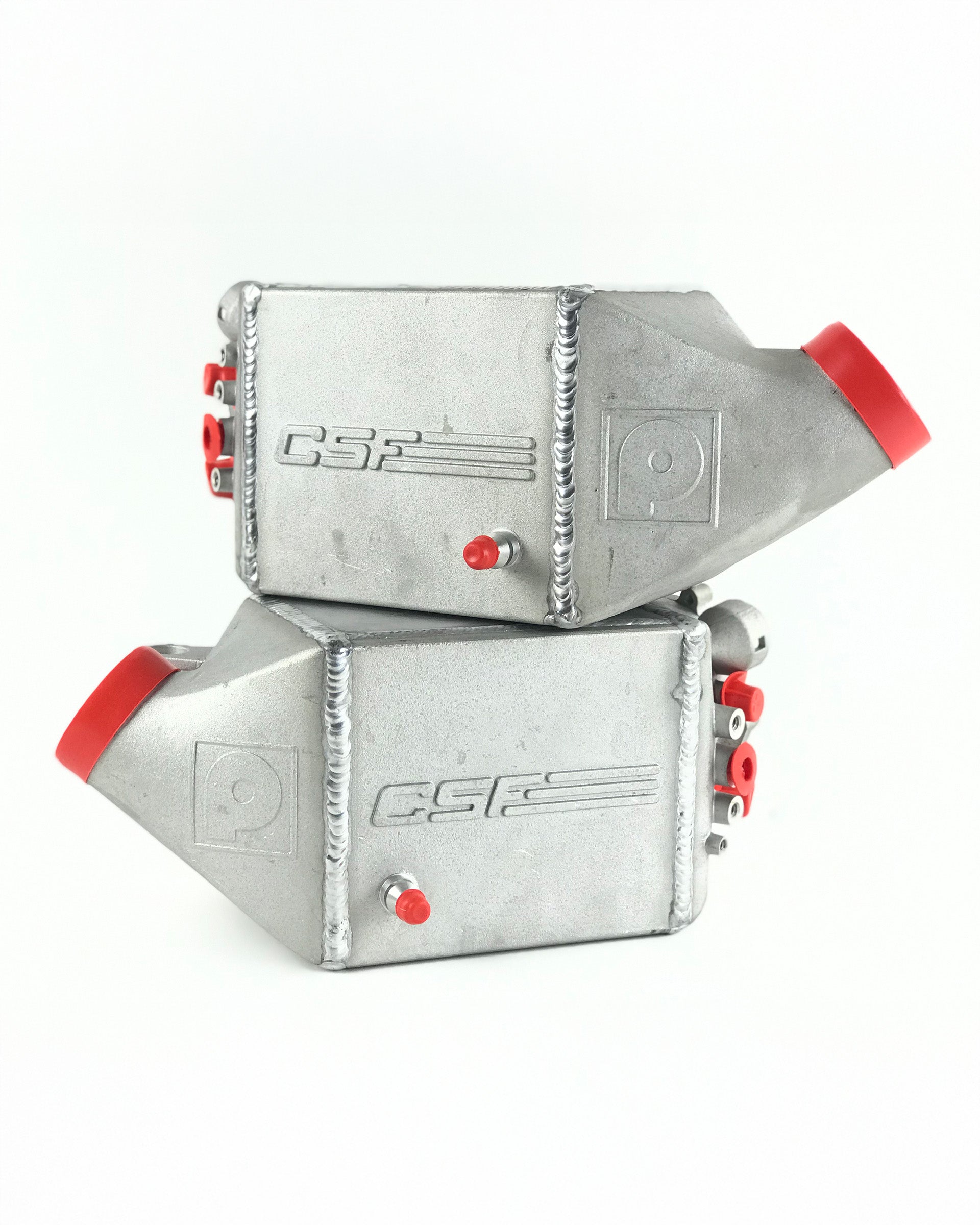

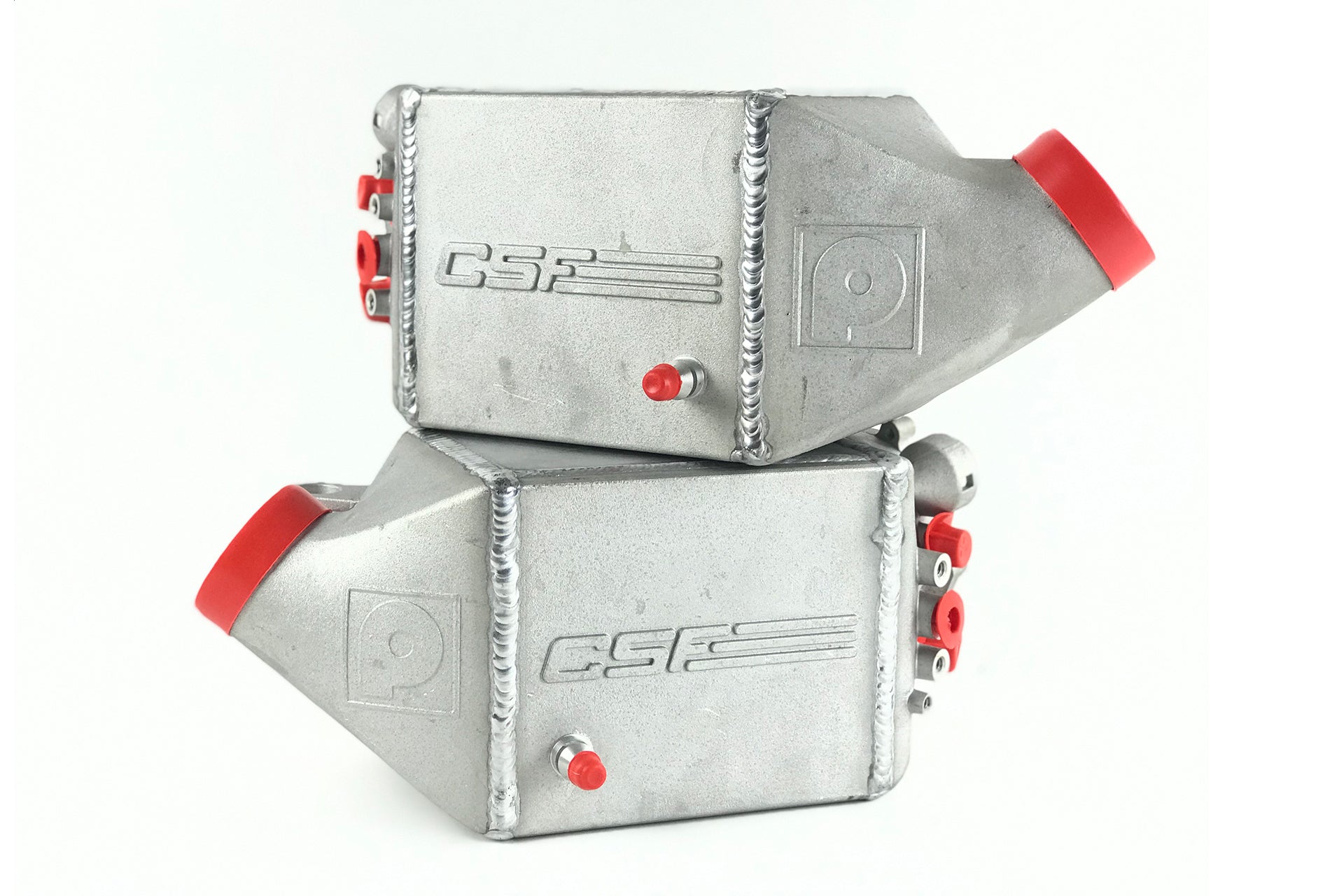

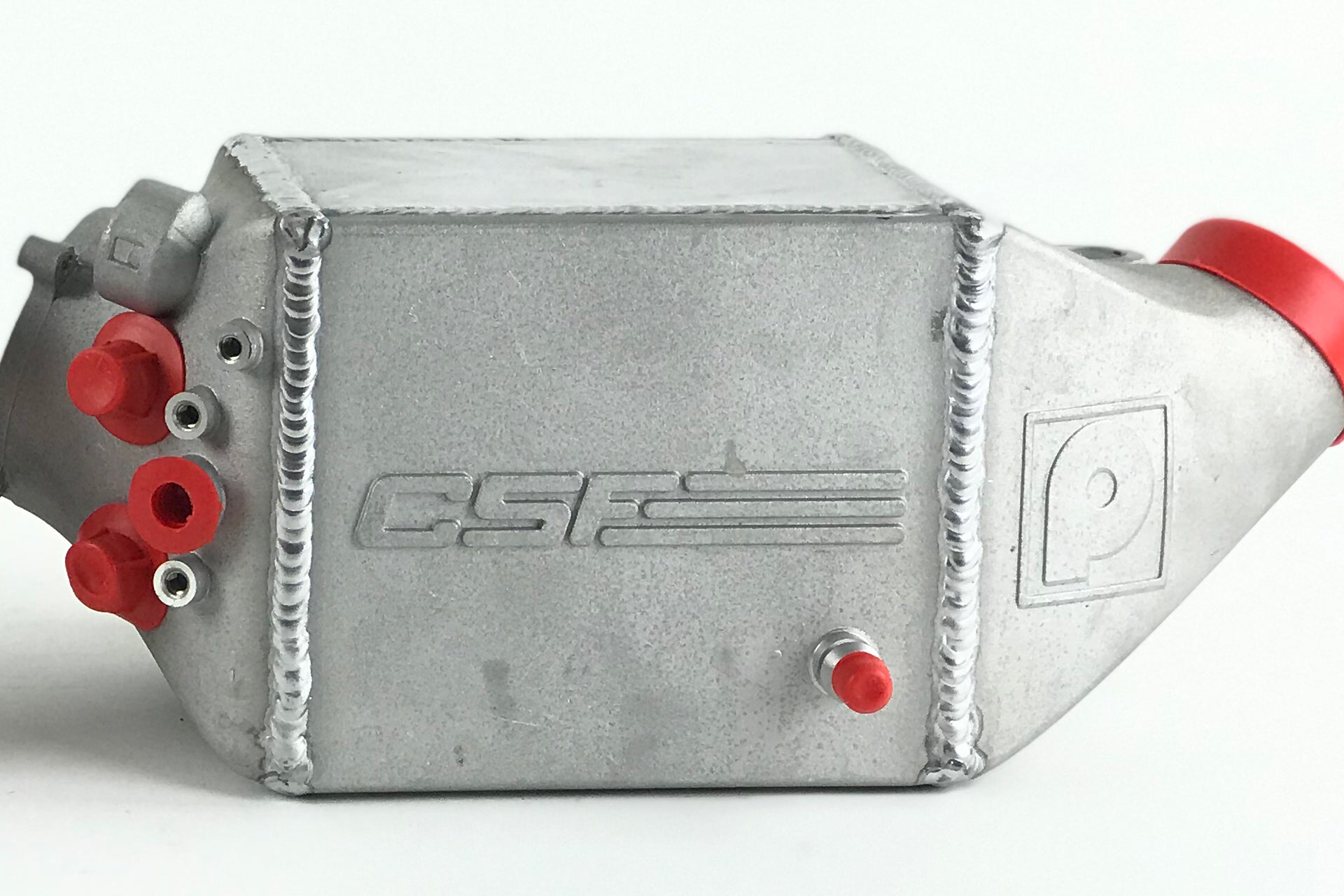

The CSF #8109R Twin Charge-Air-Cooler Set comes in Raw Aluminum with Options for Custom Powder-Coating Available. It is also available with a Professional "Crinkle Black" Powder-Coated Finish (CSF #8109)

Product Details

Design & Engineering

CSF teamed up with Pure Turbos to bring you the World's 1st Cast End Tank Designed High-Performance Charge-Air-Cooler Set for the BMW F1X M5/M6. Utilizing cuttingedge CFD Analysis and Testing, CSF designed a custom Liquid-To-Air Intercooler Core to ensure optimal performance.

OEM vs CSF

CSF was able to increase the Charge-Air-Cooler cores by 28% on each side. A Top to Bottom, Cross-Flow, Dual Pass configuration offers vastly superior cooling capacity compared to stock. In testing, Intake Air Temperatures (IATs) were 14°C lower with the CSF coolers compared to stock despite ambient temperatures being 6°C higher during the CSF test session.

It is common to see a slight drop in boost pressure when moving to larger Charge-Air-Coolers (or intercoolers). Any potential downside of this is generally offset by the increased flow and lower IATs. The CSF coolers saw just under a 1 PSI pressure drop which is very impressive.

CSF also incorporated Water/Methanol Injection Ports into the end tanks for additional tuning capabilities.

Additional Test Data

OEM vs CSF testing with Methanol Injection

"Some logs with the Pure/CSF. I can very certainly state that it cools way better than the OEM unit. I don't have any airflow validation yet until I run on the dyno but it definitely cools the intake charge much better.

If you look at any pre-IC log (with or without meth)… and I selected meth-enabled logs (as that's what I have the most of)...IATs usually increase over the course of a pull. With the upgraded IC's the IATs actually decrease (significantly) over the course of a pull. I have logs at similar boost levels (~25psi) and you can clearly see the difference.

Even without meth flowing (post-IC injection) the IATs drop over the course of a pull. Now I don't have a true 1/2 mile or 1/4 mile type distance log, but I do anticipate a significant improvement."

3rd Party Validation from
World-Record Holding F10 M5
@allturbo_2000

1/2 Mile Racing Log at SHIFT S3CTOR

Custom Color Options, From the Leader in BMW Cooling Customization

CSF has become the industry leader and innovator of custom finished cooling products. We first started with our most popular BMW S55 Charge-Air Cooler, then expanded to other BMW models such as our F1X M5/M6 and best selling B58 Charge-Air Cooler systems. Most of the same custom finishes can be ordered on CSF #8109R.

• These Charge-Air-Coolers cannot be anodized
• CSF is not responsible for warranties for Coolers coated by anyone other than CSF
• Lead time is 3-4 weeks depending on finish selection

Thermal Dispersion Black

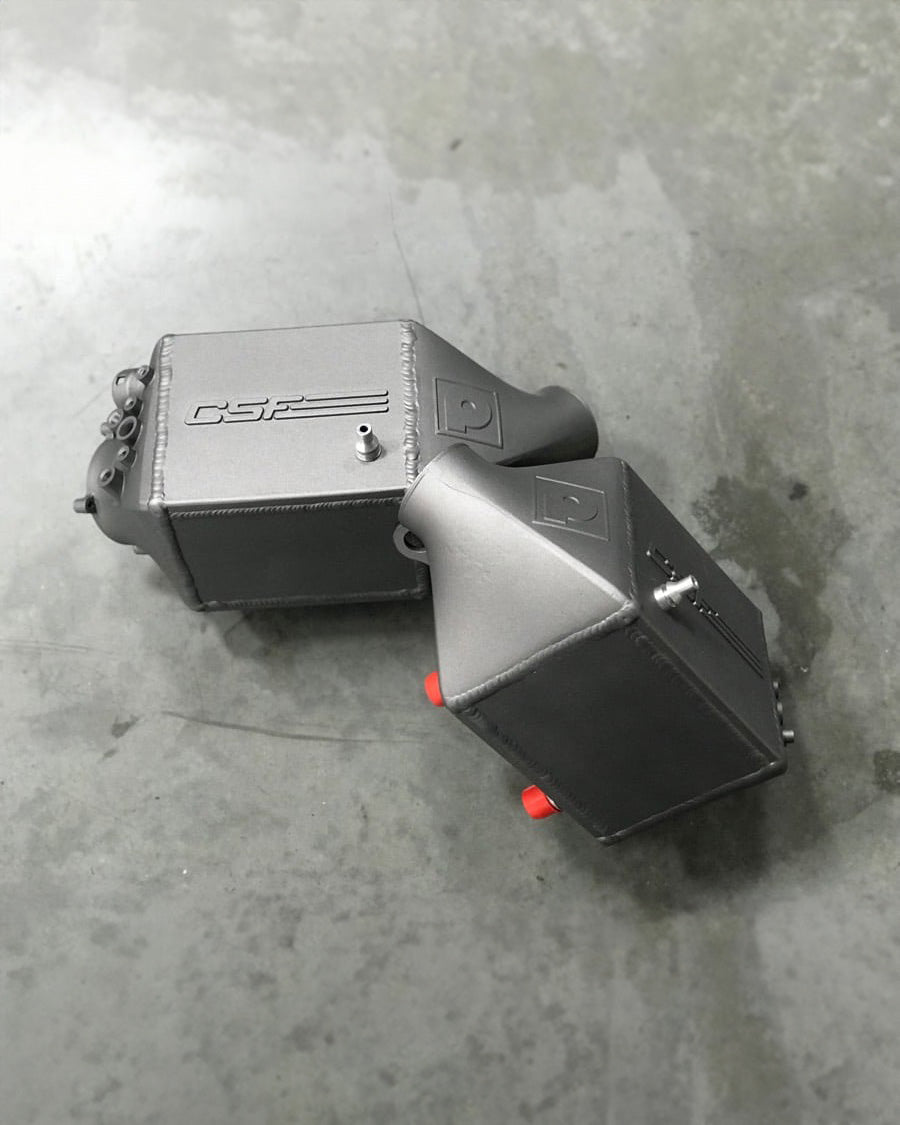

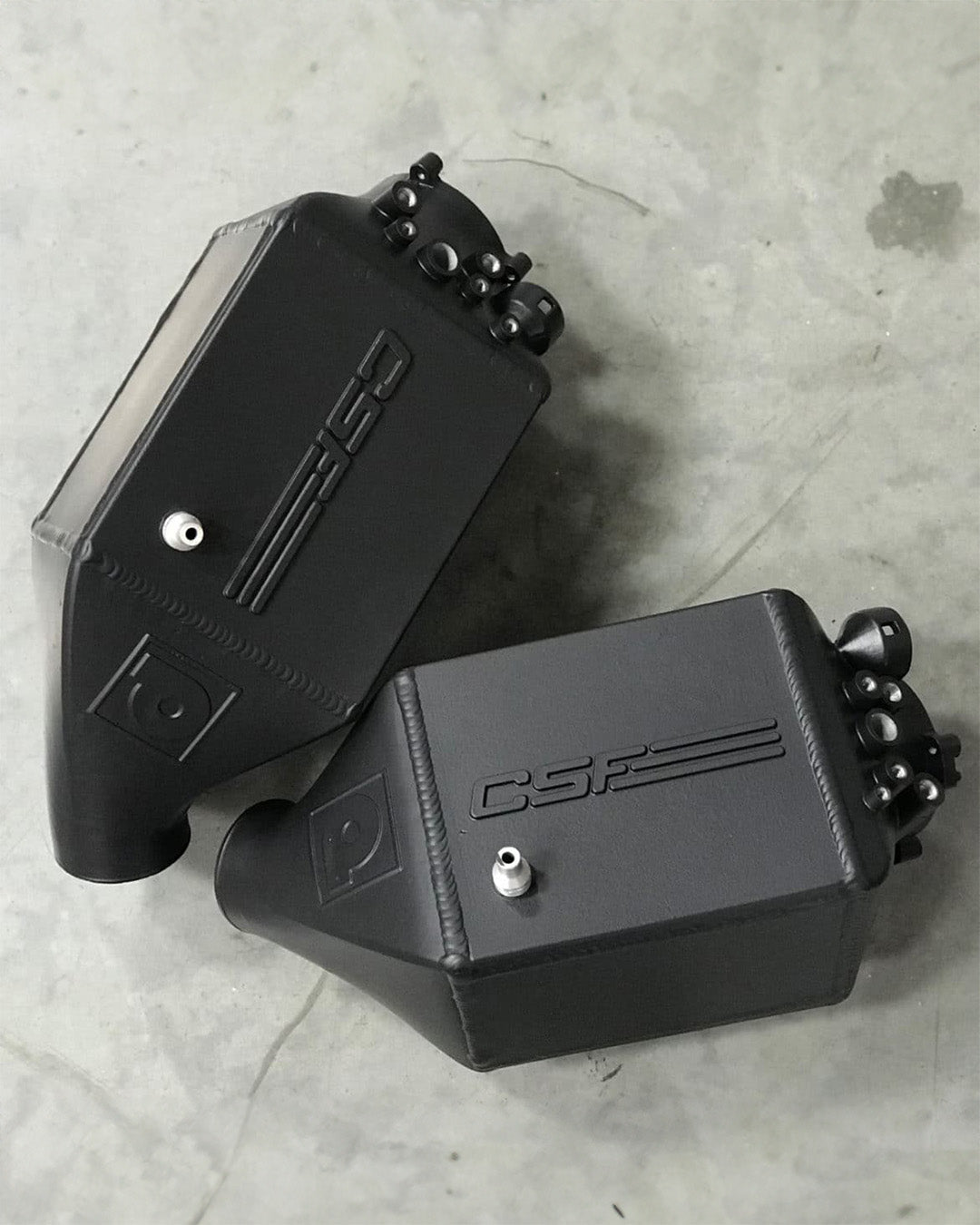

CSF's most popular custom finish, Thermal Black Heat Dispersion Cerakote is available as a custom finish option.

Thermal Dispersant/Dispersion Coatings are submicron coatings with extremely high thermal conductivity. Due to their density and chemical composition they offer highly efficient heat transfer. In the case of a coated heat exchanger like an intercooler, the higher thermal conductivity of the coating helps draw heat to the surface of the part.

These coatings are limited to Black or Grey colors but offer the best performance. For more details on Thermal Dispersion Coatings, visit our article explaining the how they work and the performance benefits.

Thermal Dispersion: The Best Coating for Intercoolers

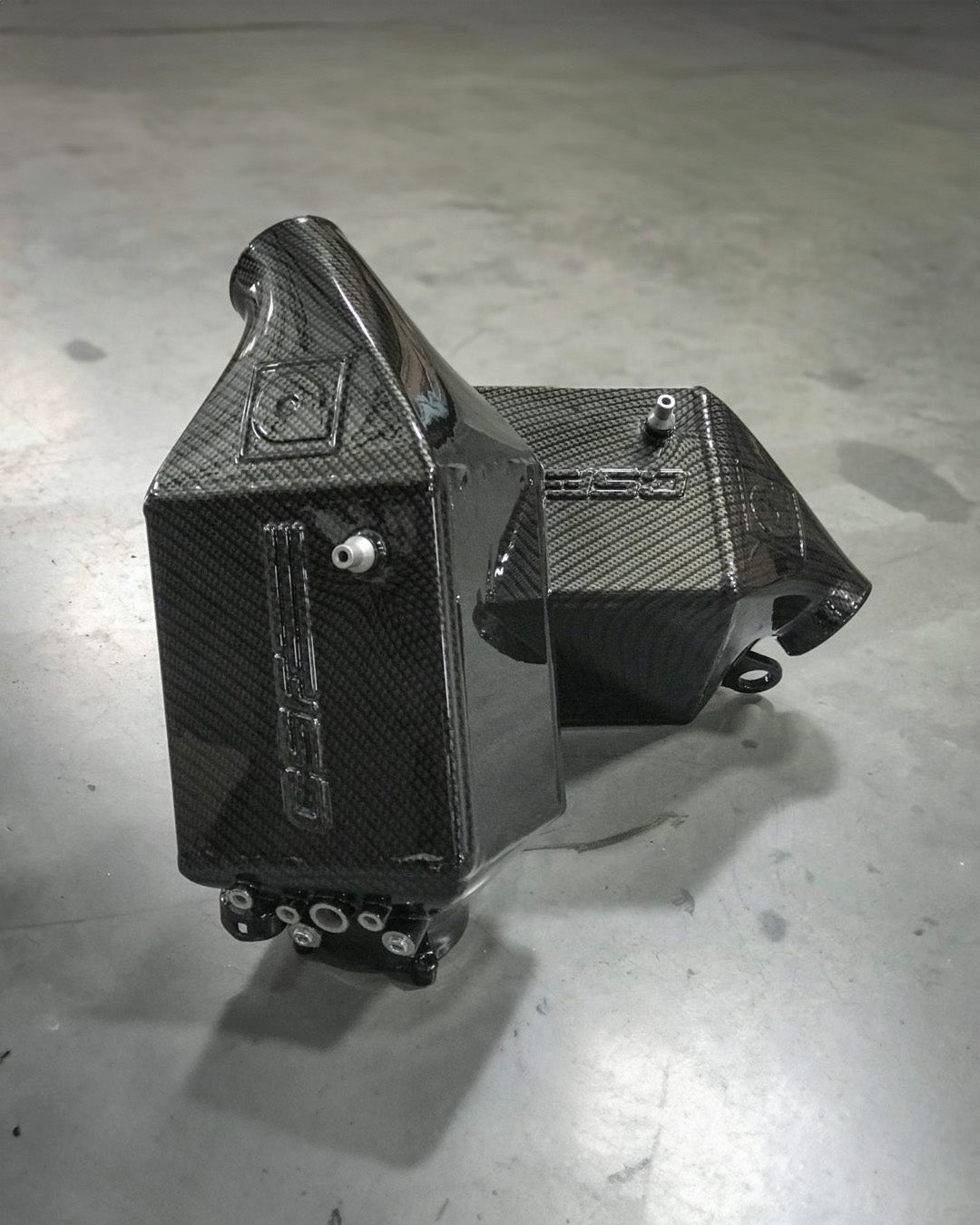

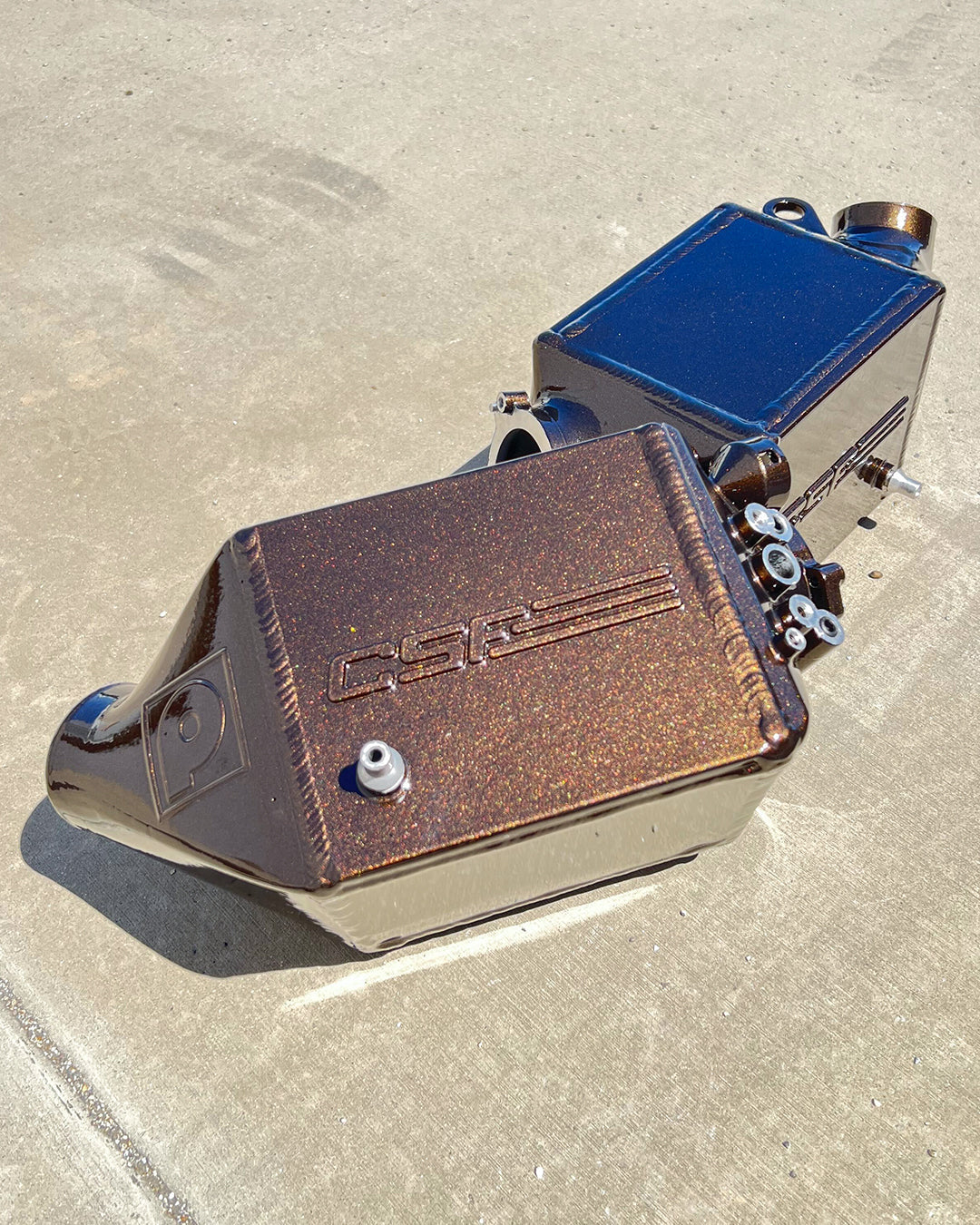

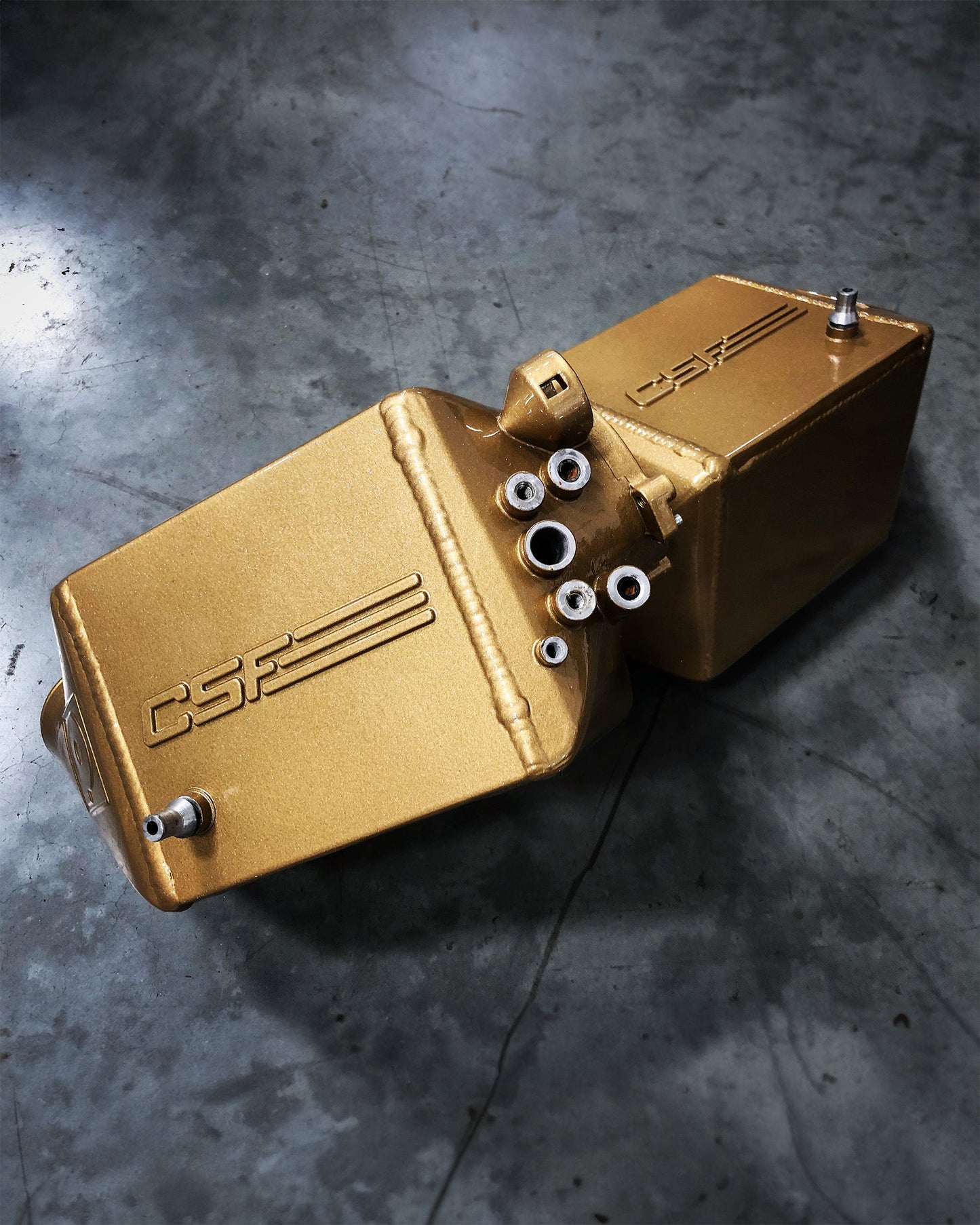

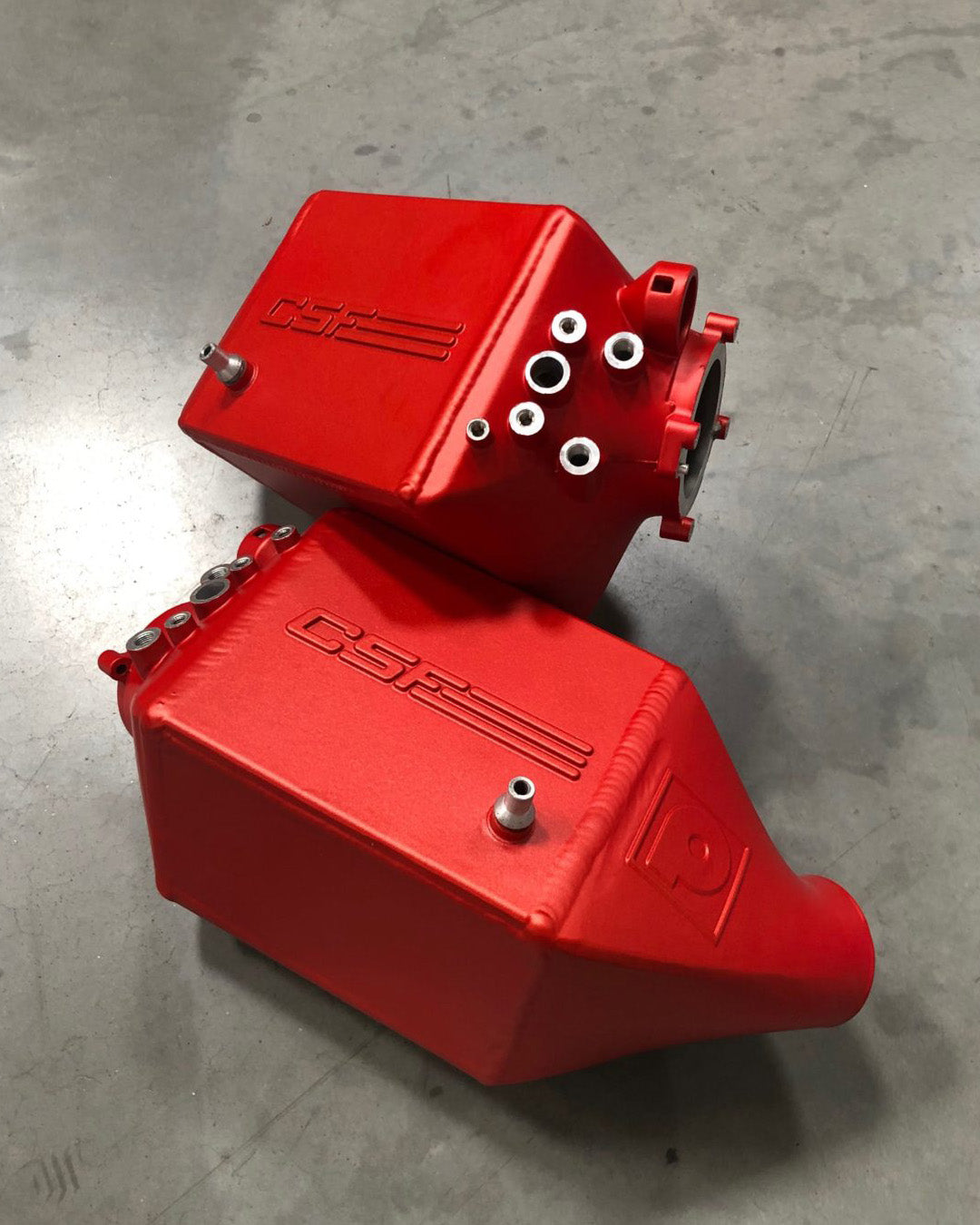

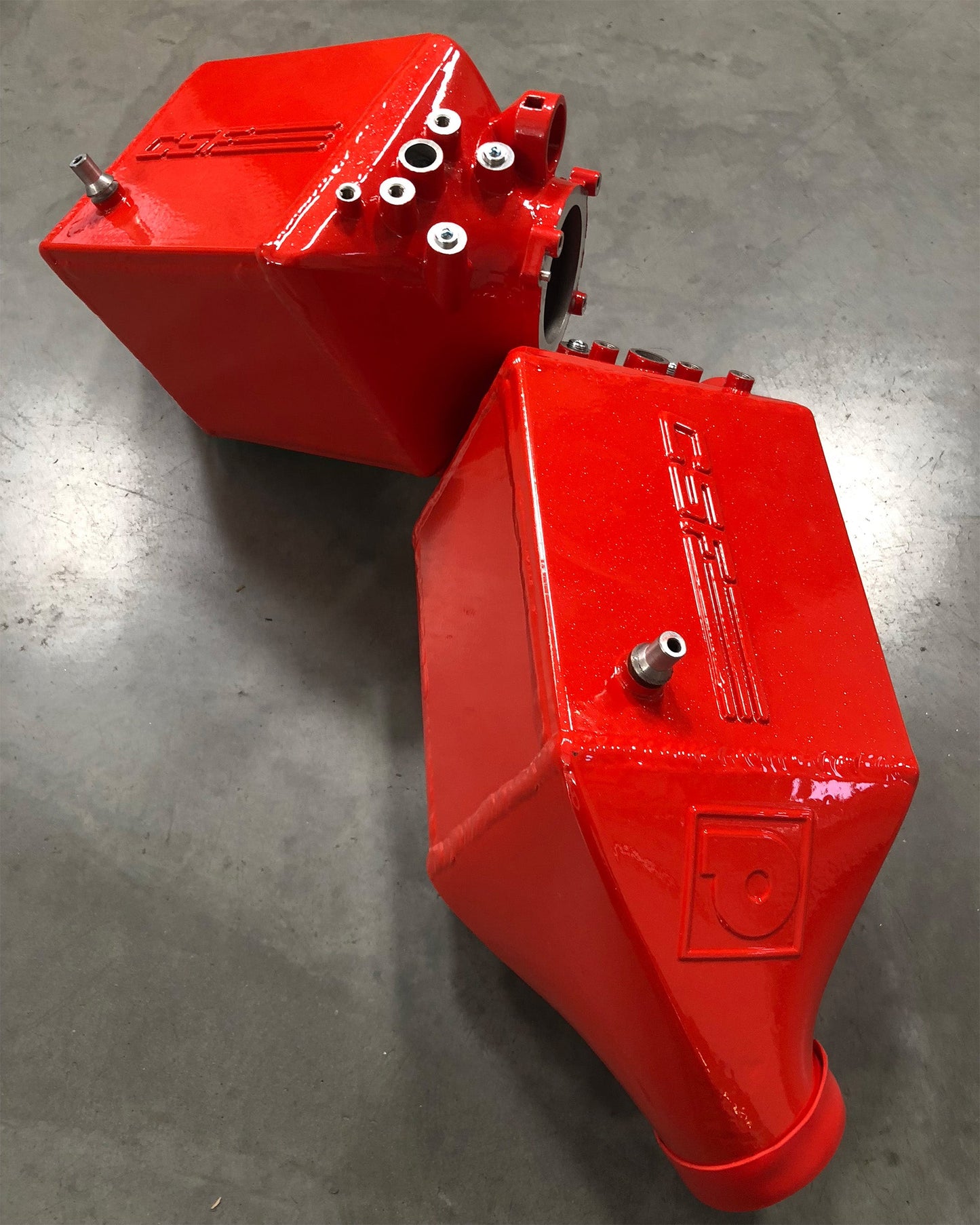

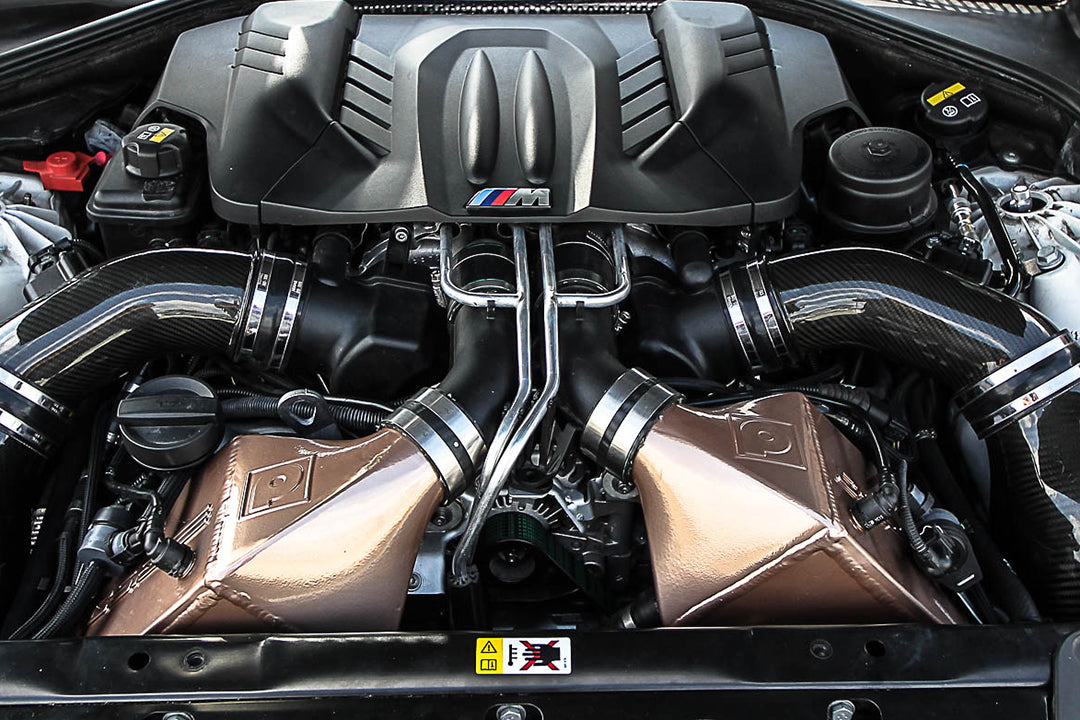

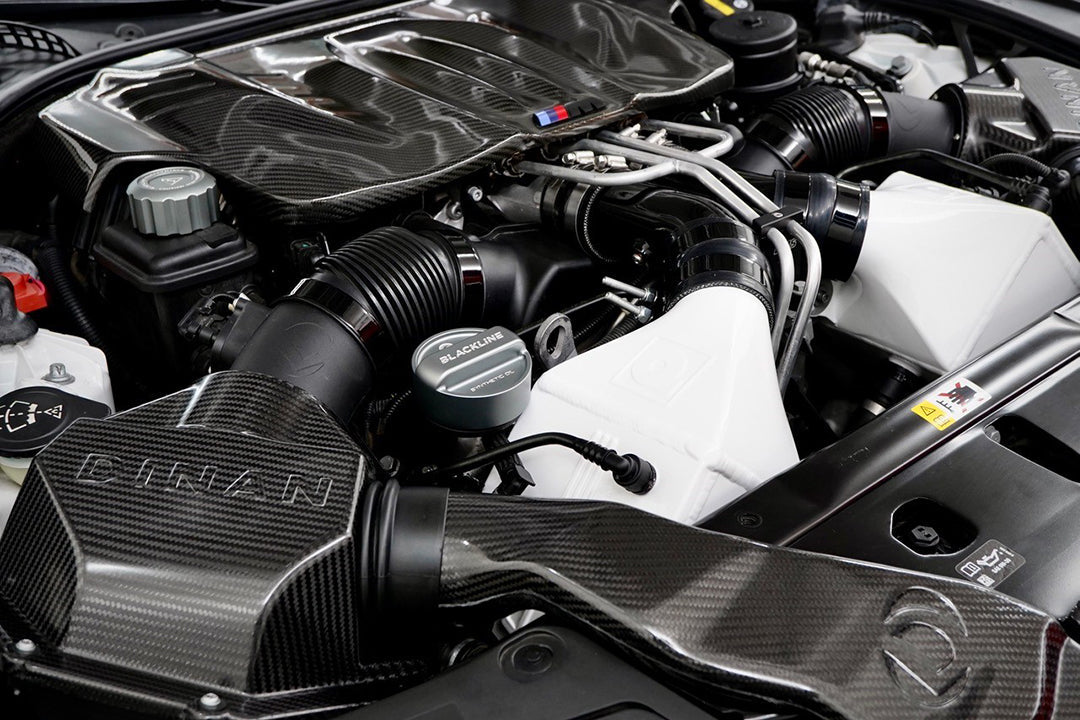

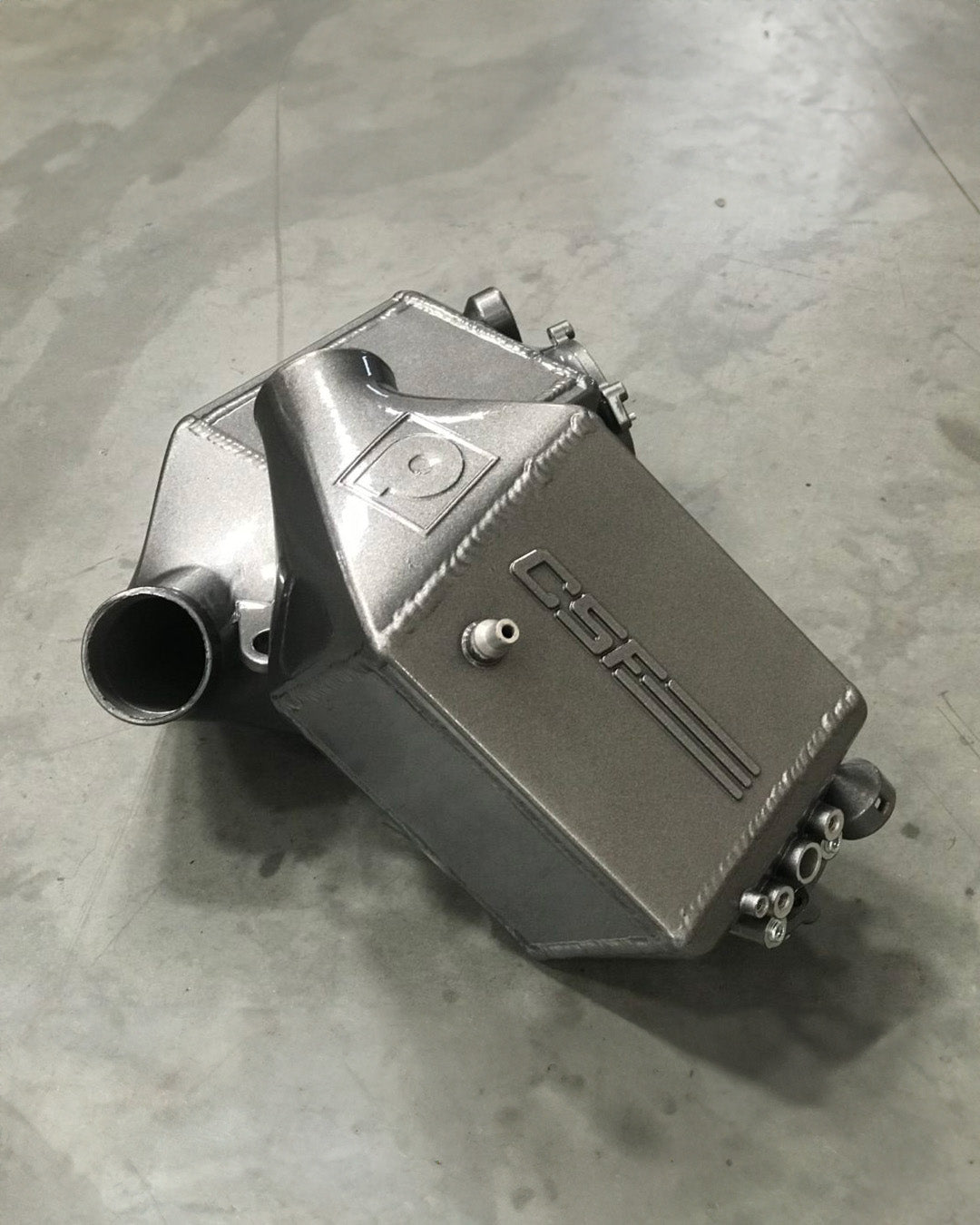

Custom Finishes

CSF offers the widest variety of custom finishes in the industry. From color matched powder coating to high tech Thermal Dispersion Coatings, the options are limitless.

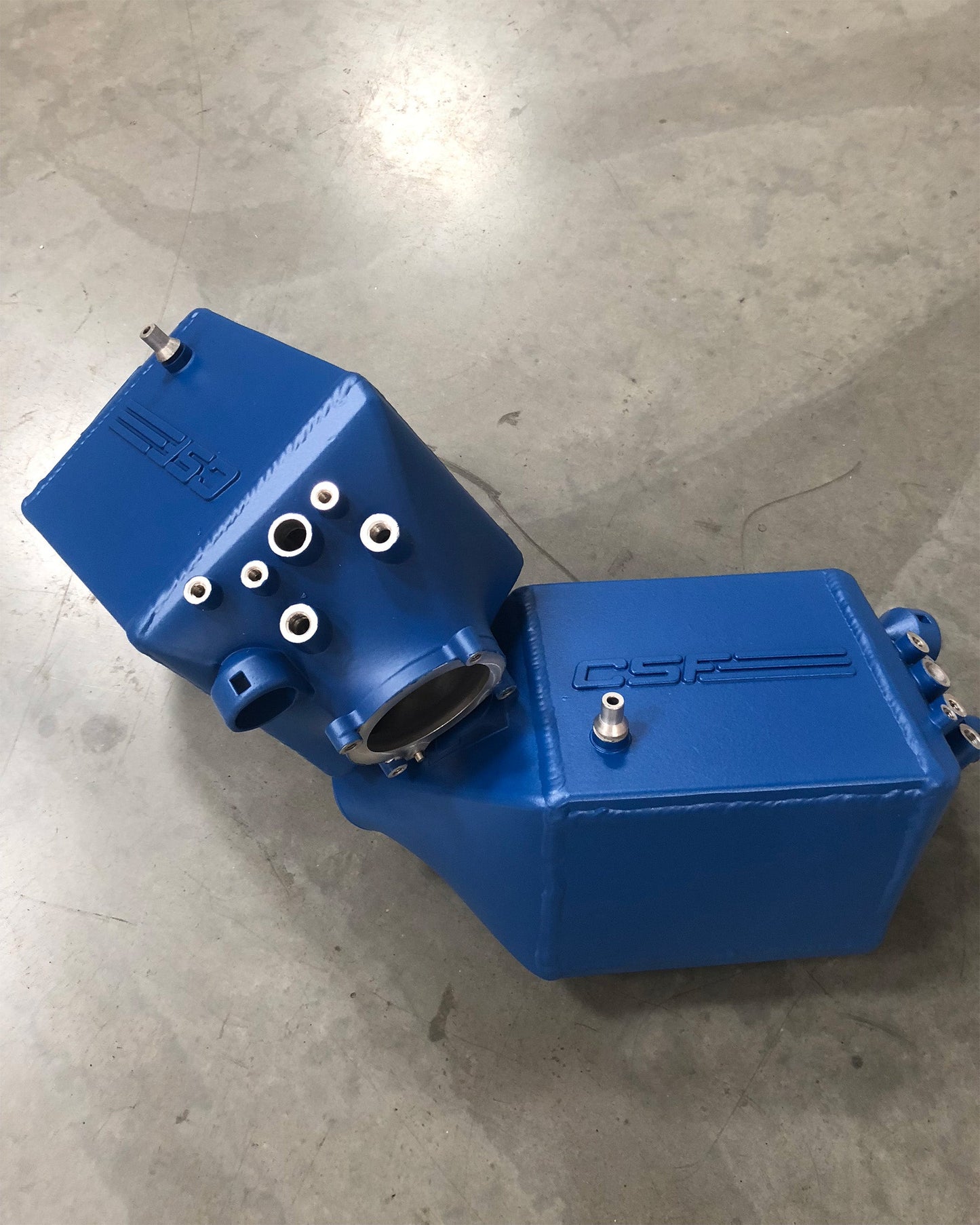

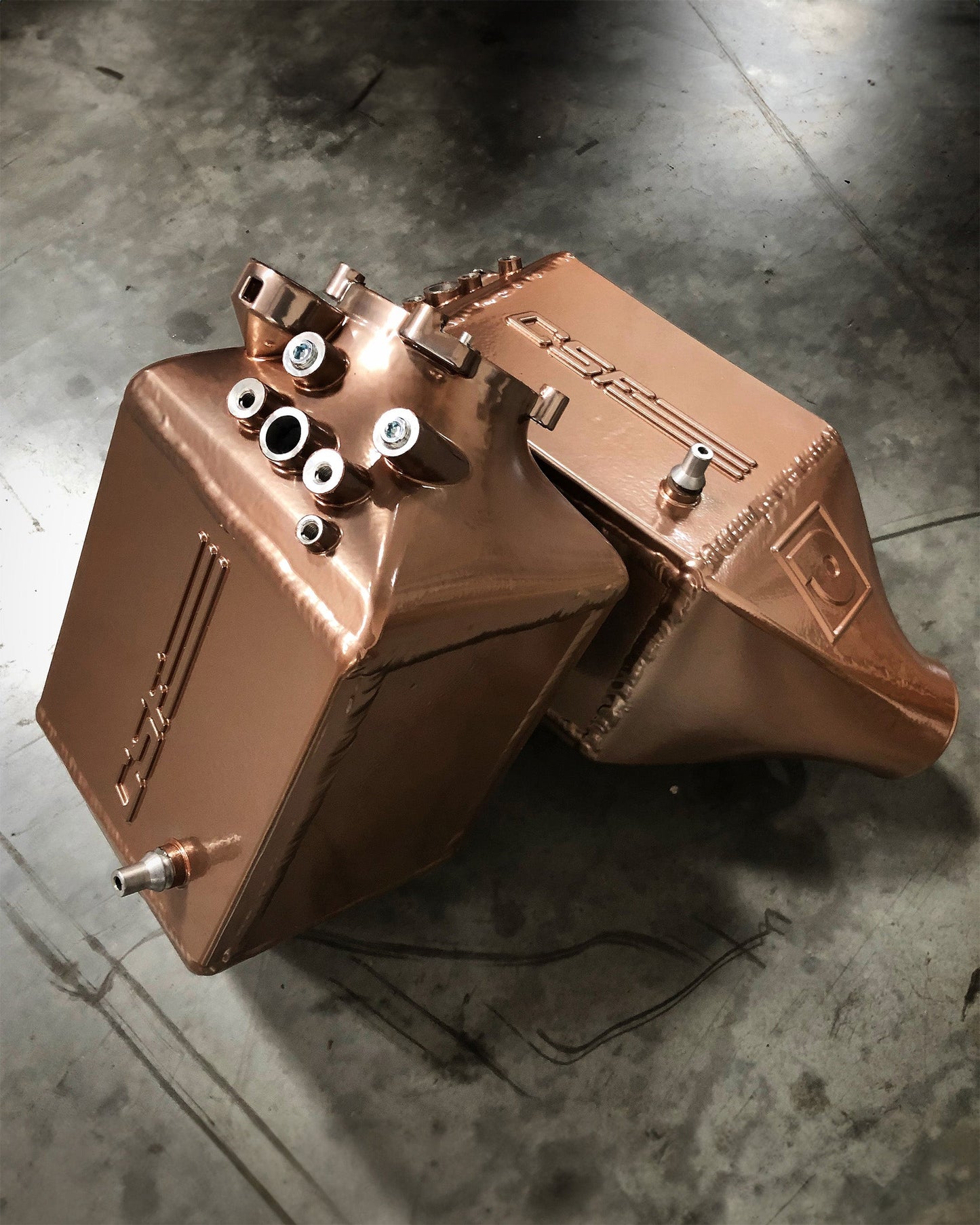

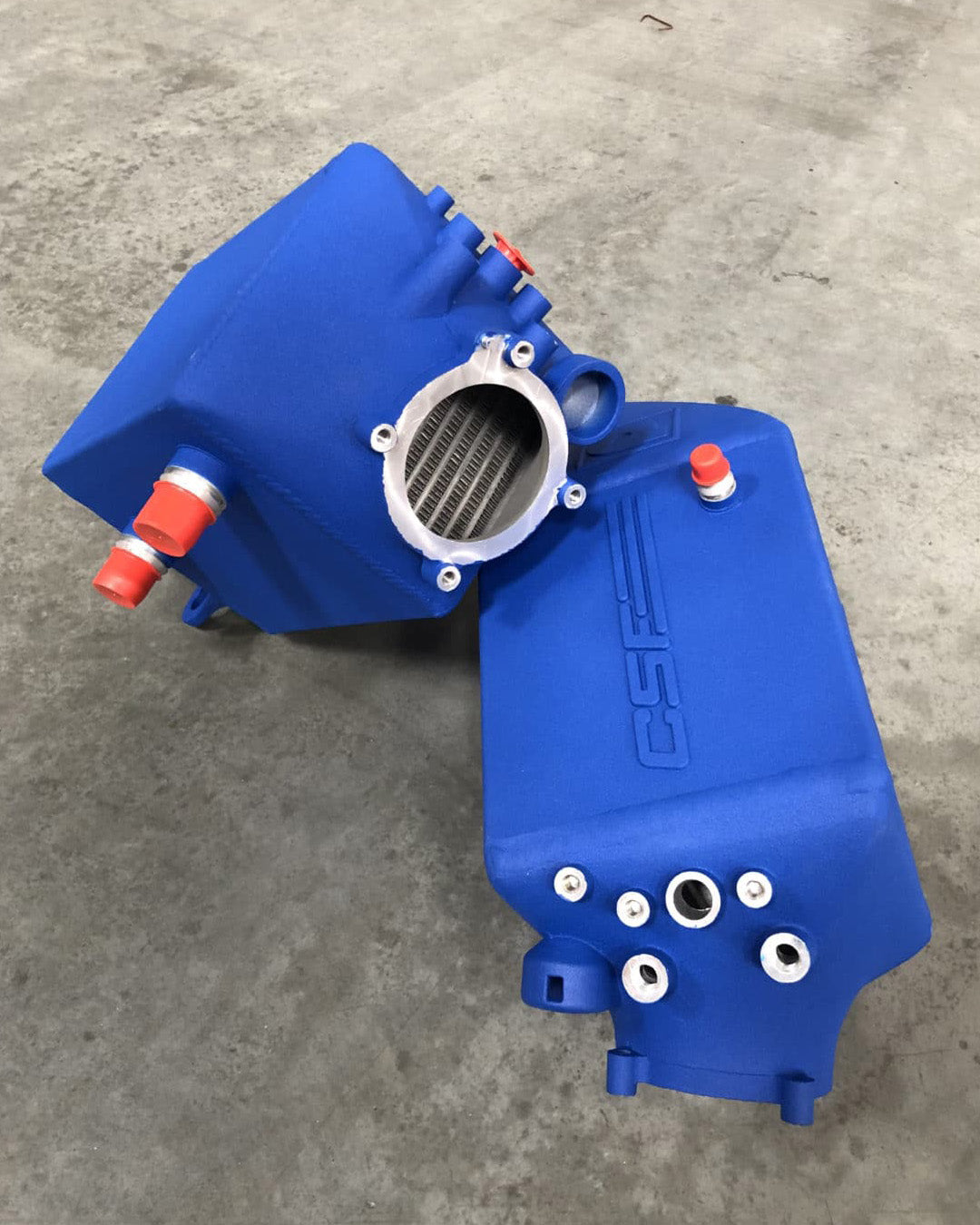

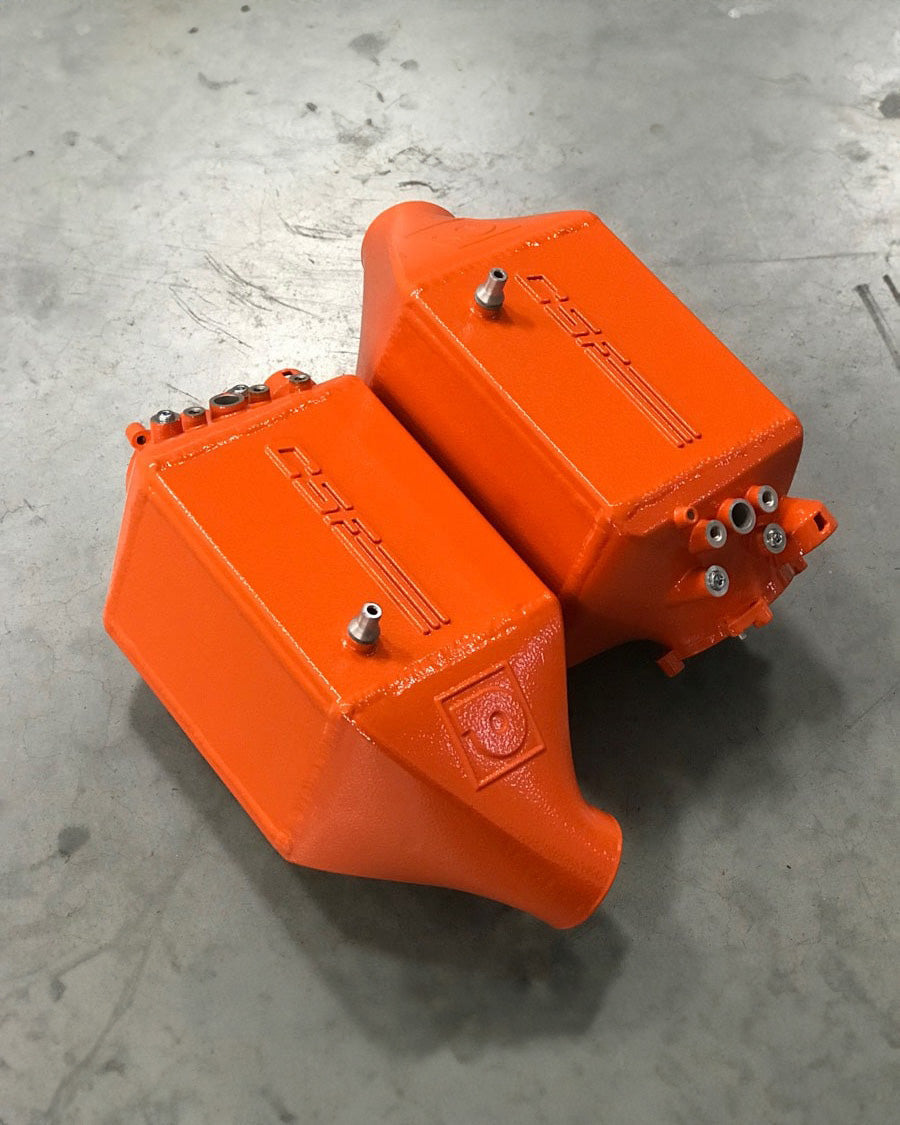

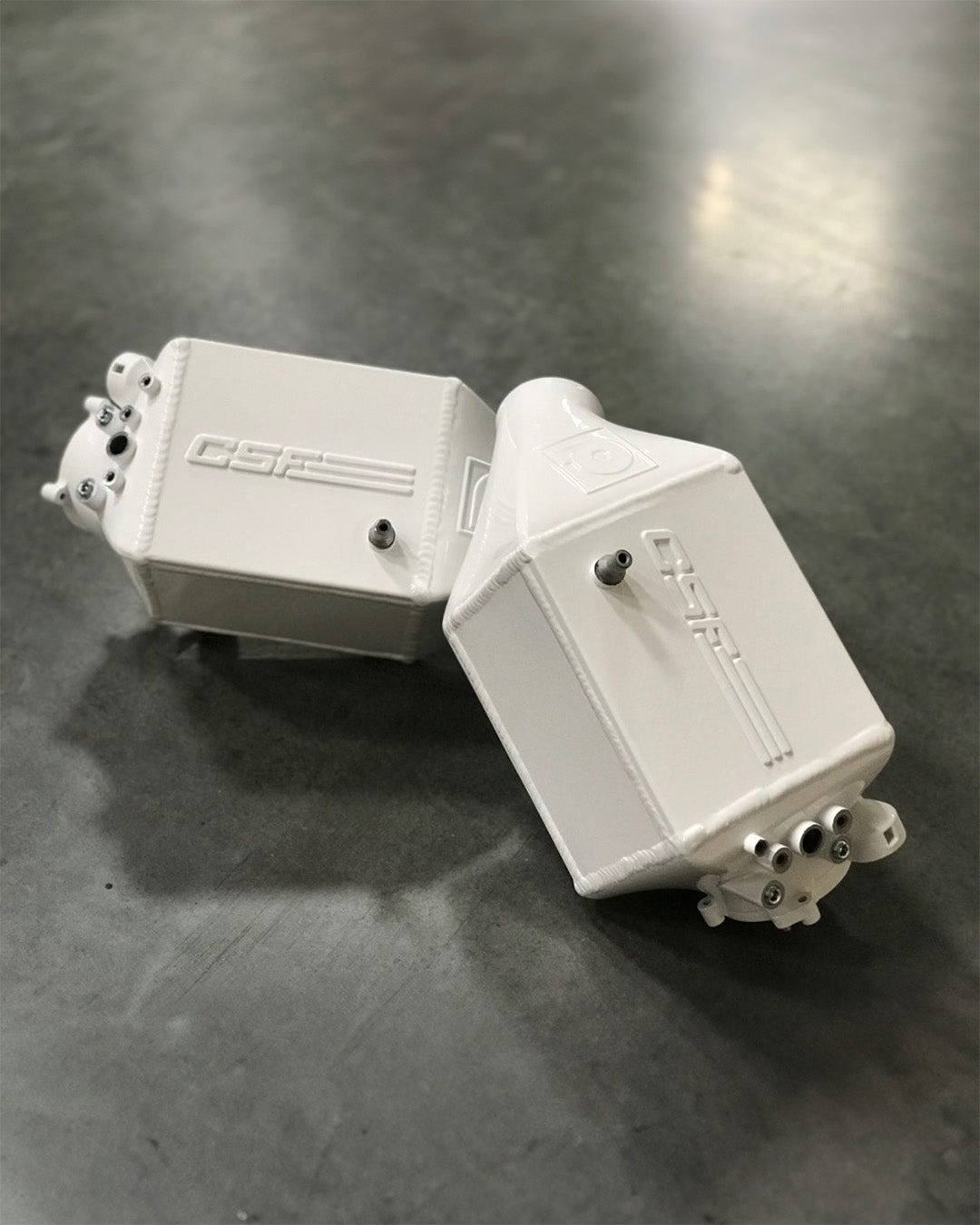

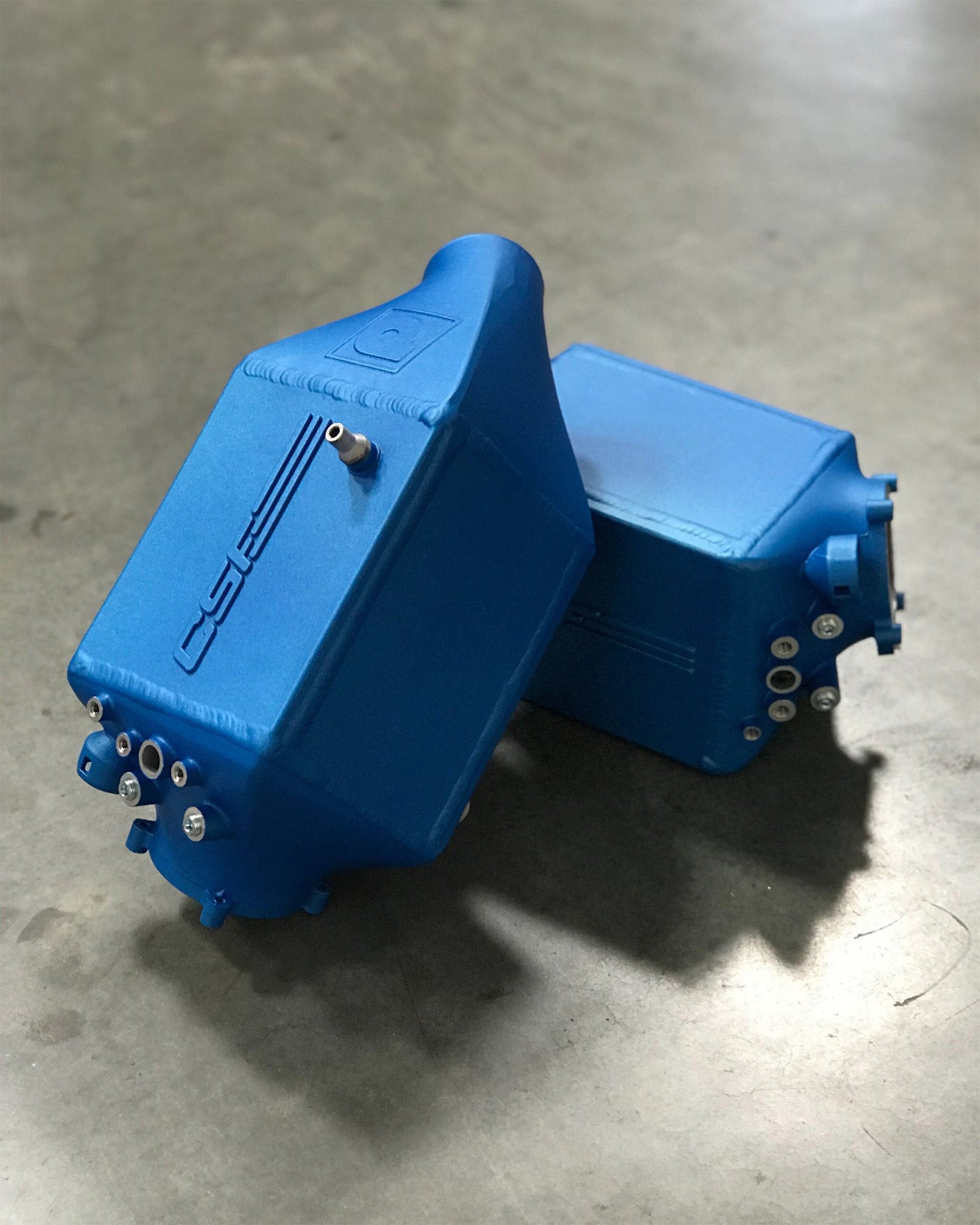

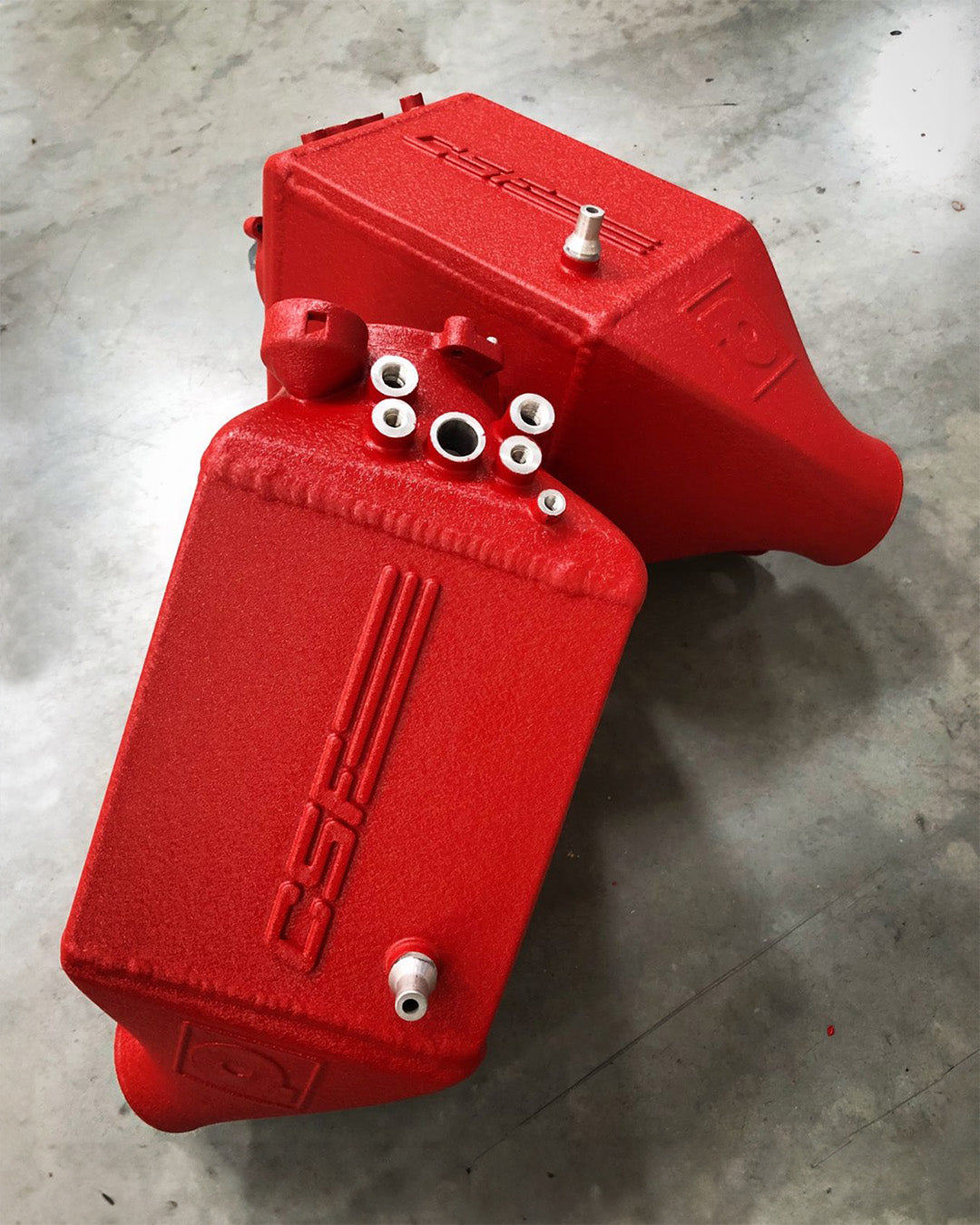

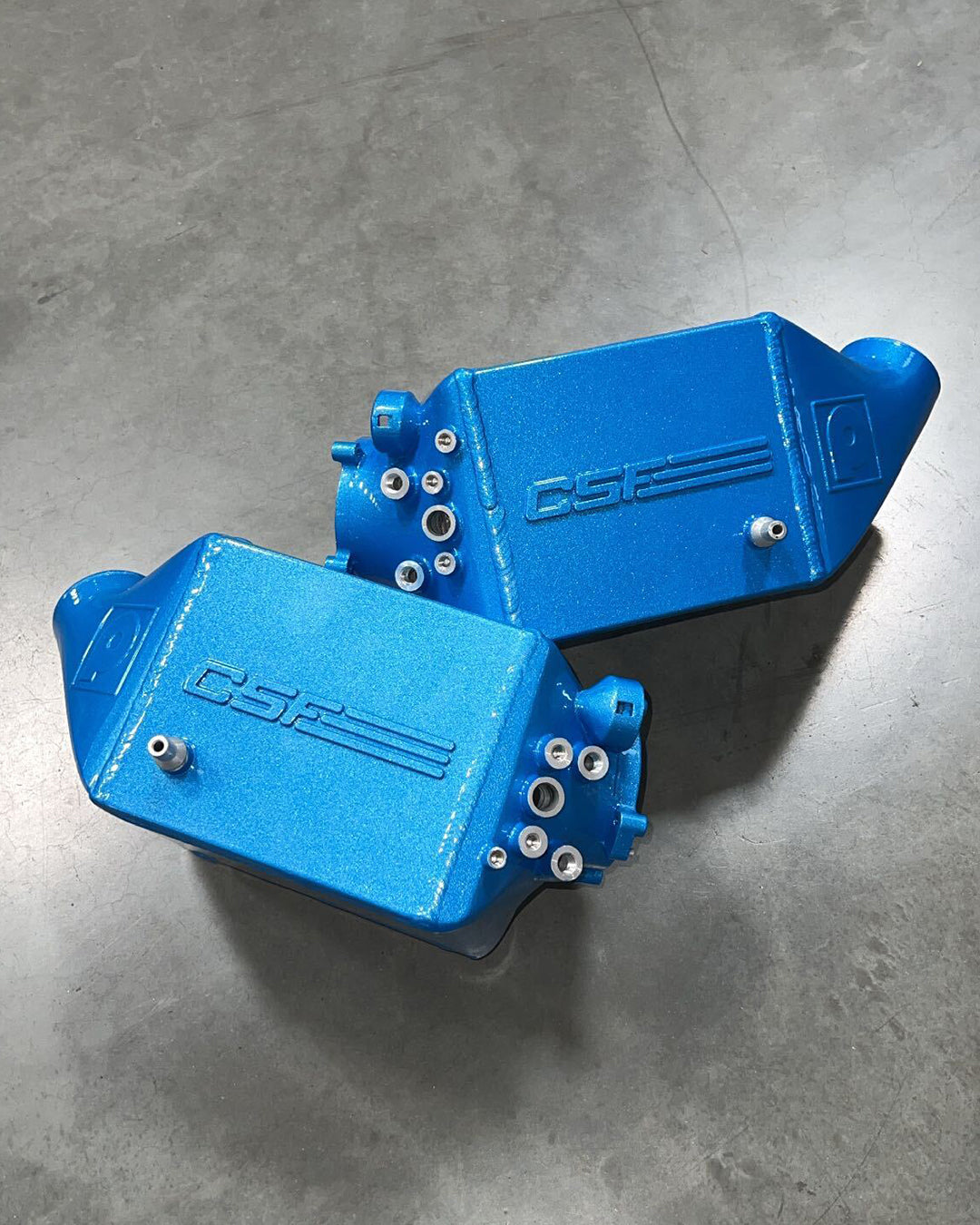

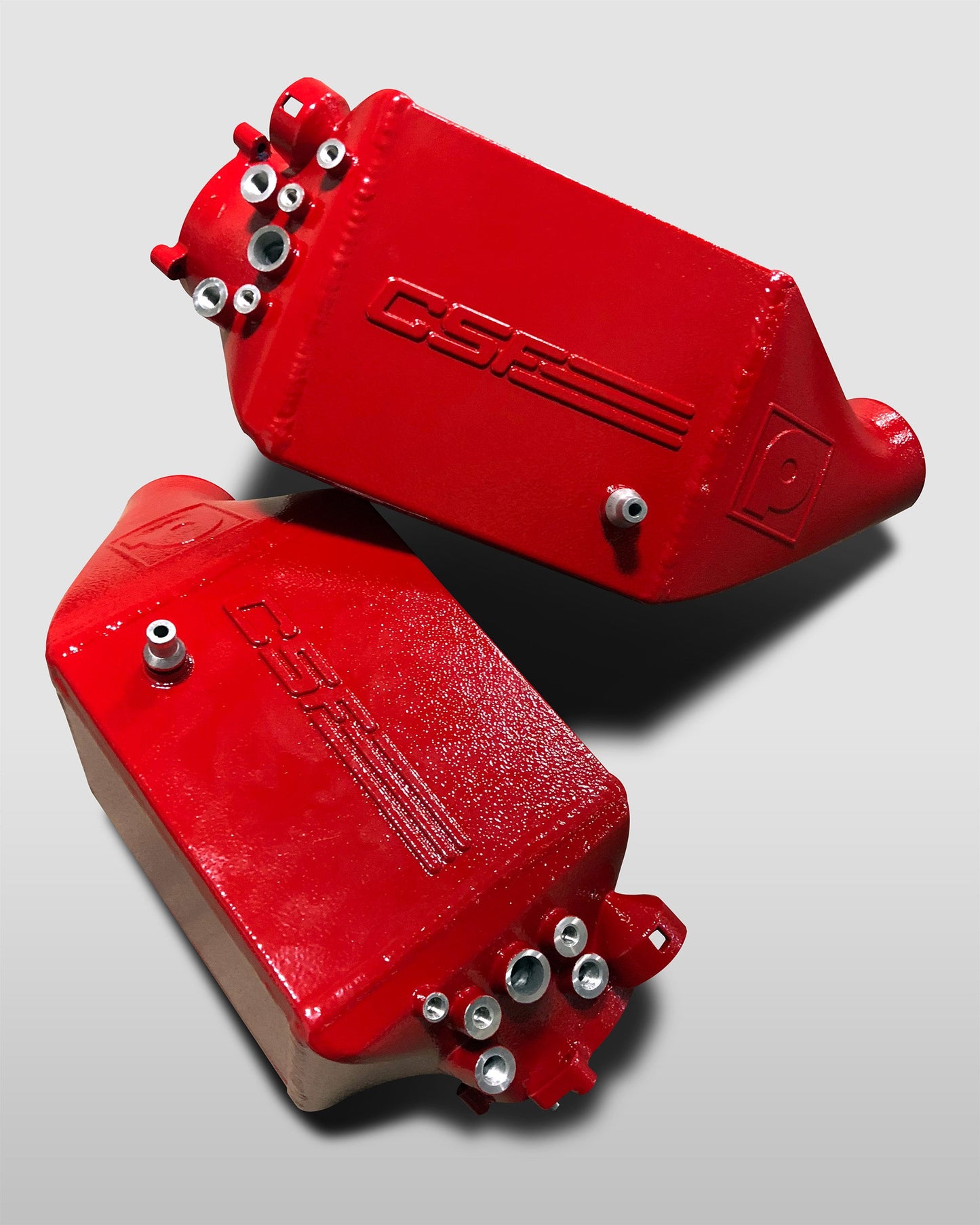

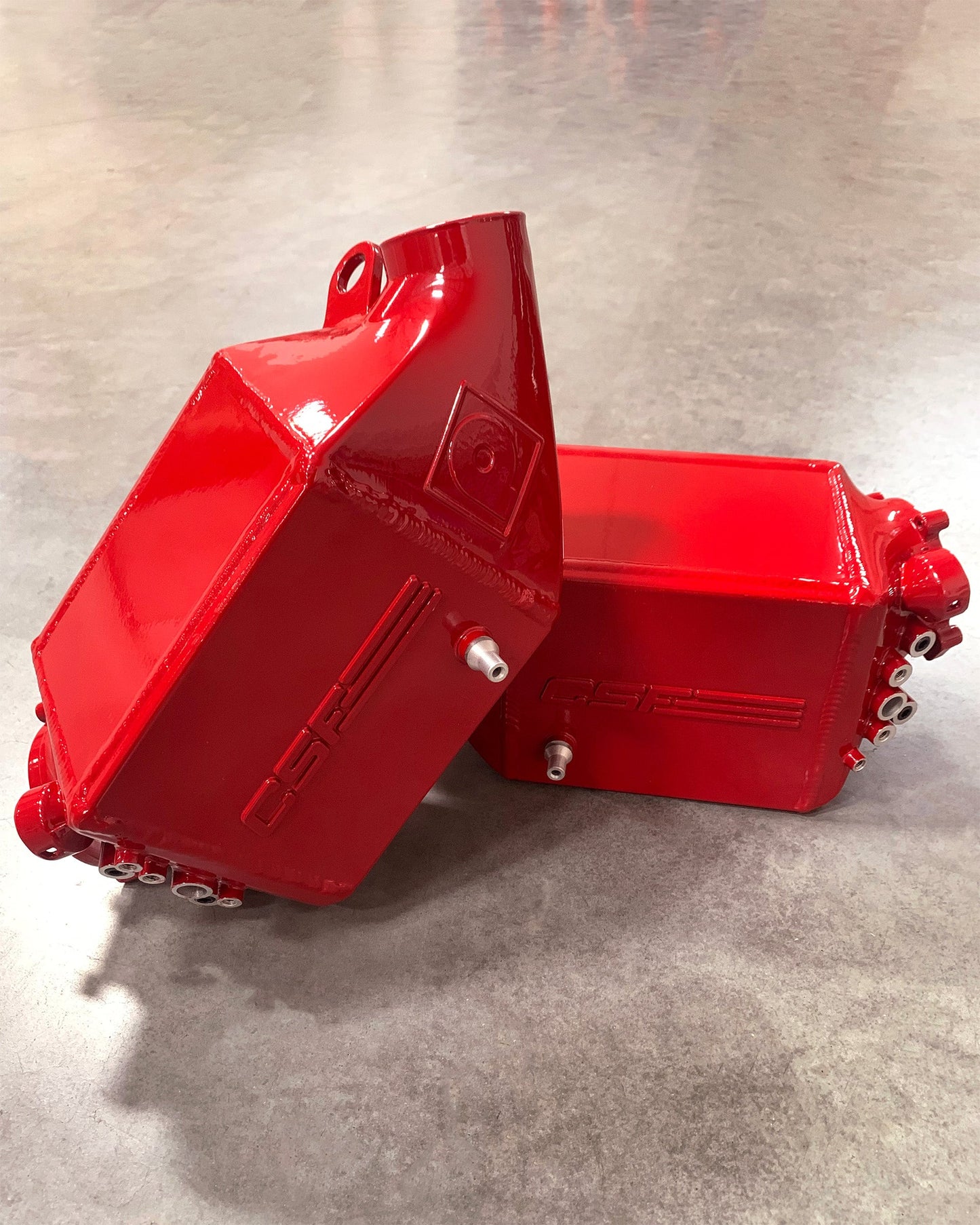

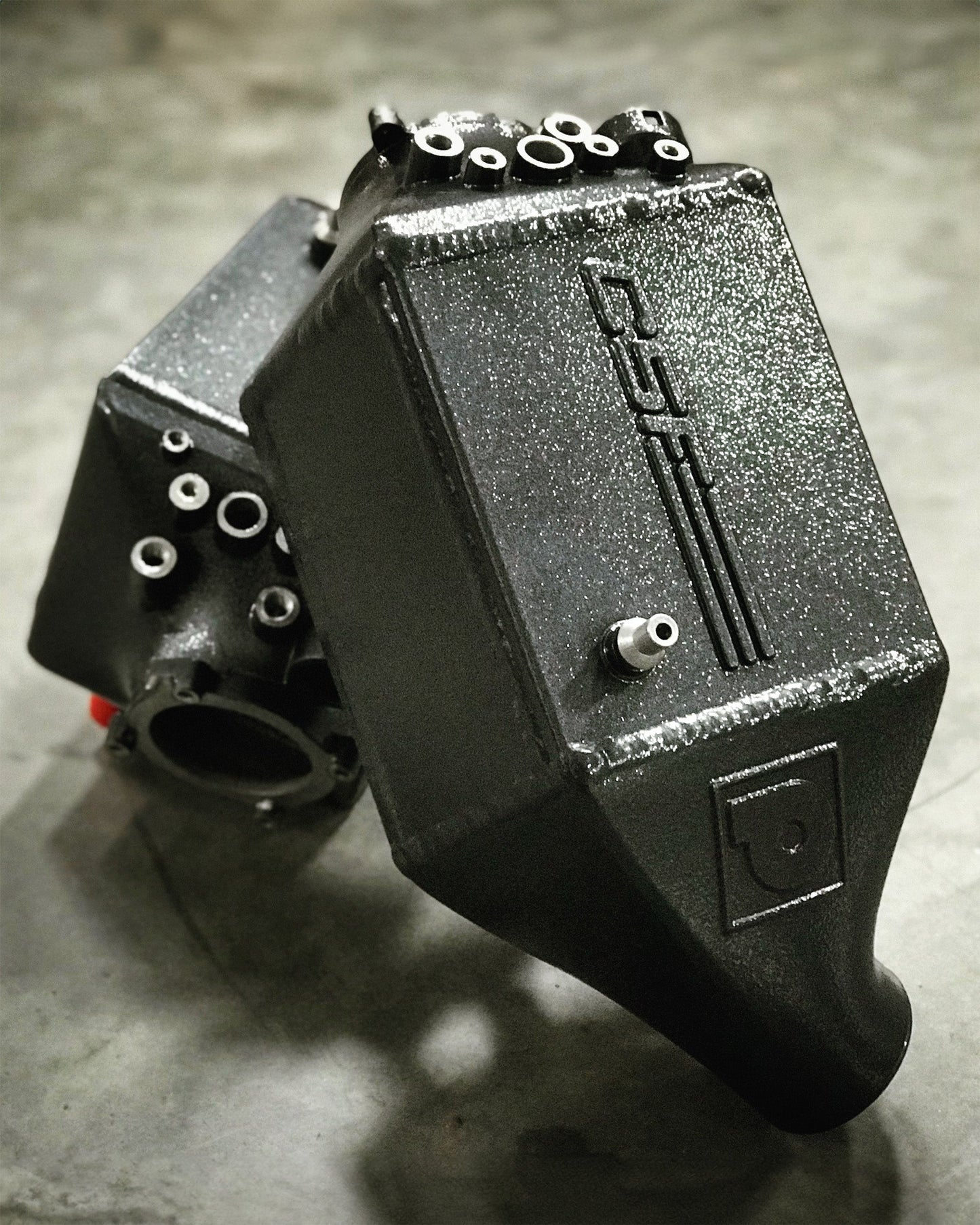

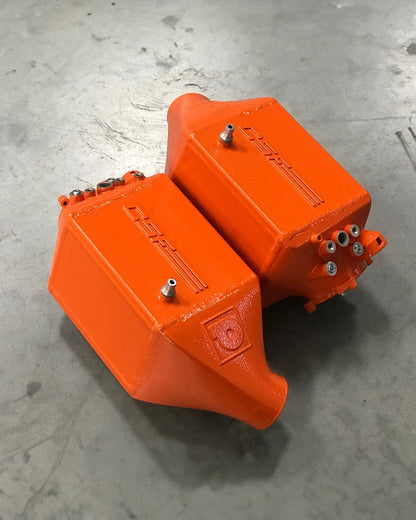

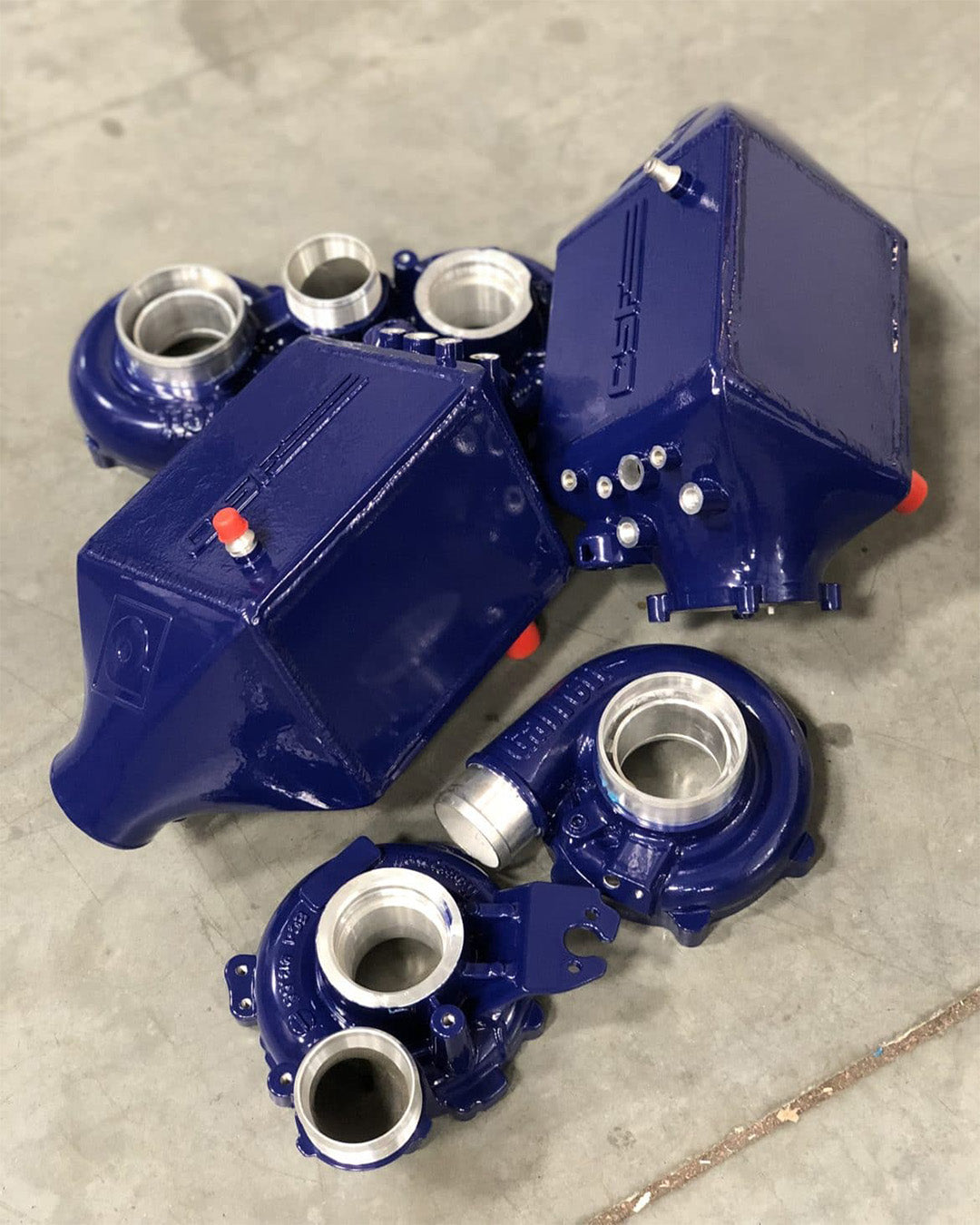

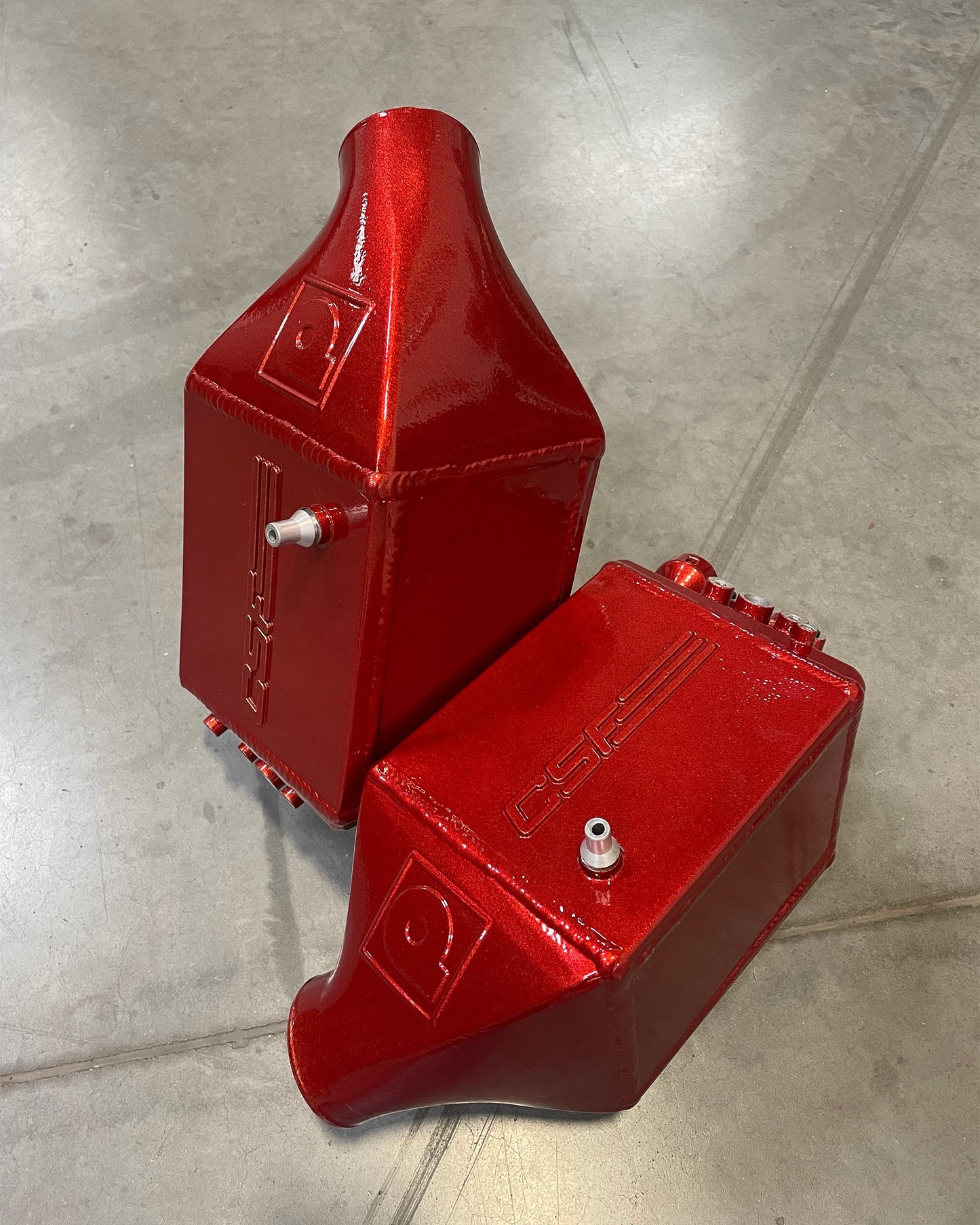

Powder Coating: Powder coating is available in almost any color imaginable with finish options ranging from full gloss to crinkle texture. You can even opt for accent colors, different colors for certain components like fuel rails (when applicable).

DLC (Diamond Like Coating): DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance. These coatings are the most expensive available, but can offer some very unique finish options that will provide the greatest durability.

See All Custom Finishes

Features

• World's 1st Cast End Tank Designed High-Performance Charge-Air-Cooler Set for the BMW F1X M5/M6
• Custom Designed CSF Liquid-To-Air Intercooler Core (CFD Analysis and Testing Completed to Ensure Optimal Performance)
• 28% Increase in Core Size Per Each Charge Cooler Compared to the OEM Charge Air Coolers
• Top/Bottom, Cross-Flow, Dual-Pass Core Configuration with 2-Stage Water Cooling for Maximum Efficiency and Intake Temperature Reduction
• Designed with 3D Scanning/Rapid Prototype Technology to Ensure Precise Fitment and Maximum Surface Area Utilization
• "Drop-In Fit" Design for an Easy & Quick Plug-and-Play Installation ­- Complete with OEM-Style "Quick Connect" Water Connections and Sensor Ports
• Additional E85/Methanol Injection Ports Built into the Cast End Tank Design
• Finished with a Professional "Crinkle Black" Powder-Coated Finish (CSF #8109), Also Available in Raw Aluminum Finish with Option for Custom Powder-Coating Available (Inquire for More Details on Lead Time and Pricing)
• Lifetime Warranty

Applications

OEM Part Numbers

• BMW: 17 51 7 843 119 *Right
• BMW: 17-51-7-843-119 *Right
• BMW: 17517843119 *Right
• BMW: 17 51 7 843 123 *Left
• BMW: 17-51-7-843-123 *Left
• BMW: 17517843123 *Left

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 8109R Warranty Term: 2 years
