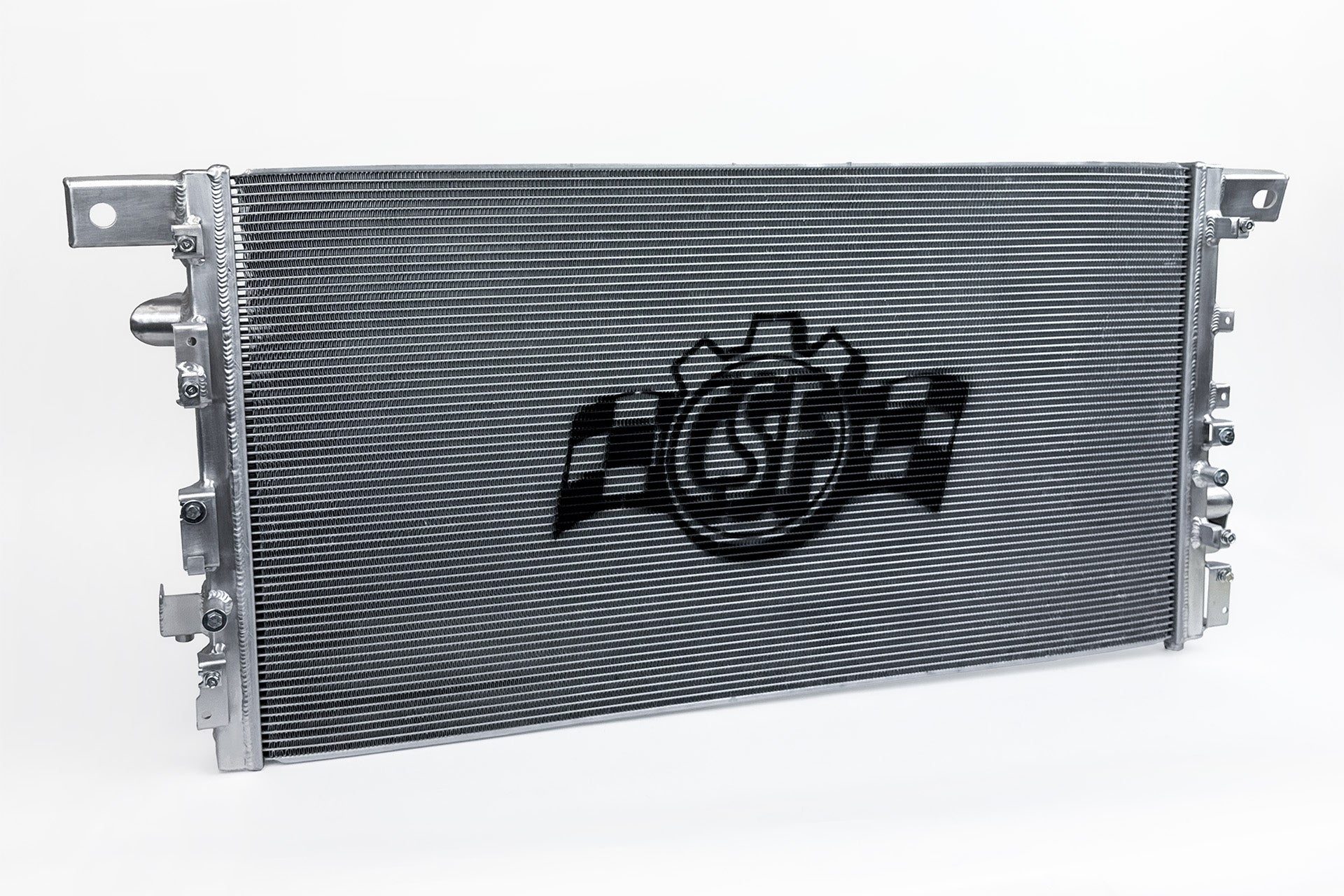

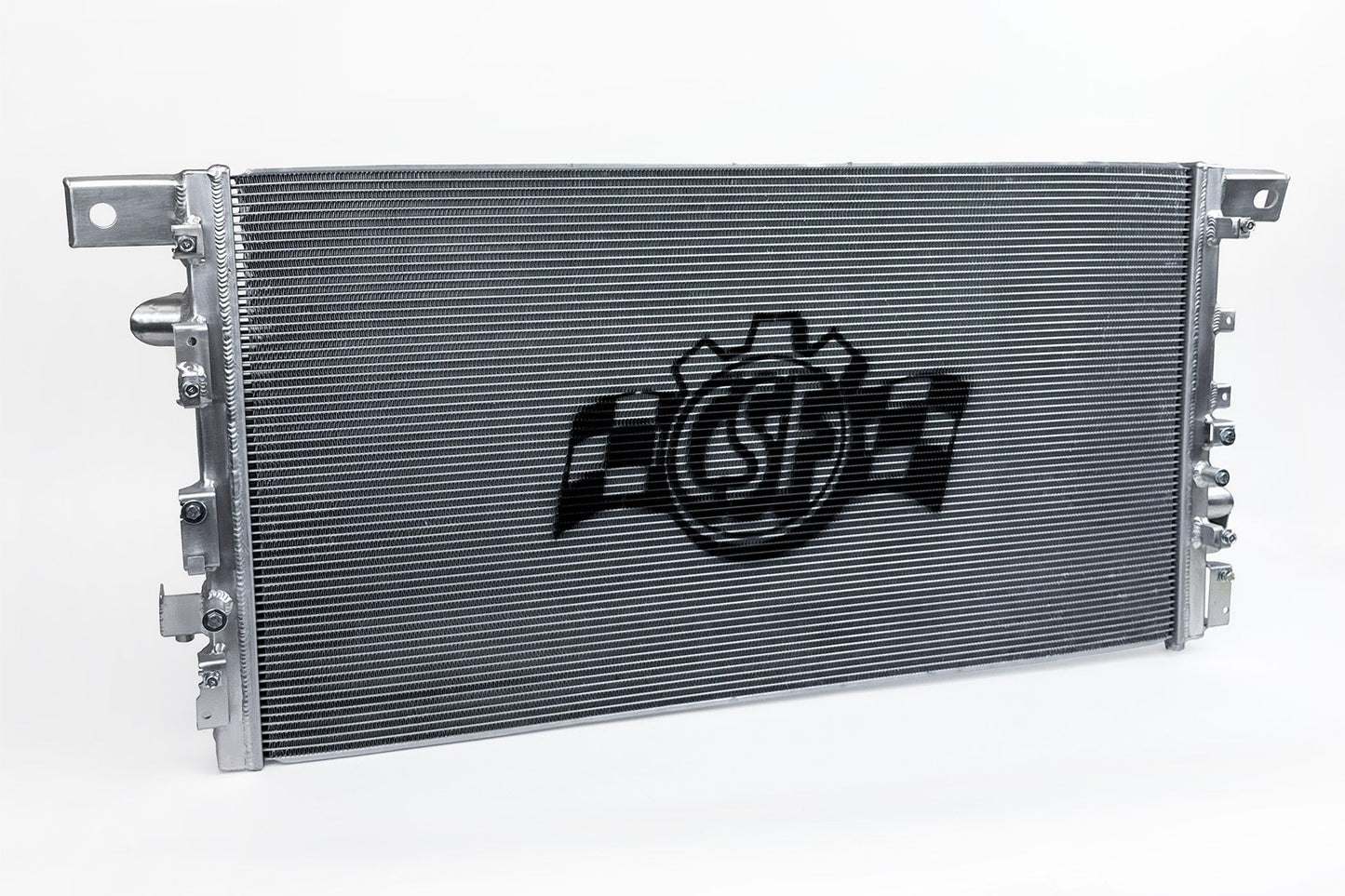

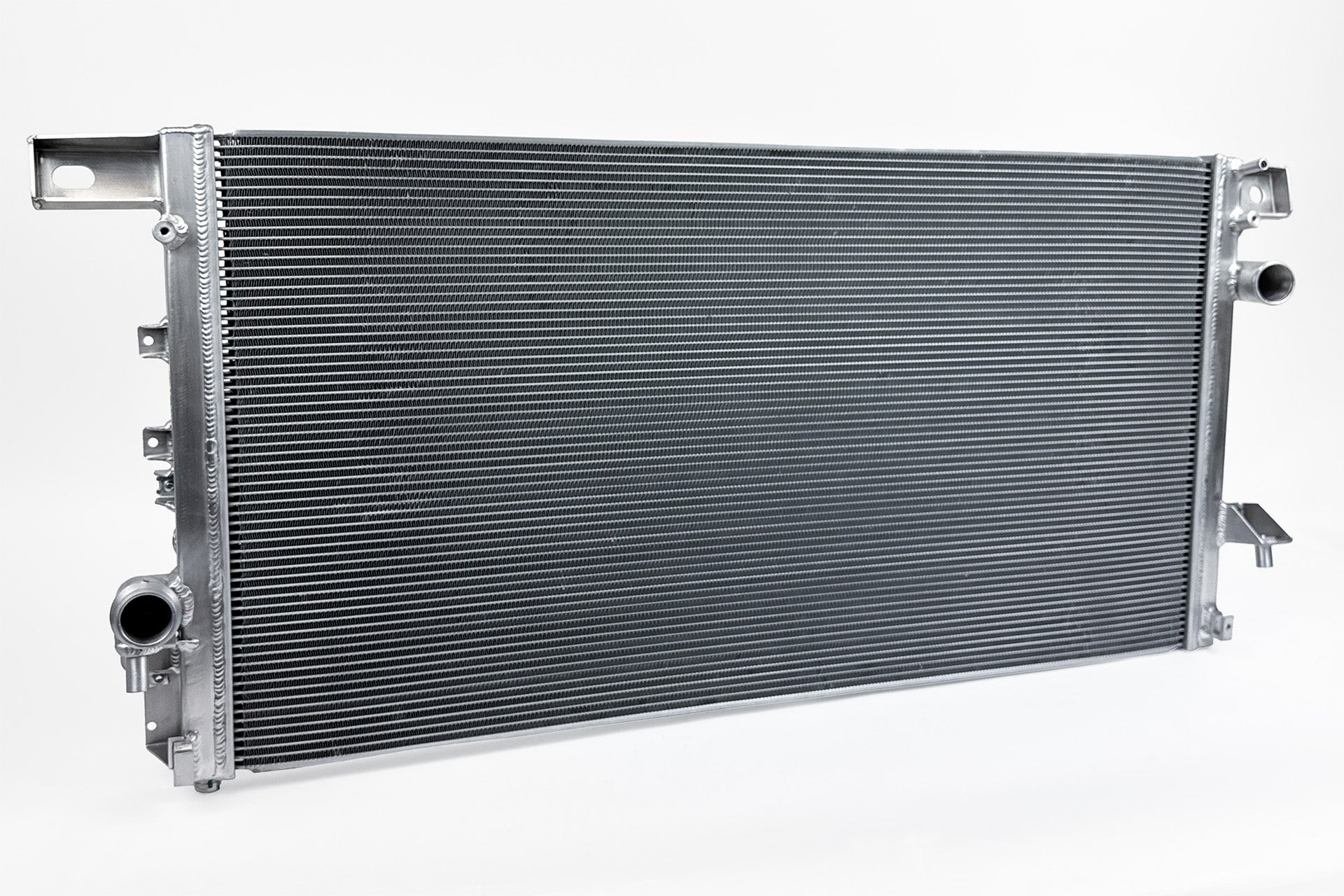

3rd Gen Raptor & 14th Gen F-150 Heavy-Duty All-Aluminum Radiator

Click Here for the Full Press Release & Additional Product Details

Upgraded cooling systems are not just for off-road rigs and big haulers. Even basic mods/upgrades like oversized tires can increase strain on your engine in adverse conditions. The CSF Radiator provides extra protection that:

• Extends engine life by maintaining optimal coolant temperatures
• Improves towing capacity by enhancing cooling efficiency
• Eliminates performance limitations during demanding driving conditions
• Provides peace of mind with superior construction and durability

When engine coolant overheats, performance suffers and you are forced to stop driving or risk a cooling system failure. CSF & Full-Race engineers identified this vulnerability during extensive real-world testing of F-150 and Raptor models under demanding conditions. Having to stop and wait for your engine to cool down is more than just an inconvenience, it is a limitation that shouldn't exist in modern trucks. Especially not a Raptor.

Product Details

Design & Engineering

An upgraded radiator helps eliminate the concern of overheating. This advanced design features larger 2-Row, 42mm aluminum cores which increases the fluid capacity of the radiator and greatly improves heat dissipation. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the ultra-efficient multi-louvered 5mm fins maximize airflow through the core for the best possible performance. The result is a dramatic temperature reduction under all driving conditions.

Key Features:

• 50% larger core volume than the factory radiator
• 20-25% increase in heat transfer efficiency using CSF's exclusive 5mm Fin Technology
• 100% TIG welded Aluminum construction (compared to plastic end tanks crimped)
• Perfect for daily driving, towing, and off-road adventures

CSF vs OEM

Ford definitely learned some lessons from previous generations and gave some 14th Generation F-150s / 3rd Gen Raptors a pretty decent radiator. While the factory system seems to cope with modifications better than previous generations, more people are pushing these new rigs harder than ever. Bigger turbos, more boost, heavier accessories, etc, all increase heat output of the motor.

Instead of waiting for your factory radiator to fail or putting up with power loss due to high engine temps, you can get ahead of the problem with the CSF Radiator. Upgrading to the CSF Radiator offers a lot of advantages including:

• 60% larger core volume than the factory radiator
• 100% TIG welded Aluminum construction (compared to plastic end tanks crimped)
• Core straps for strength and added rigidity for extreme reliability in demanding conditions
• Ideal for turbo upgrades, high power/boost builds, towing, and off-roading.

5mm Core Upgrade

While the first prototypes with CSF's 6.5mm fin performed extremely well in testing, CSF always seeks to offer the ultimate cooling solution. Before going into final production the design was updated to incorporate CSF's latest 5mm fin technology which was introduced at the end of 2023. This new core specification offers even more heat transfer area and thermal efficiency than the tested prototypes. CSF is confident this radiator is ready to take on the most demanding conditions in the world.

Make it a package

CSF offers a High-Performance Transmission Oil Cooler for the 2015-2025 F-150 & 2017-2020 Raptor (CSF #8102) that perfectly compliments the upgraded Radiator. The CSF transmission oil cooler eliminates the concern of overheating. The advanced design features CSF's proprietary AC Condenser Technology, utilizing a 1-Row Super-High Pressure 32mm 10-Channel Microtube architecture that maximizes both oil flow and cooling surface area. The result is dramatic temperature reduction under all driving conditions.

Plug and Play Installation

CSF designed these Radiators to easily replace the OEM units. The Plug-and-Play "Drop-in Fit" installation takes under an hour and greatly improves the reliability and longevity of your engine.

Features

• 2-Row - 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

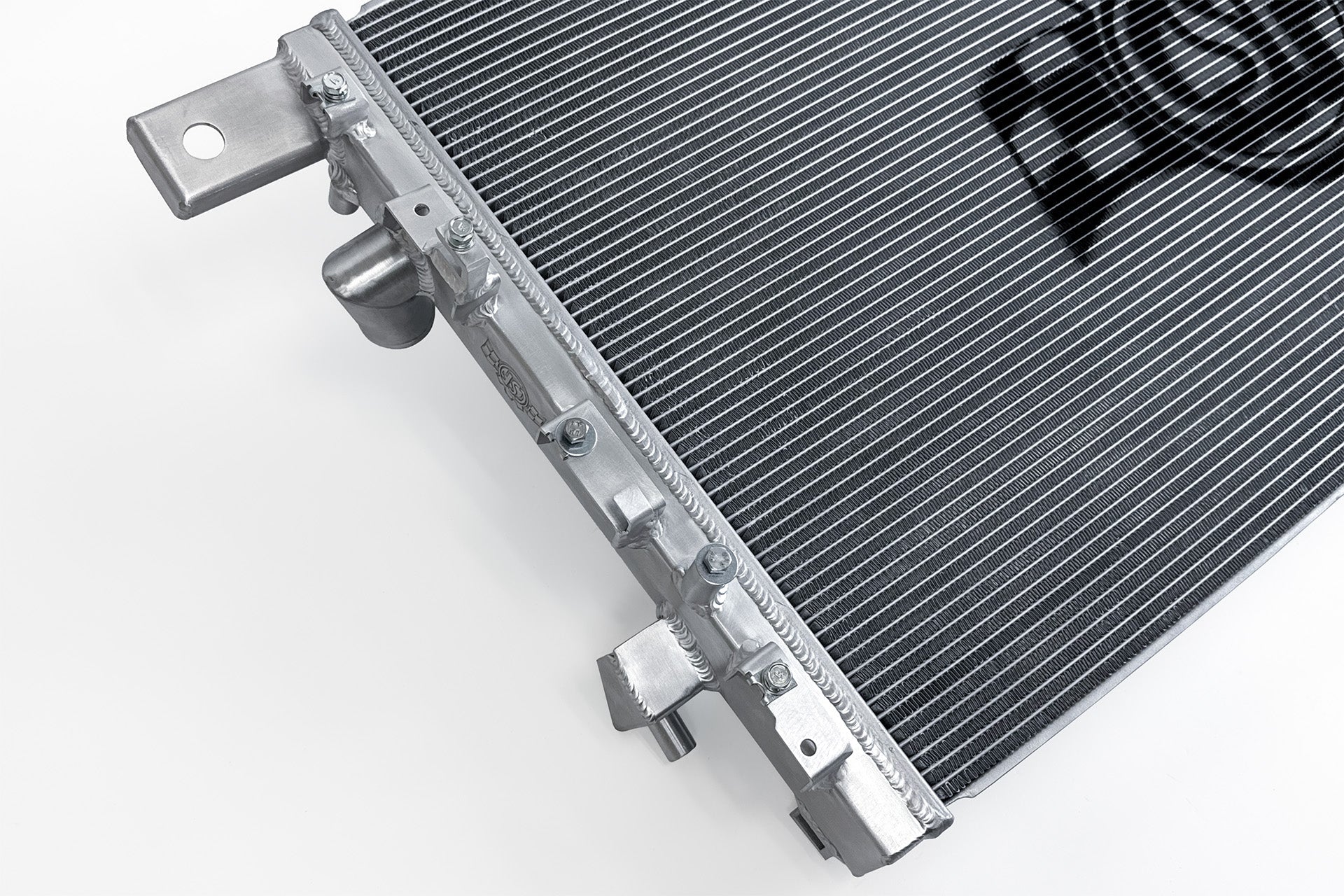

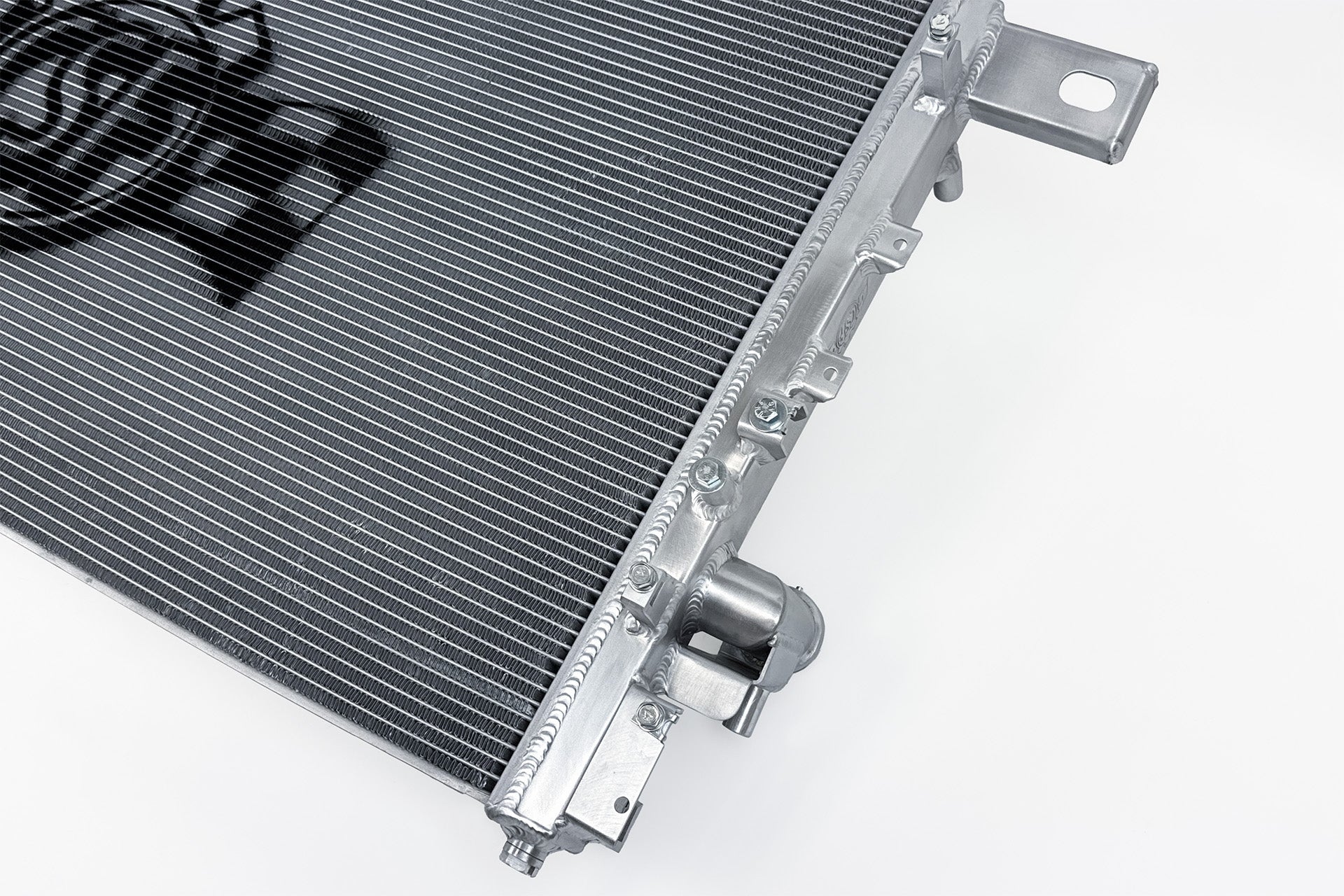

• CNC Machined Mounting Pins and Brackets
• OEM Style Inlet/Outlet

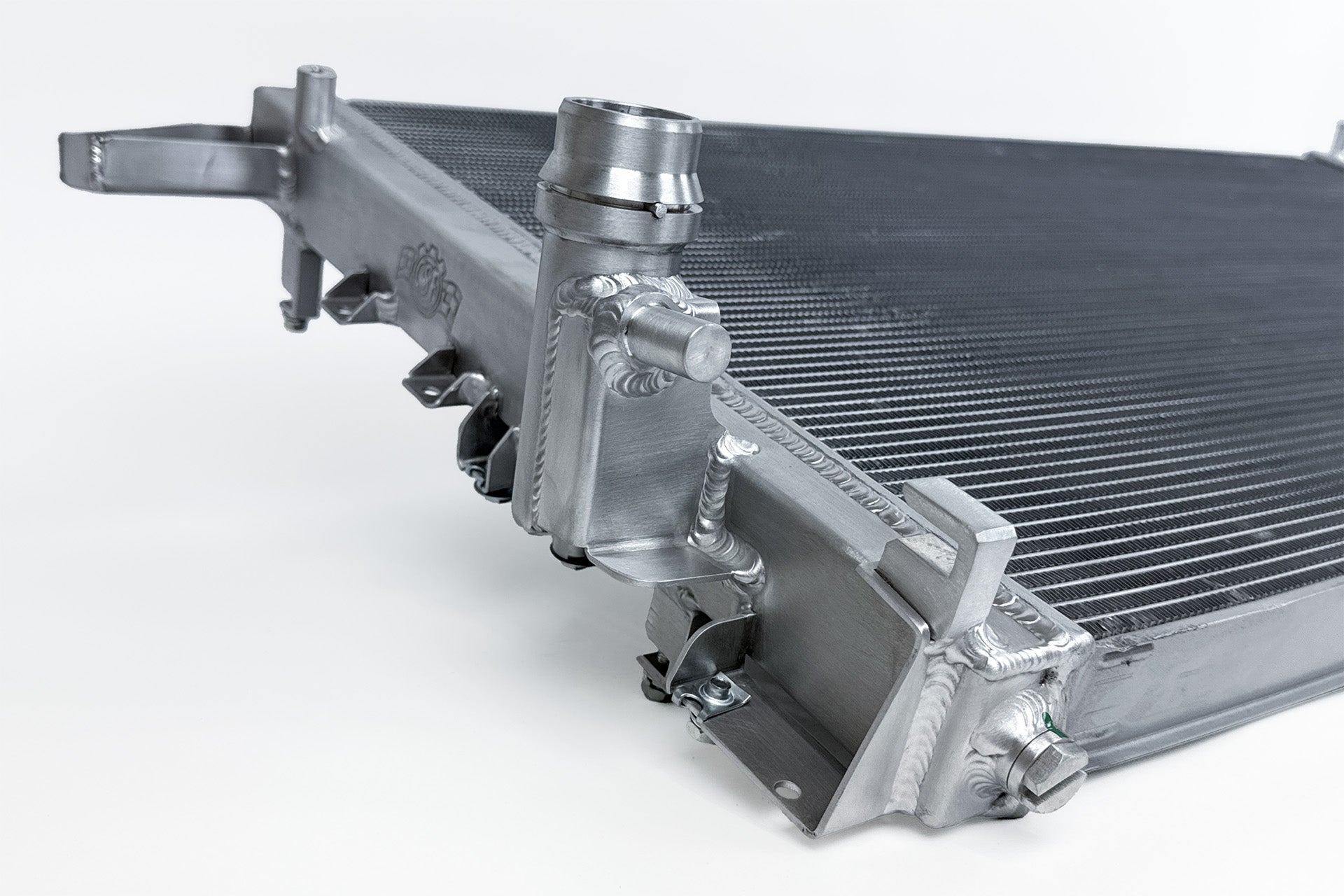

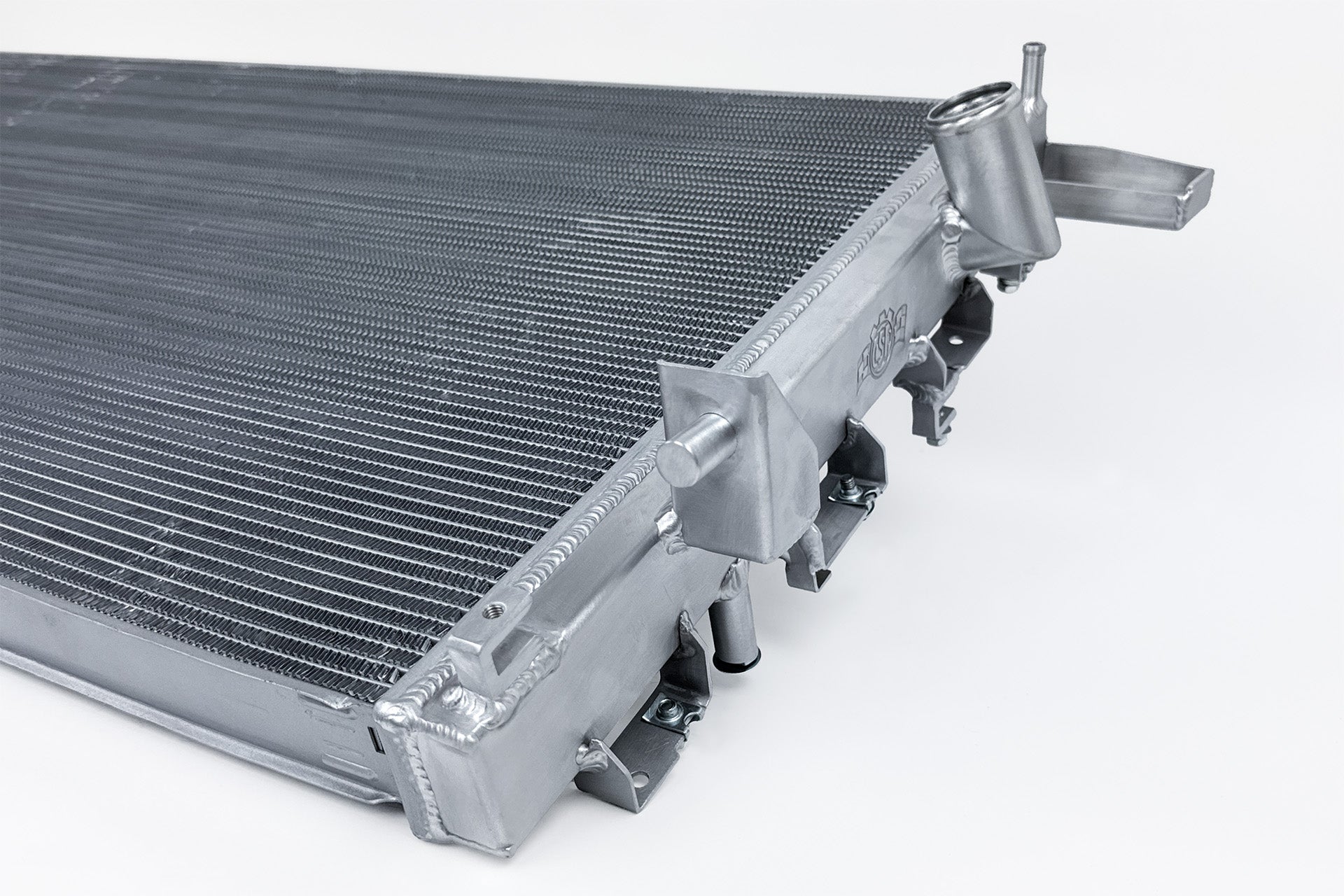

• 100% All Aluminum TIG-Welded Construction
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications

OEM Part Numbers

• Ford: ML3Z-8005-B
• Ford: ML3Z 8005 B
• Ford: ML3Z8005B

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 8303 Warranty Term: 2 years
