( CSF #8350 )
The return of the legendary Ford Bronco in 2021 was a dream come true for many long-time enthusiasts. The Bronco is a very capable off-roader, especially in the new Raptor trim. While the Bronco Raptor comes equipped with a robust factory transmission oil cooler system, the standard 2.7L V6 model lacks this essential upgrade. That’s where CSF stepped in to help.

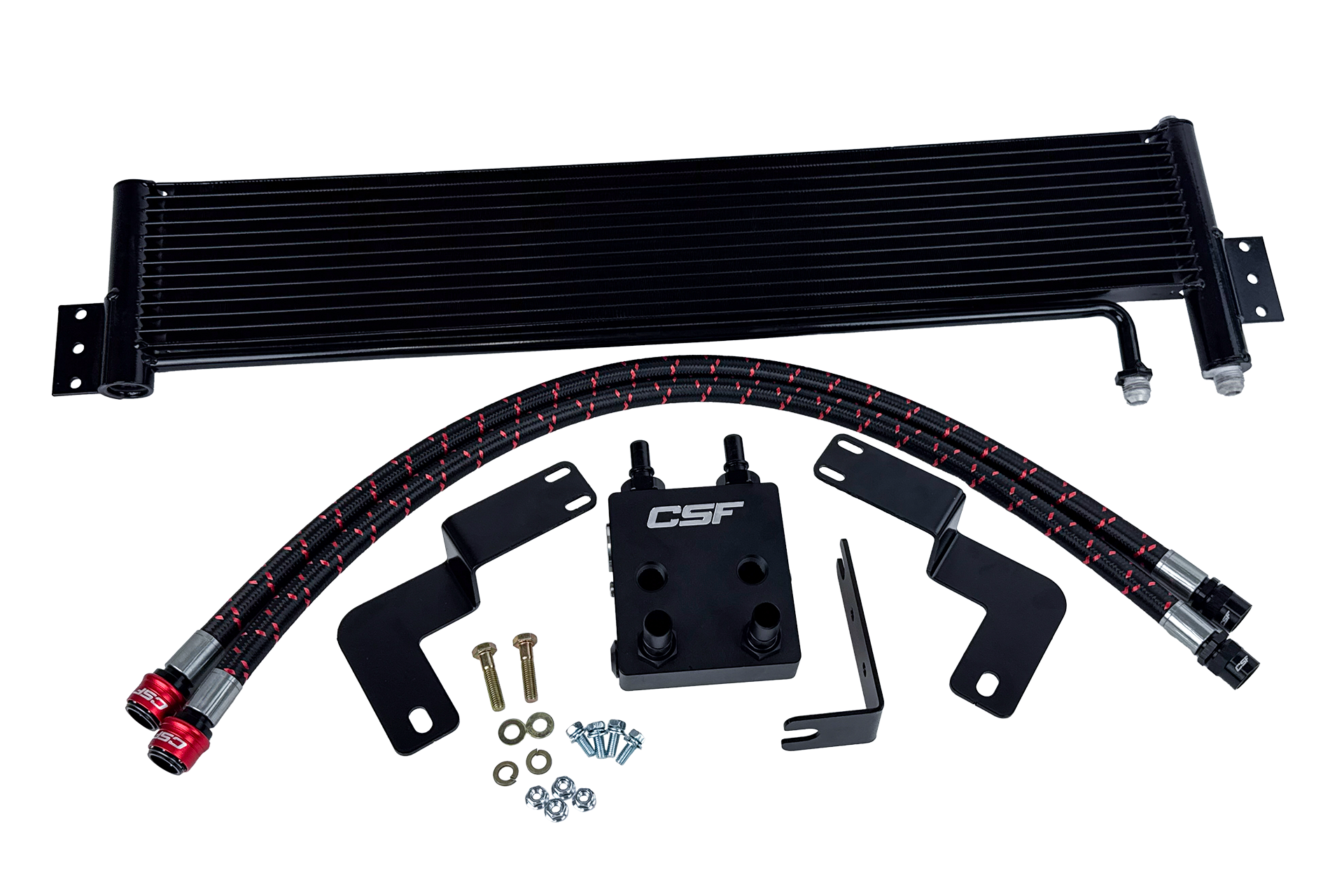

Introducing the CSF Bronco 2.7L External Transmission Oil Cooler Kit. This complete bolt-on kit was designed to provide the kind of protection serious off-roaders need. Whether you’re scaling dunes, crawling rocks, or just exploring the backcountry, overheating your transmission can put a real damper on your adventure. CSF’s new system offers a major performance boost over the factory liquid-to-liquid cooler and improves upon the design of the factory Bronco Raptor system.
Design & Engineering
CSF leveraged decades of cooling experience to design a true plug-and-play solution for the 2.7L Bronco. This new Transmission Oil Cooler Kit offers several key benefits:
- Keeps transmission fluid under control, even in the toughest off-road conditions
- Extends transmission life and reliability
- Improves cooling efficiency for towing, crawling, and overlanding
- Designed for easy installation with motorsports-grade components
- Delivers peace of mind through proven CSF engineering
CSF vs OEM

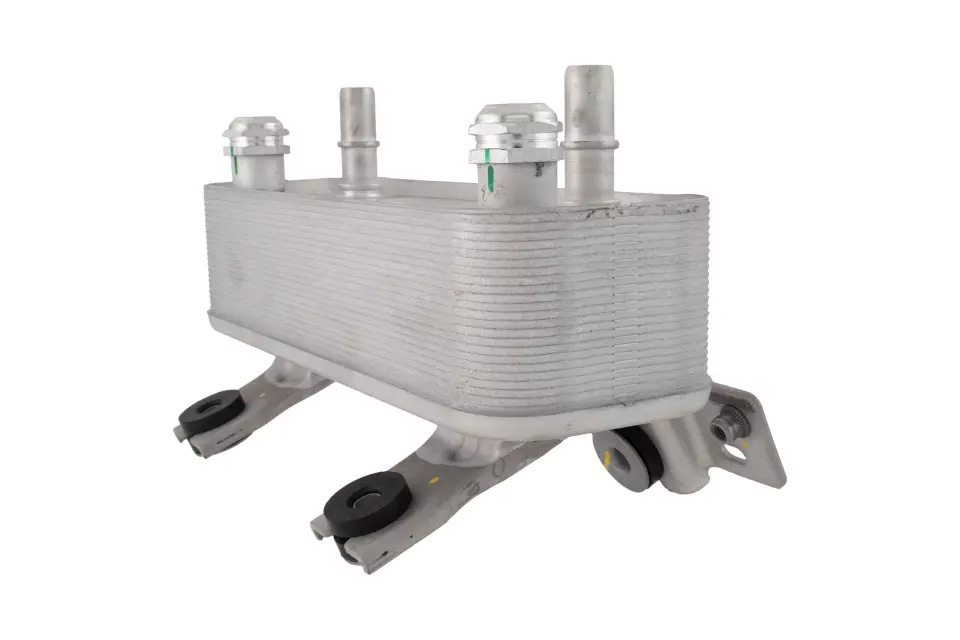

The OE Transmission Oil Cooler from Ford is a small, water-to-oil stack cooler. While adequate for daily driving, it can easily become overwhelmed when these rigs are pushed to their limits. It’s not just high-horsepower builds or hardcore off-roaders who need better cooling. Many overlanders, campers, and weekend adventurers add significant weight and drag to their Broncos. Roof-mounted tents, spare tires, fuel cans, and oversized tires all increase the load on both the engine and transmission. With CSF’s kit, your 2.7L Bronco gains the cooling capacity it should have had from the factory, providing crucial protection and preserving performance.

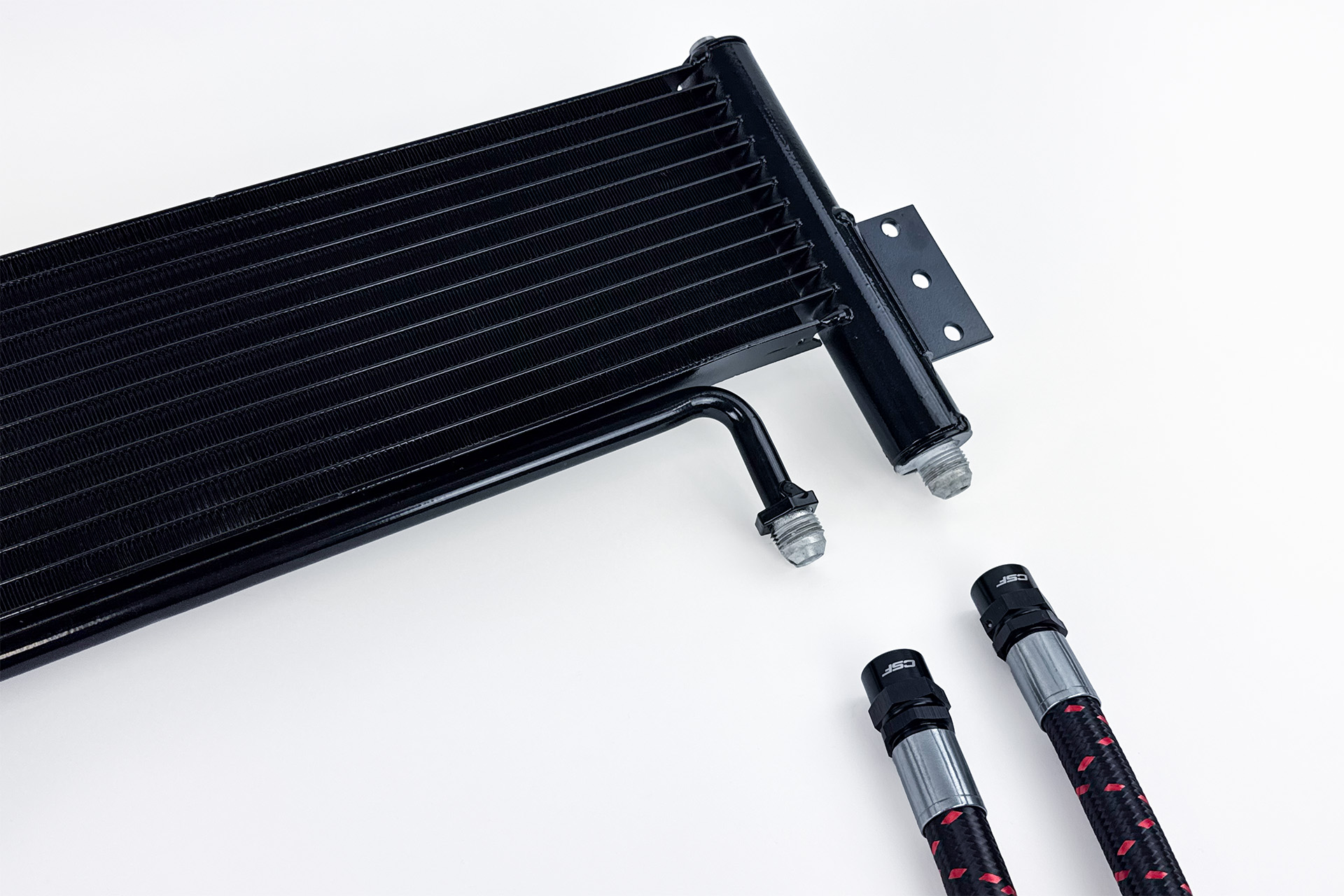

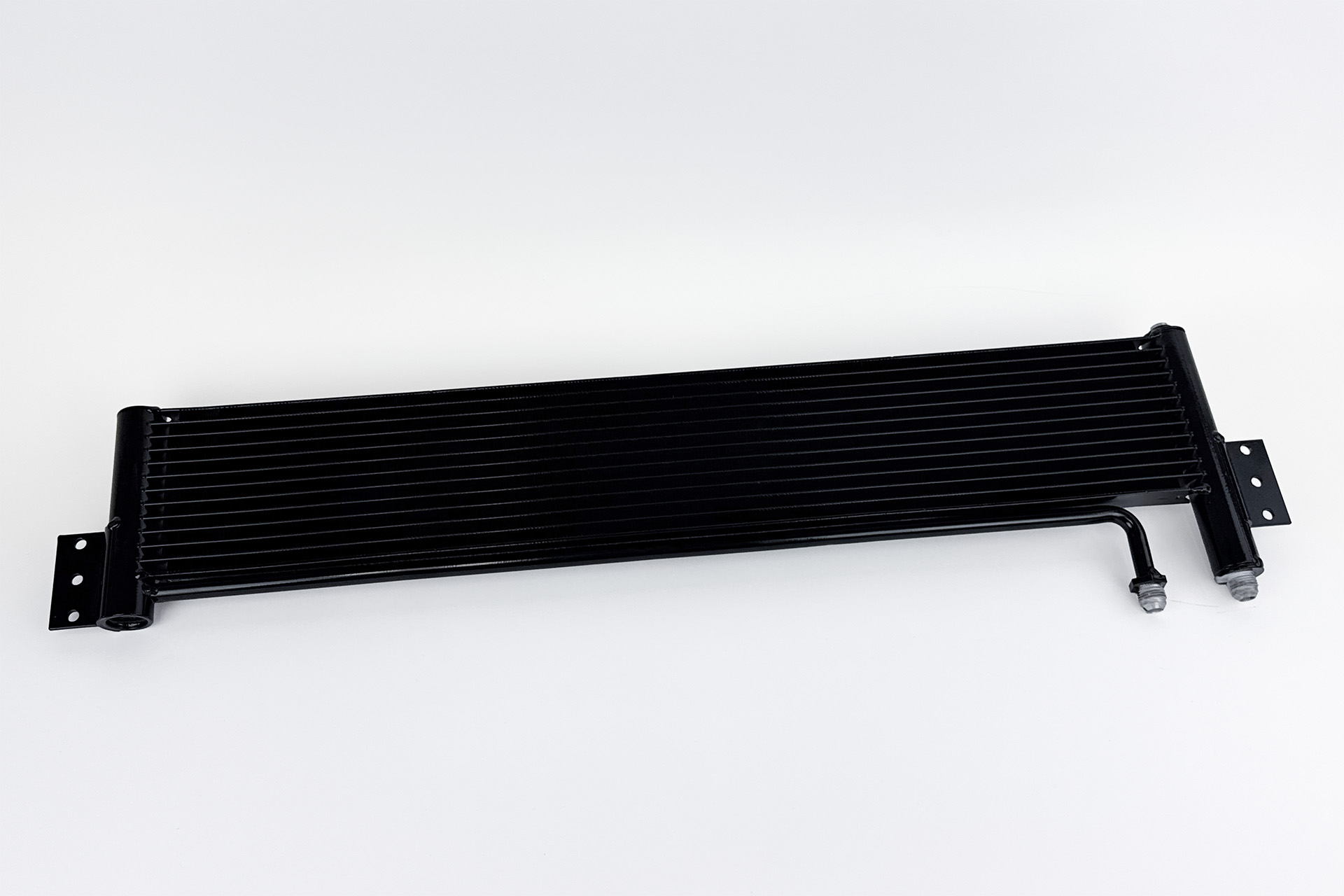

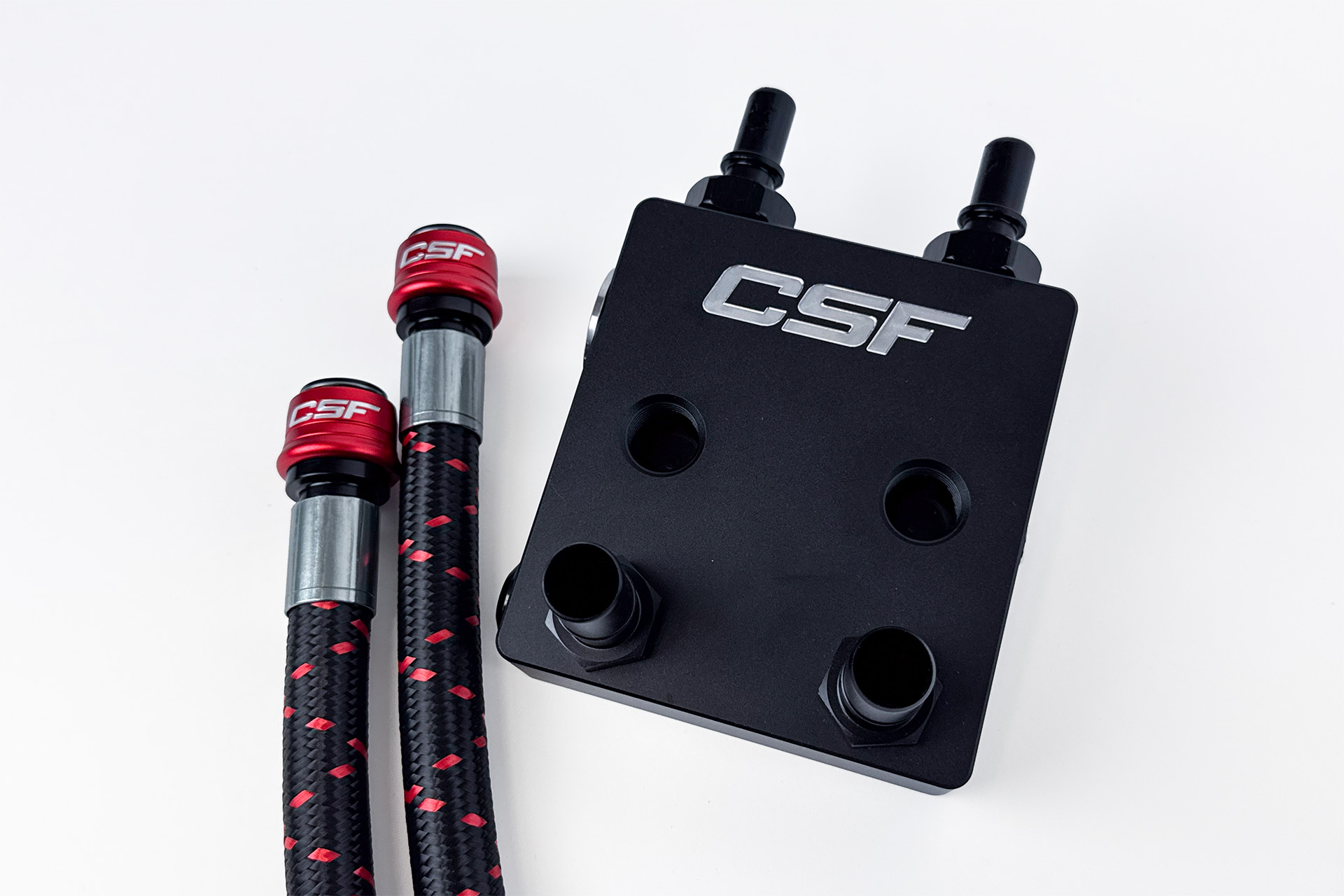

The CSF system was built around a high-performance transmission oil cooler built with CSF’s advanced AC Condenser Technology. The core features a 1-row, super-high-pressure 26mm 12-channel microtube design that maximizes oil flow and surface area contact. Paired with 12 rows of 8mm multi-louvered fins, it delivers outstanding heat transfer efficiency. A CNC billet-machined thermostatic plate replaces the factory stack cooler which reroutes transmission fluid to the new cooler mounted in front of the radiator. Motorsport-grade lines and patented quick-release fittings by DYME PSI ensure a clean, efficient, and straight-forward installation.

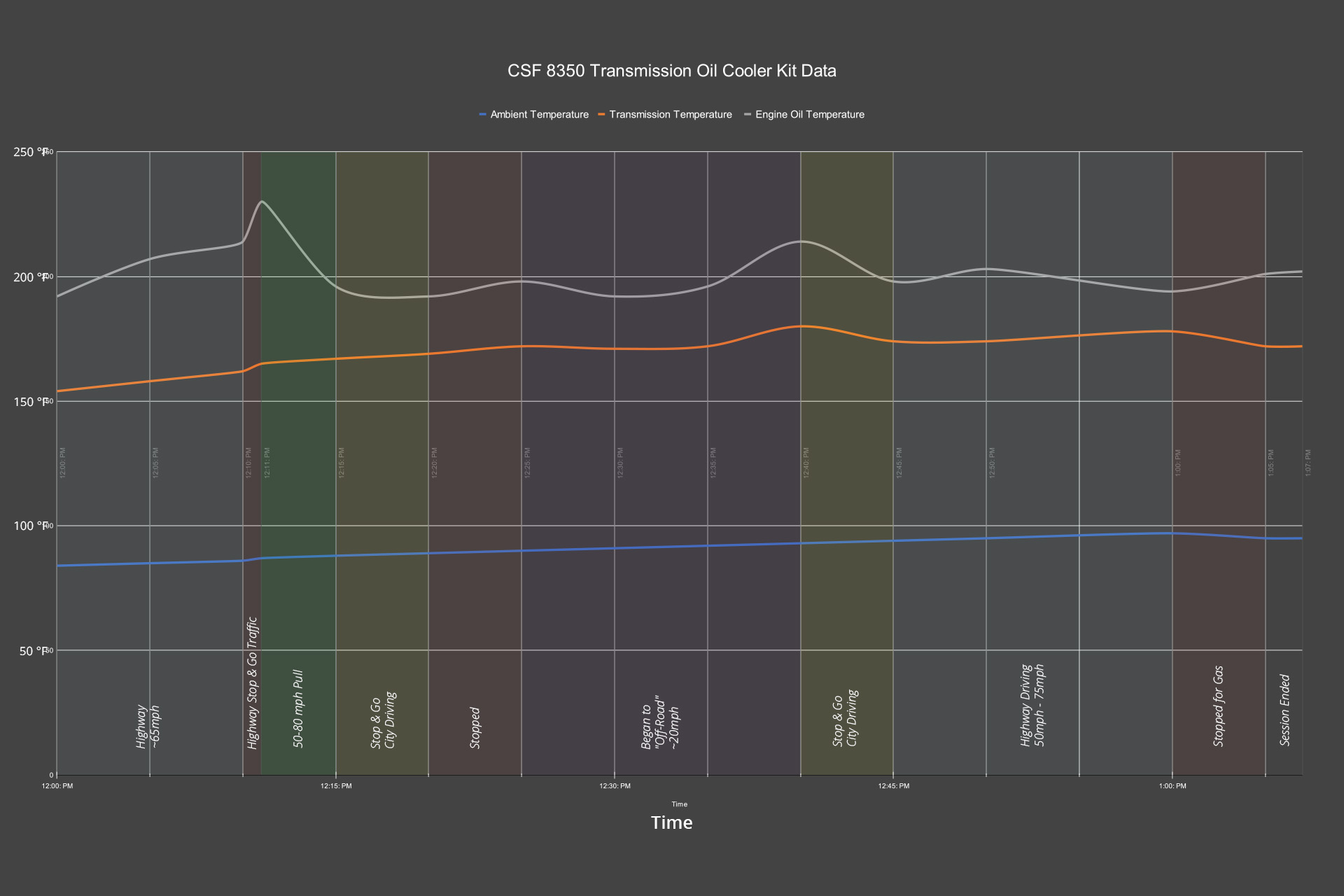

Testing data
The CSF engineering team conducted real world testing on the 2.7L Bronco. @acfab_oscar was kind enough to lend CSF his rig to validate the performance of the new Transmission Oil Cooler Kit under real world conditions both on and off-road. Many Bronco owners report transmission temps in the 200-215°F range under moderate load. Some owners have seen temperatures as high as 280°F in extreme conditions.
Test data showed a peak transmission oil temperature of just 180°F. This number was recorded during stop-and-go traffic immediately following the off-road test with an ambient temperature of 93°F. Over the course of testing, the transmission saw a ∆T of only 26°F. The data proves both a substantial reduction in transmission temperatures and vast increase in cooling capacity.
DYME Performance Systems Inc. Fittings & Hoses

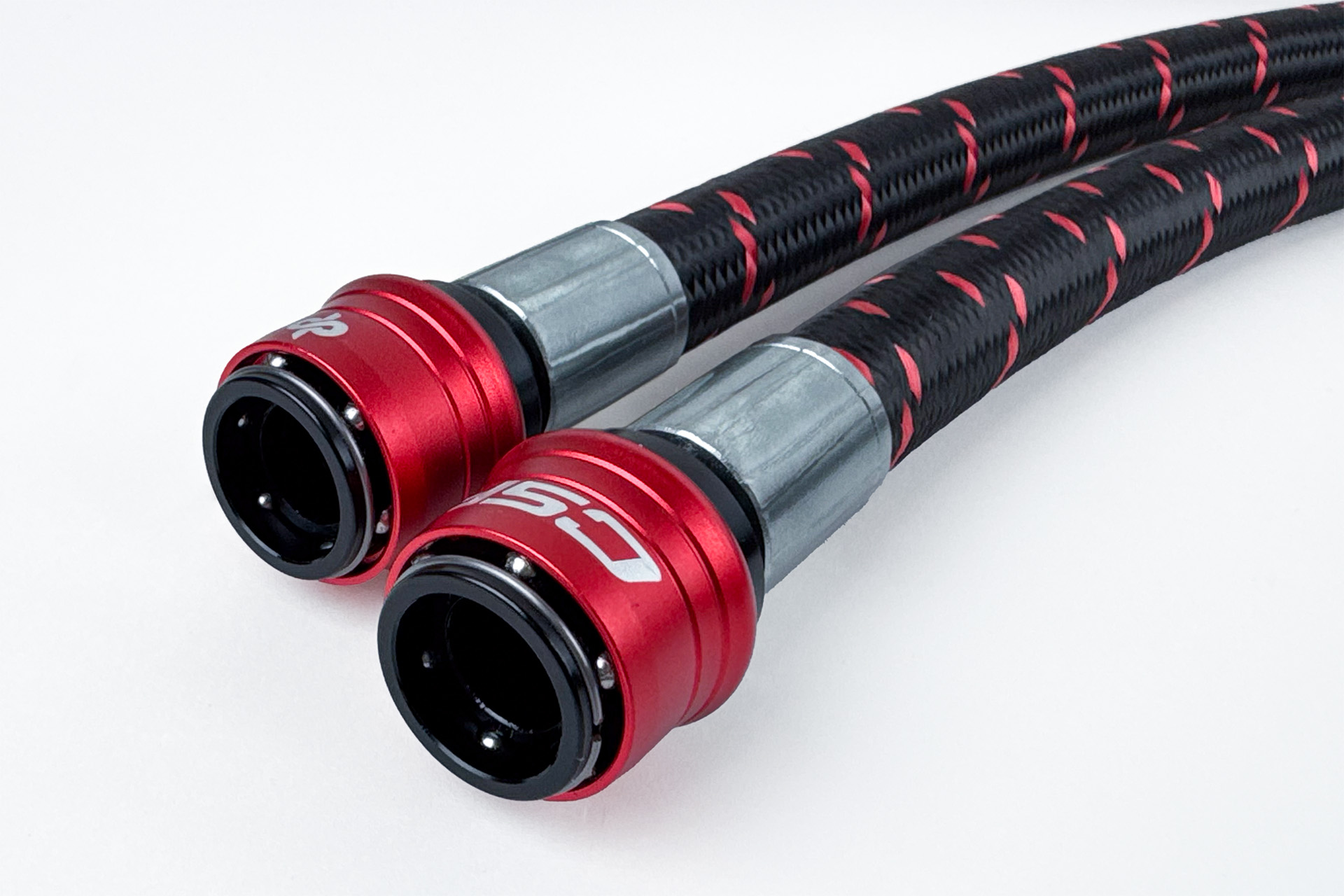

CSF partnered with DYME PSI for their exceptional quality and innovative quick-release hose and fitting solutions. The DYME Pro/Spec Quick Release Fittings offer race-proven performance with the convenience of tool-free clamshell removal and capable of withstanding up to 10,000 PSI.

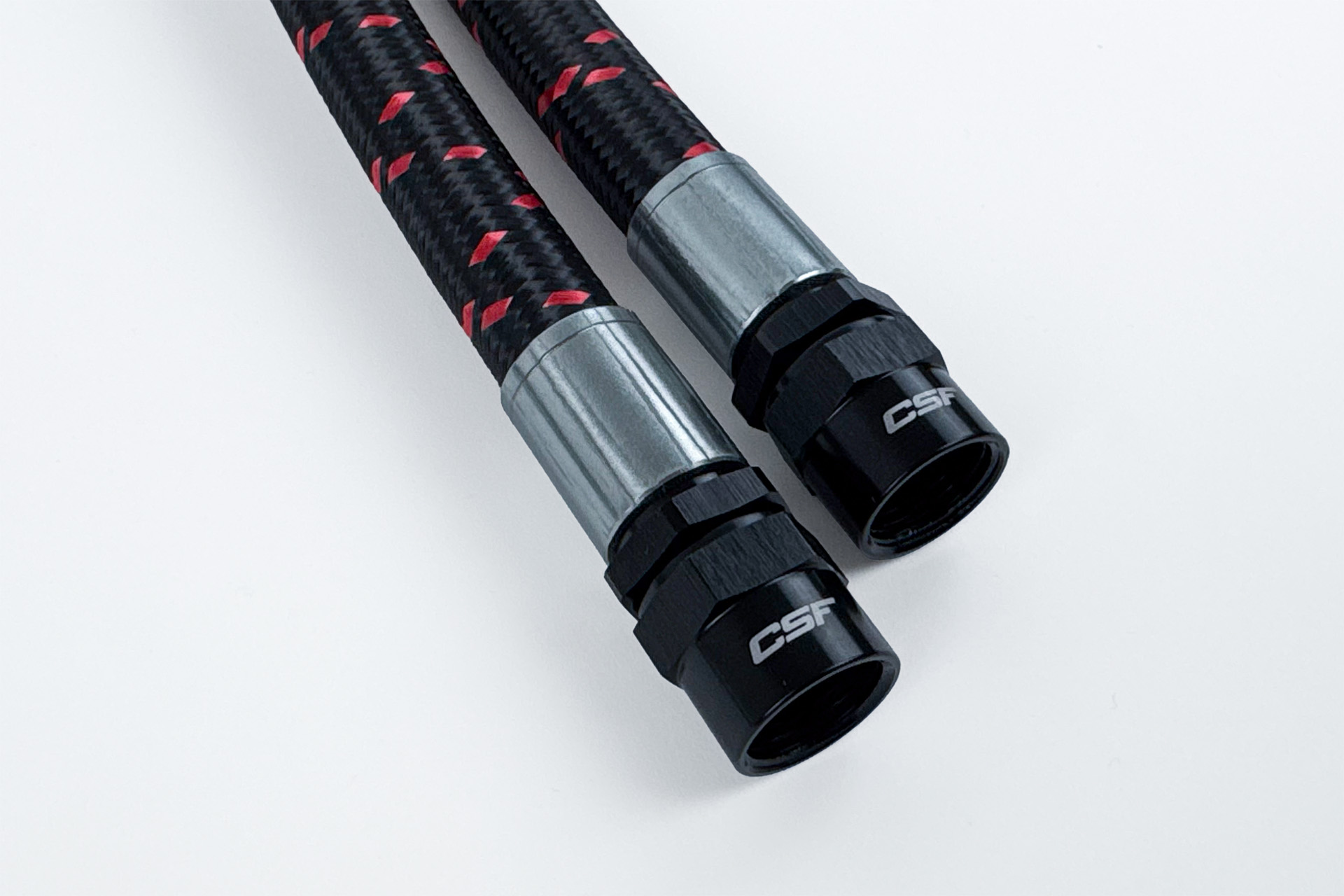

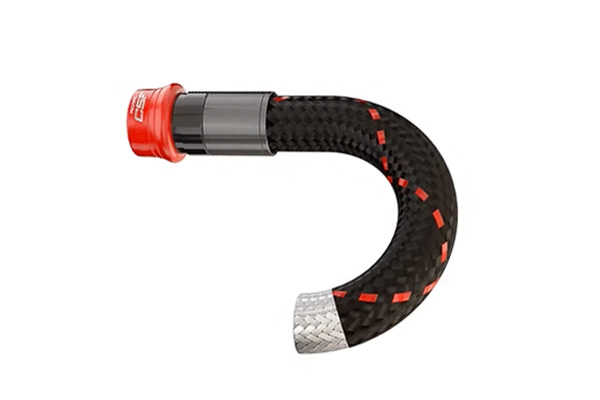

The hoses are an ultra-lightweight, aramid-braided, carbon-impregnated PTFE for maximum flexibility, flow, and chemical resistance. The lines are ideal for motorsports use and more than capable of handling the rigors of off-roading.

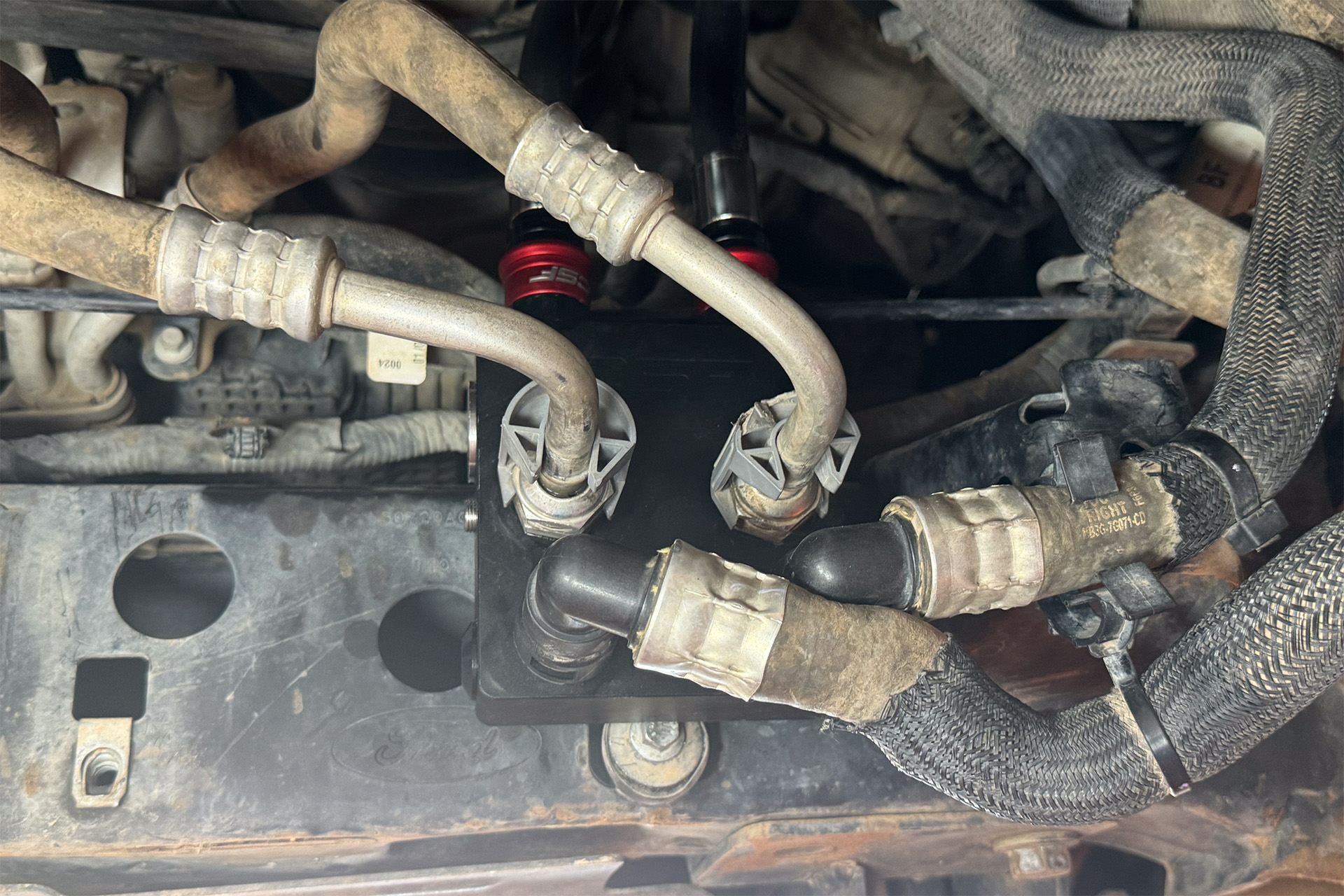

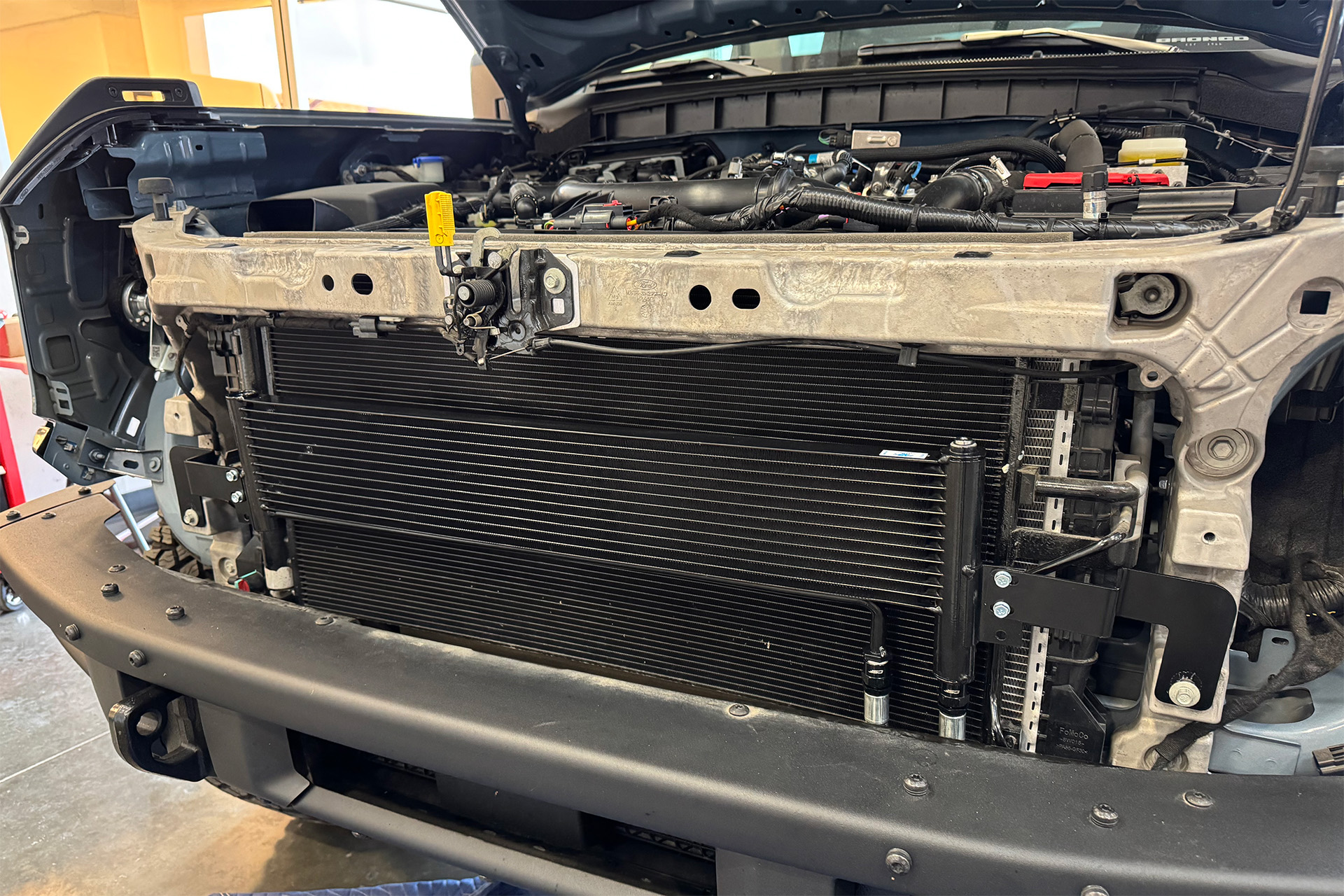

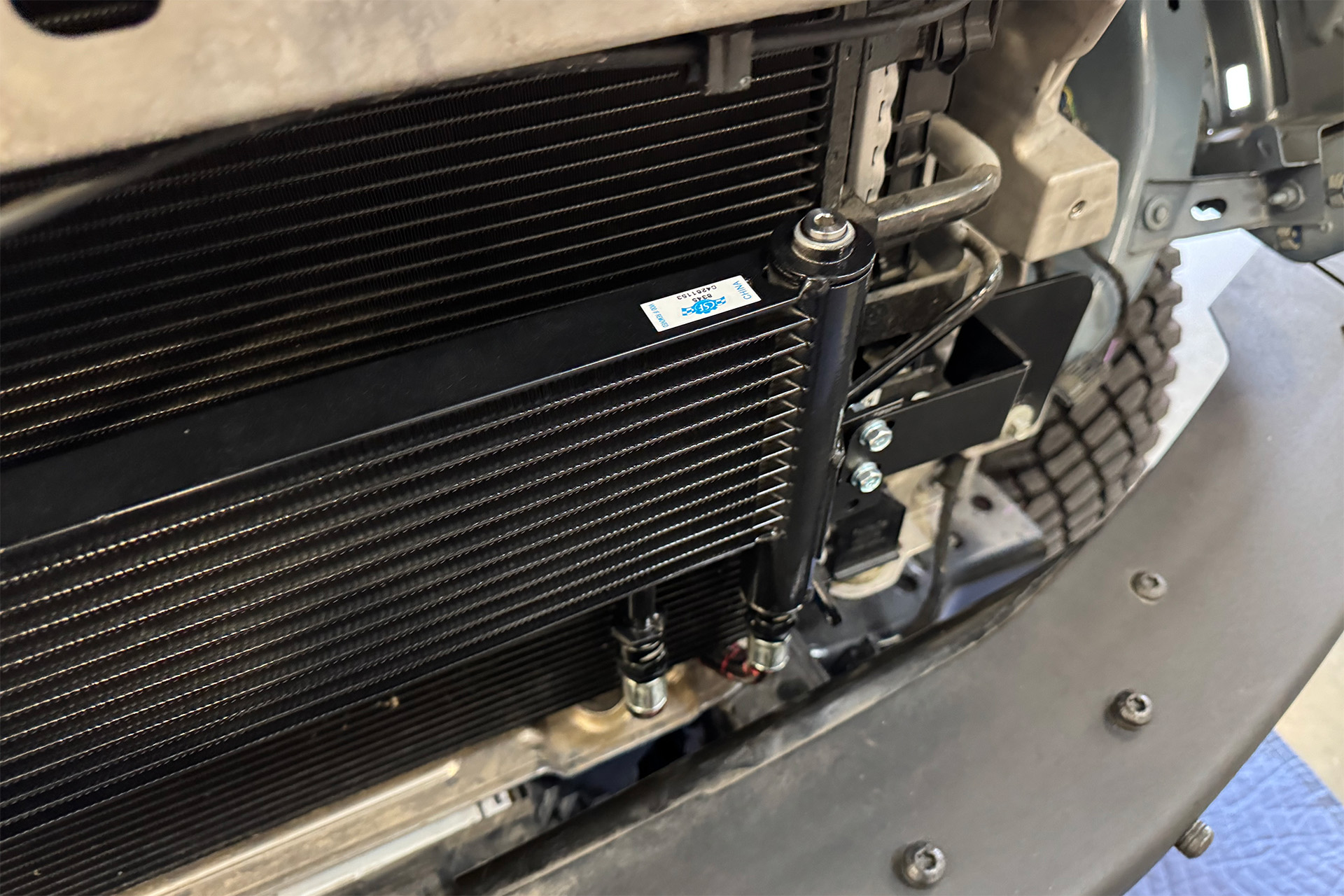

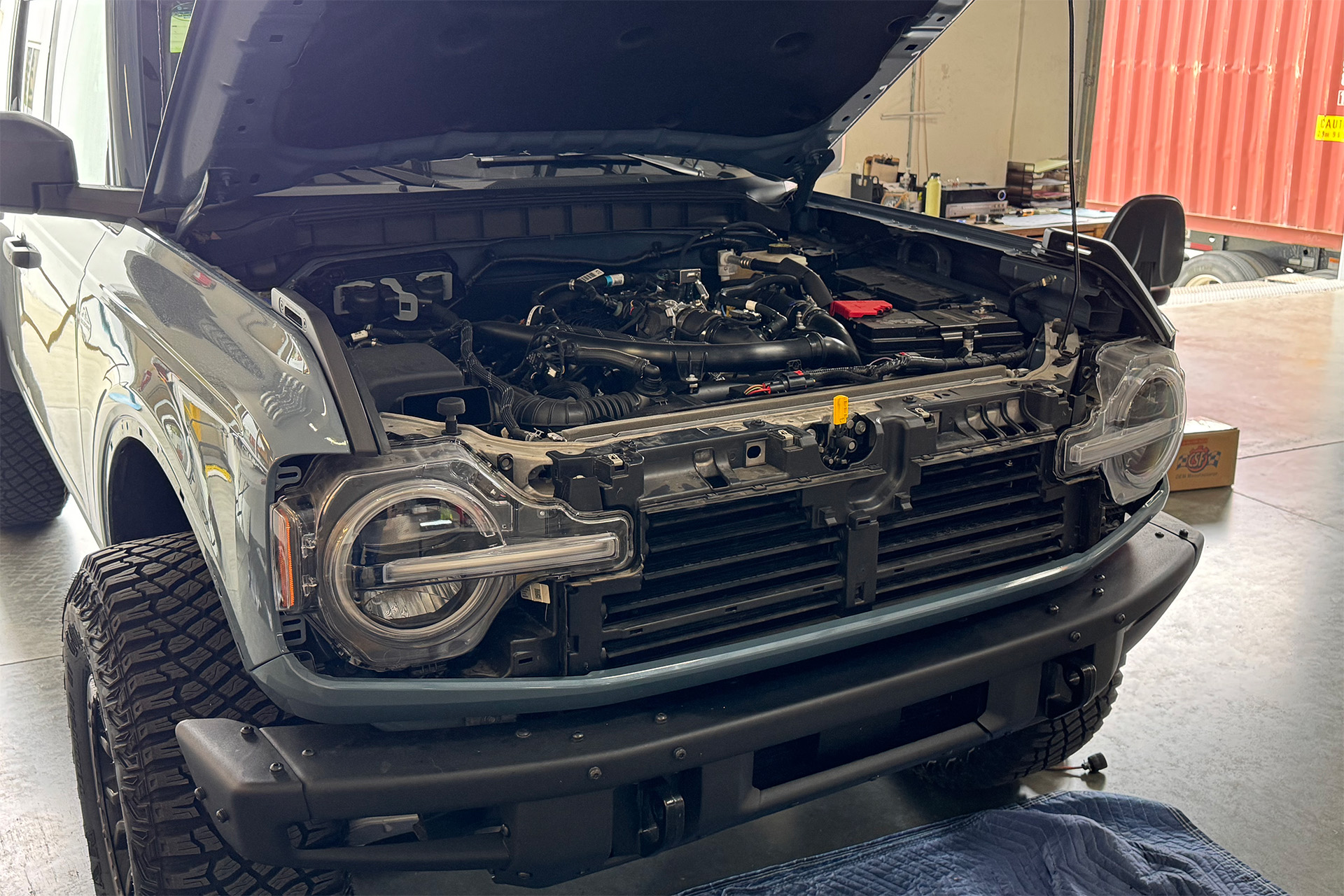

Installed Images

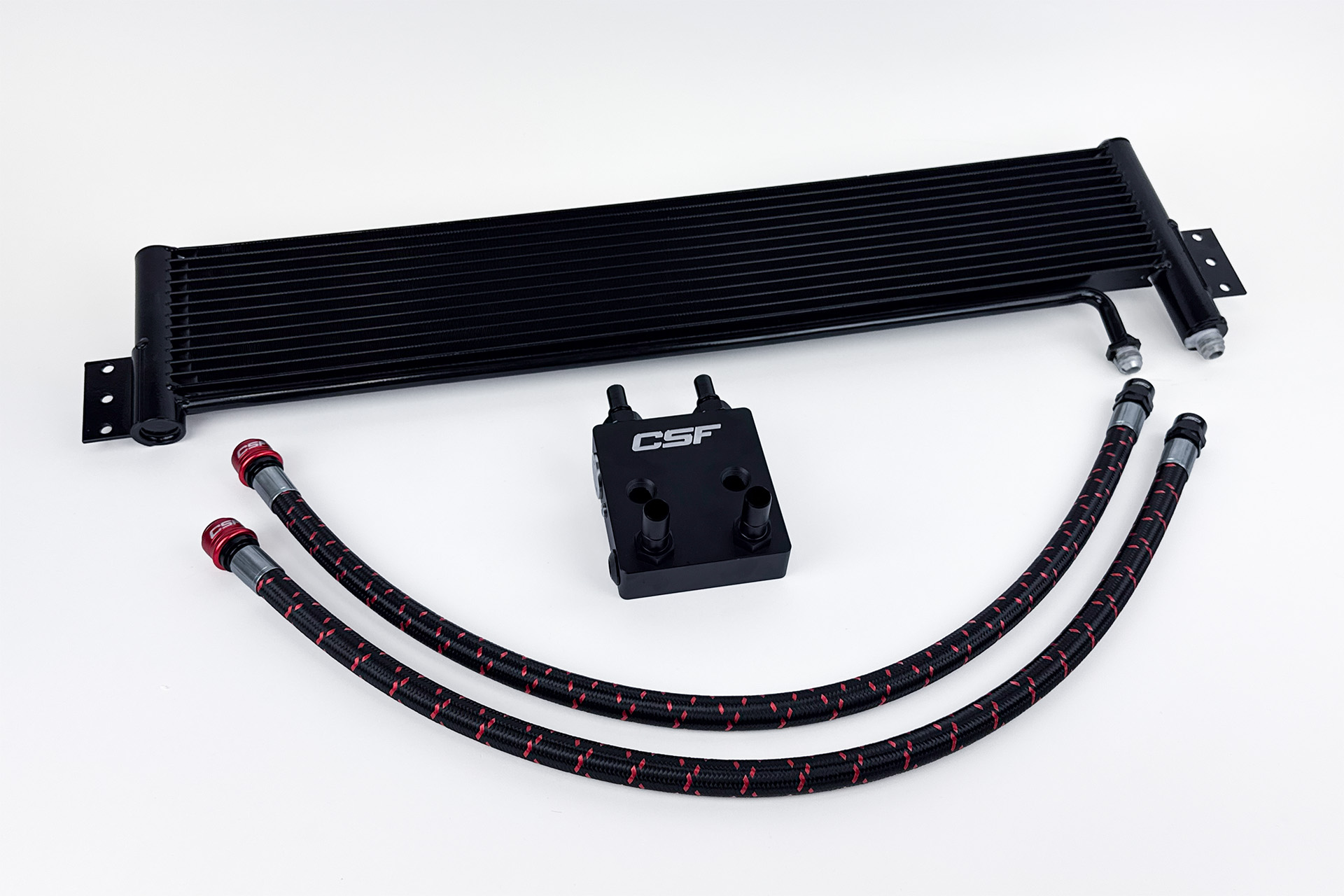

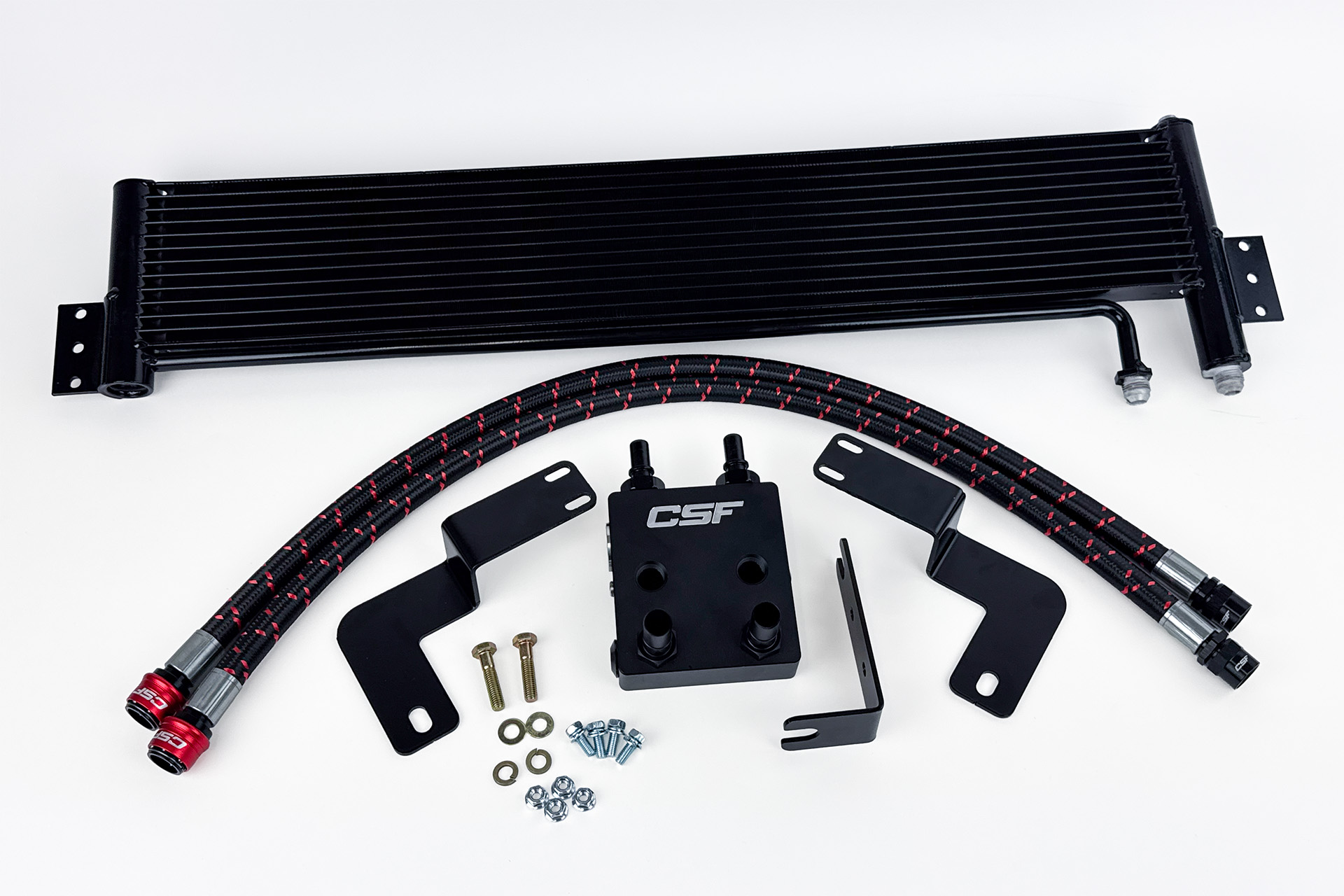

Product Images
Ford Bronco 2.7L External Transmission Oil Cooler Kit Features (CSF #8350)
- Made with CSF’s AC Condenser Technology Using a 1-Row Super-High Pressure 26mm 12-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
- 12 Rows of 8mm Tall Multi-Louvered Fins
- 100% All Aluminum TIG-Welded Construction
- Motorsports grade lines with patented quick release fittings by DYME PSI
- CNC Billet Machined Thermostatic Plate
- Includes all Brackets and Hardware
- Includes installation instructions
- 2-Year Limited Warranty
- Applications:
- 2021+ Ford Bronco 2.7L EcoBoost
- OEM Part Numbers:
- Ford: MB3Z 7A095 A
- MSRP: $TBD USD /MAP: $TBD USD
